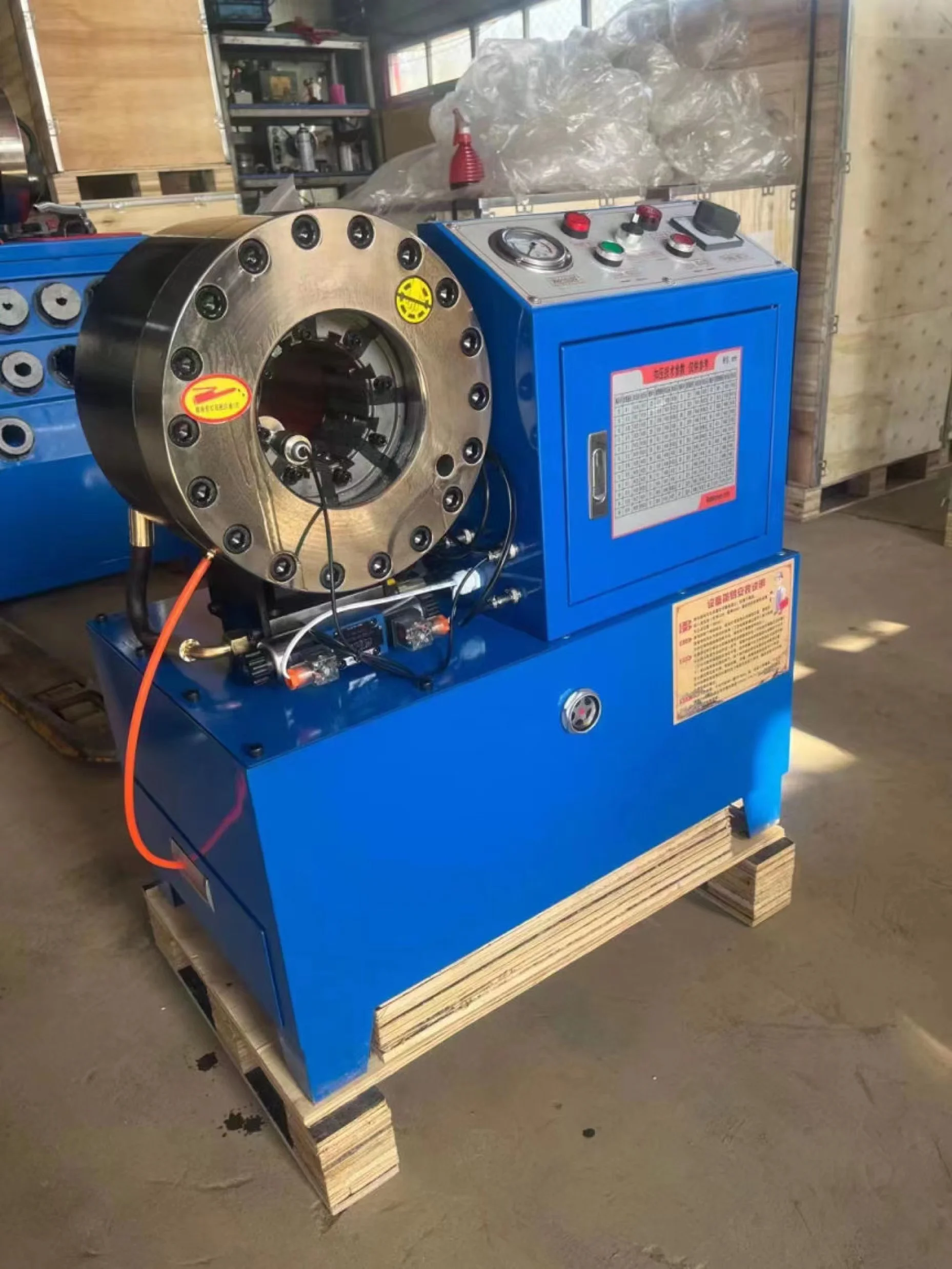

Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
Горячая Распродажа гидравлический шланг обжимной станок для резиновых труб делая машину
- Категория: Rubber Product Making Machinery >>>
- Поставщик: Hengshui,Xinchi,Hose,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1428.44 $* | 1499.68 $* |
| Aug-15-2025 | 1416.10 $* | 1487.8 $* |
| Jul-15-2025 | 1188.85 $* | 1247.75 $* |
| Jun-15-2025 | 1392.62 $* | 1462.83 $* |
| May-15-2025 | 1212.78 $* | 1273.39 $* |
| Apr-15-2025 | 1368.51 $* | 1436.73 $* |
| Mar-15-2025 | 1356.75 $* | 1424.71 $* |
| Feb-15-2025 | 1344.45 $* | 1411.32 $* |
| Jan-15-2025 | 1332.79 $* | 1399.16 $* |
Характеристики
Product Overview
XC-51WS-1 HOSE CRIMPING MACHINE
XINCHI hose crimping machine research and development of the ninth generation of products.
This model has absorbed the essence of the British hose shrinking machine. Its practicability and economy are the most perfect [6mm-51mm] model among similar products at home and abroad.
It is the replacement of other models.
This model has absorbed the essence of the British hose shrinking machine. Its practicability and economy are the most perfect [6mm-51mm] model among similar products at home and abroad.
It is the replacement of other models.
FEATURES AT A GLANCE
This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
1) Using forge steel machine head, more durabler than general steel.
2) CNC operation panel, simple controls and operation.
3) CNC system, high crimp accuracy which is within 0.01mm.
1) Using forge steel machine head, more durabler than general steel.
2) CNC operation panel, simple controls and operation.
3) CNC system, high crimp accuracy which is within 0.01mm.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Crimping Range | 6-51mm |
2 | Quantity Of Dies | 10 sets |
3 | Accuracy | 0.01mm |
4 | System Pressure | 31.5mpa |
5 | Voltage | 240v |
6 | Crimping Force | 600t |
7 | Work Efficiency | 200pcs/h |
8 | Maximum Open Diameter | 114mm |
9 | The Max Open Tolerance | 30±mm |
10 | Machine Dimension | 730*480*740mm |
11 | Package Dimension | 800*530*8700mm |
12 | Net Weight | 245kg |
13 | Gross Weight | 260kg |
PRODUCT CONFIGURATION

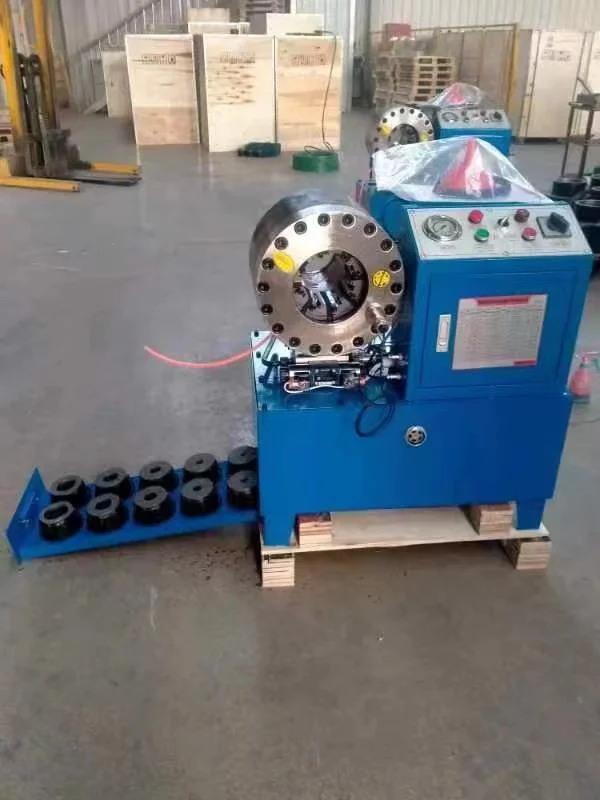

Dies

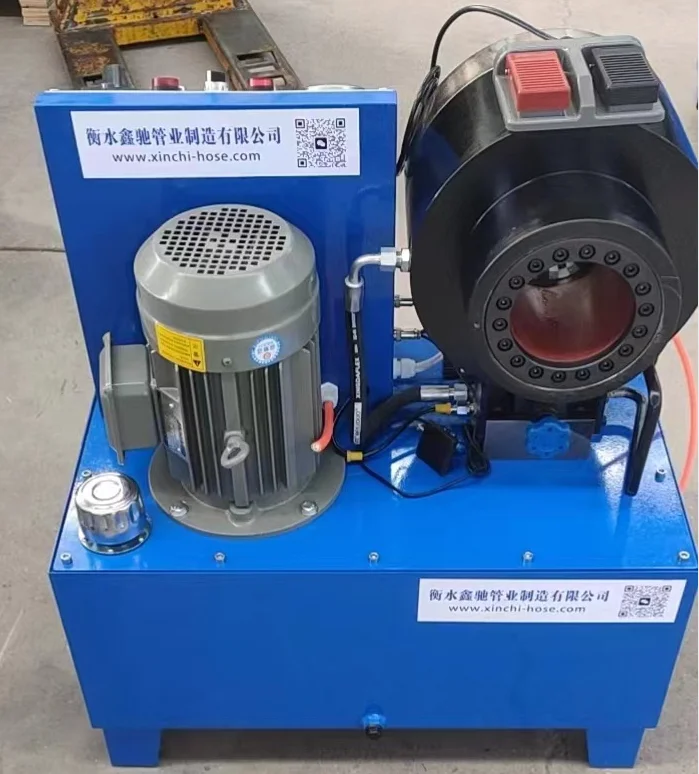

Motor

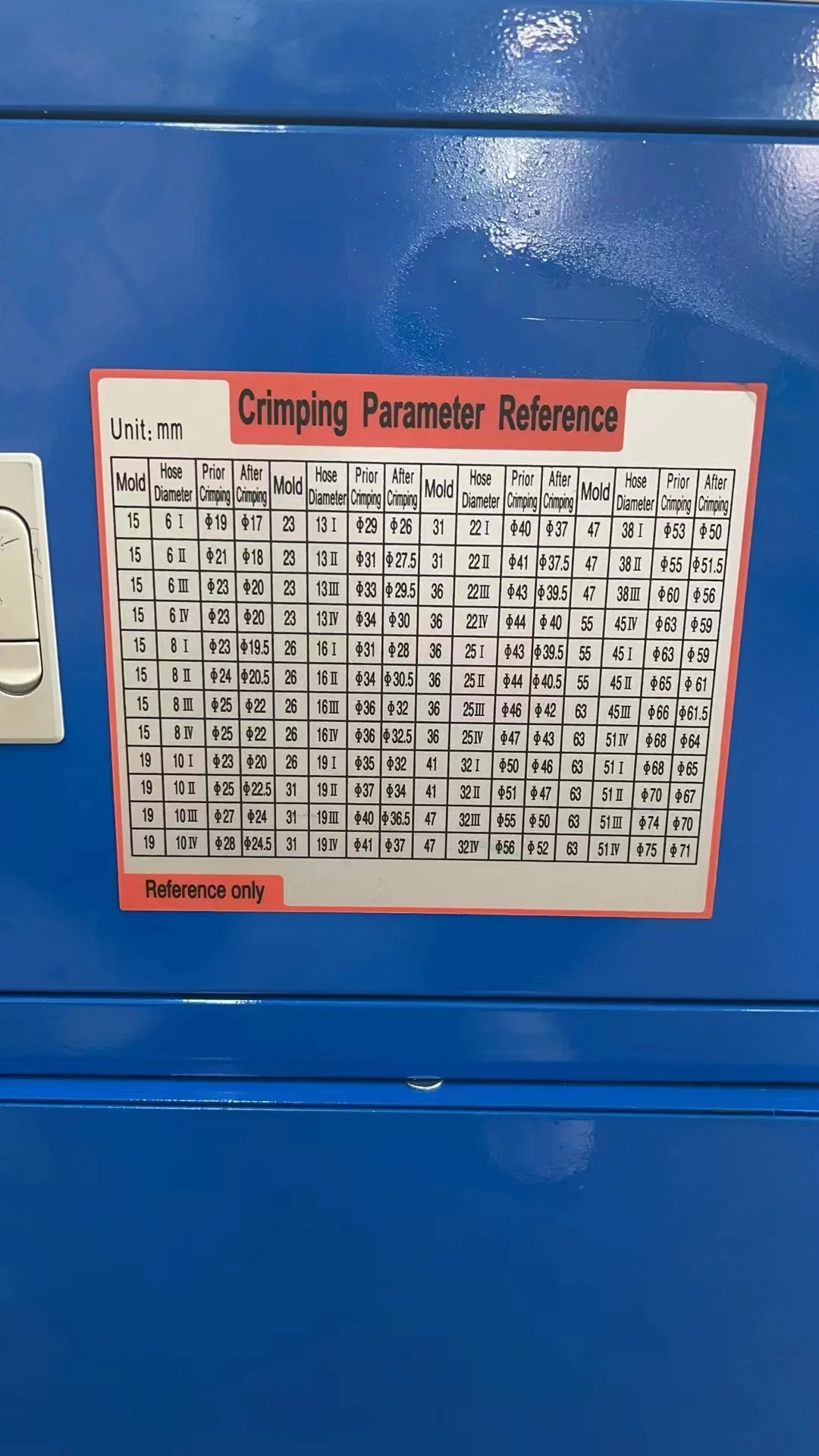

Crimping Parameter Reference
Successful Project
Project in Australia
Project in Sri Lanka
Project in Russia
