Модуль напряжения в ток 0-2 5 В 0-3 3 0-5 0-10 0-15 0-24 до 0 -20 мА/4 мА преобразователь сигнала передатчика

0-5V To 4-20mA
Description:
Power supply voltage: DC 12V~24V.
Input voltsge signal: 0~5V.
Output current: 4-20mA.
Module size :5.5*2.5cm
zero and span can be adiusted (potentiometer adjustment).
with the isolated nature of the non-optically isolated.

Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 0.5-1cm measuring deviation due to manual measurement.
1 cm = 0.3937 "

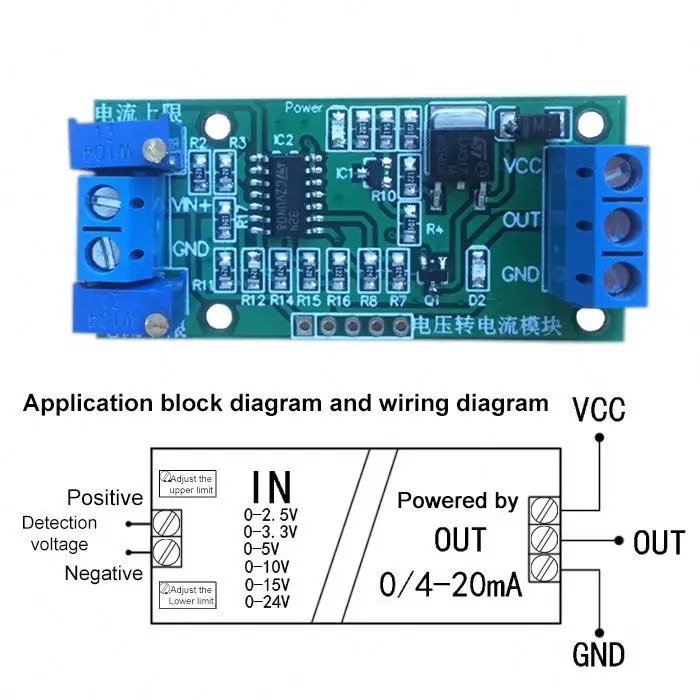

0-2.5V/3.3V/5V/10V/15V/24V to 0-20mA/4-20mA:
Product Features:
1. Power supply voltage 7-30VDC power supply voltage must be greater than the voltage to be converted
2. The voltage signal to be converted: 2.5V 3.3V 5V 10V 15V 24V
3. Output current: O-20mA or 4-20mA
4. Both zero point and full scale can be adjusted by potentiometer
5. The module has isolation properties, non-optocoupler isolation
