Odm oem Универсальный входной AC100V-120V выход 24 В 80 Вт непрерывный плавный светодиодный
- Категория: Lighting Transformers >>>
- Поставщик: Shenzhen,Keysun,Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 33.3 $* | 35.66 $* |
| Aug-15-2025 | 33.14 $* | 35.13 $* |
| Jul-15-2025 | 28.13 $* | 29.29 $* |
| Jun-15-2025 | 32.8 $* | 34.81 $* |
| May-15-2025 | 28.11 $* | 29.63 $* |
| Apr-15-2025 | 32.47 $* | 34.23 $* |
| Mar-15-2025 | 32.77 $* | 34.18 $* |
| Feb-15-2025 | 31.50 $* | 33.68 $* |
| Jan-15-2025 | 31.84 $* | 33.52 $* |
Характеристики
Products Description
odm oem universal Input AC100V-120V output 24V 80W continuous smooth led transformer 24v80w lighting transformer

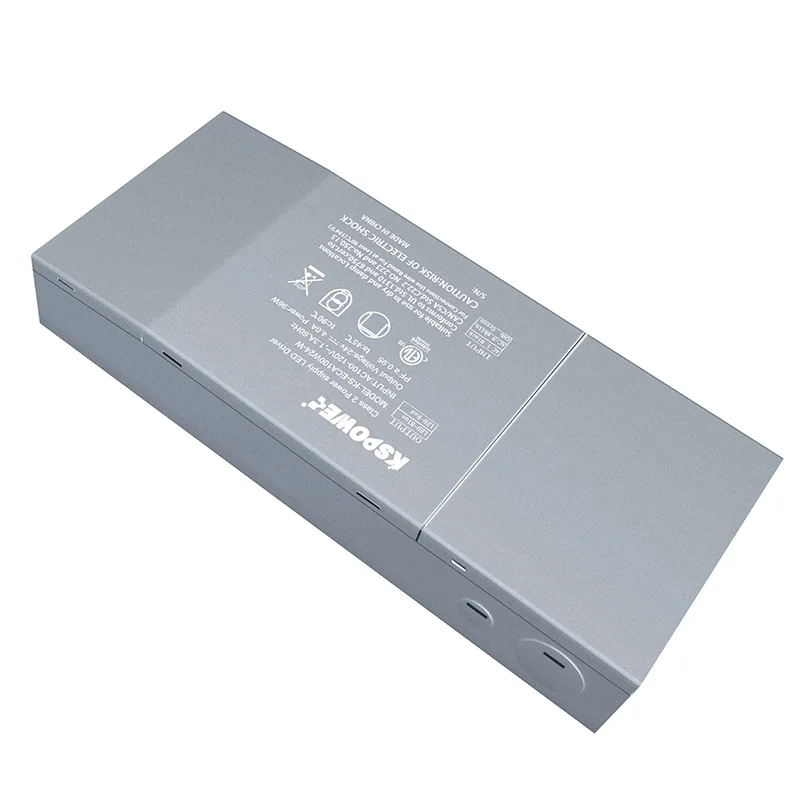

The KSPOWER - ET series triac dimmable led driver 80 Watt is one constant voltage solution, single channel, accept AC input voltage range from 100V to 120V, and 24 volt output voltage with junction box. The switching led power supply is a constant voltage 24V power supply, which is compatible with a single color or RGB light strip, string light, wireless router, ADSL Cat, HUB, switch, security camera, speaker, receiver and audio/video power supply. The class 2 led power transformer use low profile metal iron case, featuring Class 2 Class P design and safety protections for indoor use, the phase dim led driver provide 3 years warranty and outstanding led performance.
Input Voltage | 100-120Vac 60Hz & 200-240Vac | ||||||
Power Factor | PF≧0 95/120VAC at 80% load | ||||||
NO. | KSET-80W24 | ||||||
Output Voltage | 24V | ||||||
Rated Current | 3.33A | ||||||
Rated Power | 80W | ||||||
Ripple & Noise (max.) | 250mVp-p | ||||||
Certificate | ETL cETL Class2 CE Cert | ||||||
Dimension(L*W*H) | 200*85*37mm / 7.88*3.35*1.46in | ||||||
Features:
* 100-120Vac 60Hz & 200-240Vac 50Hz Input
* 24V PWM Output
* Single Channel & Constant Voltage mode
* Metal Iron Case with junction box
* ETL cETL Class2 CE Cert
* Enclosure: LISTED Enclosure with input and output wire
* For Forward & Reverse Phase, MLV, ELV
* High Power Factor, PF≥0.95
* Full Dimming Range:0-100%
* Flicker-Free
* Continuous & Smooth & Stable
* Protections: OCP, OVP, SCP, OTP
*For Dry Indoor Location
* 3 Years Warranty
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
* 24V PWM Output
* Single Channel & Constant Voltage mode
* Metal Iron Case with junction box
* ETL cETL Class2 CE Cert
* Enclosure: LISTED Enclosure with input and output wire
* For Forward & Reverse Phase, MLV, ELV
* High Power Factor, PF≥0.95
* Full Dimming Range:0-100%
* Flicker-Free
* Continuous & Smooth & Stable
* Protections: OCP, OVP, SCP, OTP
*For Dry Indoor Location
* 3 Years Warranty
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
Show Details
Connect Drawing
Product packaging
1. Each one put in one small inner brown box, then 40 pcs put in one standard carton.
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
Package | Piece/Carton(pcs) | Piece Weight(KG) | ||||
OEM package | 40 | 0.52 | ||||
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) | ||||
215*95*40 | 440*410*205 | 22 | ||||
Applications
Company Profile
Shenzhensshi Zhenhuan Electronic Co., Ltd and Shenzhen Keysun Technology Limited.
We’re an enterprise integrating industry and trade, which was founded in 2008, located in Shenzhen. Specializing in R&D,
production and sales of AC DC adapter, Power Supply Units, LED driver and Li-ion battery charger, with more than 15 years of experience. As a strength manufacturer, we have two factories in Shenzhen and Dongguan. We focus on finished product assembly and plug-in semi-finished product processing respectively. At present, we have more than 100 workers and a production area of 3,000 square
meters.We have our own brand--KSPOWER. Brand concept is “ Concentrate on doing one thing well and provide customers with a competitive and reliable products
production and sales of AC DC adapter, Power Supply Units, LED driver and Li-ion battery charger, with more than 15 years of experience. As a strength manufacturer, we have two factories in Shenzhen and Dongguan. We focus on finished product assembly and plug-in semi-finished product processing respectively. At present, we have more than 100 workers and a production area of 3,000 square
meters.We have our own brand--KSPOWER. Brand concept is “ Concentrate on doing one thing well and provide customers with a competitive and reliable products
