Product Description

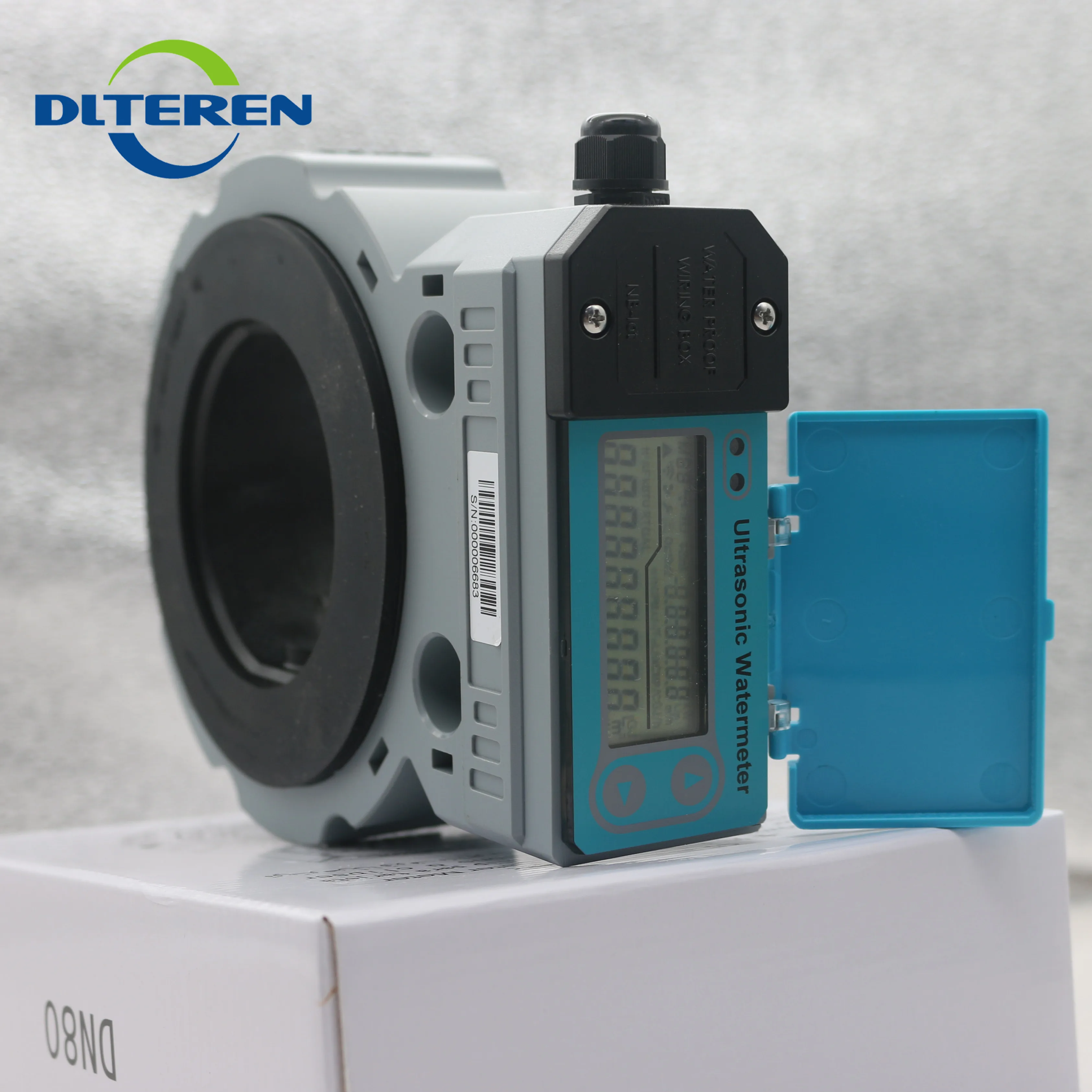

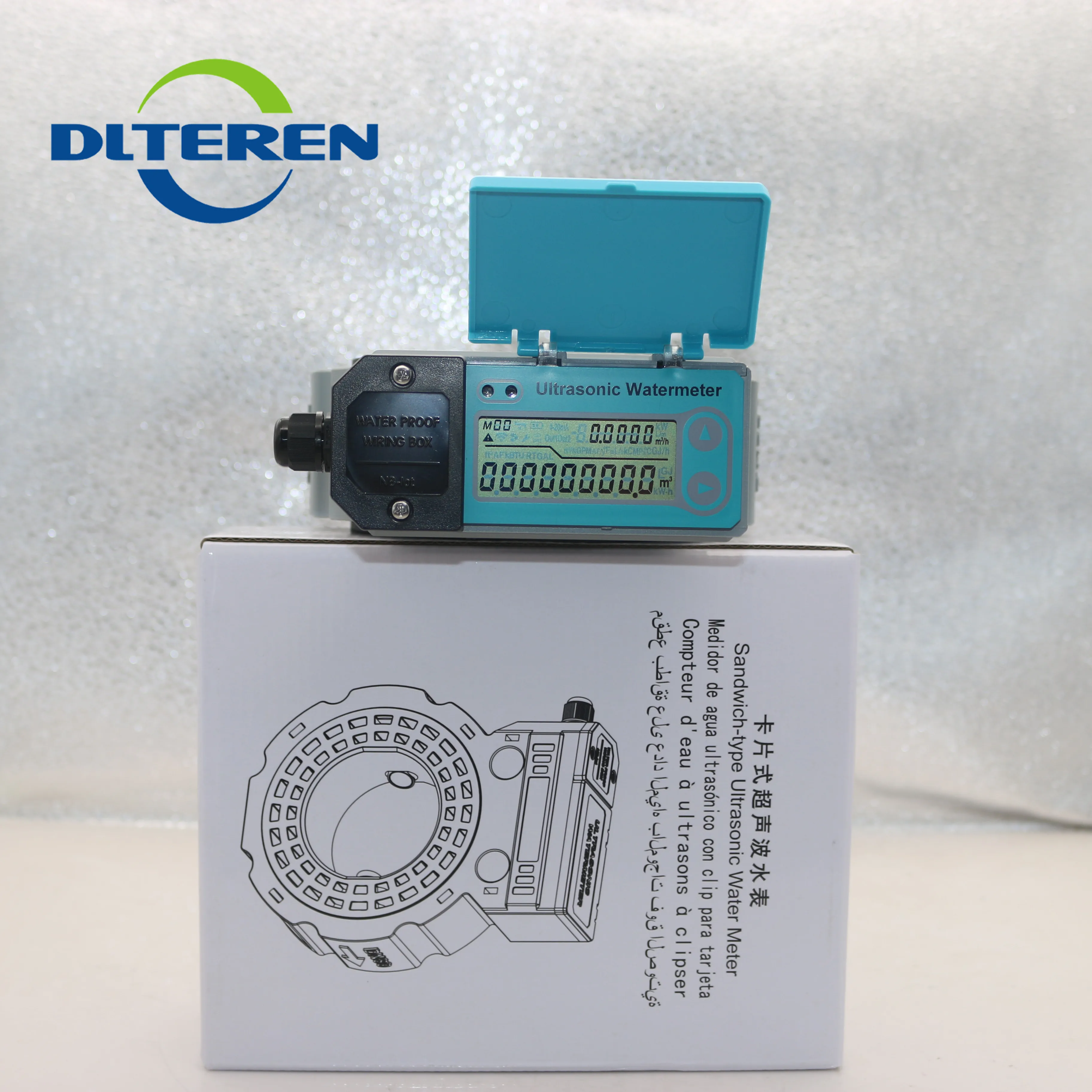

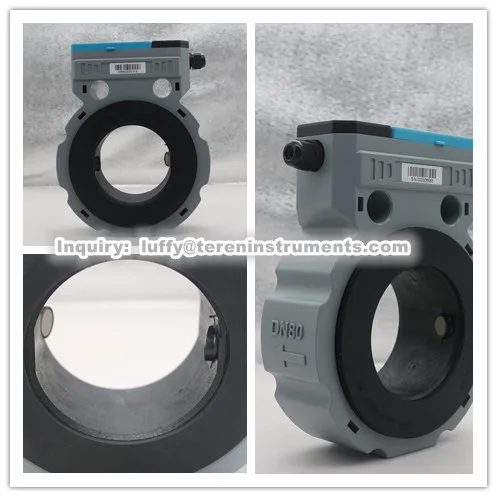

DTI-1-K Series Sandwich Type Ultrasonic Water Meter
♦ GENERAL
DTI-1-K Series Sandwich-type Ultrasonic Water Meter

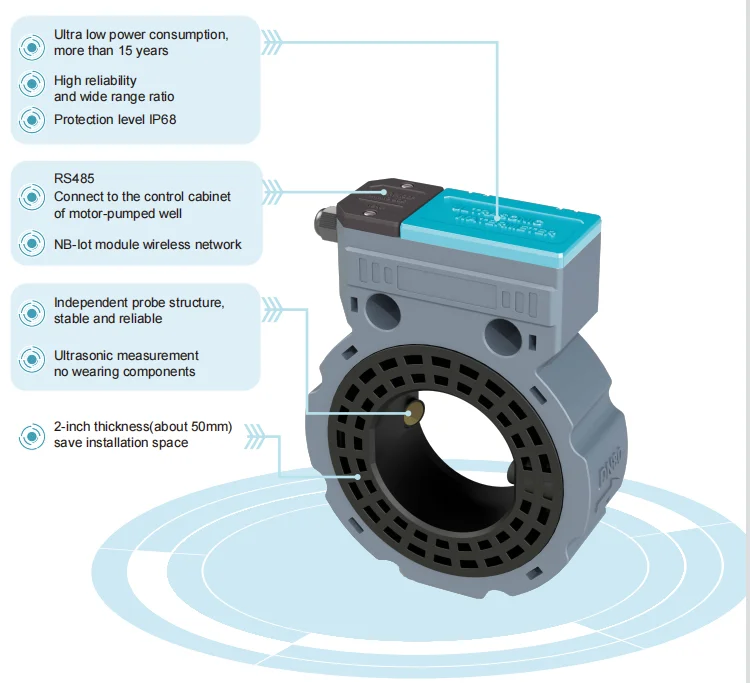

DTI-1-K series sandwich-type ultrasonic water meter is a new type of water meter specially designed for agricultural irrigation, garden management and water resources monitoring.
The water meter has some advantages,such as low cost, high measurement accuracy, low power consumption, stable and reliable operation and so on.
The thickness of the water meter is only 2 inches(50.8mm), which saves installation space, and the IP68 scheme is adopted for all parts, so that the water meter can be used in various harsh environment.
The uniquestructure of the water meter makes the measurement basically free from the influence of water quality and pressure loss, which is a major breakthrough in the agricultural irrigation water measurement.
The smart water meter also uses a signal acquisition hardware with a dynamic range of 30dB, so it can resist medium scaling inside the pipe and is suitable for measurement of muddy water with sediments. This smart water meter adopts waterproof sealant and can be immersed in water. Compared with the traditional water meter, the new meter is smaller in size, lower in failure rate, more reliable in function and cheaper in price.
Performance | Parameters | ||
Convertor | Accuracy | ±1 % (0.3m/s | |
Display | Multi line 9 digital accumulative flow, 6 digital instantaneous flow and various of state prompt | ||
Signal Output | 2 way OCT output, can simulate dipulse output of mechanical water meter. | ||
Communication Interface | Physically independent RS485 and infrared interface. LORA/ NB-IOT, WIFI, USART are optional. | ||
Operating Mode | Two capacitive touch keys support sliding operation. | ||
Pipe Installation Condition | Pipe Diameter | Single Channel DN50/DN65/DN80, Dual Channel: DN100/DN125/DN150 | |
Installation | Straight pipe should be satisfled:upstream 5D, downs tream 3D,20D from the pump(D is pipe diameter) | ||
Measuring Medium | Type of Liquid | Water | |
Temperature | 0~50℃ | ||
Flow velocity | 0.05m/s~7m/s | ||
Working Environment | Temperature | -30~60℃ | |
Humidity | IP68, can measure under water depth ≤2 meter | ||
Power Supply | Battery | 3.6V4Ah Lithium battery, > 10 Years, Automatically save electricity fuixtion under the empty pipe or zero flow velocity | |
Flow Meter Dimension:
Related Products
DTI-200F Wall mount ultrasonic flow meter
Teren-DTI-200F Wall mount ultrasonic flow meter
Item name: clamp-on flow meter
Flow rate: 0 ~ 6m/s
Accuracy level: 1.5%(FS)
Teren-TDS-100M Modular ultrasonic flowmeter
Accuracy: ±1%
Pipe Size: 15mm - 6,000mm
Flow rate: 0 ~ 32m/s
DTI-200F2 Ultresonic Flow Meter
1. Transducer Type: Insertion wetted transducer / In line type transducer / Clamp on type transducer
2. Display: 96 segments LCD ,display 44 different Menu windows
3. If you connect temperature sensors and flow sensors , this water meter also can monitor flow, temperature and energy at the same time.
Double beam ultrasonic sensors for high accuracy and reliable operation
Teren-TUF-2000W Sandwich insertion water meter
Water, sewage, seawater (Other liquid need to customize), liquid should be full with pipe.
Packing & Delivery
Whtever you want to use DHL, FEDEX, TNT, AIR FREIGHT OR SEA FREIGHT, we can get a cheaper unit price for you. And we promise to pack products seriously to ensure there will be no damage when it arrive at your door.
Our Service
1. Free OEM service,makes the products to be yours only.
2. R&D, customers provide their own idea or option, we could change the appearance,logo,color,program, output.etc
3. Technical support, we offer free support whatever you know them well or not, we will solve your measuring problem all products' life.
4. Better After Sale,we promise to repair and maintain the products for free in 2 years if there is any natural damage.
5. Online service and inquiry, we promise to reply any of your information within 12 hours.
6. Design and printing, we offer you product's designing and handbook's revising.
Our Company
Teren instruments was established in 2007, located in the beautiful coastal city –Dalian, China.
We main focus on running of instruments, main cover ultrasonic flow meter, ultrasonic level meter, ultrasonic water meter, electromagnetic, turbine, vortex, oval gear flow meter, radar Level meter and other series industry instruments.
