Products Description

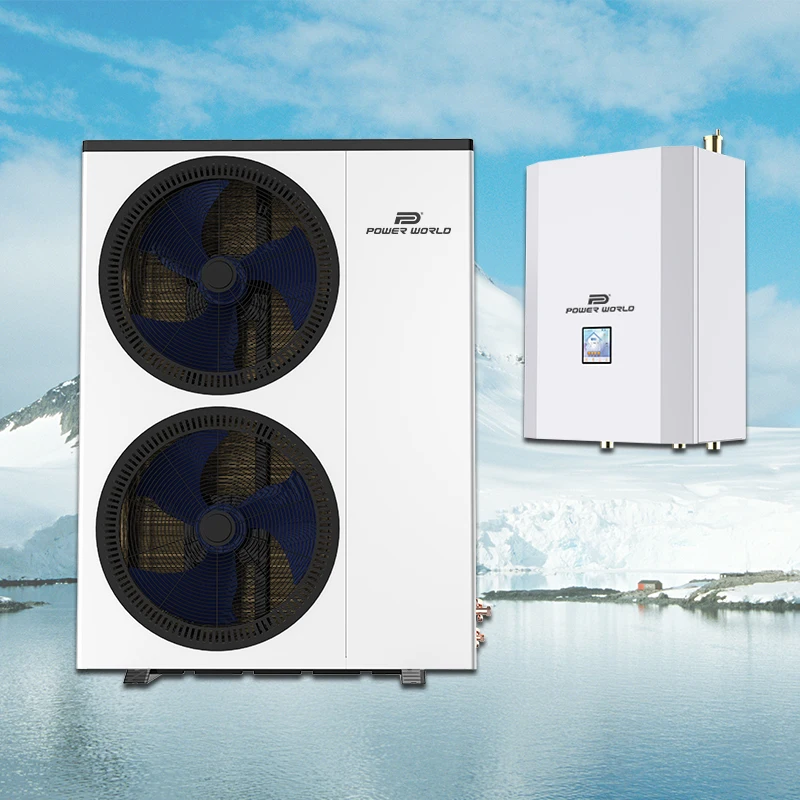

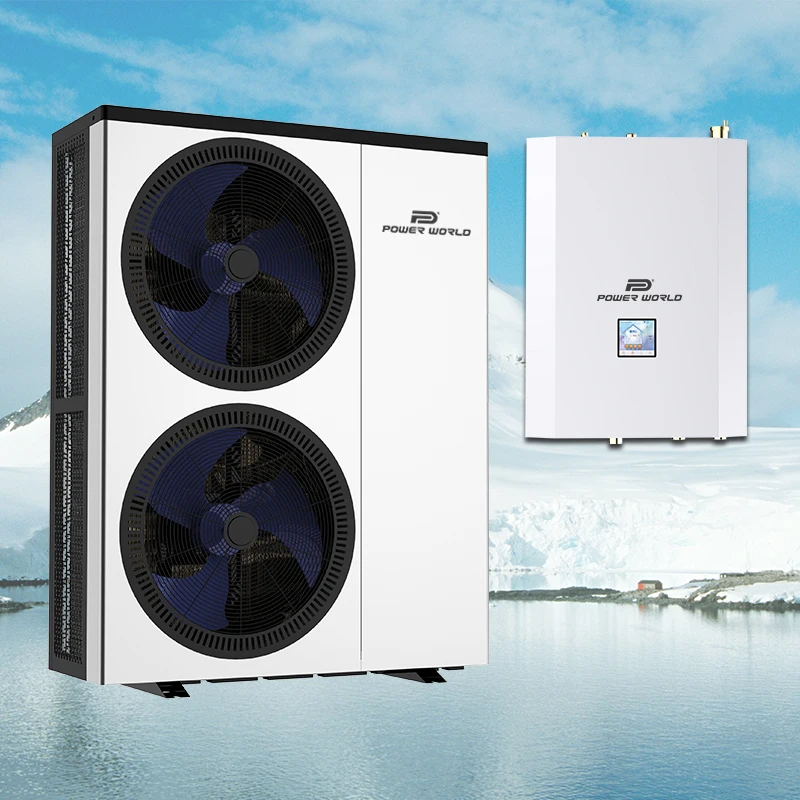

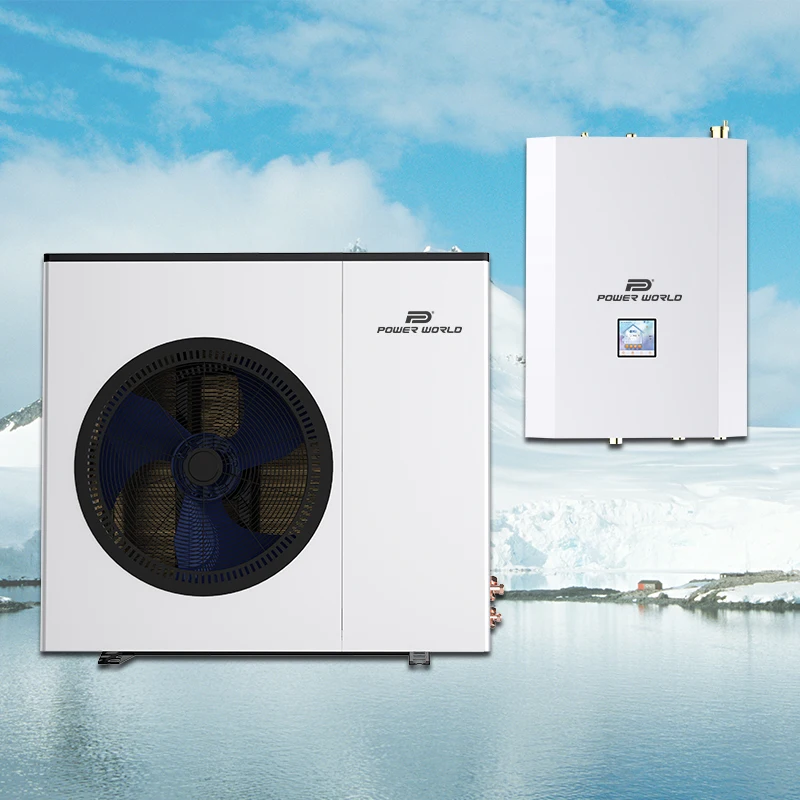

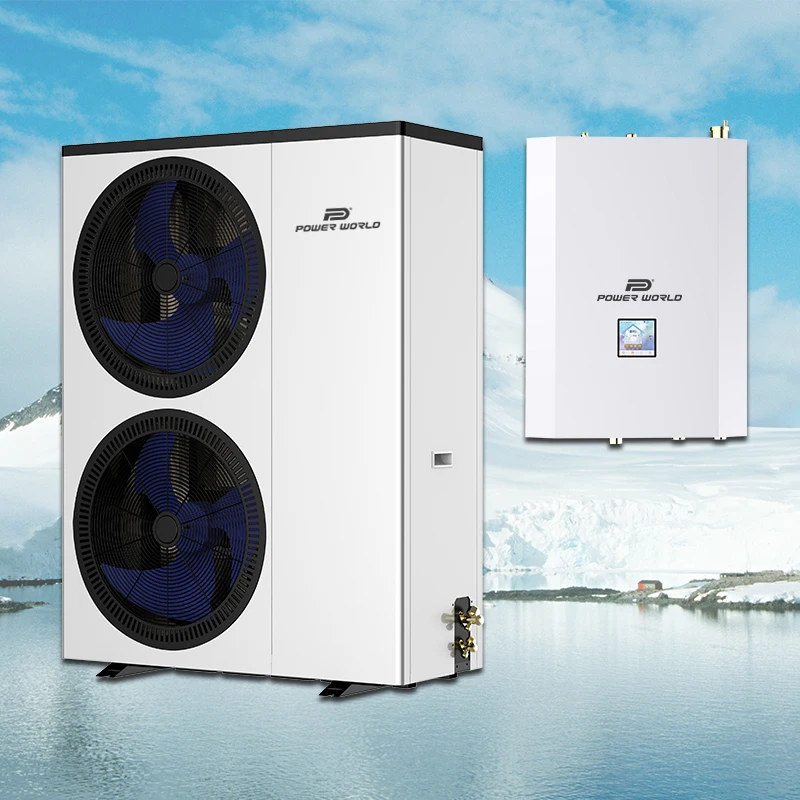

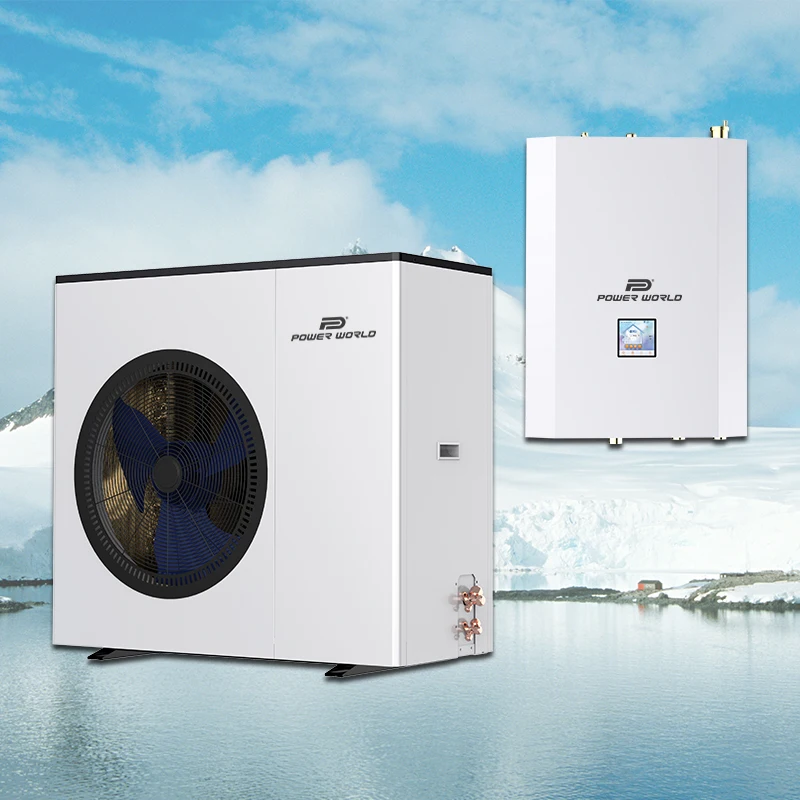

Power World R32 slpit EVI Full DC inverter Heat Pump for Heaing Cooling,DHW
Split EVI air to water heat pump is specially designed for house heating and sanitary hot water in cold area. The ambient temperature range is -25℃ to 43. It can use safely in -25 ambient with strong low-temperature heating capacity.

1.Heating Capacity range: 12.6kW, 22kW.
2.EVI compressor special designed for high water temperature.
3.Water exchanger equipped with high efficiency tube in shell heat exchanger
4.Intelligent controller and adjustment by quick mind microprocessor.
5.Split design with indoor unit and outdoor unit or monoblck design, easy for installation.
6.Automatic defrosting function included (With reverse valve inside).
7.Can be used for floor heating, fan coils, water heaters and also modern radiators.
8.with perfect system for defrosting which can let the units work under ambient temperature of -20 Centigrade
9.R32a refrigerant, environmentally friendly – Green energy, no CO2 emissions
Certificate:CE, CB, RoHS, Conform to EN14825,EN14511 test standard , ISO9001, ISO14001.
OPTIONAL:Galvanized metal cabinet or stainless steel cabinet


*Full DC Inverter Technology
Adopting the most advanced low-temperature Enhanced Vapors Injection compressor technology. Split EVI heat pump delivers higher heating capacity at low evaporation temperature thereby better responding to heating requirements than normal air source heat pump, it also results in less supplementary heating to cover the full heating demand on the coldest days. It has been further optimized to enable heat pumps to efficiently produce water temperature up to 60 DC during cold winter time.




*Intelligent Water Temperature Adjustment
Before the indoor temperature reaches the set value, the Panasonic rotary compressor delivers high levels of efficiency, enabling the unit to operate at high frequency so that it can heat water or provide house heating/cooling at a faster speed.

The unique control logic enables our EVI split heat pump to adjust the outlet water temperature intelligently,according to the real-time changing ambient temperature. Thanks to this function,our users can not only enjoy greater comfort, but also save more bills.




*Anti-freezing Protection
Consisting of an indoor unit that blows air over evaporator coils and an outdoor unit that powers the system, split heat pumps have many advantages to offer homeowners. For example, the split model design can better avoid freezing problems. The system will implement automatic anti-freezing protection by detecting system water temperature.


*Intelligent Defrosting
Power World EVI split type DC inverter heat pump series adopt the intelligent defrosting technology to make optimal decisions on whether it is time to defrost or not. In this way,the unit is able to minimize energy consumption and improve customer satisfaction.







*Smart Control
The intelligent controller is adopted to realize the linkagecontrol between the heat pump unit and the terminal application end. With theCascade function, multiple heat pumps can be controlled at once for greateroperating efficiency. The WIFI APP enables users to operate their unitsthrough a smart phone wherever and whenever they are.





With below features, Power World Easylife Series can be widely used:

1.Heating, Cooling,and DHW functions for all year round running.
2.EVI technology ensures smooth operation from -25°C to 43°C.
3.Various Capacity Selection from 8~30 kW for different houses.
4.Wide Voltage Range (170-254V for single phase, 320-460V for 3 phase)




5 Modes
Mode 1: Central Hot Water: Constant Temperature, Sufficient Water Volume, 24-hour Instant Supply.
Mode 2: Central Cooling: Water Cooled Air Conditioning, Soft Air Supply, Comfortable for Human Body.
Mode 3: Whole House Heating: Water Cycled Floor Heating,Well-distributed Heat Dissipation, Healthy & Energy Saving.
Mode 4: Hot Water + House Cooling: Meet the Requirements of Both Central Hot Water and Air Conditioning.
Mode 5: Hot Water + House Heating: Meet the Requirements of Both Central Hot Water and Room Heating.





1.With Panasonic rotary compressor and DC inverter brushless fans, our DC inverter heat pumps adopt new noise reduction measures so that the sound of the unit is controlled at a satisfactory level.
2.With the Cascade function, multiple heat pumps can be controlled at once for greater operating efficiency. The WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.
3.Hidden screw design is very popular with European clients,the whole unit is very simple and beautiful.


PW030-DKZLRS-C
(R32/R410a)
PW050-DKZLRS-C
(R32/R410a)


Product model
PW040-DKZLRS-C
PW060-DKZLRS-C
Heating
Heating Capacity Range (kW)
6.5~12.6
10.5~22
Heating input Range (kW)
1.41~2.99
2.27~5.2
current Range (A)
6.45~13.7
4.06~9.30
COP Range
4.21~4.62
4.23~4.63
Cooling
Cooling capacity Range (kW)
4.2~8.2
7.2~14.2
Cooling input power(kW)
1.30~3.33
2.17~5.55
current Range (A)
5.96~15.3
3.88~9.93
EER Range
2.46~3.23
2.56~3.32
DHW
Heating Capacity Range (kW)
5.5~10.5
8.8~17.5
Heating input Range (kW)
1.42~3.42
2.24~5.61
current Range (A)
6.51~15.7
4.01~10.0
COP Range
3.07~3.86
3.12~3.93
Refrigerant
R32/R410a
Power supply
230V/1Ph/50-60Hz
380V/3Ph/50-60Hz
Working area
-30~43℃
Water pressure drop (kPa)
25
30
IP Grade (Level of protection)
IPX4
IPX4
Anti-electric shock Rate
I
I
Noise (dB(A))
≤53
≤58
Net weight/Gross weight(kg)
90/100
140/155
Water Connectione (inch)
1(DN25)
Heating Side Water Connection(inch)
1(DN25)
Hot Water Side Water Connection (inch)
1(DN25)
Body size(W*D*H) (mm)
1030×475×970/
700×500×272
1000×480×1380/
700×500×272
ErP Level (35°C)
A+++
A+++
ErP Level (55°C)
A++
A++
Compressor Brand
Panasonic
Four-way valve
Sanhua
Expansion valve
Sanhua
Three-way valve
Honywell
Water Pump Brand
SHIMGE
Water Head(m)
9m
12m
Expansion Tank(L)
2L
5L
Electric Heater(kW)
3
Operating water temperature (℃) DHW
20~55℃
Operating water temperature (℃) heating
20~50℃
Operating water temperature (℃) cooling
7~35℃
Remark:
Heating working condition: Inlet water temperature 30℃, Outlet water temperature 35℃, Dry bulb temperature 7℃, Wet bulb
temperature6℃.
Cooling working condition:Inlet water temperature 12℃, Outlet water temperature 7℃, Dry bulb temperature 35℃, Wet bulb temperature
24℃.
DHW working condition: Inlet water temperature 15℃, Outlet water temperature 55℃, Dry bulb temperature 7℃, Wet bulb temperature 6℃
.


PW030-DKZLRS-A
PW040-DKZLRS-A
(R32)
PW050-DKZLRS-A
PW060-DKZLRS-A
(R32)


Product model
PW030-DKZLRS-A
PW040-DKZLRS-A
PW050-DKZLRS-A
PW060-DKZLRS-A
Heating
Heating Capacity Range (kW)
1.57~8.40
4.40~13.00
5.9~18.2
7.5~23.0
Heating input Range (kW)
0.32~1.87
0.90~3.02
1.20~4.11
1.53~5.23
current Range (A)
1.42~8.30
1.39~4.68
1.86~6.37
2.37~8.11
COP Range
4.49~4.91
4.30~4.90
4.43~4.92
4.40~4.90
Cooling
Cooling capacity Range (kW)
0.99~6.22
2.80~8.20
3.81~11.53
4.73~14.6
Cooling input power(kW)
0.29~2.18
0.85~3.31
1.11~4.05
1.39~5.14
current Range (A)
1.28~9.67
1.32~5.13
1.72~6.28
2.16~7.97
EER Range
2.85~3.41
2.48~3.29
2.85~3.43
2.84~3.40
DHW
Heating capacity Range (kW)
1.28~6.81
3.52~10.50
4.80~14.72
6.1~18.5
Heating input Range (kW)
0.31~2.13
0.88~3.39
1.17~4.60
1.53~5.97
current Range (A)
1.38~9.45
1.36~5.26
1.82~7.15
2.37~9.26
COP Range
3.2~4.1
3.1~4.0
3.2~4.1
3.1~4.0
Refrigerant
R32 (GWP only 1/3 of R410a)
Power supply
230V/1Ph/50-60Hz
380V/3Ph/50-60Hz
Working area
-25~43℃
Compressor Brand
Panasonic DC Inverter Twin Rotary
Body size(W*D*H) (mm)
970×475×835
1100×475×985
1050×480×1330
1050×480×1330
Packing size(W*D*H)(carton)
1028×520×974
1120×515×1108
1100×530×1470
1100×530×1470
Packing size(W*D*H)(Polywood)
1048×520×974
1140×515×1110
1120×530×1470
1120×530×1470
Loading quantity (20GP/40GP/40HQ)
44/88/88
44/88/88
22/42/42
22/42/42
