DP88 новый HD видео 15 клавиатура SIP дверной телефон
US $10.00-$299.00
Совместимость с HD-видео VoIP и расширенные Режимы вызова для эффективной связи сенсорным экраном домофонной
- Категория: Broadcast\u00A0Intercom\u00A0Systems >>>
- Поставщик: Spon,Communications,Co.,Ltd.Spon,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 80154.60 $* | 84162.19 $* |
| Aug-19-2025 | 79480.12 $* | 83454.31 $* |
| Jul-19-2025 | 66682.3 $* | 70016.65 $* |
| Jun-19-2025 | 78133.91 $* | 82040.99 $* |
| May-19-2025 | 68030.98 $* | 71432.68 $* |
| Apr-19-2025 | 76786.37 $* | 80625.20 $* |
| Mar-19-2025 | 76112.62 $* | 79918.11 $* |
| Feb-19-2025 | 75439.8 $* | 79211.36 $* |
| Jan-19-2025 | 74765.5 $* | 78503.19 $* |
Характеристики
Products Description
Key Features
1. 7" HD touch screen (1280x800 resolution).
2. Two-way full duplex video communication with IP video intercom master station.
3. Hands-free wall mount station with built-in microphone and speaker.
4. Built-in HD digital camera with H.264 encoding.
5. Compatible with mainstream VoIP telephone systems.
6. VoIP integration for two-way voice communication.
7. Works with SPON® XC-9000 audio management software for advanced features.
8. Three calling modes: One-touch Calling, Dial Calling, and Calling List.
2. Two-way full duplex video communication with IP video intercom master station.
3. Hands-free wall mount station with built-in microphone and speaker.
4. Built-in HD digital camera with H.264 encoding.
5. Compatible with mainstream VoIP telephone systems.
6. VoIP integration for two-way voice communication.
7. Works with SPON® XC-9000 audio management software for advanced features.
8. Three calling modes: One-touch Calling, Dial Calling, and Calling List.

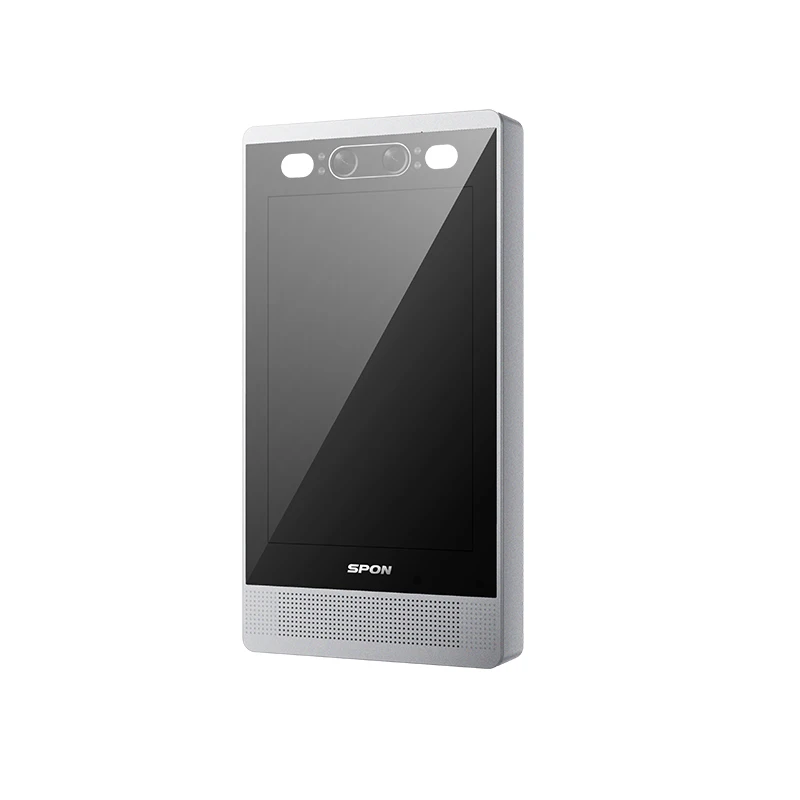

【Front】
1. Fill-in light (Reserved)
2. Binocular camera
3. Touch screen
4. Speaker
5. Microphones
1. Fill-in light (Reserved)
2. Binocular camera
3. Touch screen
4. Speaker
5. Microphones

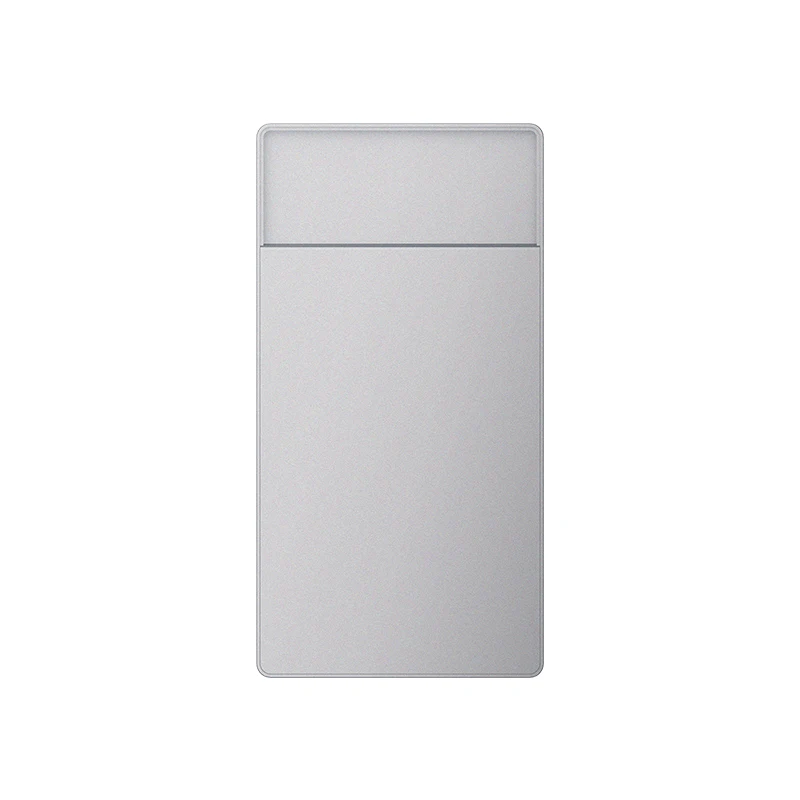

【Back】
1. Network port: Connects the device to the network switch for server login. Supports POE power supply (Note: Requires network cables of five or more specifications for POE power supply).
2. Ports on the temperature measuring module: Reserved.
3. Power interface: Uses a DC24V/1A adapter for device power.
1. Network port: Connects the device to the network switch for server login. Supports POE power supply (Note: Requires network cables of five or more specifications for POE power supply).
2. Ports on the temperature measuring module: Reserved.
3. Power interface: Uses a DC24V/1A adapter for device power.
Dimensional Drawing
Connection Diagram
Product Parameters
Power Supply: | DC 12V/1.5A or PoE (IEEE802.3af) |
Power Consumption: | ≤6W |
Network Protocol: | SIP 2.0 (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP |
Audio Sampling Rate: | 8kHz-44.1kHz, 16bit |
Transmission Bit Rate: | 8kbps-320kbps |
Video transmission Bit Rate | 512Kbps-1Mbps |
Video Coding | GVA |
S/N (Signal-to-Noise) Ratio: | ≥84dB |
THD (Total Harmonic Distortion) | ＜1% |
Interface: | 1×RJ45 Ethernet Port, 2×Relay Input, 2×Relay Output, 1×Power Input |
Dimensions: | 120×231×36mm |
Weight: | 1.0kg |
Standard Accessories: | 1×Waterproof Connector, 1×Mounting Plate，2×wire Contact Cable, Connector, 1×Warranty Card, 1×Installation Manual |
Optional Accessories: | DC 24V/1A Power Adapter (US/EU/UK/AU) |
Company Profile
With over 20 years of experience in audio IoT research, development, and production, SPON stands at the forefront of the industry. Our state-of-the-art acoustic noise reduction laboratory, fully automated SMT factory, and spacious company premises spanning 15,000 square meters reflect our commitment to innovation and excellence.
Our Advantages
SPON's advantages lie in our technological expertise, customized approach, extensive experience, comprehensive support, state-of-the-art facilities, and unwavering commitment to quality. These factors set us apart and make us the preferred choice for audio technology solutions in the IoT industry.
SPON's Proud Team
FAQ
Q: How can I contact SPON's customer support team?
A: You can reach out to our customer support team through our hotline, email, or online support platform. Our dedicated team will promptly respond to your inquiries and provide the necessary technical supportand solutions.
Q: Does SPON offer OEM/ODM services?
A: Yes, SPON provides OEM/ODM services. We have extensive experience in working with clients to develop and manufacture customized products according to their specific requirements and branding needs.
Q: What are the benefits of choosing SPON for OEM/ODM services?
A: By choosing SPON for OEM/ODM services, you can benefit from our expertise in audio technology, extensive manufacturing capabilities, and dedicated team of professionals. We can help you bring your ideas to life, offering flexible customization options, quality assurance, and timely delivery of products. Our goal is to collaborate closely with you to create innovative and tailored solutions that meet your unique business needs.
