Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
H05VV5-F Электрический кабель гибкий медный провод
- Категория: Control Cables >>>
- Поставщик: Shanghai,Hongsheng,Wire,&,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.51 $* | 0.74 $* |
| Aug-15-2025 | 0.32 $* | 0.98 $* |
| Jul-15-2025 | 0.68 $* | 0.5 $* |
| Jun-15-2025 | 0.33 $* | 0.48 $* |
| May-15-2025 | 0.63 $* | 0.89 $* |
| Apr-15-2025 | 0.78 $* | 0.15 $* |
| Mar-15-2025 | 0.13 $* | 0.84 $* |
| Feb-15-2025 | 0.1 $* | 0.55 $* |
| Jan-15-2025 | 0.1 $* | 0.58 $* |
Характеристики
Product Description
Control Cables Control Cable Control Cables Control Cables Control Cables
Control Cables Control Cables Oil Resistant Flexible Control Cable Control Cable Control Cable
Specifications Sheet List Oil Resistant Control Cable Oil Resistant Control Cable Oil Resistant Control Cable
It shows us one of conductor dimensions.Other size from 0.5mm2 to 35mm2 (20AWG to 2 AWG).
Construction
1.Conductor : Fine-wire strand made of bare copper wires
2.core insulation of polyvinylchloride (PVC).
3.Three core or more with protective greenyellow conductor in the outer layer.
4.The outer sheath, based on PVC, is extremely resistance to oil and chemicals.
Technical data
Temperature range : -40°C to 105°C
Rated voltage U0/U : 300/500 V
UL/CSA : 600V
Test voltage : 3000 Volt
Occasional flexing : 15 x outer diameter
Fixed installation : 5 x outer diameter
Approval : DIN VDE 50525-2-51
Product features
--- Flame-retardant according IEC 60332-1-2
---Good chemical resistance
---Oil-resistant according to DIN EN 50290-2-22
Detailed Image

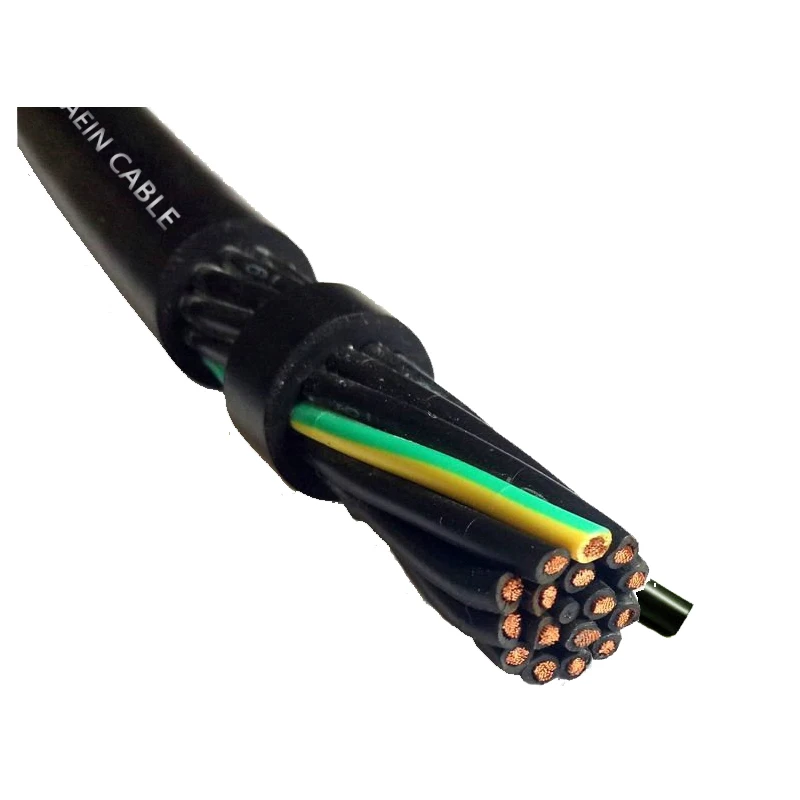

H05VV5-F Multi-core Flexible Cable Oil Resistant
More information
Oil-resistant PVC control cable for a wide range of applications, wide choice of standardized lengths and individual cuts, VDE certificate of conformity with factory surveillance, more than 140 items with up to 100 conductors
For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
Dry or damp rooms that are subject to medium mechanical loads
Name | H05VV5-F Multi-core Flexible Cable Oil Resistant |
<<Application>> | Oil resistant flexible control cable may be used for machine tools, control systems, assembly lines, CNC machining centers, grinding machines, bottling equipment, and data processing equipment. Connections between control panels and machines is another common application for oil resistant flexible control cable. |
Packaging
H05VV5-F Multi-core Flexible Cable Oil Resistant packaging
Name | H05VV5-F Multi-core Flexible Cable Oil Resistant |
Package | Packaging with Rolls / Spools / Drums or as custom's requirement |
Factory&Lab
Strict Inspection
One process by one process,make sure all production quality safty before packaging
Case & Usings
Our Company
Why choose us
1.We are a factory not a trading company, and the price is favorable. We are a high-tech enterprise, The top ten wire and cable manufacturer in China.
2.established in 1993, with more than 20 years of professional research and development design, production experience, has been widely recognized in the industry and has a good market reputation.
3.High production efficiency leads to short delivery date.
4.Various products can be designed and produced according to GB standard, IEC standard, British BS standard, Australian AS standard, German DIN standard, EU HD standard, American UL and other standards.
Certifications
Our Service
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-20 days, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free .
Q: What is your terms of payment ?
A: Payment: 30% T/T advance payment. 70% T/T balance payment after getting B/L
Q: How does your factory do regarding quality control?
A: "Quality is our culture." We always attach great importance to quality controlling from the very beginning to the very end.
Q: How can I get some samples?
A: We are honored to offer you samples according your inquiry.
