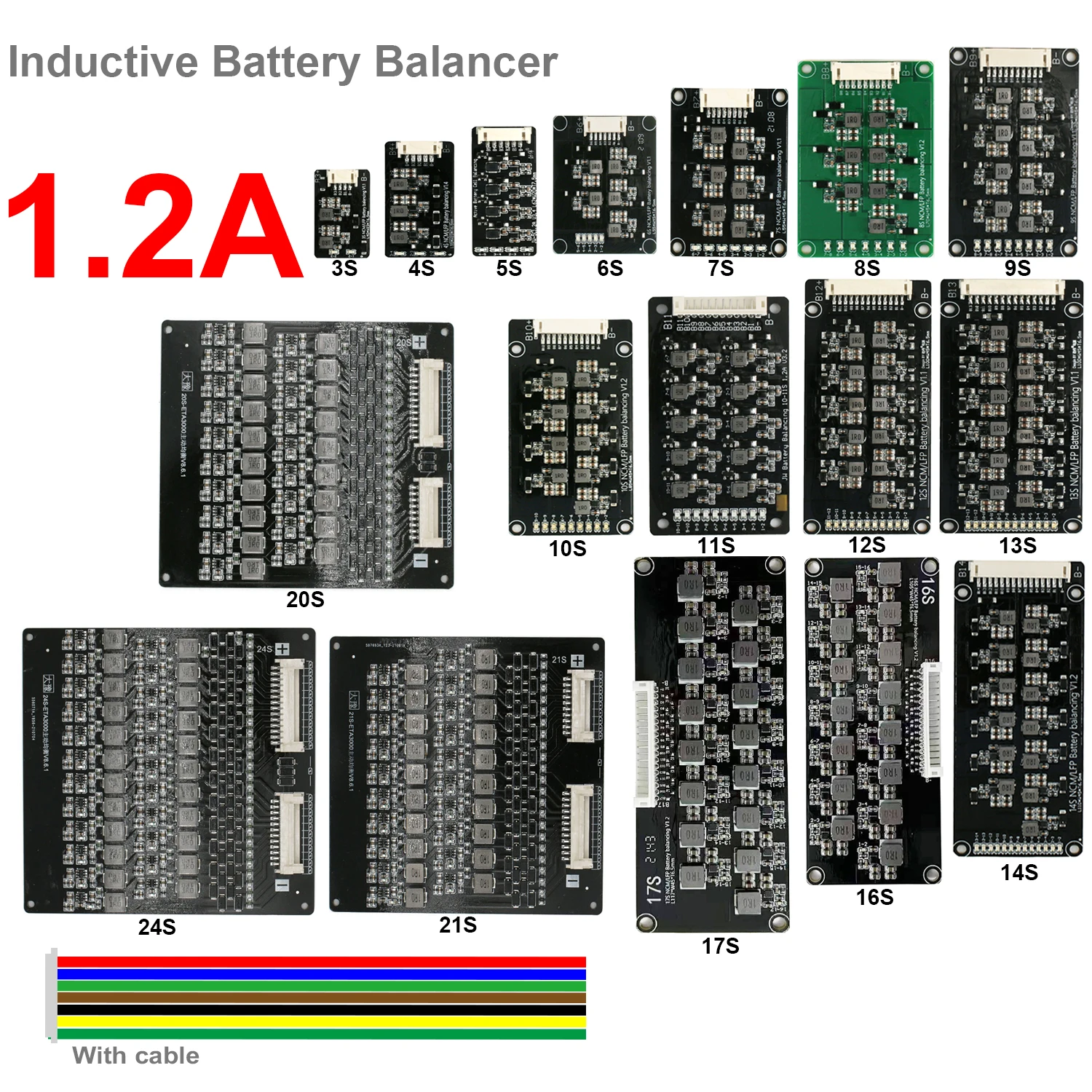

NEEY Balance bms 4s 8s 10s 13s 14s 15s 17s Li-Ion Lipo 12v 24v 36v 48v для электрического велосипеда скутер с

a. When the equalization light is on, the equalization work is turned on.
b. The equalization light goes out, the equalization circuit sleeps,
c. The equalization light flashes, the string indication is lost, or the circuit is faulty.

This module is adjacent to the differential pressure equalization, and the adjacent battery voltage difference reaches 0.1V or
more. The internal trigger balance is working until the adjacent battery voltage difference stops within 0.03V. There is an
adjacent differential pressure when charging and discharging on the battery pack. Trigger equalization, the battery pack voltage
error will be pulled back to the ideal value, reducing battery maintenance costs.

Working voltage is 2.0V-4.5V, ternary iron lithium battery is common, lithium cobalt oxide battery is not applicable.

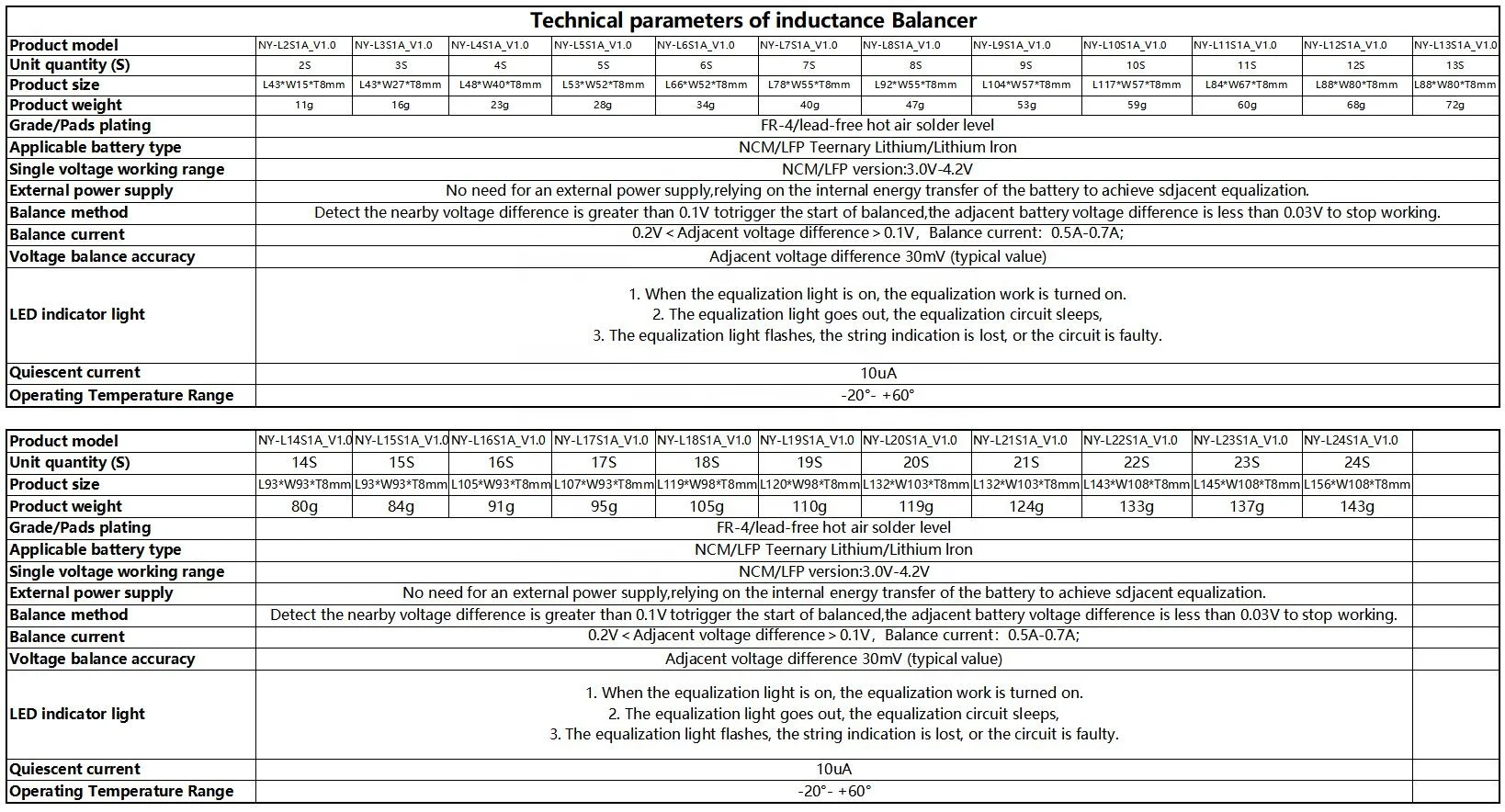

Equilibrium current:
Adjacent pressure difference is 0.1V or more (current is about 0.5-0.7A);
Adjacent pressure difference is above 0.2V (maximum equalization current is 1.2A);
The smaller the differential pressure, the smaller the equalization current.

B-, the total negative pole of the battery pack (the negative pole of the first battery)
B1, the positive electrode of the first battery
B2, the positive electrode of the second battery
B3....... and so on.

The four-string wiring diagram is as follows, and the other serial numbers are like this!
Note (13 or more string plugs need to be inserted obliquely, first touch the B-pins and insert them obliquely upwards, otherwise
it may cause the board to burn out)

Inductance adjacent equalization module is suitable for battery packs with capacity below 30AH.
Buy high efficiency flying capacitance equalization for battery packs above 30AH!
