DP88 новый HD видео 15 клавиатура SIP дверной телефон
US $10.00-$299.00
IP POE наружная HD камера водонепроницаемый дизайн полнодуплексная связь PoE поддержка SIP совместимая
- Категория: Broadcast\u00A0Intercom\u00A0Systems >>>
- Поставщик: Spon,Communications,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 190.27 $* | 200.57 $* |
| Aug-19-2025 | 189.36 $* | 198.42 $* |
| Jul-19-2025 | 158.79 $* | 166.63 $* |
| Jun-19-2025 | 186.9 $* | 195.11 $* |
| May-19-2025 | 162.67 $* | 170.77 $* |
| Apr-19-2025 | 182.5 $* | 191.39 $* |
| Mar-19-2025 | 181.77 $* | 190.51 $* |
| Feb-19-2025 | 179.73 $* | 188.39 $* |
| Jan-19-2025 | 178.66 $* | 187.21 $* |
Характеристики

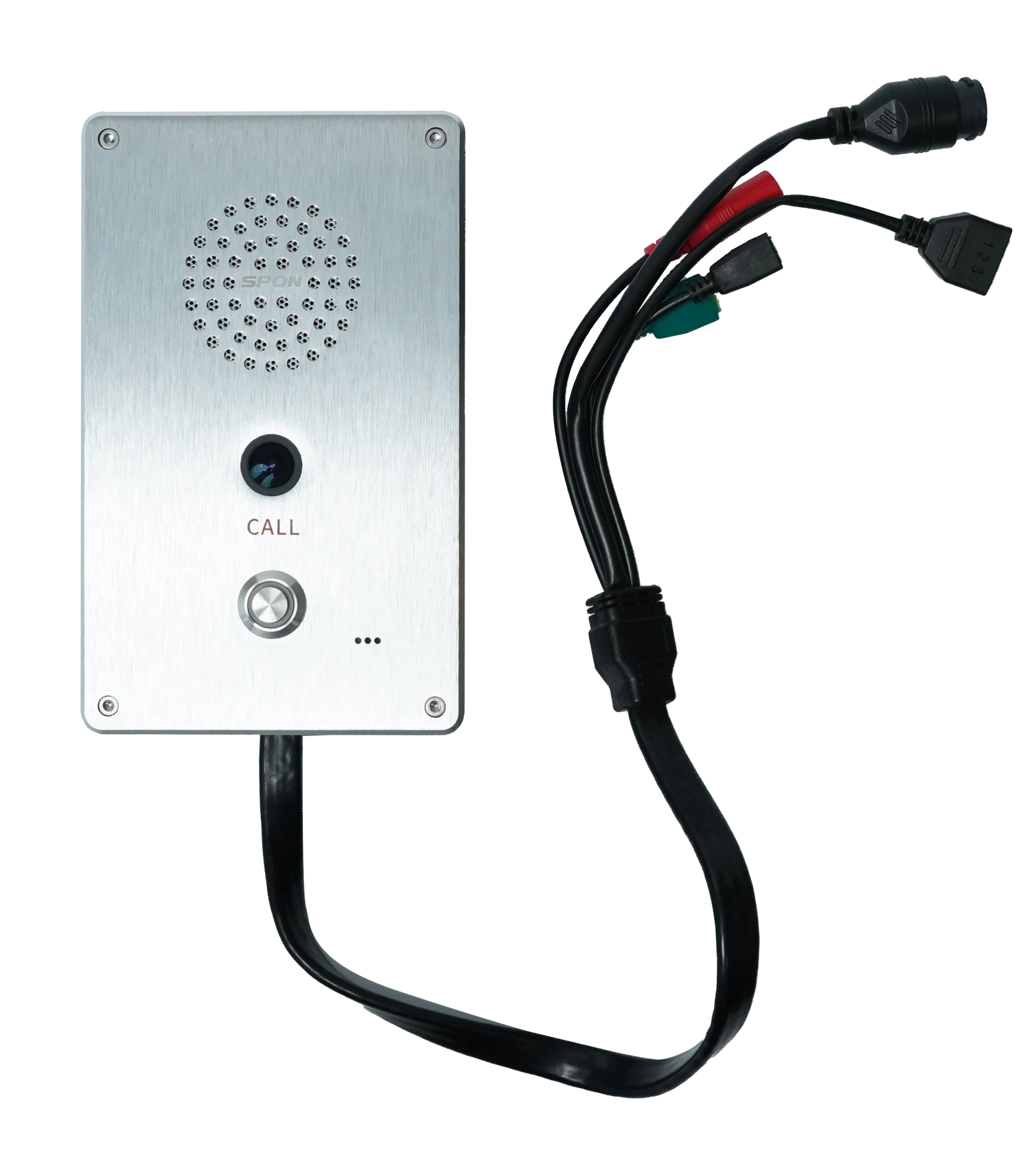

Products Description
Key Features
1. Durable all-metal design.
2. Compact and weatherproof (IP65).
3. 1080P HD camera with recording compatibility.
4. Two-way voice communication with master station.
5. Single-button for easy calling.
6. Hands-free flush/wall mount options.
7. Offline voice communication support.
8. PoE compatible.
9. SIP endpoint compatibility.
10. Works with SPON XC-9000 software for advanced features.
2. Compact and weatherproof (IP65).
3. 1080P HD camera with recording compatibility.
4. Two-way voice communication with master station.
5. Single-button for easy calling.
6. Hands-free flush/wall mount options.
7. Offline voice communication support.
8. PoE compatible.
9. SIP endpoint compatibility.
10. Works with SPON XC-9000 software for advanced features.

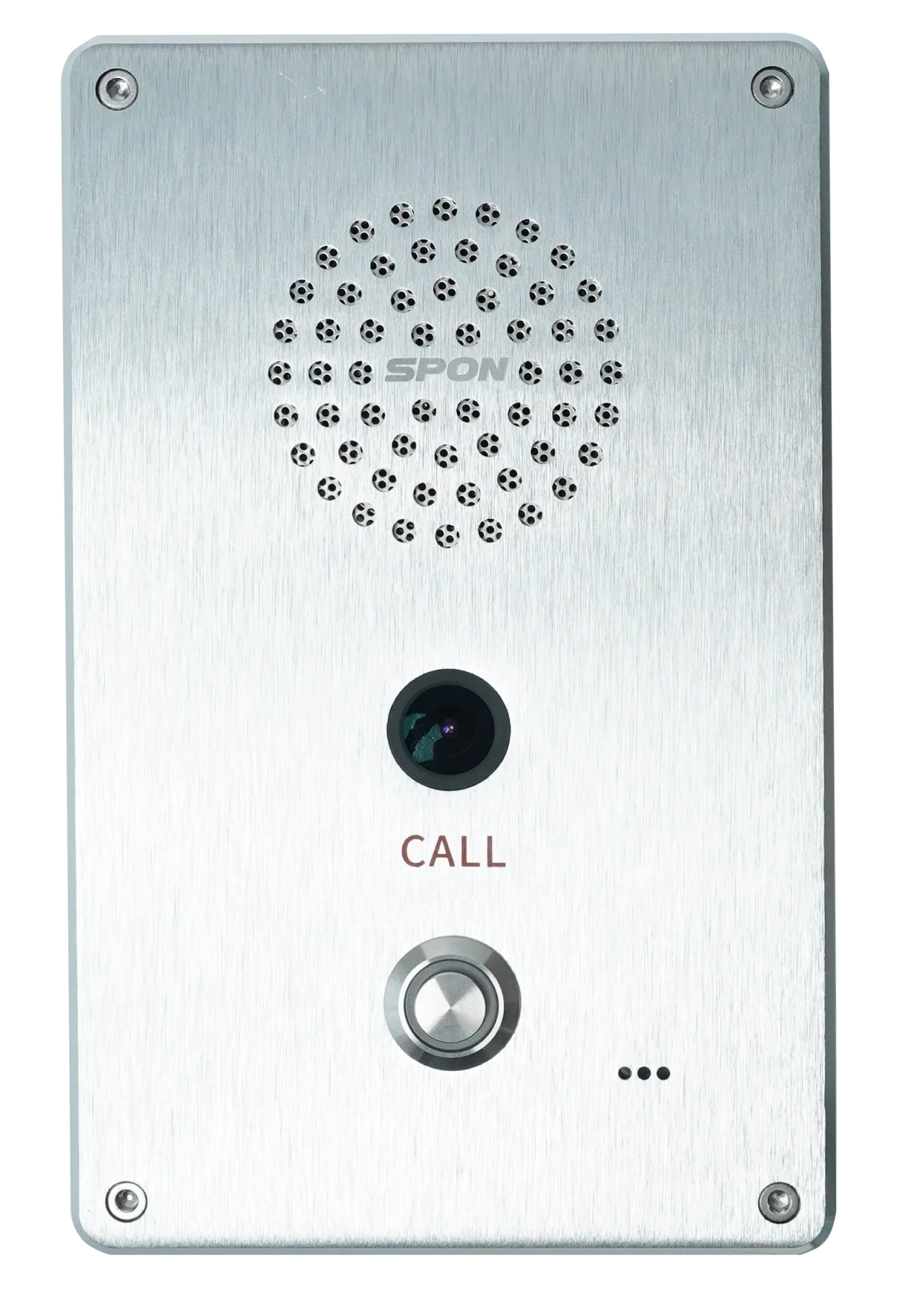

Description of Function and Interface
1. Loudspeaker: Amplify remote voice.
2. Camera: Capture local video.
3. Calling button: Initiate server-designated terminal call.
4. Microphone: Capture local audio.
5. Recording output interface (green).
6. Alarm input interface (black).
7. Power supply input interface.
8. Alarm output interface: Port 1 for common output, Port 2 for normally closed output, Port 3 for normally open output.
9. Network interface: Connect to switch for server access. Supports POE power supply.
2. Camera: Capture local video.
3. Calling button: Initiate server-designated terminal call.
4. Microphone: Capture local audio.
5. Recording output interface (green).
6. Alarm input interface (black).
7. Power supply input interface.
8. Alarm output interface: Port 1 for common output, Port 2 for normally closed output, Port 3 for normally open output.
9. Network interface: Connect to switch for server access. Supports POE power supply.
System Topology Diagram
Product Parameters
Model No.: | XC-9137AVE | XC-9137AVS | |
Power Supply: | DC 12V/1.5A or PoE (IEEE802.3af) | ||
Power Consumption: | ≤18W | ||
Network Protocol: | SIP 2.0 (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP | ||
Audio Sampling Rate: | 8kHz-44.1kHz, 16bit | ||
Video transmission Bit Rate | 512Kbps-4Mbps | ||
Video Coding | GVA/720/1080P | ||
Transmission Bit Rate: | 8kbps-320kbps | ||
S/N (Signal-to-Noise) Ratio: | ≥81dB | ||
Frequency Response: | 200Hz-18kHz | ||
Interface: | 1×RJ45 Ethernet Port, 1×Relay Input, 1×Relay Output, 1×Record Output, 1×Power Input | ||
IP Rating: | IP65 | ||
Dimensions: | 162×100×36mm | 162×100×41mm | |
Weight: | 1.0kg | 1.0kg | |
Standard Accessories: | 1×Waterproof Connector, 1×3-Pin Terminal Block Connector, 1×4-Pin Terminal Block Connector, 1×Customer Operational Guideline, 1×Installation Manual | ||
Optional Accessories: | DC 12V/1.5A Power Adapter (US/EU/UK/AU) | ||
