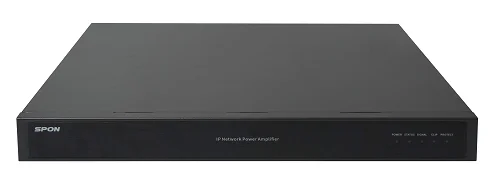

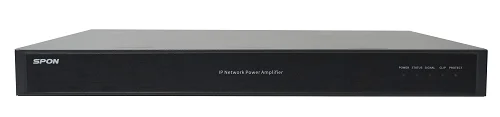

130/260/360/500 ватт 100 Вольт IP-Интегрированный усилитель IP-стоечный

130/260/360/500 ватт 100 Вольт IP-Интегрированный усилитель IP-стоечный

Категория: Broadcast\u00A0Intercom\u00A0Systems >>>
Поставщик: Spon,Communications,Co.,Ltd.

Цена:150,00 $ - 195,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	179.64 $*	188.42 $*
Aug-19-2025	177.15 $*	186.26 $*
Jul-19-2025	149.38 $*	156.3 $*
Jun-19-2025	174.84 $*	183.93 $*
May-19-2025	152.90 $*	160.8 $*
Apr-19-2025	171.11 $*	180.0 $*
Mar-19-2025	170.18 $*	179.23 $*
Feb-19-2025	168.41 $*	176.56 $*
Jan-19-2025	167.45 $*	175.67 $*

Характеристики

Products Description

KEY FEATURES

● 1U rack-mount design with rugged steel housing, sturdy and durable.
● Easy configuration via user-friendly web interface.
● Fully integrated amplifier with multiple components built into one box, including preamp, network audio decoder and 70-volt/100-volt constant-voltage digital amplifier.
● Separate indicator LED (power/status/signal/clip/protection) on the front panel and independent volume adjustment knobs on the back panel give the user powerful local control on the amplifier.
● Complete protection circuits including over-current protection, short-circuit protection, overload protection, thermal protection, lightning protection, surge protection, etc.
● Scheduled bell ringing tasks with custom MP3 audio files can be stored in the FTP server of the amplifier, specific audio files can be played automatically at the specified time even when the amplifier is offline.
● Fully compliant 3rd party SIP endpoint, compatible with most mainstream on-premise and cloud/hosted VoIP telephone systems.
● Work with VoIP telephone system for live voice announcements.
● Work with SPON audio management software for powerful features such as live and scheduled voice announcements, real-time and timed background music, emergency notification alerting, zone paging, etc.

System Topology Diagram

Product Parameters

Model No.:	XC-9508P13	XC-9508P26	XC-9508P36	XC-9508P50
Power Supply:	AC 100V-240V 50/60Hz
Power Consumption:	_≤160W	_≤310W	_≤420W	_≤580W
Rated Power Output:	^130W	^260W	^360W	^500W
Network Protocol:	SIP 2.0 (RFC 3261), FTP, HTTP, DHCP, TCP/IP, UDP, ARP, ICMP, IGMP
Audio Codec:	G.711 A-law, G.711 μ-law, G.729, PCM/L16
S/N (Signal-to-Noise) Ratio:	≥84dB
THD (Total Harmonic Distortion):	≤0.5% at 1kHz, 1/2 rated output
Frequency Response:	80Hz-18kHz
Speaker Output:	70V/100V (Constant-Voltage)

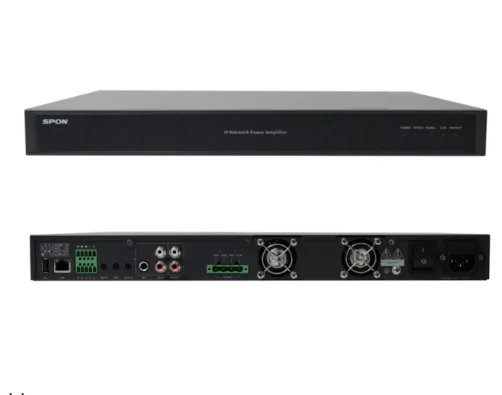

_Interface:	1×RJ45 Ethernet Port, 1×Line Input (Balanced), 1×Line Input (Unbalanced - RCA Jack), 1×Mic Input (1/4” TS Jack), 1×Line Output (RCA Jack), 1×24V DC Forced Relay Output, 1×Relay Input, 1×Relay Output, 1×Speaker Output (70V/100V), 1×Power Input
Dimensions:	440×300×44mm
Weight:	3.45kg
Standard Accessories:	1×4-Pin Terminal Block Connector, 2×5-Pin Terminal Block Connector, 2×Rack Ear, 4×Rubber Foot, 1×Installation Manual
Optional Accessories:	IEC C13 Power Cord (US/EU/UK/AU)

Typical Application
