Выпрямитель с гальваническим покрытием 12 В

Описание и отзывы

Трекер стоимости

Характеристики

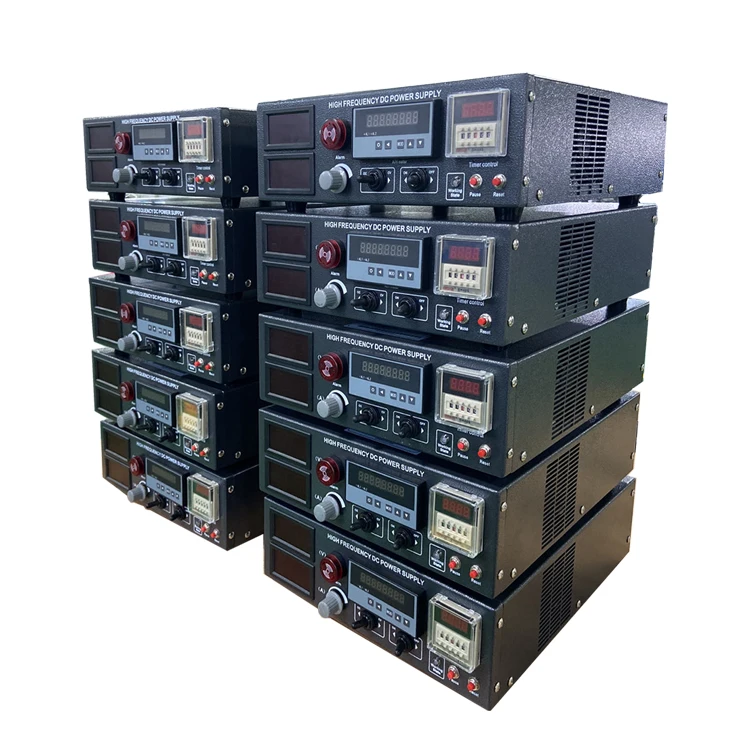

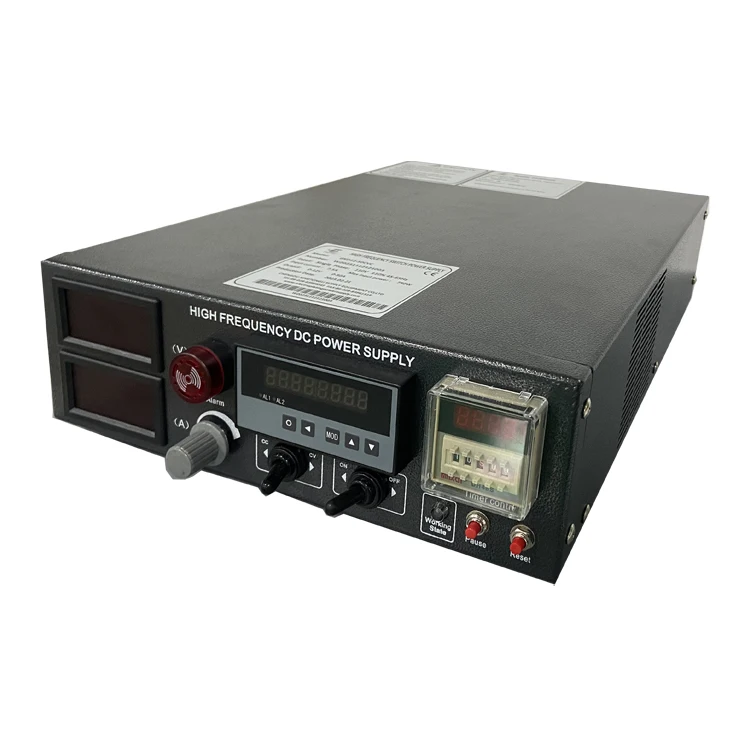

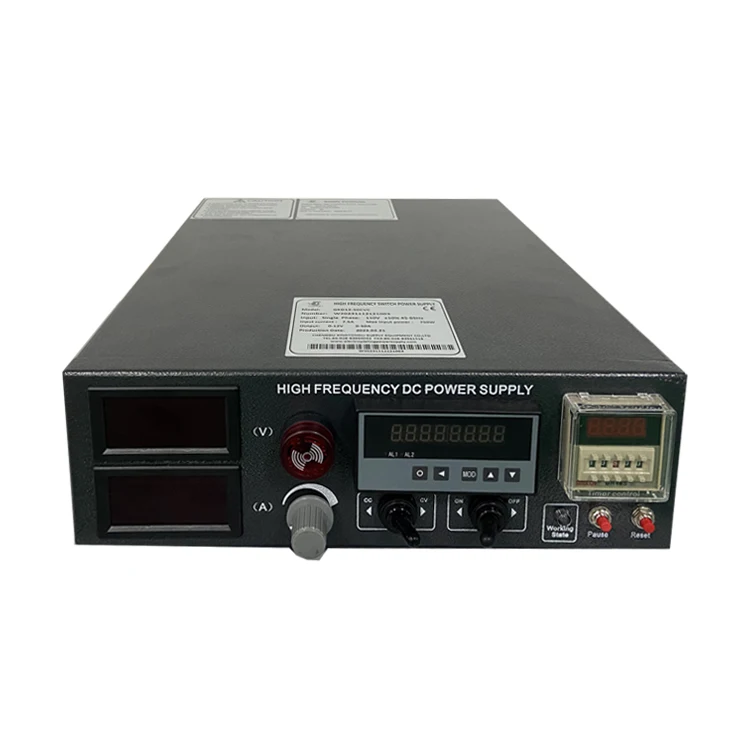

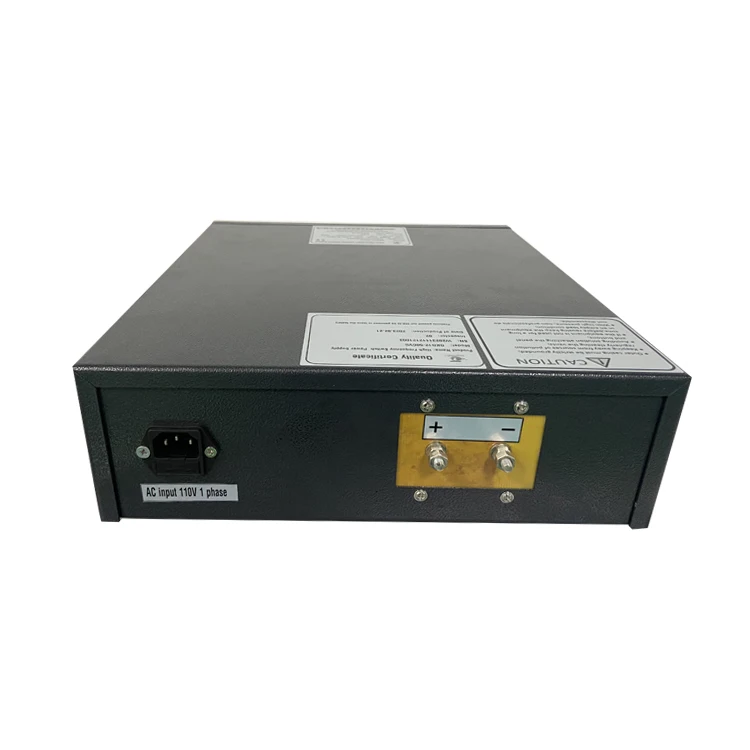

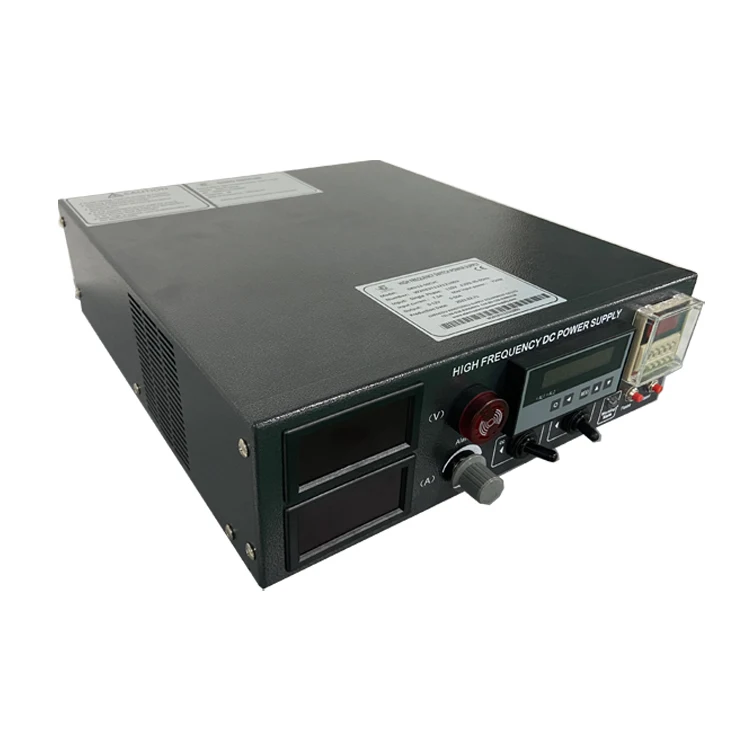

SPECIFICATION OF GKD12-50CVC
AC input(V)	AC 220V± 10% 1ø  50/60HZ  AC 110V± 10% 1ø  50/60HZ
DC output(V)	0~12V digital display, adjustable
DC output(A)	0~50A digital display, adjustable
Output power	600W
Power factor	≥0.93
Output efficiency	≥ 85%
Constant-current precision (%)	0.01%
Constant-voltage accuracy (%)	0.3%
Switching frequency	20KHZ
Protection function	Short circuit protection/ overheating protection/ phase lack protection/ input over/ lowvoltage protection
Environment temperature	-10°c ~ 45°c
Control mode	Local control
Working mode	Constant current/voltage
Cooling way	Air-cooling
Size L*W*Hmm)	365*305*142
Weight(kg)	10
Remark	Acousto-optical alarm can be provide when u selected
	485/PLC communication interface can be provide when u selected



other specs

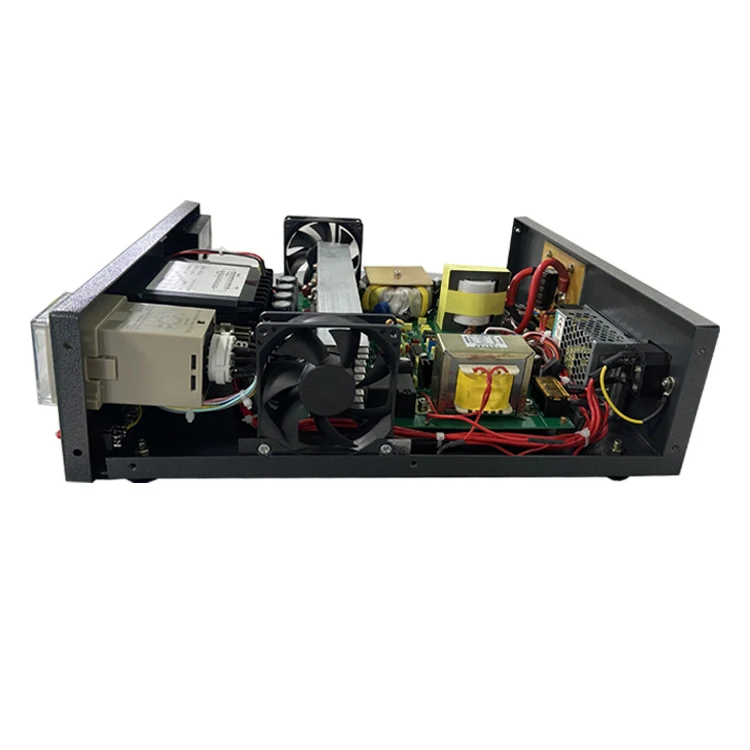

 1. advanced technology:IGBT modules are adopted as main power devices and ultracrystallite soft magnetism materials are adopted as magnet core of main transformer



2. high efficiency:it main save 15%-30% energy compared with ordinary silicon controlled rectifier



3. high accuracy,high stability,and low ripple ratio.Main controlling part net voltage and loads changes make no interference to output



4. the output voltage and curent are adjustable and it can function under steady voltage and steady current



• Plating: Chrome, Zinc, Nickel, Copper, Gold, Silver

• Electrolysis: Copper, Zinc, Tin, Lead  Aluminum foil, copper foil production


• Electrochemical machining


• Anodizing: anodizing, hard anodizing



after sale service:



A.Detailed operation and maintenance manual supplied, with troubleshooting table

B.Any of your question will get reply during 24 hours

C.New accessories will be sent to you if it's our fault after testing.

D.Warranty:1 year for small order,2 years for large order





our company was set up in 1995. We are a high technology company dedicating to the design and manufacture of switched,mode power supply. We are experienced in the field

of power electronics, energy transforming technology and industry control system. The performance of switching power supply we designed is excellent. It is safe, green and reliable.

With these advantages, our products are widely used in aerospace, military industry, railway transportation, electric power industry, automobile manufacturing, shipbuilding, petroleum

industry and some other industries. Now we have already held a big market share of the power supply in metal surface finishing field. We are one of the main vendors of electroplating

power supply in China.We are making great efforts to develop new products to meet different requirements. Adhering to the business principle of mutual benefits, we have built up a good

reputation among our customers due to our perfect services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
