DP88 новый HD видео 15 клавиатура SIP дверной телефон
US $10.00-$299.00
IP-пейджинговая Консоль/IP-пейджинговая станция/IP-SIP-Главная
- Категория: Broadcast\u00A0Intercom\u00A0Systems >>>
- Поставщик: Spon,Communications,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 333.35 $* | 350.38 $* |
| Aug-19-2025 | 330.43 $* | 347.56 $* |
| Jul-19-2025 | 277.4 $* | 291.80 $* |
| Jun-19-2025 | 325.65 $* | 341.79 $* |
| May-19-2025 | 283.6 $* | 297.4 $* |
| Apr-19-2025 | 319.79 $* | 335.52 $* |
| Mar-19-2025 | 316.69 $* | 332.84 $* |
| Feb-19-2025 | 314.30 $* | 330.68 $* |
| Jan-19-2025 | 311.19 $* | 327.43 $* |
Характеристики
Products Description
● Two-way full duplex voice communication with front-end IP audio intercom station.
● Adopting high-end aluminum alloy which is sturdy and durable.
● 4’’ LCD screen with 480*480 resolution.
● Supporting U-disk and external audio sources mixing input
● Hands-free desktop station with gooseneck microphone and built-in 3W speaker.
● Available to trigger short circuit signal to the designated terminal during intercom (can be used to trigger external alarm light or electronic door lock.
● Cost-friendly as it is built-in with a mini server that can manage 30 terminals.
● Equipped with 3.5mm audio line output interface which can be connected to an active speaker.
● Supporting initiating & receiving offline intercom without centralized management server software.
● Independent audio volume adjustment button working like a mini mixer
● Remote upgrade firmware via Easy Mic APP
● Allow the operator to make live paging via this IP desktop intercom station
● Adopting high-end aluminum alloy which is sturdy and durable.
● 4’’ LCD screen with 480*480 resolution.
● Supporting U-disk and external audio sources mixing input
● Hands-free desktop station with gooseneck microphone and built-in 3W speaker.
● Available to trigger short circuit signal to the designated terminal during intercom (can be used to trigger external alarm light or electronic door lock.
● Cost-friendly as it is built-in with a mini server that can manage 30 terminals.
● Equipped with 3.5mm audio line output interface which can be connected to an active speaker.
● Supporting initiating & receiving offline intercom without centralized management server software.
● Independent audio volume adjustment button working like a mini mixer
● Remote upgrade firmware via Easy Mic APP
● Allow the operator to make live paging via this IP desktop intercom station
Front Panel Layout
① Volume Adjustment Knob 01: adjust the volume of Aux Input 01.
② Volume Adjustment Knob 02: adjust the volume of Aux Input 02.
③ Main Volume Adjustment Knob: adjust the volume of all input channels.
④ Shortcut Button: enter the functionality settings interface.
⑤ Monitoring Button: enter the quick monitoring interface.
⑥ Intercom Button: enter the quick intercom interface.
⑦ Back Button
⑧ PA Button: enter the quick broadcasting interface.
⑨ Gooseneck Microphone Socket
⑩ 4” Touch Screen
⑪ Loudspeaker
① Volume Adjustment Knob 01: adjust the volume of Aux Input 01.
② Volume Adjustment Knob 02: adjust the volume of Aux Input 02.
③ Main Volume Adjustment Knob: adjust the volume of all input channels.
④ Shortcut Button: enter the functionality settings interface.
⑤ Monitoring Button: enter the quick monitoring interface.
⑥ Intercom Button: enter the quick intercom interface.
⑦ Back Button
⑧ PA Button: enter the quick broadcasting interface.
⑨ Gooseneck Microphone Socket
⑩ 4” Touch Screen
⑪ Loudspeaker

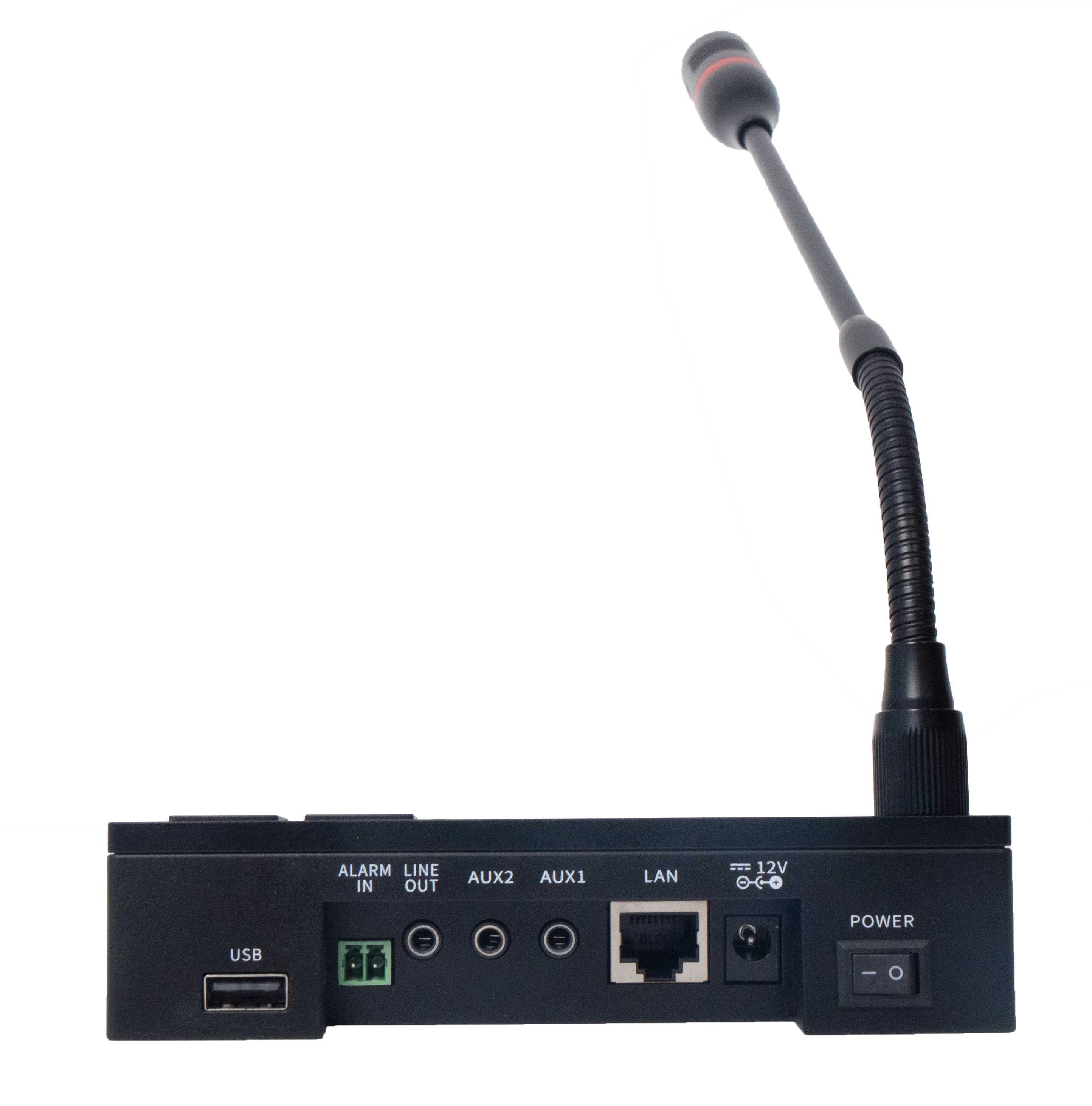

Connector Layout
① Power switch: O means turn on , — means turn off.
② Power supply : DC12V/1.5A
③ RJ45 Network port
④ AUX1 : Used for connecting active microphone.
⑤ AUX2: Used for connecting microphone , telephone or computer ect.
⑥ Lin in : Used for connecting active speaker or amplifier
⑦ Alarm In : Used for connecting alarm button
⑧ USB interface :Used for insert USB which is in FAT 32 format.
② Power supply : DC12V/1.5A
③ RJ45 Network port
④ AUX1 : Used for connecting active microphone.
⑤ AUX2: Used for connecting microphone , telephone or computer ect.
⑥ Lin in : Used for connecting active speaker or amplifier
⑦ Alarm In : Used for connecting alarm button
⑧ USB interface :Used for insert USB which is in FAT 32 format.
Dimensional Drawing
System Topology Diagram
Product Parameters
Power Supply: | DC 12V/1.5A | |||
Audio Codec: | G.711 A-law, G.711 μ-law, G.729, PCM/L16 | |||
S/N (Signal-to-Noise) Ratio: | ≥80dB | |||
Audio Sampling & Bit Rate: | 8kHz-44.1kHz, 16bit, 8kbps-320kbps | |||
Frequency Response: | 100Hz~16kHz | |||
Network Protocol: | SIP (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP,FTP | |||
Configuration Method: | Local Settings/Web Page | |||
Mounting Method: | Desktop | |||
Interface: | 1×RJ45 Ethernet Port, 1×USB 2.0, 2×Line Input, 1×Line Output, 1×Relay Input, 1× Mic input,1×Power supply port, | |||
Dimensions: | 144×144×34mm | |||
Weight: | 0.55KG | |||
Standard Accessories: | 1 X Microphone Rod, 1x Terminal Block Connector,1 x Installation Manual, 1 x Certification | |||
Optional Accessories: | DC 12V/1.5A Power Adapter (US/EU/UK/AU) |
Company Profile
With over 20 years of experience in audio IoT research, development, and production, SPON stands at the forefront of the industry. Our state-of-the-art acoustic noise reduction laboratory, fully automated SMT factory, and spacious company premises spanning 15,000 square meters reflect our commitment to innovation and excellence.
Our Advantages
SPON's advantages lie in our technological expertise, customized approach, extensive experience, comprehensive support, state-of-the-art facilities, and unwavering commitment to quality. These factors set us apart and make us the preferred choice for audio technology solutions in the IoT industry.
SPON's Proud Team
FAQ
Q: How can I contact SPON's customer support team?
A: You can reach out to our customer support team through our hotline, email, or online support platform. Our dedicated team will promptly respond to your inquiries and provide the necessary technical supportand solutions.
Q: Does SPON offer OEM/ODM services?
A: Yes, SPON provides OEM/ODM services. We have extensive experience in working with clients to develop and manufacture customized products according to their specific requirements and branding needs.
Q: What are the benefits of choosing SPON for OEM/ODM services?
A: By choosing SPON for OEM/ODM services, you can benefit from our expertise in audio technology, extensive manufacturing capabilities, and dedicated team of professionals. We can help you bring your ideas to life, offering flexible customization options, quality assurance, and timely delivery of products. Our goal is to collaborate closely with you to create innovative and tailored solutions that meet your unique business needs.
A: Yes, SPON provides OEM/ODM services. We have extensive experience in working with clients to develop and manufacture customized products according to their specific requirements and branding needs.
Q: What are the benefits of choosing SPON for OEM/ODM services?
A: By choosing SPON for OEM/ODM services, you can benefit from our expertise in audio technology, extensive manufacturing capabilities, and dedicated team of professionals. We can help you bring your ideas to life, offering flexible customization options, quality assurance, and timely delivery of products. Our goal is to collaborate closely with you to create innovative and tailored solutions that meet your unique business needs.
