JWD1 4 подача через DIN-рейку Электрический универсальный винтовой

Цена:0,30 $ - 0,39 $*

Количество:

Technology & Details

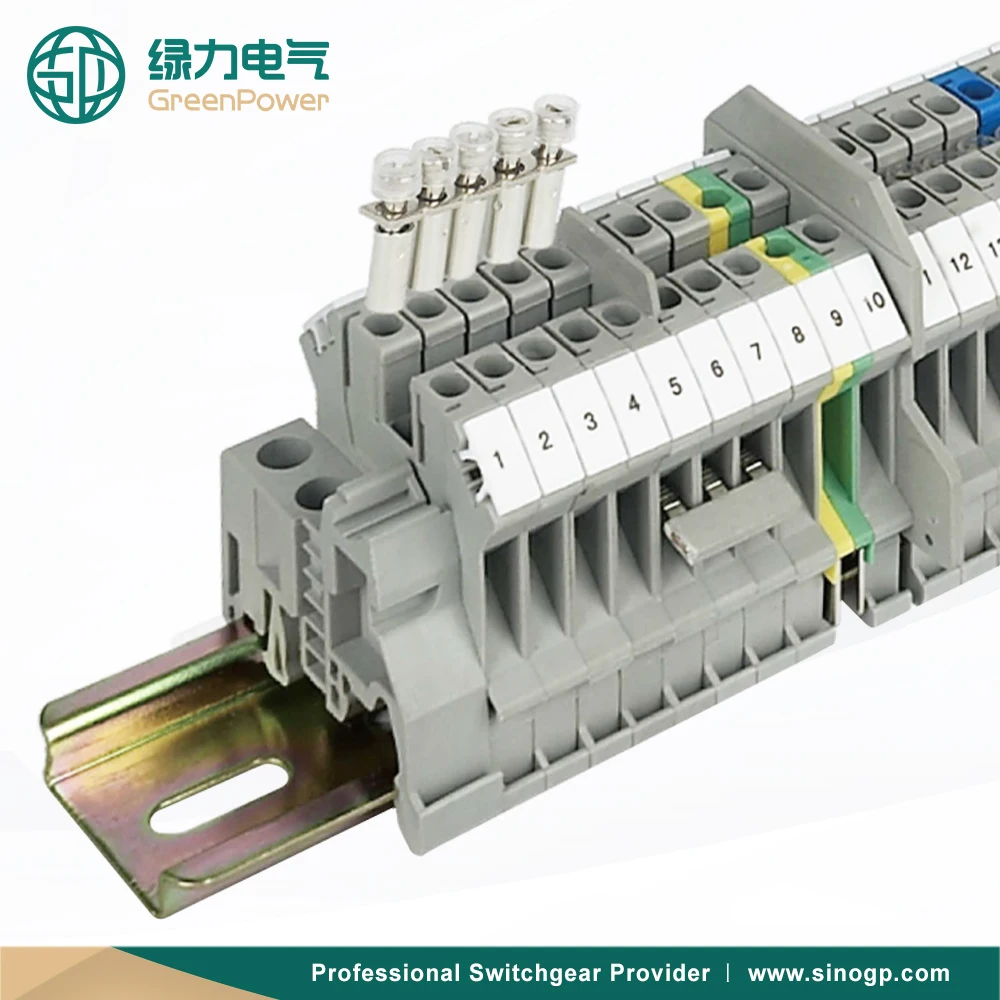

① Terminal plate ② Central contact ③ Side insertion contact ④ Jumper contact

⑤ Switch contact ⑥ Terminal baffle ⑦ Grouping baffle ⑧ Marker strip

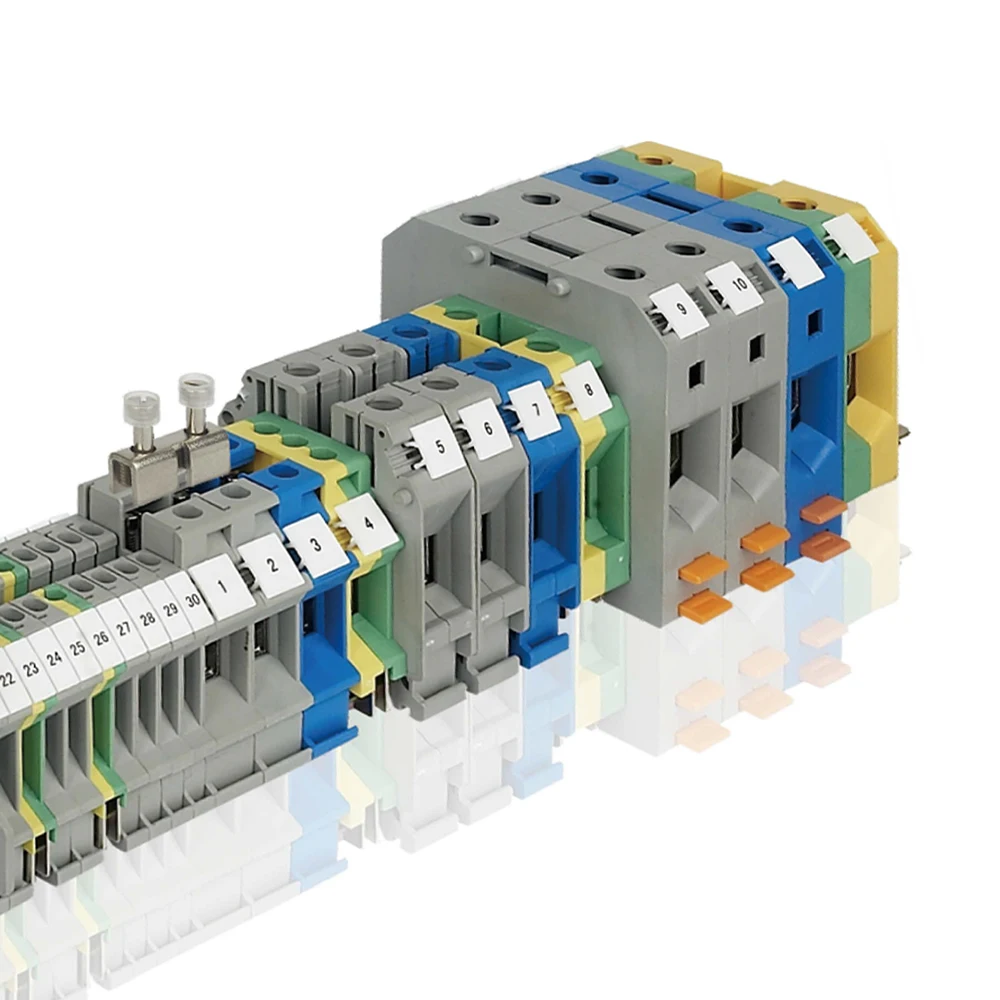

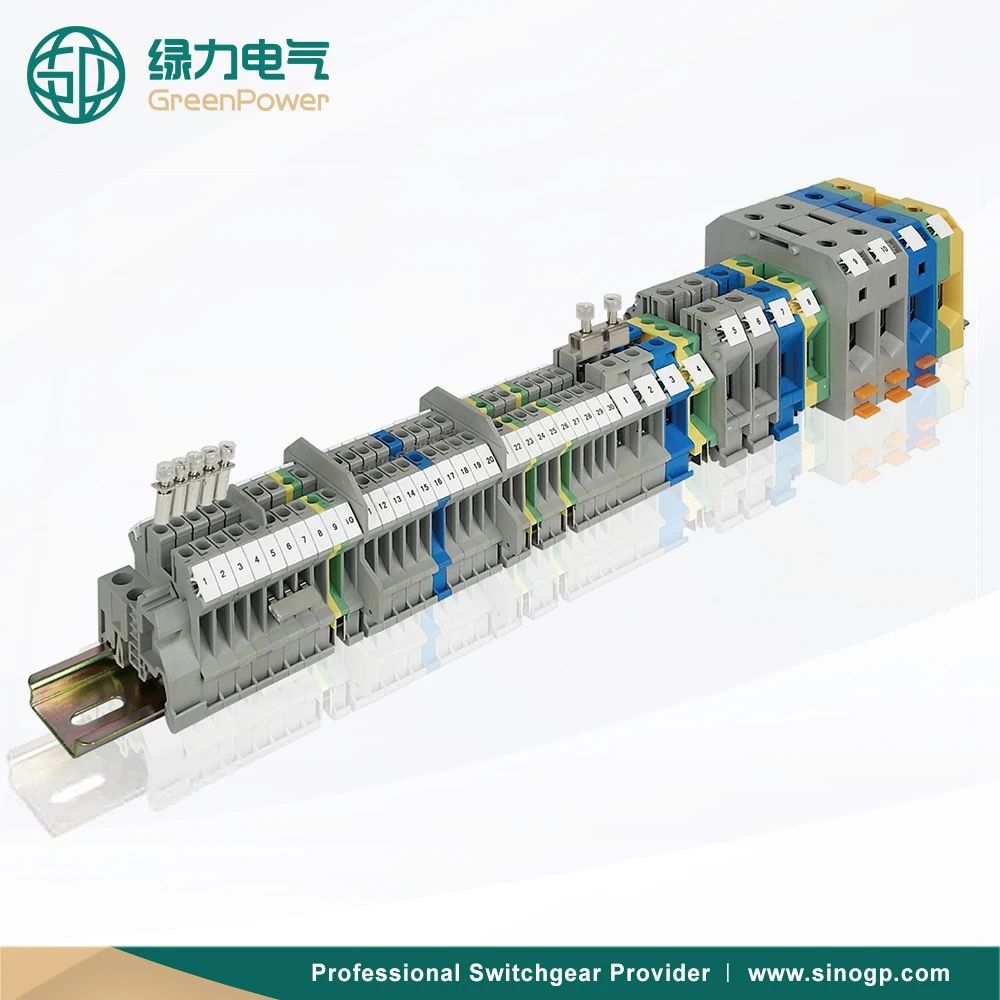

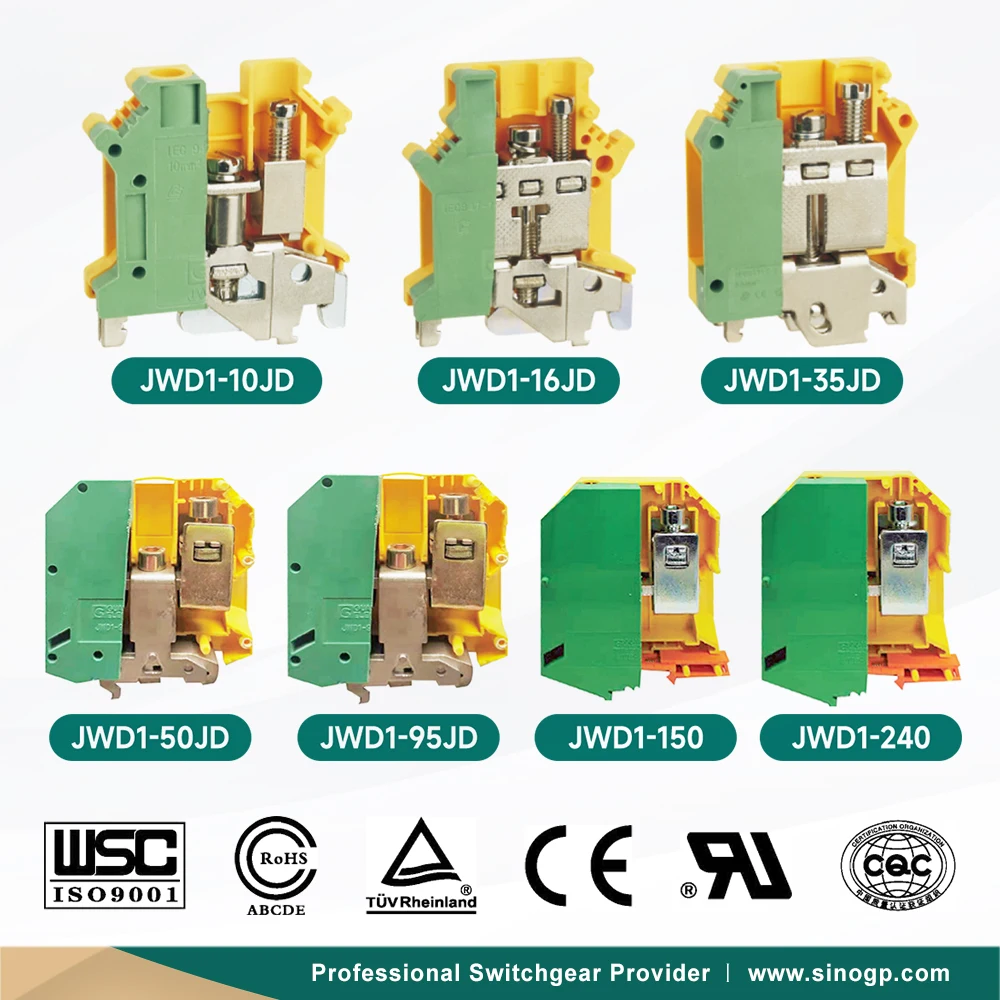

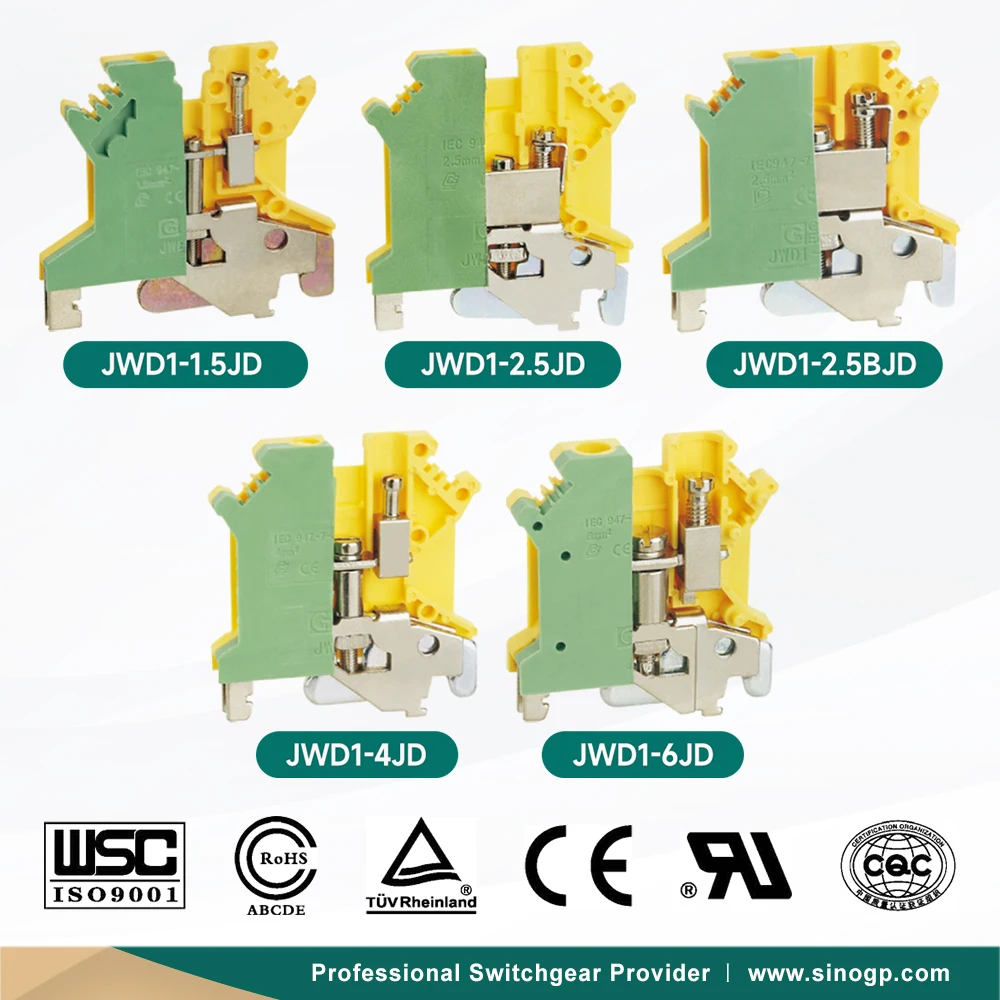

● JWD1 Universal screw type terminal block

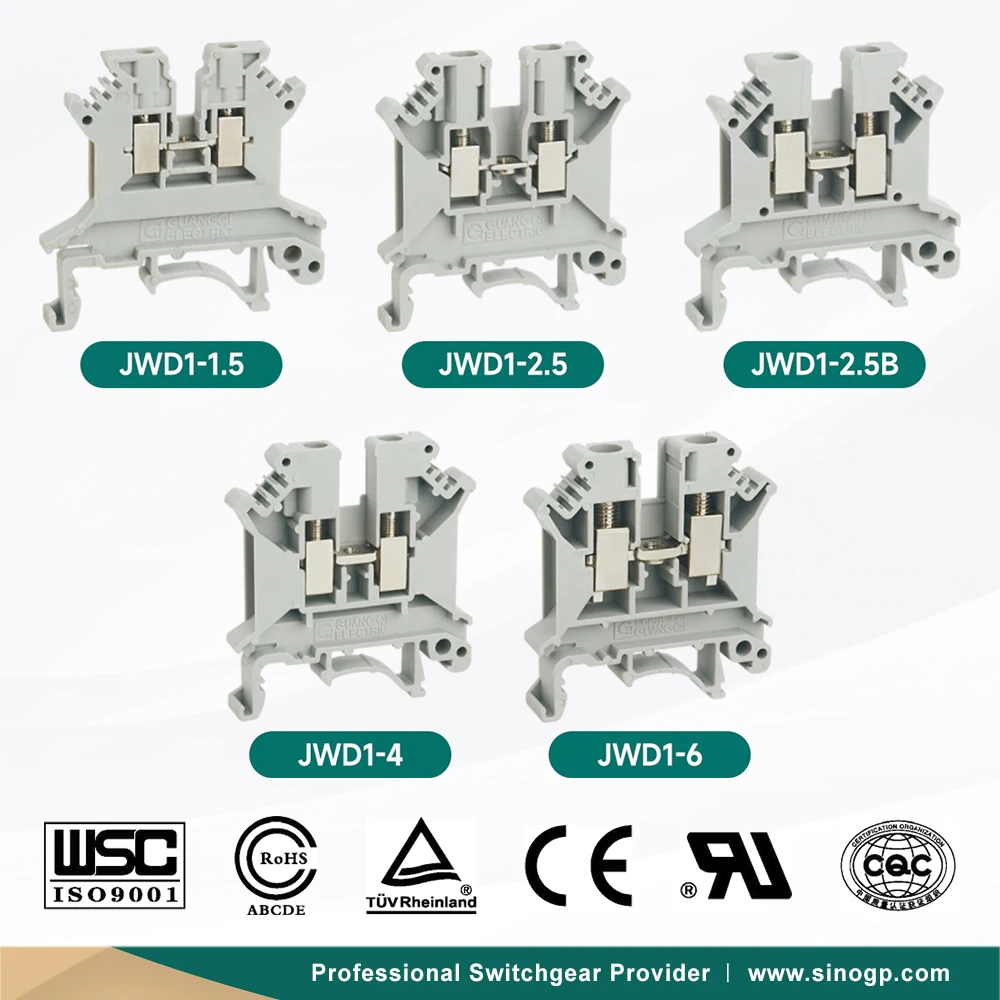

Product model			JWD1-1.5	JWD1-2.5	JWD1-2.5B	JWD1-4	JWD1-6
Standard			IEC 60947-7-1
Thickness / Width	mm	4.2/42.5	5.2/42.5	6.2/42.5	6.2/42.5	8.2/42.5
Height (TH 35:7.5/TH 35:15/G 32:15)	mm	42/49.5/47	47/54.5/52	42/49.5/47	47/54.5/52	47/54.5/52
Maximum rated current	A	17.5	32	32	41	57
Cross section	mm²	1.5	4	4	6	10
Solid cable	mm²	0.14—1.5	0.2—4	0.2—4	0.2—6	0.2—10
Soft cable	mm²	0.14—1.5	0.2—2.5	0.2—2.5	0.2—4	0.2—6
Screw type			M2	M3	M3	M3	M4
Insulation material type			PA	PA	PA	PA	PA
Material flame retardant grade			V0	V0	V0	V0	V0
Conductor size	AWG	30-14	28-12	30-12	30-10	26-8

Product model			JWD1-10	JWD1-16	TBJ 16	JWD1-35	TBJ 35
Standard			IEC 60947-7-1
Thickness / Width	mm	10.2/42.5	12.2/42.5	12.2/51	15.2/50	15.2/54
Height (TH 35:7.5/TH 35:15/G 32:15)	mm	47/54.5/52	54/61.5/59	51.2/58.2	62/69.5/67	63.4/70.4
Maximum rated current	A	76	101	76	150	125
Cross section	mm²	16	25	16	50	35
Solid cable	mm²	0.5—4	1.5—6	6	0.75—16	10
Soft cable	mm²	0.5—4	1.5—4	16	0.75—10	35
Screw type			M4	M4	M4	M6	M6
Insulation material type			PA	PA	PA	PA	PA
Material flame retardant grade			V0	V0	V0	V0	V0
Conductor size	AWG	24—6	22—4	10—16	18—10	8—2

● Installation and wiring

Please consult with GP for product details and price.
