Оцинкованная железная мягкая проволока gi, переплетная проволока
US $499.00-$799.00
DN200 DN300 Di Class C40 C30 C25 чугунная труба K9 из ковкого чугуна
- Категория: Iron >>>
- Поставщик: Shandong,Hongyan,Metal,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 852.42 $* | 869.58 $* |
| Jul-15-2025 | 691.74 $* | 705.73 $* |
| Jun-15-2025 | 839.57 $* | 856.11 $* |
| May-15-2025 | 832.48 $* | 849.32 $* |
| Apr-15-2025 | 664.72 $* | 677.37 $* |
| Mar-15-2025 | 819.27 $* | 835.6 $* |
| Feb-15-2025 | 812.5 $* | 828.74 $* |
| Jan-15-2025 | 805.81 $* | 821.86 $* |
Характеристики

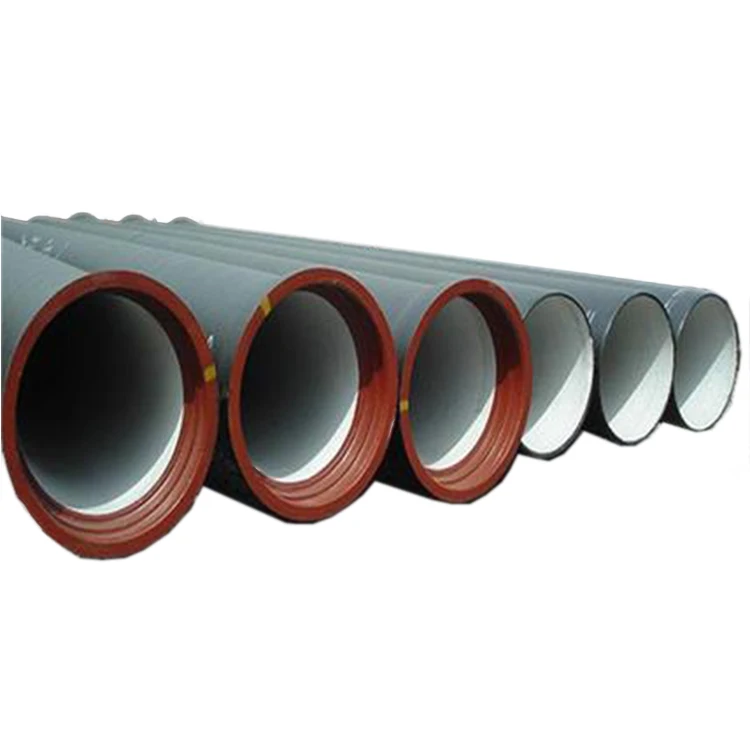

The T-type Joint Pipes (Push-on) produced by our company range from DN80mm to DN2600mm are flexibly jointed with sockets and spigots; they are the first choice in urban water pipe networks due to their convenient installation, strong seismic performances, seal ability and corrosion resistance.
Please contact me for more product details and the latest prices.
Specification
Type | T-type Joint Pipe (Push-on) | ||||||
Standard | ISO2531, EN545, EN598, etc | ||||||
DN | DN80mm~DN2600mm | ||||||
Material | Ductile Cast Iron GGG50 | ||||||
Pressure | PN10, PN16, PN25,PN40 | ||||||
Wall Thickness | K9, K8, C25, C30, C40 | ||||||
Length | 6m, 5.7m | ||||||
Application | Water supply project, drainage, irrigation, water pipeline system. | ||||||
Internal Coating | a). Portland cement mortar lining | ||||||
b). Sulphate Resistant cement mortar lining | |||||||
c). High-Aluminum cement mortar lining | |||||||
d). Fusion bonded epoxy coating | |||||||
e). Liquid epoxy painting | |||||||
f). Black bitumen painting | |||||||
External Coating | a). zinc+bitumen(70microns) painting | ||||||
b). Fusion bonded epoxy coating | |||||||
c). Zinc-aluminum alloy +liquid epoxy painting | |||||||
Package | Bundles, in bulk | ||||||
Note | The coating can also be accordance with customers' requirements. | ||||||
DN (mm) | DE (mm) | THICKNESS OF WALL (mm) | WEIGHT OF SOCKET (kg) | TOTAL WEIGHT (kg) | ||||||||
K8 | K9 | K10 | K8 | K9 | K10 | |||||||
80 | 98 | 6.0 | 6.0 | 6.0 | 4.3 | 77.0 | 77.0 | 77.0 | ||||
100 | 118 | 6.0 | 6.0 | 6.0 | 5.7 | 93.7 | 95.0 | 95.0 | ||||
125 | 144 | 6.0 | 6.0 | 6.0 | 7.1 | 119.0 | 119.0 | 121.0 | ||||
150 | 170 | 6.0 | 6.O | 6.0 | 10.3 | 138.0 | 144.0 | 144.0 | ||||
200 | 222 | 6.0 | 6.3 | 6.4 | 18.9 | 183.0 | 194.0 | 194.0 | ||||
300 | 326 | 6.4 | 7.2 | 8.0 | 23.7 | 290.0 | 323.0 | 357.0 | ||||
350 | 378 | 6.8 | 7.7 | 8.5 | 29.5 | 359.0 | 403.0 | 441.0 | ||||
400 | 429 | 7,2 | 8.1 | 9.0 | 38.3 | 433.0 | 482.0 | 532.0 | ||||
450 | 480 | 7.6 | 8.6 | 9.5 | 42.8 | 515.0 | 577.0 | 632.0 | ||||
500 | 532 | 8.0 | 9.0 | 10.0 | 59.3 | 600.0 | 669.0 | 736.0 | ||||
600 | 635 | 8.8 | 9.9 | 11.0 | 79.1 | 791.0 | 882.0 | 971.0 | ||||
700 | 738 | 9.6 | 10.8 | 12.0 | 102.6 | 1009.0 | 1123.0 | 1237.0 | ||||
800 | 842 | 10.4 | 11.7 | 13.0 | 129 | 1255.0 | 1394.0 | 1537.0 | ||||
900 | 945 | 11.2 | 12.6 | 14.0 | 161.3 | 1521.0 | 1690.0 | 1863.0 | ||||
1000 | 1048 | 12.0 | 13.5 | 15.0 | 237.7 | 1811.0 | 2017.0 | 2221.0 | ||||
Please contact me for more product details and the latest prices.

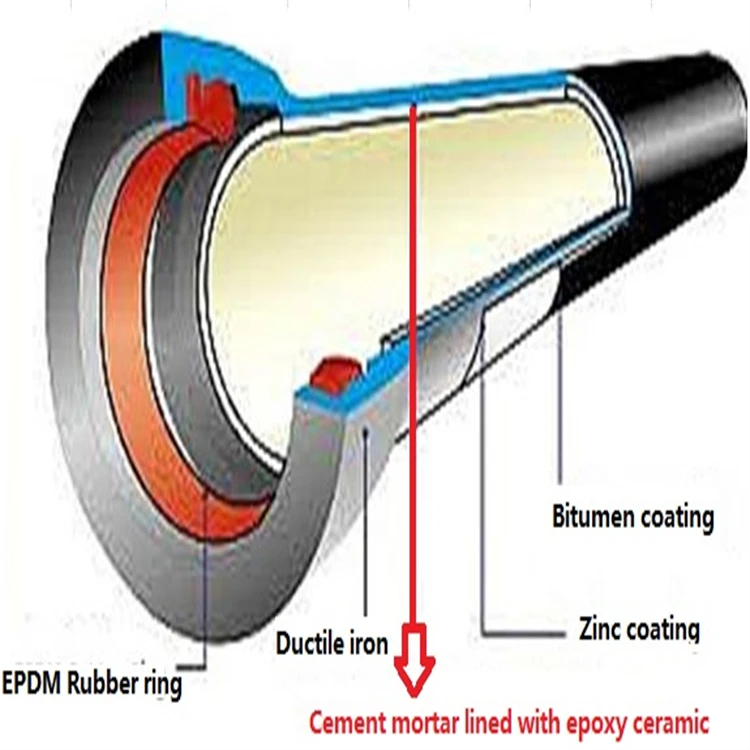

1) The standard of pipe: ISO 2531, EN545 , EN598. 2) Pipe class: K9, C40, C30, C25, etc.
3) Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint
4) Effective length: in general, the pipe length is 6m for bulk shipment and 5.7m for container shipment.
5) Internal lining: cement mortar lining as per ISO4179
6) Zinc coating: at least 130g/m2 as per ISO 8179
7) Bitumen painting: at least 70um as per ISO 8179
8) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633
9) DN 80 - 2,600 mm
10) High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life
time
11) Checked by automatic inspection equipment
12) Chemical composition: (%)
a) C: 3.5 - 4.0 b) Si: 1.9 - 2.6. c) Mn:0.15 - 0.45 d) P: <0.06 e) S: <0.02
13) Mechanical properties
1. ) Tensile strength: ≥420MPa 2. ) Yield strength: ≥300Mpa
3. ) Hardness: ≤230HB 4. ) Elongation%: DN80 - 1000 ≥10 DN1200 - 2200 ≥7
14) Process and testing:
1. ) Induction furnace and treated metal (Chemical analysis of raw material, spheroidizing & Nodularity)
2. ) Casting (Visual check and weight check) 3. ) Heat treatment (Micro structure)
4. ) Hydrostatic test (Pressure test) 5. ) Dimensional checks (Checking pipe length and joint, OD, wall thickness, appearance)
6. ) Zinc spraying (Thickness testing) 7. ) Lining and coating (100% visual check, thickness testing randomly)
8. ) Marking and packing (100% visual check)
15) The pipe coating can be customized, such as, zinc-aluminum alloy, PU, etc.
Please contact me for more product details and the latest prices.

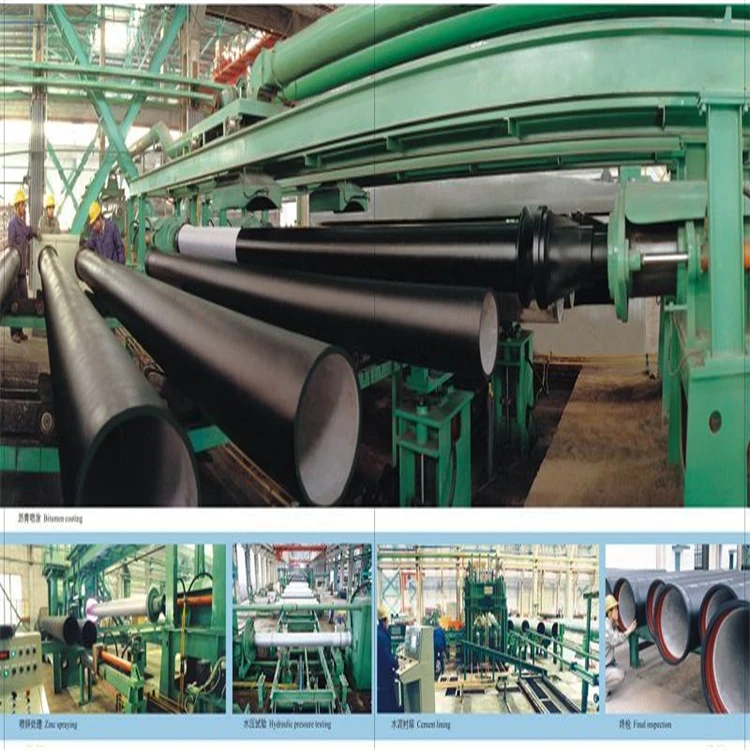

Production Process
products strictly meet the below standards:
ISO 2531 Ductile iron pipes, fittings and accessories for pressure pipelines.
BSEN545 Ductile iron pipes, fittings and accessories and their joints for water pipelines. Requirements and test methods.
BSEN598 Ductile iron pipes, fittings, accessories and their joints for sewage application-requirements and test methods.
ISO7186 Ductile iron pipes, fittings, accessories and their joints for the construction of drains and sewers outside buildings.
ISO4179 Ductile iron pipes for pressure and non pressure pipelines-Centrifugal cement mortar lining-general requirements.
ISO8179 Ductile iron pipes-External zinc coating.
ISO4633 Rubber Seals – joint rings for water supply, drainage and sewerage pipelines-specs for materials.
ISO 8180 Ductile iron pipes – Polyethylene Sleeve
ISO 2531 Ductile iron pipes, fittings and accessories for pressure pipelines.
BSEN545 Ductile iron pipes, fittings and accessories and their joints for water pipelines. Requirements and test methods.
BSEN598 Ductile iron pipes, fittings, accessories and their joints for sewage application-requirements and test methods.
ISO7186 Ductile iron pipes, fittings, accessories and their joints for the construction of drains and sewers outside buildings.
ISO4179 Ductile iron pipes for pressure and non pressure pipelines-Centrifugal cement mortar lining-general requirements.
ISO8179 Ductile iron pipes-External zinc coating.
ISO4633 Rubber Seals – joint rings for water supply, drainage and sewerage pipelines-specs for materials.
ISO 8180 Ductile iron pipes – Polyethylene Sleeve
Please contact me for more product details and the latest prices.
Company Profile
Shandong Hongyan Metal Material Co., Ltd.
Our vision: To be a professional, reliable and outstanding world-class steel supplier.
Our company is located in Jinan City, Shandong Province, with a registered capital of RMB 50 million. We are a professional steel sales company integrating domestic and foreign trade.
Our company's main products are stainless steel sheet/coil/tube/rod, carbon steel sheet/coil/tube/rod, galvanized sheet/coil/tube, PPGI and PPGL, H-beam, I-beam, angle steel, channel steel, steel plate pile.
Our company has successfully exported to more than 70 countries in Europe, the Middle East, Africa, Southeast Asia, South America, etc.
Adhering to the win-win concept and customer-centric belief, we look forward to becoming your trusted quality partner.
Our vision: To be a professional, reliable and outstanding world-class steel supplier.
Our company is located in Jinan City, Shandong Province, with a registered capital of RMB 50 million. We are a professional steel sales company integrating domestic and foreign trade.
Our company's main products are stainless steel sheet/coil/tube/rod, carbon steel sheet/coil/tube/rod, galvanized sheet/coil/tube, PPGI and PPGL, H-beam, I-beam, angle steel, channel steel, steel plate pile.
Our company has successfully exported to more than 70 countries in Europe, the Middle East, Africa, Southeast Asia, South America, etc.
Adhering to the win-win concept and customer-centric belief, we look forward to becoming your trusted quality partner.
Please contact me for more product details and the latest prices.

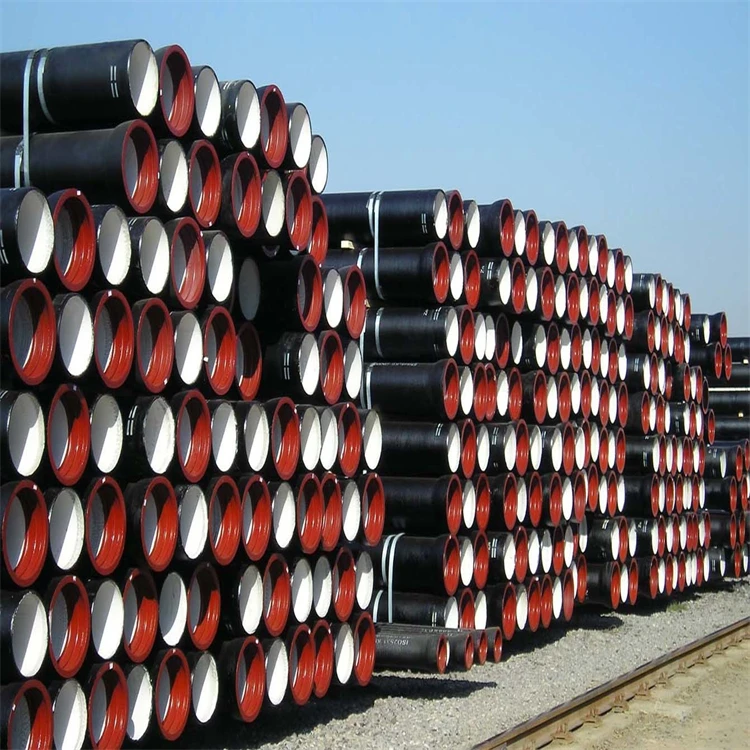

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Can we visit your factory?
A: Warmly welcome your visit.
Q: Do you have quality control?
A: Yes, we have obtained BV, SGS certification.
Q: Can you arrange shipment?
A: Of course, we have regular forwarders who can get the best prices from most shipping companies and provide professional services.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. If the quantity of goods is large, the lead time is 15-45 days.
Q: How can we get a quotation?
A: Please provide the specific specification of the product. Such as material, size, shape, etc., so that we can provide the best quotation.
Q: Can we get some samples? Is there a fee?
A: Yes, you can get free samples, just need to pay the freight.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure the benefit of customers.
2. We respect every customer. We sincerely do business and make friends with our customers.
A: Warmly welcome your visit.
Q: Do you have quality control?
A: Yes, we have obtained BV, SGS certification.
Q: Can you arrange shipment?
A: Of course, we have regular forwarders who can get the best prices from most shipping companies and provide professional services.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. If the quantity of goods is large, the lead time is 15-45 days.
Q: How can we get a quotation?
A: Please provide the specific specification of the product. Such as material, size, shape, etc., so that we can provide the best quotation.
Q: Can we get some samples? Is there a fee?
A: Yes, you can get free samples, just need to pay the freight.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure the benefit of customers.
2. We respect every customer. We sincerely do business and make friends with our customers.
CONTACT US
Thanks for your attention!
If you need additional information, please feel free to contact us.
Welcome your inquiry about more information!
