Заводская цена 1000 тонн зерна пшеницы кукурузы стальных бункеров кормов для

Заводская цена 1000 тонн зерна пшеницы кукурузы стальных бункеров кормов для

Категория: Silos >>>
Поставщик: Henan,Coban,Technology,Co.,Ltd.

Цена:33 000,00 $ - 43 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	39270.64 $*	41234.38 $*
Aug-19-2025	38940.42 $*	40887.95 $*
Jul-19-2025	32670.79 $*	34304.46 $*
Jun-19-2025	38280.11 $*	40194.1 $*
May-19-2025	33330.6 $*	34997.61 $*
Apr-19-2025	37620.75 $*	39501.4 $*
Mar-19-2025	37290.37 $*	39155.46 $*
Feb-19-2025	36960.15 $*	38808.22 $*
Jan-19-2025	36630.29 $*	38462.67 $*

Характеристики

Product Description

Coban grain silos are made of high quality 275g/m2, 300g/m2, 350g/m2 hot-dip galvanized steel plates which are rolled into corrugation and made into standard connecting holes. The vertical friction is support by the steel silo stiffeners which are evenly vertically applied in the silos. The connecting screw bolts are served with round galvanized steel washers, the connecting holes are served with age-resistant and water-proof daub belts that are for aviation special purpose.These plates and stiffeners are connected by high-strength screw bolts to keep the flat silo strong and durable. The hopper bottom silos are equipped with flat repairing doors, outside ladder and ladder guard rings.

Feature:

1. Assembly, easy to ship and save freight.

2. Hot-dip galvanized plates (275g/m2-600g/m2), very WATERPROOF &RUST-PROOF.

3. Hopper bottom has low cost price.

4. Silos can store grain safely and save labor cost and space.

Specification

Hopper Bottom Steel Silo Technical Specifications
Capacity(T)	50	100	150	200	300	500	1000	1500
Φ(m)	3.667	4.584	5.5	6.417	7.334	7.334	11	12.834
Total H.(m)	9.56	12.53	13.25	12.85	14.70	21.42	20.95	23.51
V(m3) Density:0.75ton/m³	69	150	222	273	415	699	1346	2039

Flat Bottom Steel Silo Technical Specifications
Capacity(T)	1000	1500	2000	2500	3000	5000	8000	10000
Φ(m)	10.084	11.918	13.750	15.584	15.584	18.334	24.751	25.668
Total H.(m)	18.69	20.34	20.87	20.3	24.78	28.6	26.99	30.6
V(m3) Density:0.75ton/m³	1335	2009	2701	2467	4145	6693	10879	13484

Details Images

Silo Roof

The roof beam is made of C-shaped steel, the upper part is connected with the top ring of the silo, the lower part is connected
with the pillar of the silo,and the beam is horizontally connected by angle steel to form the framework of the silo top.

Silo Body

The coaming of the silo is made of 275g/m2 galvanized steel plate. The coaming is gradually thickened from top to bottom according
to the stress of each layer.

Access Ladder & Door

Cob Brand high-strength galvanized ladders have roll formed sides and stamped rungs to eliminate rung spin for easy climbing. The access doors give the second ring to access the interior of the silo.

Recommend Products

Henan Coban Machinery Equipment Co., Ltd. specializes in the production of 100-10,000 ton hopper bottom and flat bottom corrugated galvanized steel silos. According to various factors such as site, weather, and geology, we provide professional silo design, equipped with elevators, unloading pits, pre-cleaner, conveyors, sweeping auger, and other accessories to meet the diverse needs of customers.

Packing & Delivery

Coban’s own installation engineers team plays a respectable role in the success high-performance whole silo system. Our motivated team has rich installation experience for various types of silos, work under a strict and standardized installation management system, has thorough installation cross-checking rules, and promise one-time project acceptance.

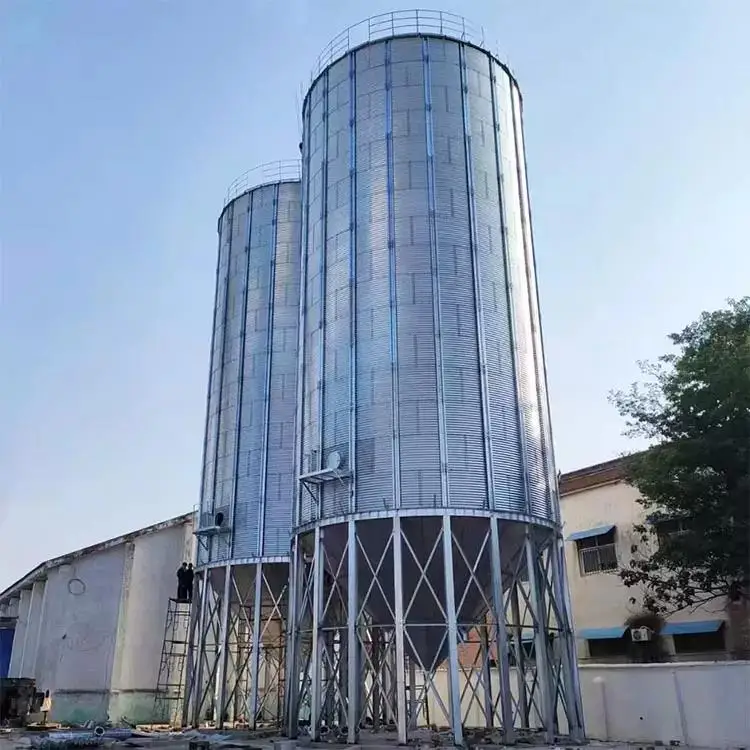

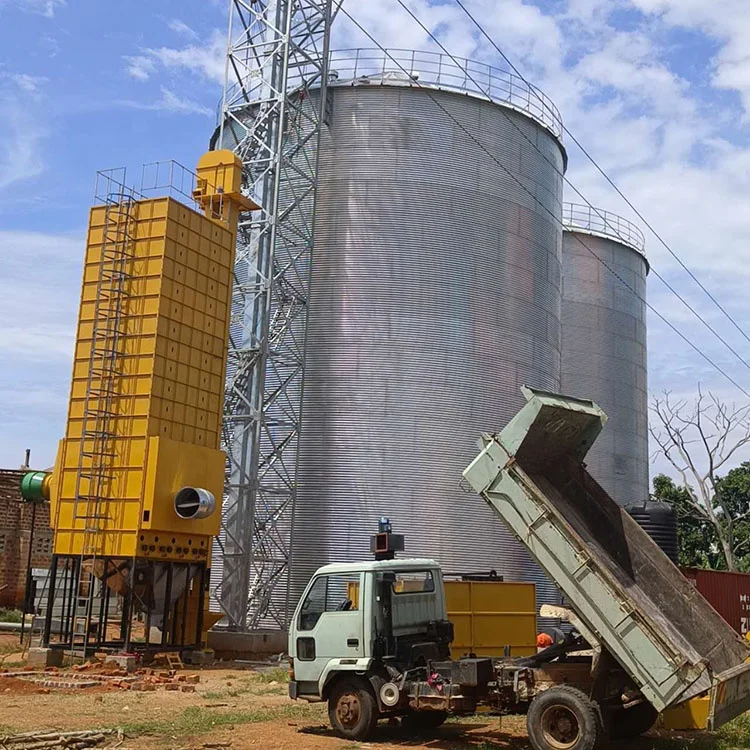

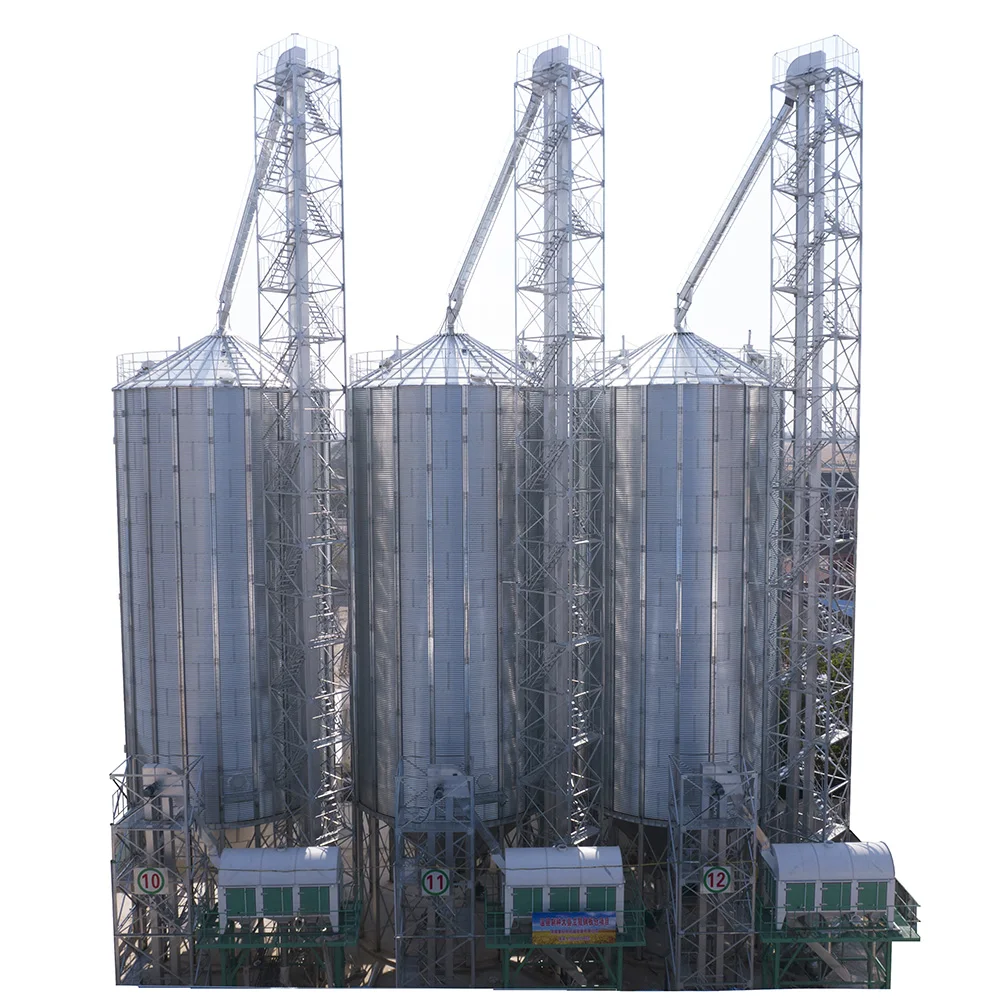

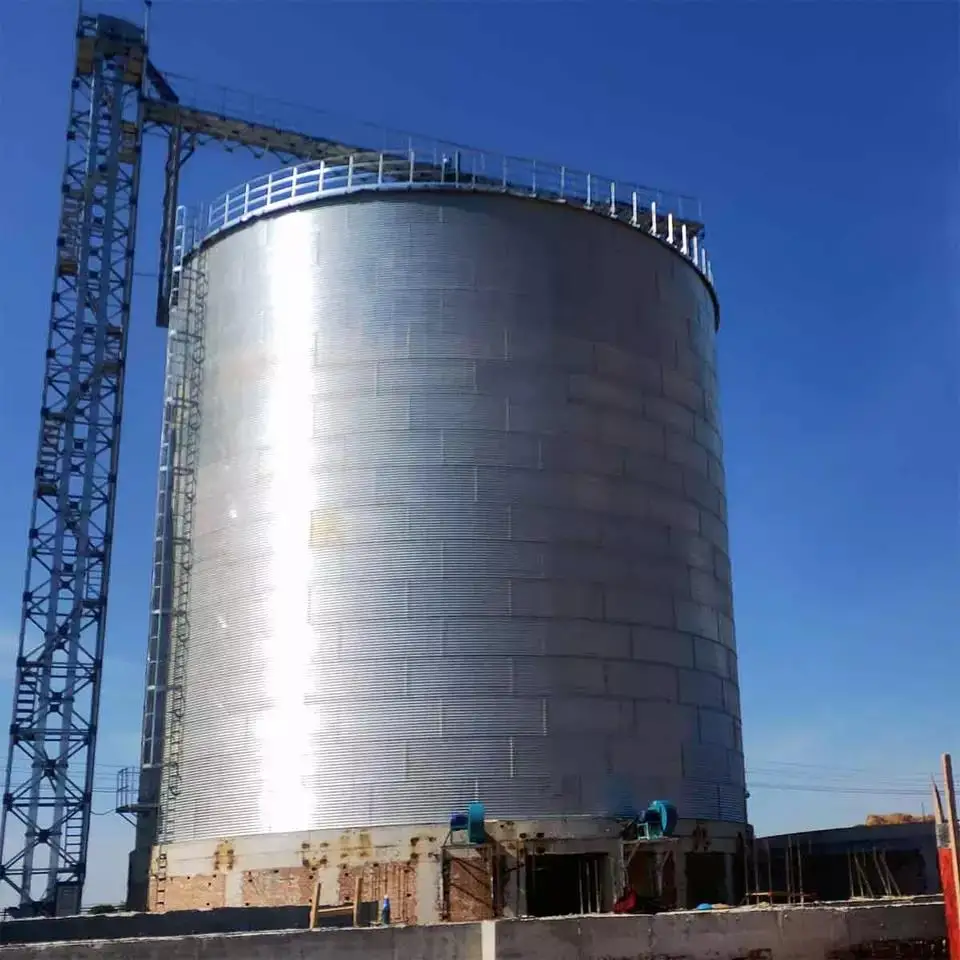

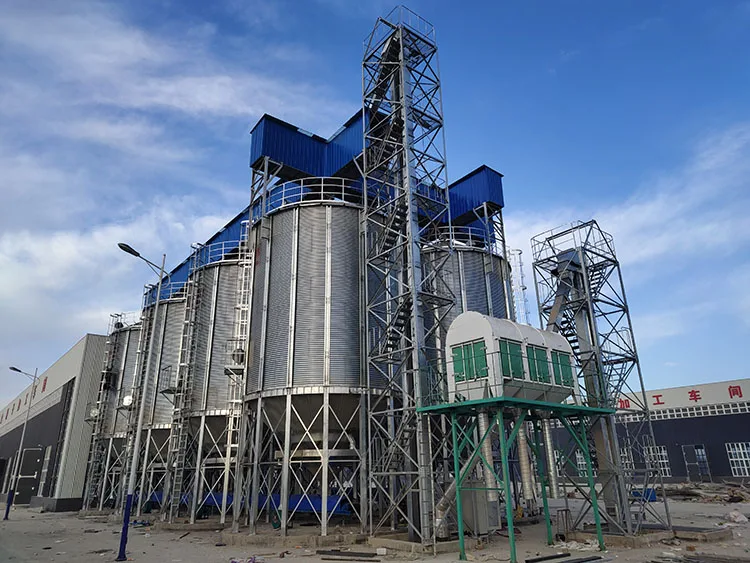

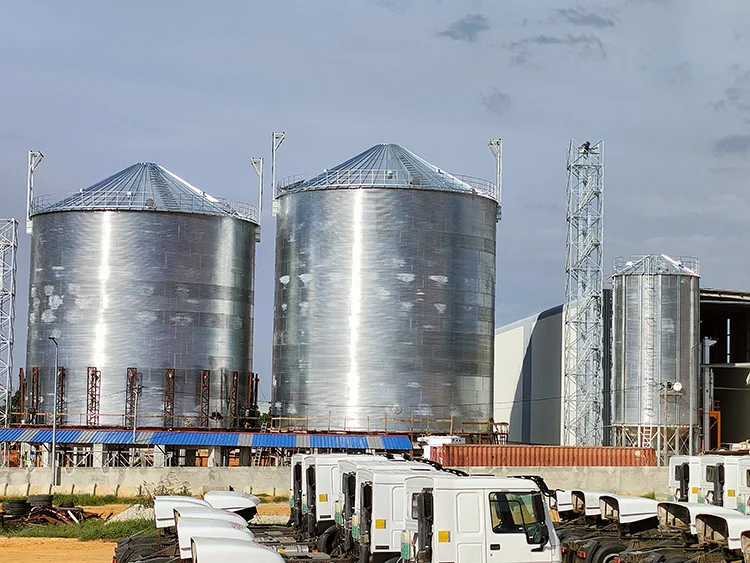

Customer site

Coban Grain Feed Silos have passed ISO, CE, and other certifications, attracting customers from all over the world with an efficient sales team and competitive price advantage, we have exported to more than 50 countries, including the United States, Russia, South Korea, Nigeria, Tanzania, Uganda, Colombia, Thailand, Philippines, Zimbabwe, Kenya, and other countries and regions.

Company Profile

Henan Coban Machinery Equipment Co., Ltd. was founded in 2008, covers an area of 32,000 square meters, has 8,000 square meters of the standardized heavy industrial production room, specializing in the production of feed mill, feed silo, small harvester, thresher, grain dryers, and other agricultural grain processing equipment. From grain cleaning, and drying to storage, Coban Machinery creates a one-stop service for benefiting farmers!

FAQ

Q: Is your company a manufacturing or Trading company?

A: We are professional manufacture of Agricultural equipment, Grain silo in China

Q: Can you open our own brand?

A: Yes, we can offer OEM/ODM service, put your logo for the produce.

Q: What is your minimum order quantity?

A: We accept small order quantities, but the freight cost will be very high

Q: Voltage your can offer?

A: Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.

Q: How about the quality of your product?

A: All the products are produced strictly according to the international standard, which has been passed CE certification, and ISO9001:2008 international quality management system.

Q: Can you accept an inspection of a Third-party detection institution?

A: Yes, sure. Our products have been inspected by some third-party detection institutions authorized by customs before. and have got a perfect inspection report.
