Характеристики

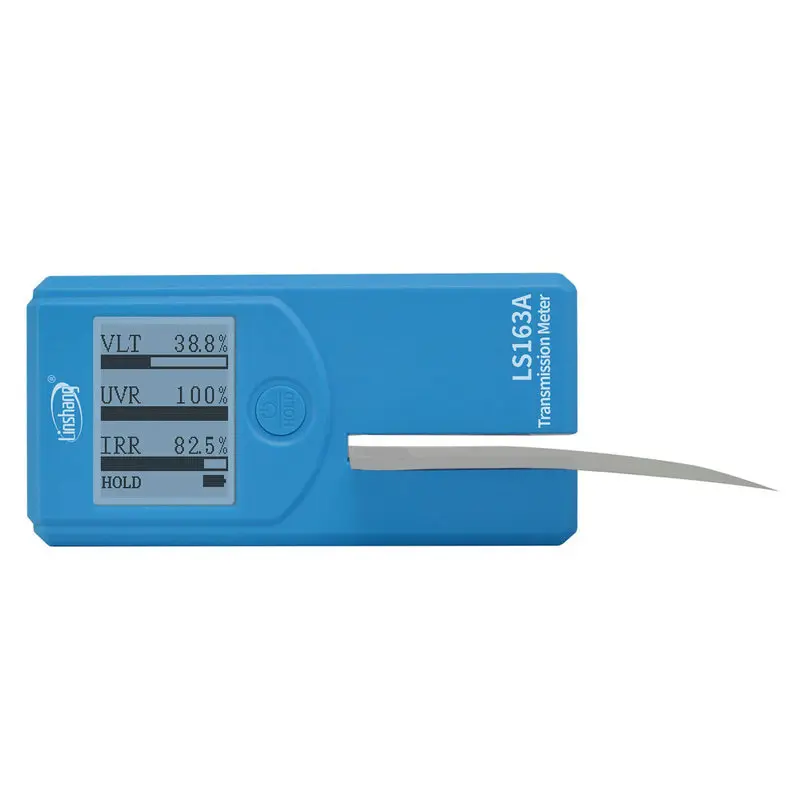

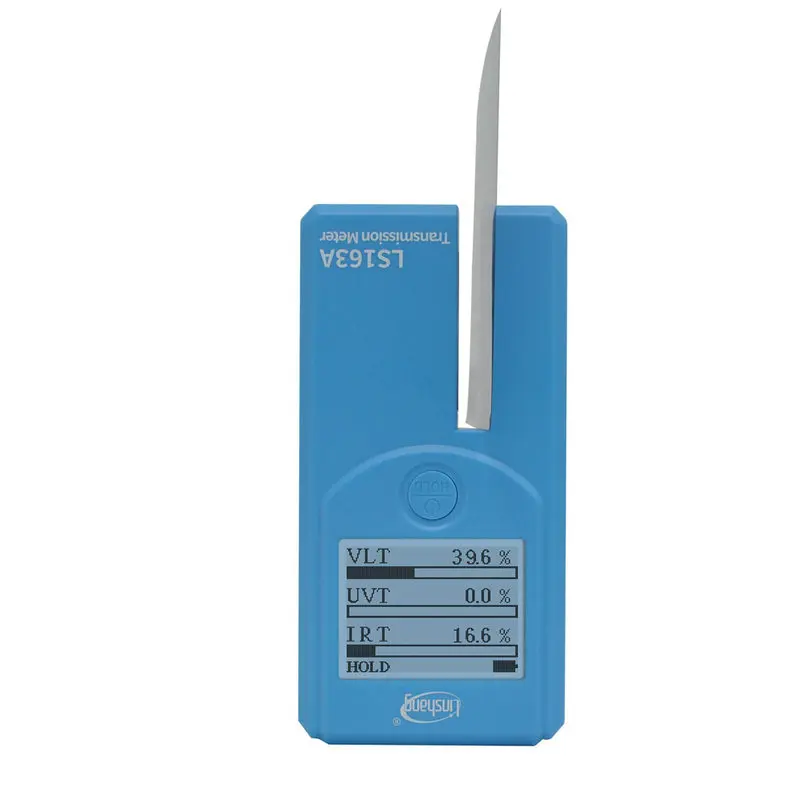

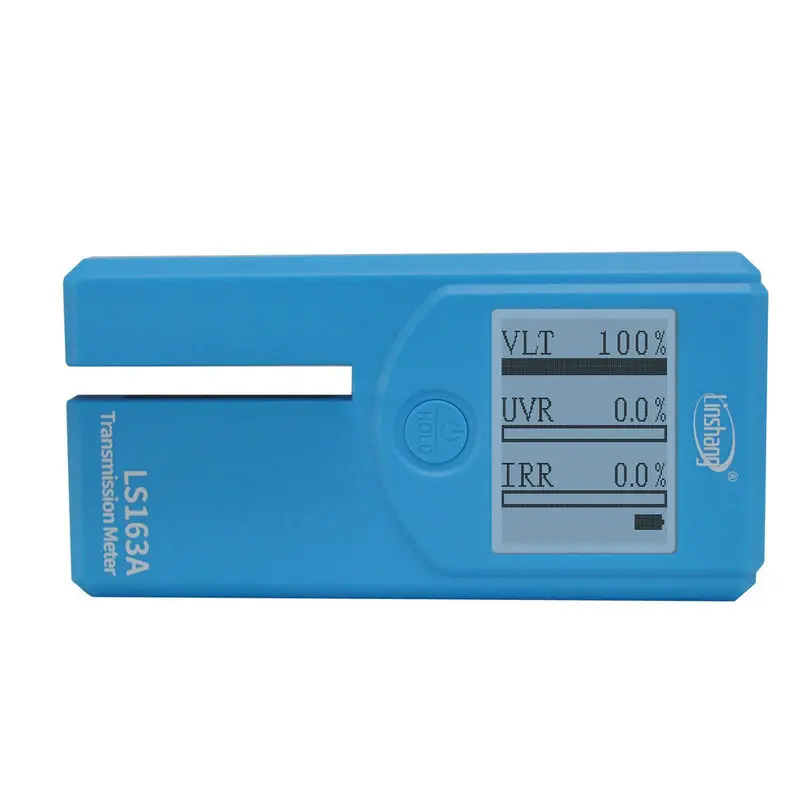

LS163A Transmission Meter
Linshang LS163A window film transmission meter is an instrument for measuring the optical properties of uniform and transparent materials such as solar film, stick-film glass, heat-insulating glass and automobile side glass. We can select the measurement interface to display the infrared and ultraviolet rejection and transmittance.
![_01]()
Size
|
146 mm*73 mm*24 mm (L*W*H)
|
Test slot
|
<6mm
|
Weight
|
About 187 g (batteries excluded)
|
Resolution
|
0.1%
|
Accuracy
|
±2% (Colorless and transparent material)
|
UV
|
Peak wavelength: 365nm
|
Visible light
|
380nm-760nm, in line with CIE photopic luminosity function
|
Infrared
|
Peak wavelength: 1400nm
|
Power Supply
|
4*AAA alkaline batteries
|
Recommend Products
Recommend Products
1. The solar film transmission meter has simple operation and fast measurement. The three test results will be displayed on the interface immediately after putting the materials into the test slot.
2. The display interface can be rotated 360 ° adaptively, which is convenient for reading data when testing at different angles.

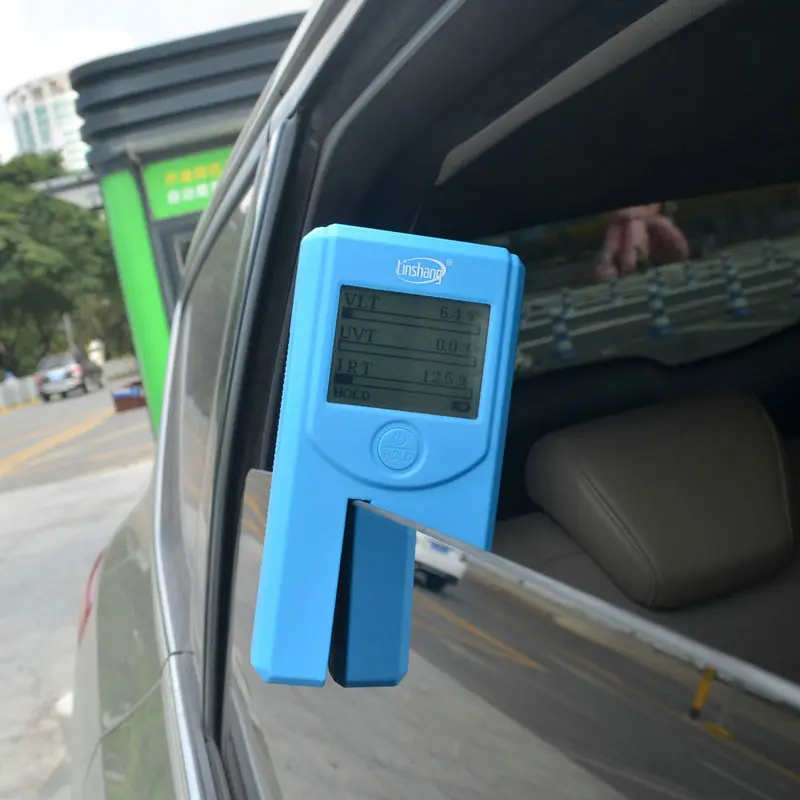

3. The LS163 transmission meter adopt parallel light path design, the test slot width can be 6mm. The instrument can also test car side windshield.
![_02]()
![_03]()
![_04]()
4. With real time dynamic calibration function , the meter will make self-calibration after power on.
5. We can set the display data as rejection rate or light transmittance. The instrument can also only display the visible light
transmittance.
6. The window tint detector has data lock function. Press the hold button after testing, the data will remain on the interface after taking away the tested materials.

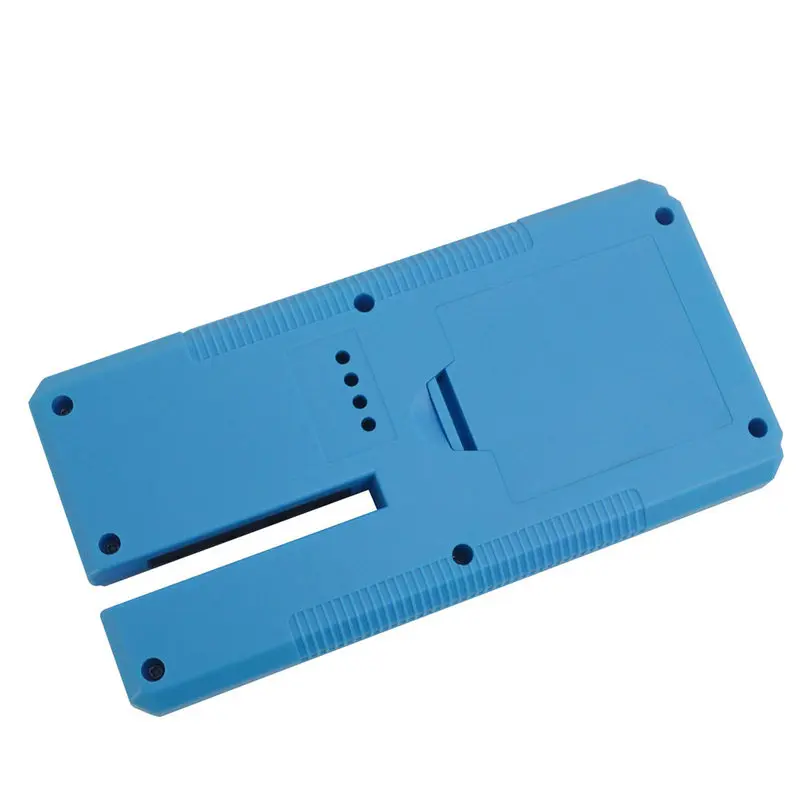

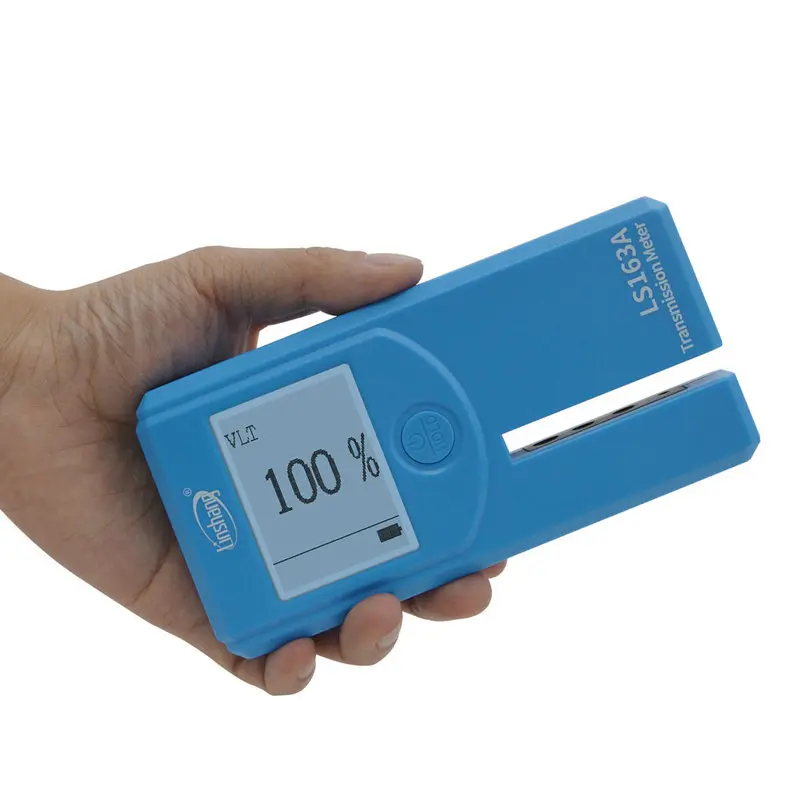

7. The window film transmission meter has small size with anti-slip design. The anti-slip design is convenient for holding or carrying out.
8. The instrument adopts LCD dot matrix screen with backlight, which can be used in dark environment.
9. The tint tester is powered by 4 AAA alkaline dry batteries with low power consumption. It can continuously measure for more than 100 hours. The meter will automatically shutdown without operation after 3 minutes.
