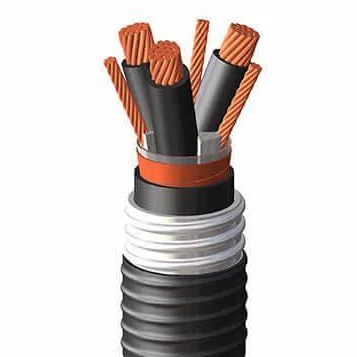

Изоляция CU 600V XLPE ИЗОЛЯЦИЯ. XHHW-2 VFD кабель x- Armor ПВХ куртка. 3*3/0awg

CU 600/1000V XLPE Insulation Armor-x PVC Jacket. XHHW-2

Continuously Corrugated Welded Cable – XLPE Insulation - PVC Jacket 90°C - 600 Volt - UL Type MC-HL 3-Conductor VFD & 4-Conductor

Application:

control cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, 250°C for short circuit conditions. For uses in Class I, II, and III, Division 1 and 2 hazardous locations

Structure:

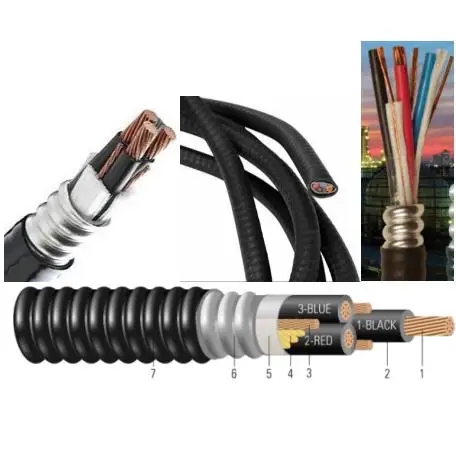

CONSTRUCTION:

1. Conductor: 7 strands class B compressed copper

2. Insulation: Cross Linked Polyethylene (XLPE) XHHW-2, 30 Mils thick for all cable sizes

3. Grounding Conductor: 3 Class B compressed stranded bare copper ground

4. Filler: Polypropylene iller on cables with 5 or less conductors

5. Binder: Polyester at thread binder tape applied for cables with more than 5 conductors

6. Armor: Continuous Corrugated Welded Armor (Armor-X)

7. Overall Jacket: Polyvinyl Chloride (PVC) Jacket

Standard:

 UL 44 Thermoset-Insulated Wires and Cables

•  UL 1569 Metal-Clad Cables

 CSA C22.2 NO. 123 Metal Sheathed Cables

•  CSA C22.2 No. 174 Cables in Hazardous Locations

UL File No.:

UL 1569 E466697

Voltage:

600V 1000V

Working temperature:

-40C  to 90C

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB,IEC,DIN,ASTM, JIS, NF, AS/NZS,CSA,GOST and so on. We also have obtained ISO9001,ISO14001,OHSAS18001,UL,CE,KEMA, TUV,SABS,PBS,Bureau Veritas,Lloyd,GL,NK,KR certifications.
We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable and so on.

CNAS accredited national level laboratory.

1.25 years production experience and 16 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback.  Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.

2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express  account or prepay us if you do not have an account.

4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
