Биметаллическая подкладка crc лист для туннельной
- Категория: Other Steel Products >>>
- Поставщик: Shanxi,Hongtai,Dingsheng,Mechanical,And,Electrical,Equipment,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 305.30 $* | 320.98 $* |
| Aug-19-2025 | 302.91 $* | 317.39 $* |
| Jul-19-2025 | 253.67 $* | 266.95 $* |
| Jun-19-2025 | 297.39 $* | 312.15 $* |
| May-19-2025 | 259.40 $* | 272.64 $* |
| Apr-19-2025 | 292.95 $* | 307.63 $* |
| Mar-19-2025 | 289.42 $* | 303.1 $* |
| Feb-19-2025 | 287.34 $* | 301.44 $* |
| Jan-19-2025 | 284.41 $* | 298.69 $* |
Характеристики
Product Overview

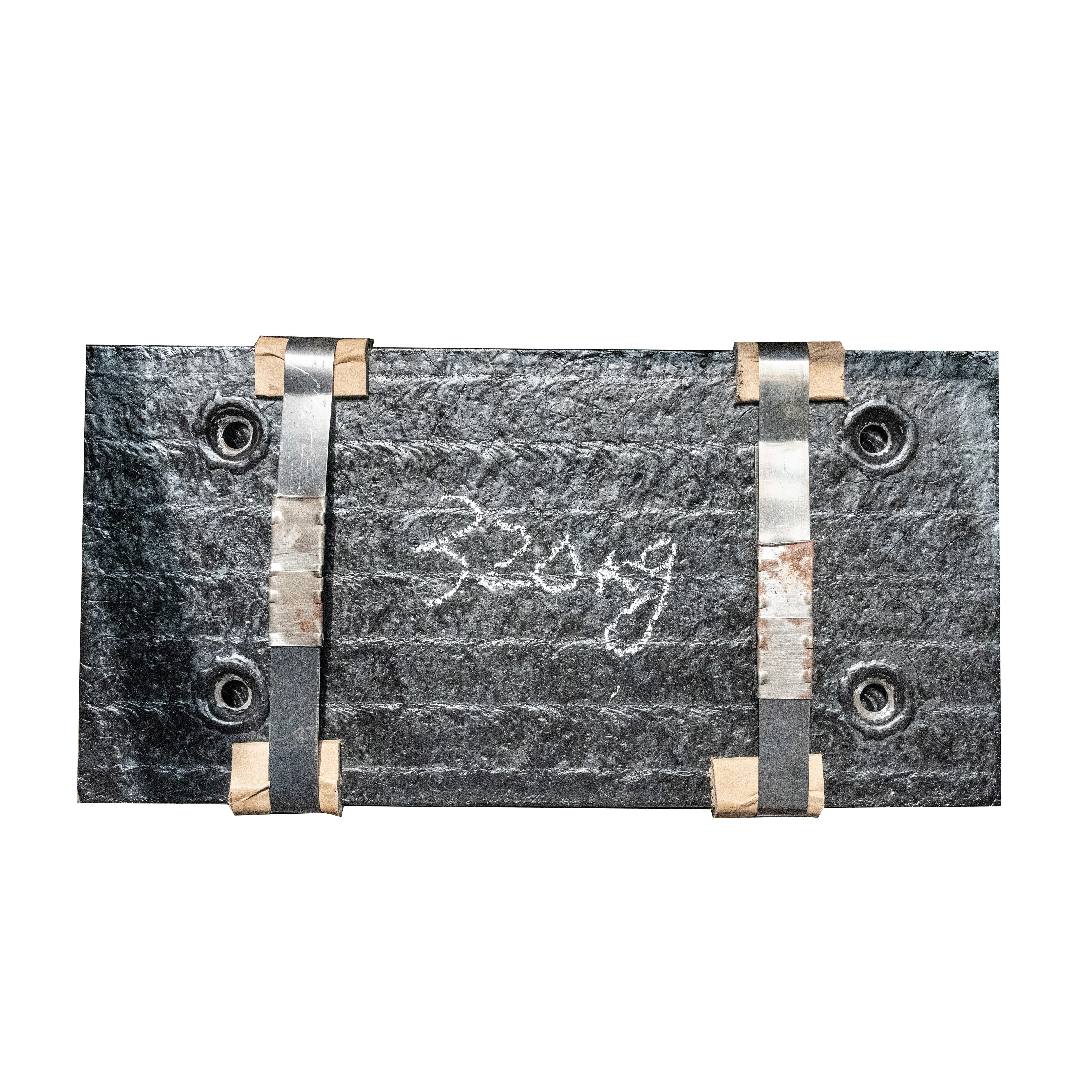

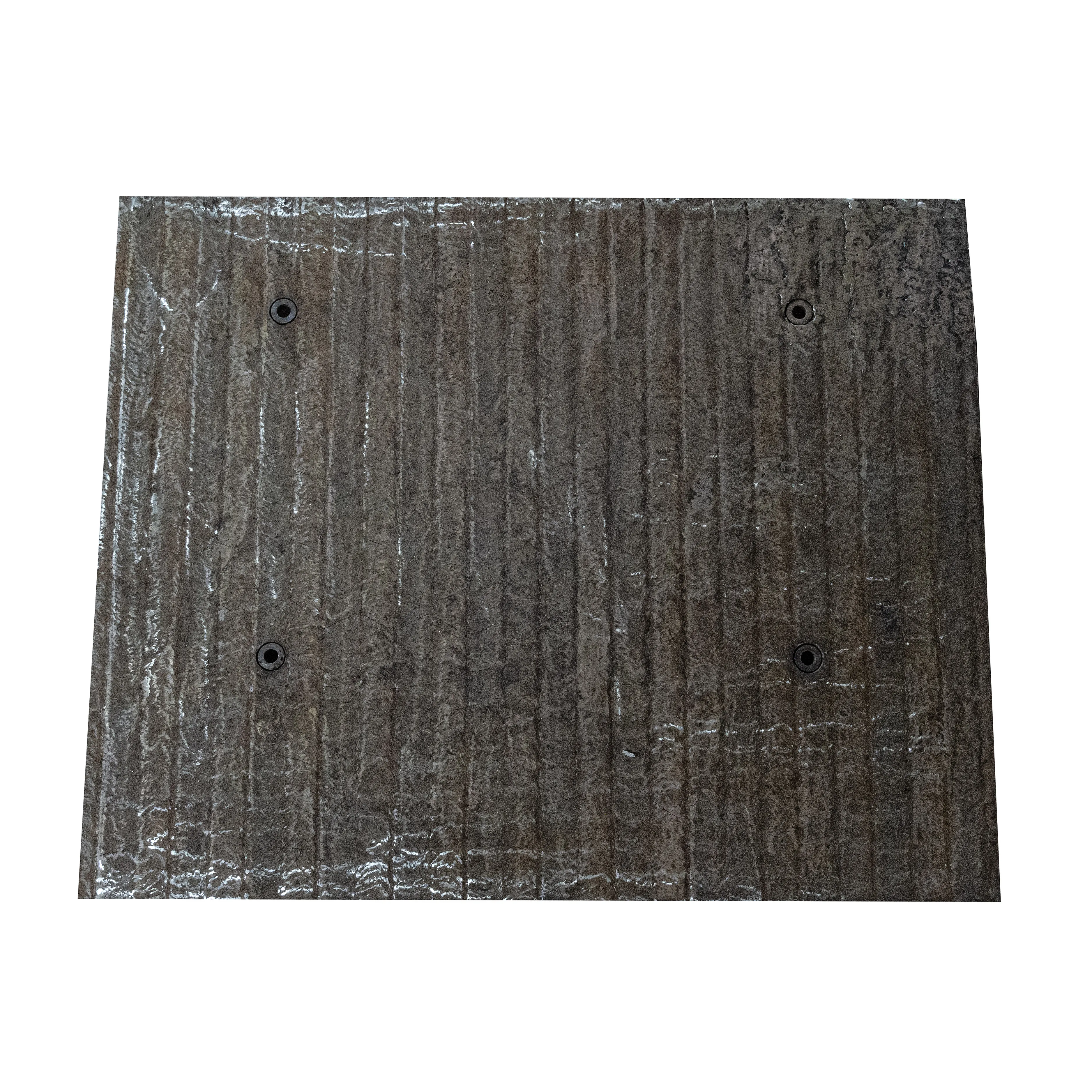

Liner plate made of wear plate
Our company R&D producted bimetallic wear plate have four different types:
1. generally wear plate with Open arc welding: base plate + chromium carbide abrasion resistant welding layer with good abrasion
resistance, Hardness HRC 55-63 (HV 600-780) and chemical compostion C: 2.5-5.0 % Cr: 20-30 %
2. super wear plate with Submerged arc welding: base plate + high chromium carbide abrasion resistant welding layer with super
good abrasion resistance, Hardness HRC 58-65 (HV 600-780) and chemical compostion C: 3.0-5.5% Cr: 25-40%
3. wear plate with Impact resistance: base plate + chromium matrix with other metallelementes resistant welding layer with good
impact resistance and super good abrasion resistance
4. wear plate with Heat resistance: base plate + chromium matrix with other metallelementes resistant welding layer with good heat
resistance (up to 900 °C) and super good abrasion resistance
What is Wodon wear plate?
Wodon wear resistant steel plates are manufactured by welding one or multiple abrasion resistant layers on a medium or low carbon
steel base plate. The overlay alloy has a high amount of chromium carbide hard particles. These particles are distributed evenly
throughout the layer, creating a strong microstructure. The hardness is HRC 58~65 and depends on the overlay's thickness.
The main ingredients of Wodon plate are C (%): 3.0~5.0 and Cr (%): 25~40. This chemical proportion results in a large amount of
Cr7C3 chrome carbide hard particles. The micro-hardness (up to HV1800) of these particles thoughout the layer will guarantee a
super wear resistant surface.
The overlay and base plate are metallurgical bonding. The overlay will penetrate into base plate about 0.8~1.8 mm, reaching up to
350 Mpa in our tests.
Our company R&D producted bimetallic wear plate have four different types:
1. generally wear plate with Open arc welding: base plate + chromium carbide abrasion resistant welding layer with good abrasion
resistance, Hardness HRC 55-63 (HV 600-780) and chemical compostion C: 2.5-5.0 % Cr: 20-30 %
2. super wear plate with Submerged arc welding: base plate + high chromium carbide abrasion resistant welding layer with super
good abrasion resistance, Hardness HRC 58-65 (HV 600-780) and chemical compostion C: 3.0-5.5% Cr: 25-40%
3. wear plate with Impact resistance: base plate + chromium matrix with other metallelementes resistant welding layer with good
impact resistance and super good abrasion resistance
4. wear plate with Heat resistance: base plate + chromium matrix with other metallelementes resistant welding layer with good heat
resistance (up to 900 °C) and super good abrasion resistance
What is Wodon wear plate?
Wodon wear resistant steel plates are manufactured by welding one or multiple abrasion resistant layers on a medium or low carbon
steel base plate. The overlay alloy has a high amount of chromium carbide hard particles. These particles are distributed evenly
throughout the layer, creating a strong microstructure. The hardness is HRC 58~65 and depends on the overlay's thickness.
The main ingredients of Wodon plate are C (%): 3.0~5.0 and Cr (%): 25~40. This chemical proportion results in a large amount of
Cr7C3 chrome carbide hard particles. The micro-hardness (up to HV1800) of these particles thoughout the layer will guarantee a
super wear resistant surface.
The overlay and base plate are metallurgical bonding. The overlay will penetrate into base plate about 0.8~1.8 mm, reaching up to
350 Mpa in our tests.
PRODUCT SPECIFICATIONS
Product name | Wodon manufactured premium chromium carbide cladded steel with super wear resistance | ||||||
Material | Q235/Q345+Chromium carbide overlay alloy | ||||||
Certificate | ISO9001:2008 | ||||||
Chemical composition | C: 3.0~5.0 % Cr: 25~40 % | ||||||
Microstructure | Chromium carbide hard particles volume fraction above 50 % The maximum hardness of chromium carbide is HV 1800 | ||||||
Wear Resistance | Our test shows that the wear resistance of Wodon plate is 30 times higher than low carbon stell and 12 times than heat treated steel | ||||||
Impact resistance | Wodon wear plates can withstand medium impact | ||||||
Temperature resistance | Wodon wear plates can withstand temperatures up to 600 ℃. We can customize high temperature resistance wear plates according to customer's requirements which can withstand maximum terperatures up to 900 ℃ | ||||||
Flatness tolerance | ± 3 mm/m | ||||||
Thickness tolerance | Uniform overlay thickness, with tolerance within 0~0.5 mm | ||||||
Surface treatment | hardfacing, cladding, open arc or submerged arc welding | ||||||
Standard sizes | Open arc welding: 1400*3400 mm, customized Submerged arc welding: 1400*3000 mm, 1400*3500 mm, 2100*3500 mm, customized | ||||||
The main thicknesses | 3 on 3, 4 on 4, 5 on 5 4 on 6, 5 on 6, 6 on 6, 8 on 6 4 on 8, 5 on 8, 6 on 8, 7 on 8, 8 on 8 4 on 10, 5 on 10, 6 on 10, 7 on 10, 8 on 10, 9 on 10, 10 on 10, 20 on 10 4 on 12, 5 on 12, 6 on 12, 7 on 12, 8 on 12, 10 on 12, 11 on 12, 12 on 12 6 on 14, 8 on 14, 10 on 14 6 on 16, 8 on 16, 10 on 16 6 on 18, 8 on 18, 10 on 18 5 on 20, 6 on 20, 8 on 20, 10 on 20, 20 on 20, 10 on 30, 10 on 40 Customized | ||||||
SALES AND SERVICE NETWORK
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer with more than 3 factorys, our own sales department and our own inspection technology department.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A:30% T/T in advance ,balance against copy of BL.
also, FOB, CIF, CFR all are available for your product.
If you have another question, pls feel free to contact us as below:
A: We are manufacturer with more than 3 factorys, our own sales department and our own inspection technology department.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A:30% T/T in advance ,balance against copy of BL.
also, FOB, CIF, CFR all are available for your product.
If you have another question, pls feel free to contact us as below:
