Воздушный водонагреватель
- Категория: Water Heaters >>>
- Поставщик: Guangdong,Chico,Electronic,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 48.38 $* | 50.78 $* |
| Aug-15-2025 | 47.72 $* | 49.51 $* |
| Jul-15-2025 | 40.2 $* | 42.1 $* |
| Jun-15-2025 | 46.83 $* | 48.42 $* |
| May-15-2025 | 40.5 $* | 42.76 $* |
| Apr-15-2025 | 46.54 $* | 48.28 $* |
| Mar-15-2025 | 45.52 $* | 47.49 $* |
| Feb-15-2025 | 45.76 $* | 47.12 $* |
| Jan-15-2025 | 44.85 $* | 46.77 $* |
Характеристики
VR
The biggest advantage of CHICO is our ability to customize products for our customers to meet their diverse requirements. We are also exporting OEM/ODM services.
Product Description

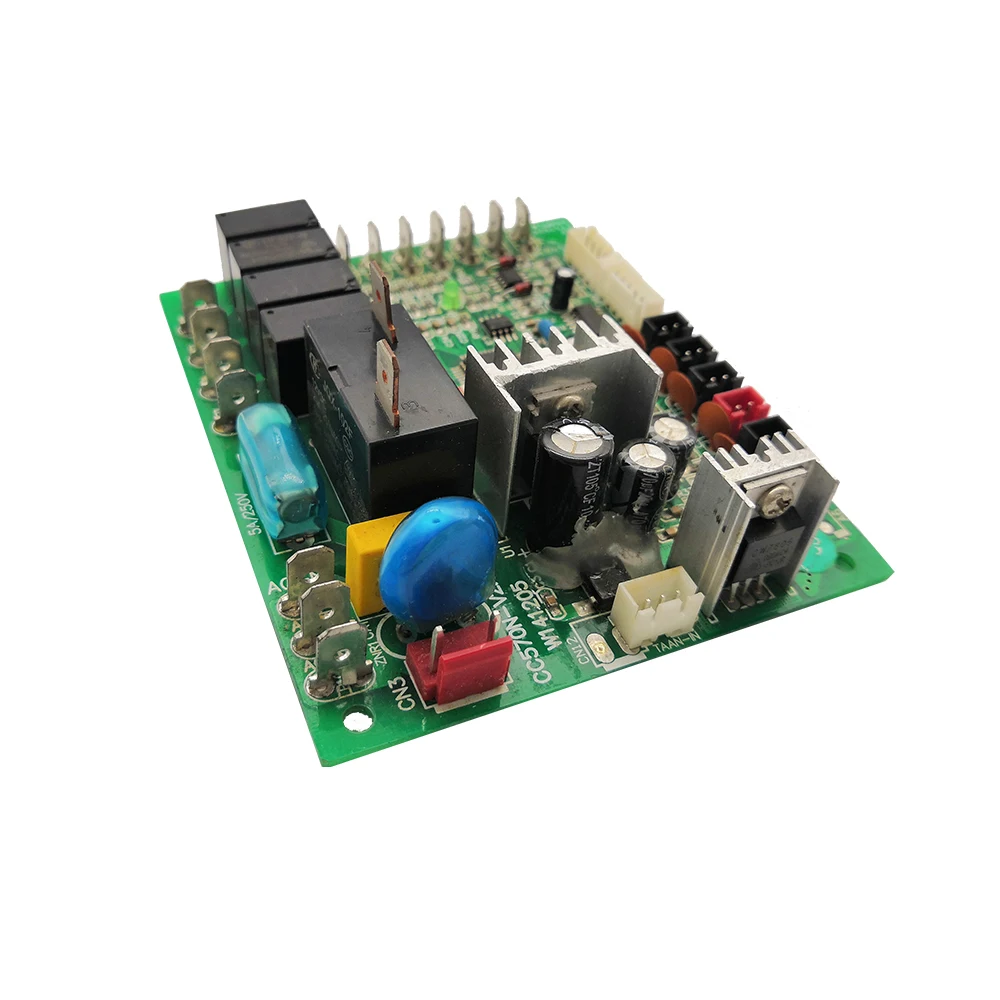

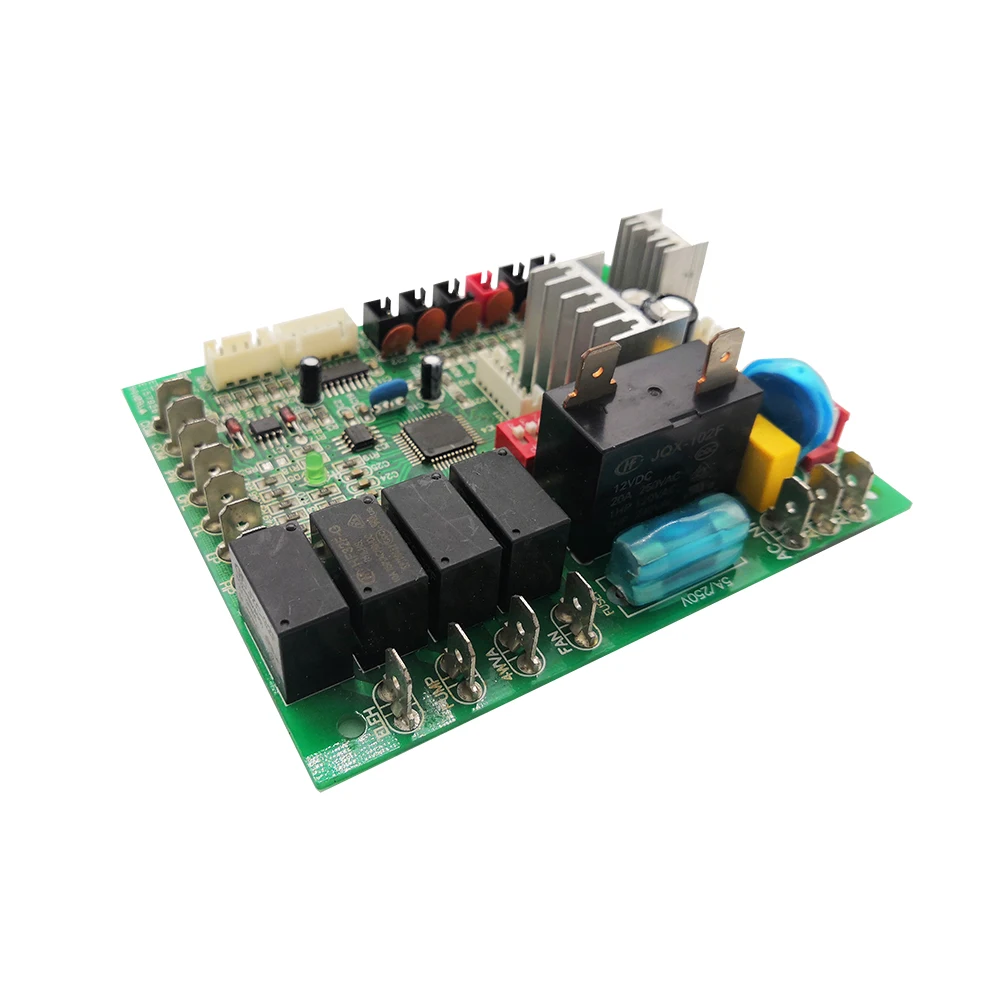

CC570N domestic water heater heat pump controller pcba control board
1. Designed for: domestic heat pump water heater machine
2. Suitable for: all in one heat pump or split type heat pump.
2. Suitable for: all in one heat pump or split type heat pump.
3. Air source and water source are optional.

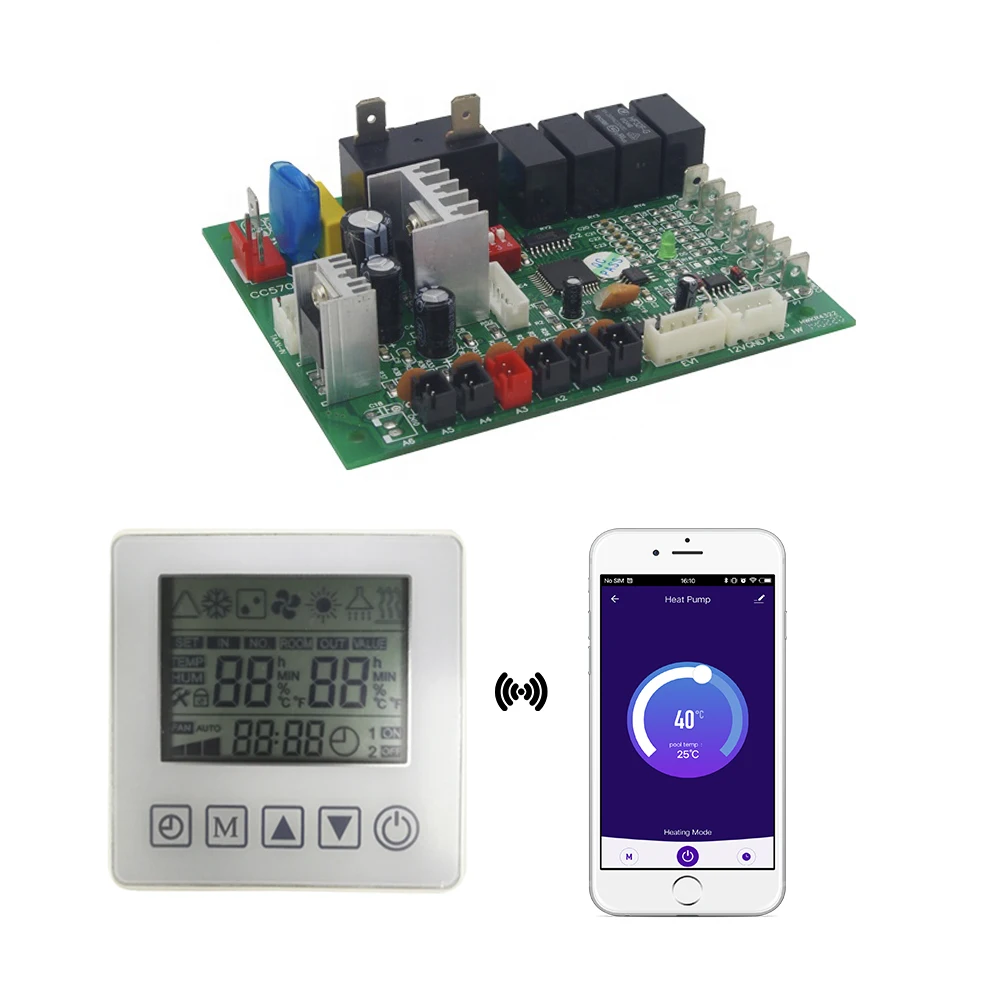

4. Can be controled by wifi Tuya App.
4. Can be controled by wifi Tuya App.
5. Single compressor control , strongly system protection , EMC certificate.
Our heat pump control board are suitable for home and commercial hot water heater machines, swimming pool machines, air-conditioning cooling and heating, chiller, and so on. Different application may need different technical data, please send us an inquiry with specific requirements, we will contact you immediately.
Technical Data
Measuring range | -30°C~99°C | ||
Controlling range | -30°C~99°C; | ||
Accuracy | -30°C~50°C,±1°C±0.5dig; others, ±2°C±0.5dig | ||
Mounting size | 110*90*35mm | ||
Power supply | 220±10%(VAC), 50/60Hz | ||
Power consumption | <12W | ||
Storage temperature | -25°C~50°C | ||
Sensor type | NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K) | ||
Relay output capacity | Compressor | 20A/250VAC | |
Cycle water pump | 10A/250VAC | ||
Others | 5A/250VAC | ||

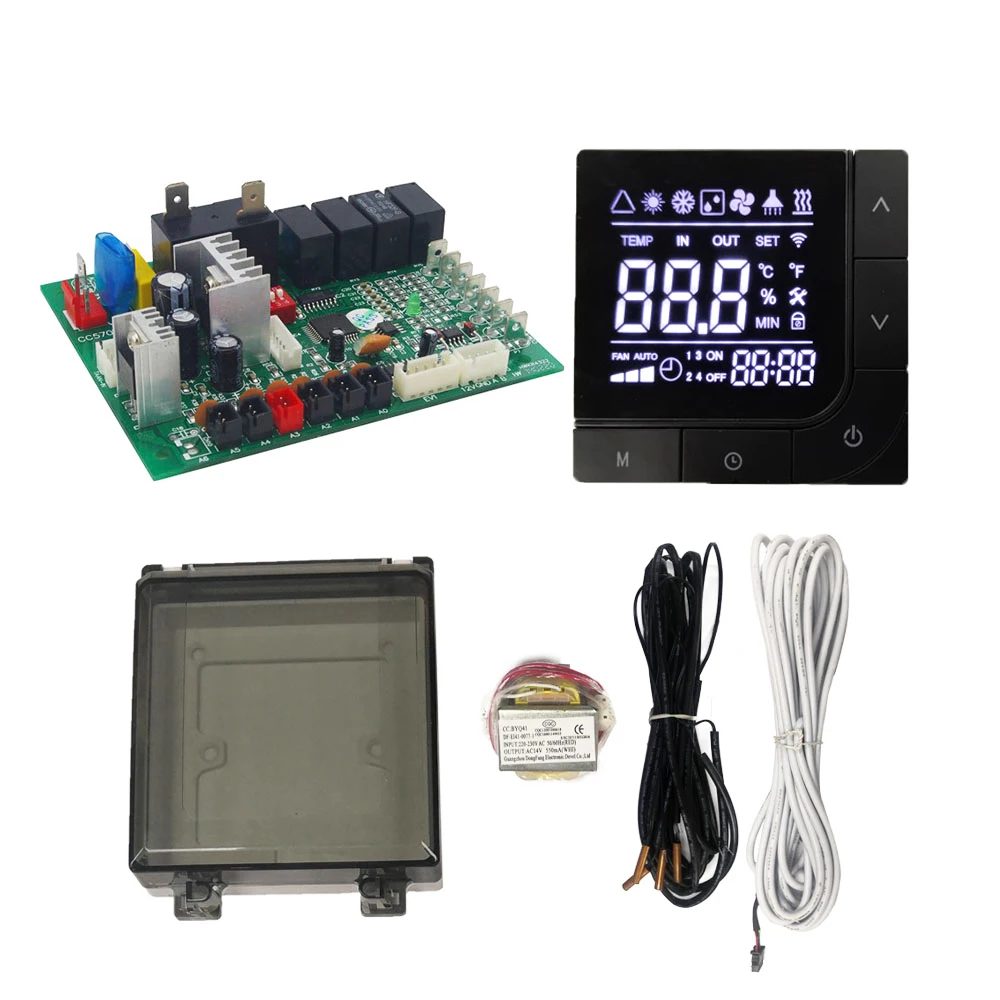

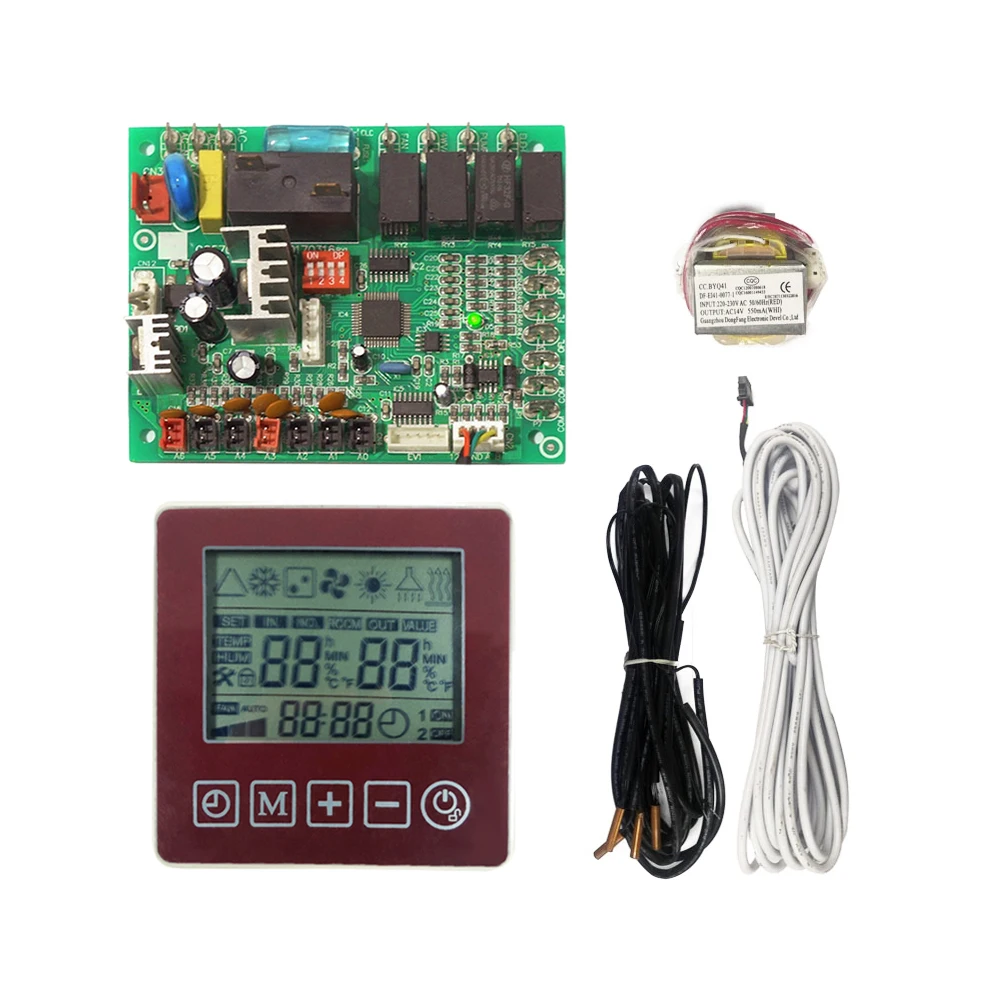

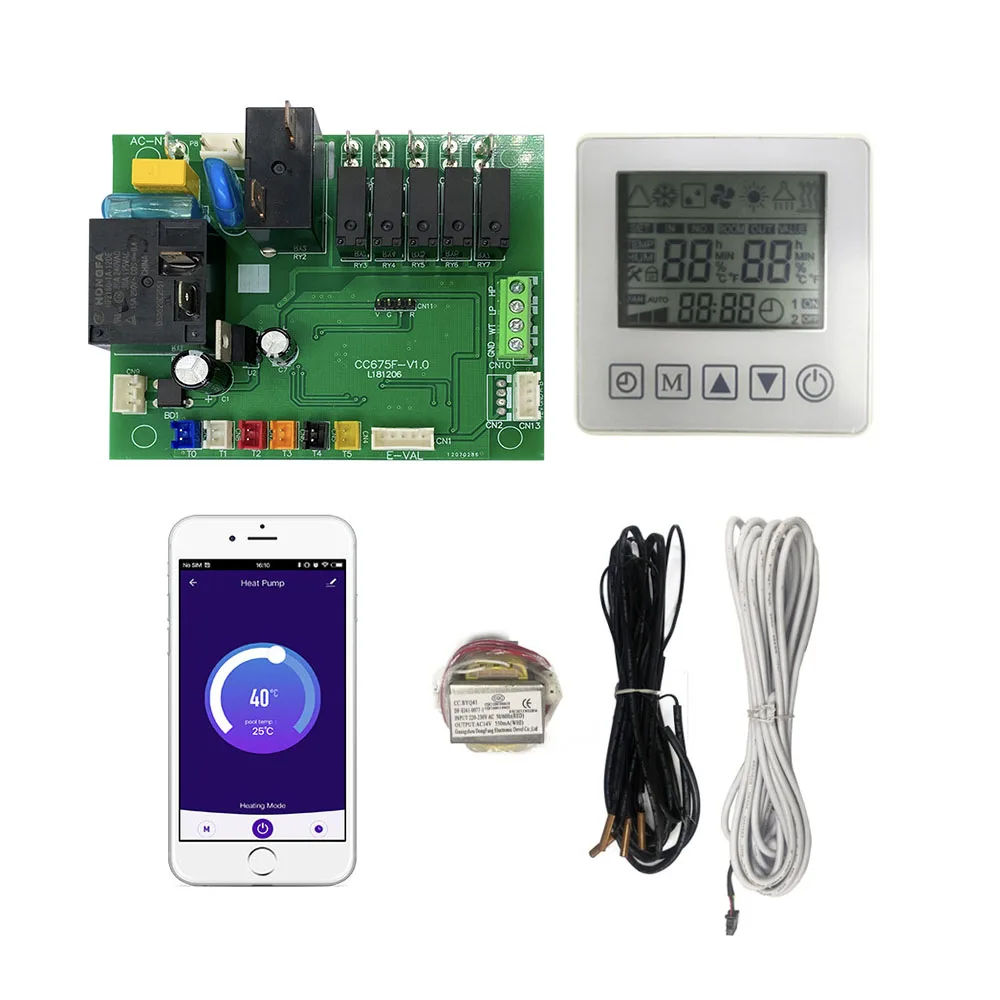

Product list | Mainboard(1pcs) | ||
LCD display(1pcs) | |||
Connect wire(1pcs) | |||
Transformer(1pcs) | |||
Temp. sensor(7pcs) | |||
Product Features
1 | Touch key LCD display , quick parameter setting, easy operation | ||||||
2 | Intelligent defrost control mode | ||||||
3 | Auto restart function, 24 hour cycle Timing ON/OFF function | ||||||
4 | EEV control function | ||||||
5 | Working modes: heating mode, cooling mode, Energy-saving mode | ||||||
6 | Five way control output: Compressor, Cycle water pump, Cycle water pump, Electrical heater, 4 way valve | ||||||
7 | Seven way sensor input: Water tank temp. sensor, Outlet water temp. sensor, Ambient temp. sensor, Evaporator temp. sensor, Exhaust temp. sensor, Suction temp. sensor, Outlet temp. sensor of ground source | ||||||
8 | Four way switch input: High pressure switch, Low pressure switch, Water flow switch, Phase switch | ||||||
Wiring diagram
Application
Customer feedback
Company Profile
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details.Or
as your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your
order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 10-15 working days. For bulk orders, usually 20-25 working days and
depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEX to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will
support technical questions. ODM/OEM is welcome.
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details.Or
as your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your
order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 10-15 working days. For bulk orders, usually 20-25 working days and
depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEX to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will
support technical questions. ODM/OEM is welcome.
