Характеристики
PRODUCT DISCRIPTION

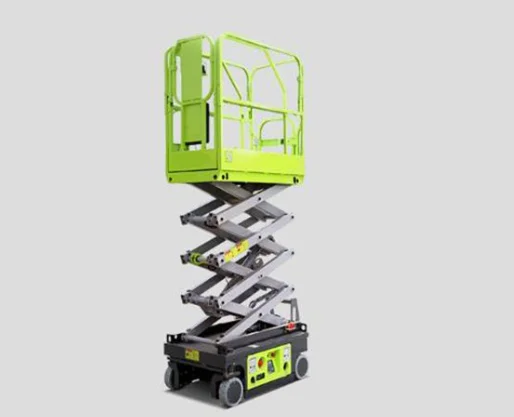

Scissor lift ZS0407
The ZS0407 scissor lift is equipped with an efficient and electric DC drive system that offers productive power for indoor low level and tight access applications with quiet, zero-emissions operation. It can be equipped with lithium-ion battery for option. This series offer low-level access to areas that may have traditionally been accessed by ladders. Compact dimensions are ideal for indoor jobsites with a smooth runtime.
Highlights
*High Performance
1.The efficiency of direct electric-driven almost doubles hydraulic pump-driven
2.Compact dimensions ideal for low level and tight access applications
3.Light weight only 895 kg
4.Climbing up 25 percent grade slopes in a stowed position
5.A maximum work height of 6.5m
*Cost Effectiveness
1..Modularized and unitized parts design ideal for maintenance
2.Swing-out tray easy to service
*Intelligent Connectivity
1.The efficiency of direct electric-driven almost doubles hydraulic pump-driven
2.Compact dimensions ideal for low level and tight access applications
3.Light weight only 895 kg
4.Climbing up 25 percent grade slopes in a stowed position
5.A maximum work height of 6.5m
*Cost Effectiveness
1..Modularized and unitized parts design ideal for maintenance
2.Swing-out tray easy to service
*Intelligent Connectivity
1. AWM Remote Monitoring and Rental Management System quickly obtains equipment status and realizes on-line operation management.
HI,I'm Abia from oriemac,if you need help please contact me:
Wechat/Whatsapp:+8619159357719
e-mail: abia@oriemac.com

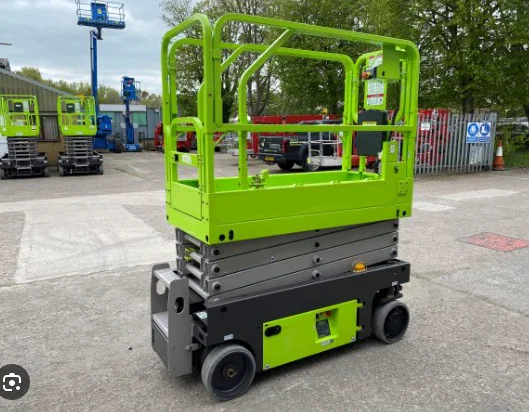

PRODUCTS PICTURES
PRODUCT PARAMETER
Model | ZS0407DC | ZS0407DC-Li | ||
Size | ||||
Work Height | 6.5m | 6.5m | ||
A - Platform Height-Elevated | 4.5m | 4.5m | ||
B - Platform Height-Stowed | 0.95m | 0.95m | ||
C - Platform Length | 1.29m | 1.29m | ||
D - Platform Width | 0.7m | 0.7m | ||
Platform Extension | 0.6m | 0.6m | ||
E - Overall Height (Rails Up) | 2.05m | 2.05m | ||
Overall Height (Rails Down) | 1.7m | 1.7m | ||
F - Overall Length | 1.44m | 1.44m | ||
G - Overall Width | 0.76m | 0.76m | ||
H - Wheelbase | 1.05m | 1.05m | ||
I - Ground Clearance (Stowed) | 0.06m | 0.06m | ||
J - Ground Clearance (Raised) | 0.017m | 0.017m | ||
Performance | ||||
Platform Capacity | 240kg | 240kg | ||
Capacity on Deck Extension | 100kg | 100kg | ||
Max. Number of Workers | 2 | 2 | ||
Drive Speed (Stowed) | 4km/h | 4km/h | ||
Drive Speed (Raised) | 0.8km/h | 0.8km/h | ||
Turning Radius (Inside) | 0.4m | 0.4m | ||
Turning Radius (Outside) | 1.6m | 1.6m | ||
Lifting Motor | 24V/1.2KW | 24V/1.2KW | ||
Up/Down Time | 23/25s | 23/25s | ||
Gradeability | 25% | 25% | ||
Max. Working Slope (Lateral/Vertical) | 1.5°/3° | 1.5°/3° | ||
Control | Proportional Control | Proportional Control | ||
Drive | Rear Wheels | Rear Wheels | ||
Brake | Rear Wheels | Rear Wheels | ||
Tire | ∅230mmX80mm | ∅230mmX80mm | ||
Power | ||||
Battery | 2×12V/85Ah | 102Ah Li-ion Battery | ||
Charger | 24V/15A | 24V/15A | ||
Weight | ||||
Gross | 895kg | 895kg | ||
