Sinotruk HOWO завод 8x4 400 л.с. LHD дизельное топливо масло заправка

Product Name

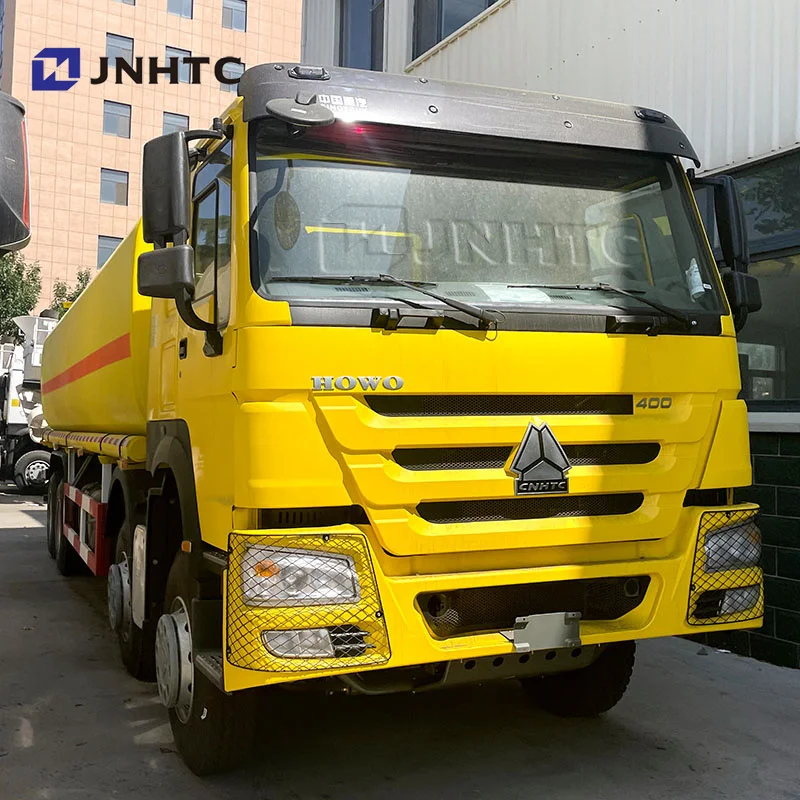

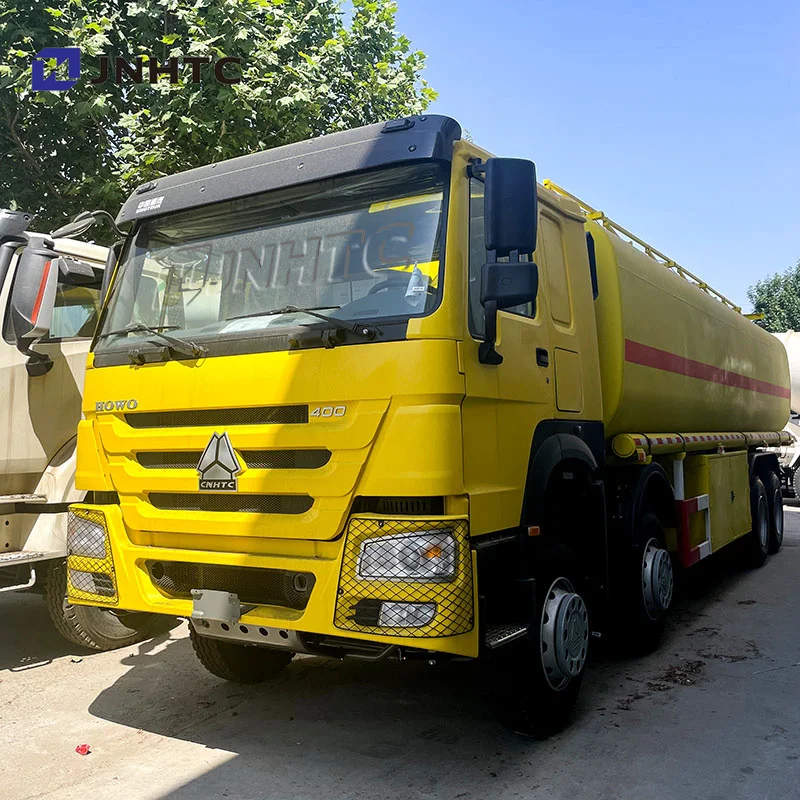

SINOTRUK HOWO 6X4 Oil Tank Truck 20CBM

Driving Type

LHD (RHD is optional)

Cabin

HW76, with one sleeper and two seats, double arm windscreen wiper system with
three speeds, damped adjustable driver's seat, with heating and ventilating system,
exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner,
with transverse stabilizer, with four piont support floating suspension+shock absorber.

Engine

Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.47, Euro 2, 371 HP
6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Displacement: 9.726 L

Transmission

HW19710, 10F & 2R speeds , with PTO

Steering

ZF power steering, model ZF8118, hydraulic steering with power assistance

Front Axle

HF9,1x9000 KGS
Steering with double T-cross section beam

Rear Axle

HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential
locks between wheels and axles.
Ratio:4.8 / 5.73

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm,reinforced
Sub-frame all cold riveted cross members Front suspension:10 semi elliptic leaf
spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on
front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

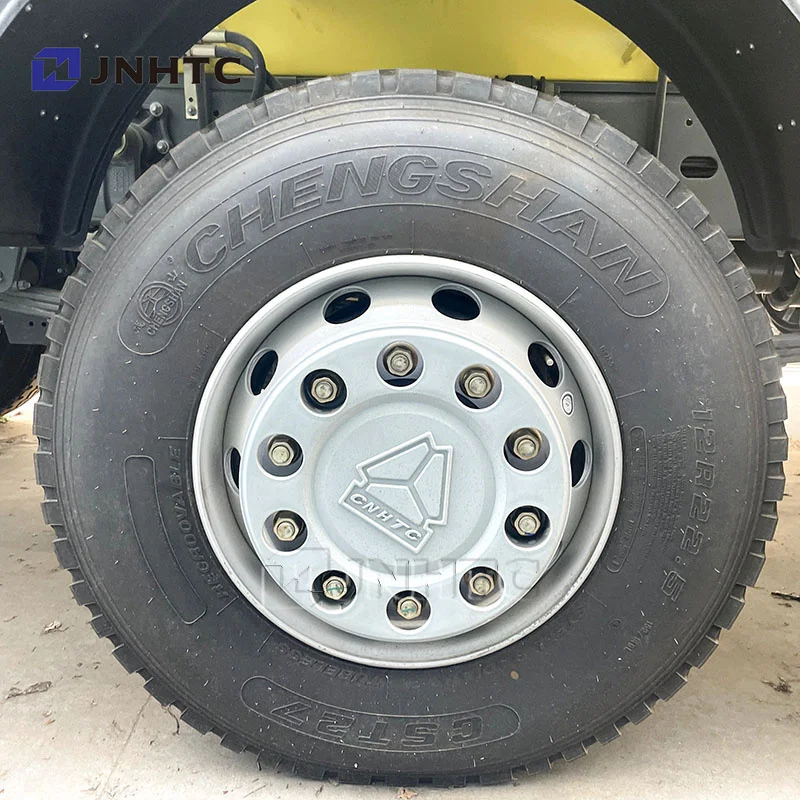

295/80R22.5, tubeless tyres with one spare tyre, 12.00R20 radial tire for option

Fuel Tank

400L

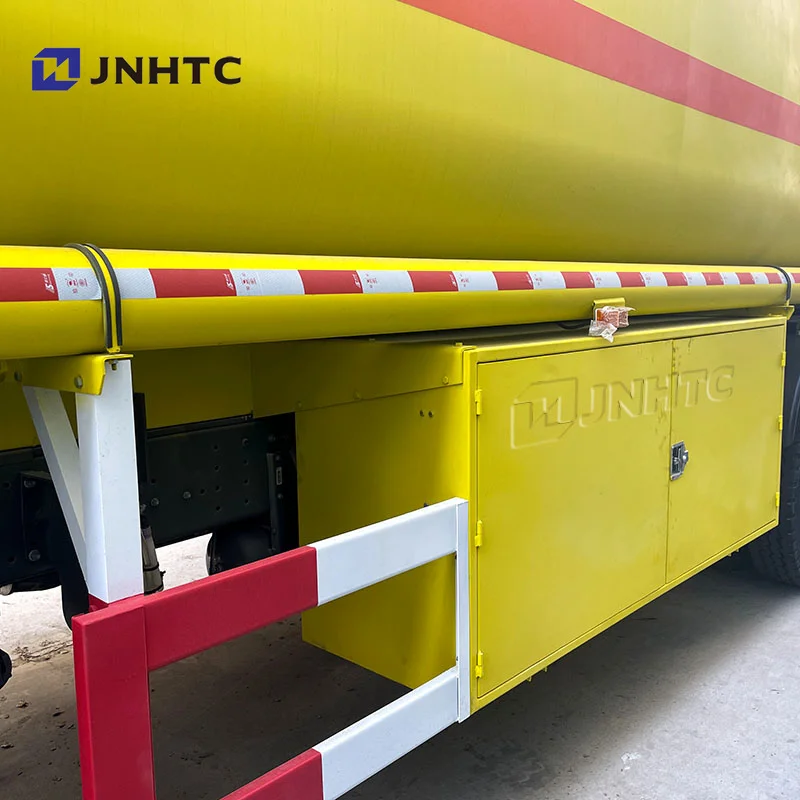

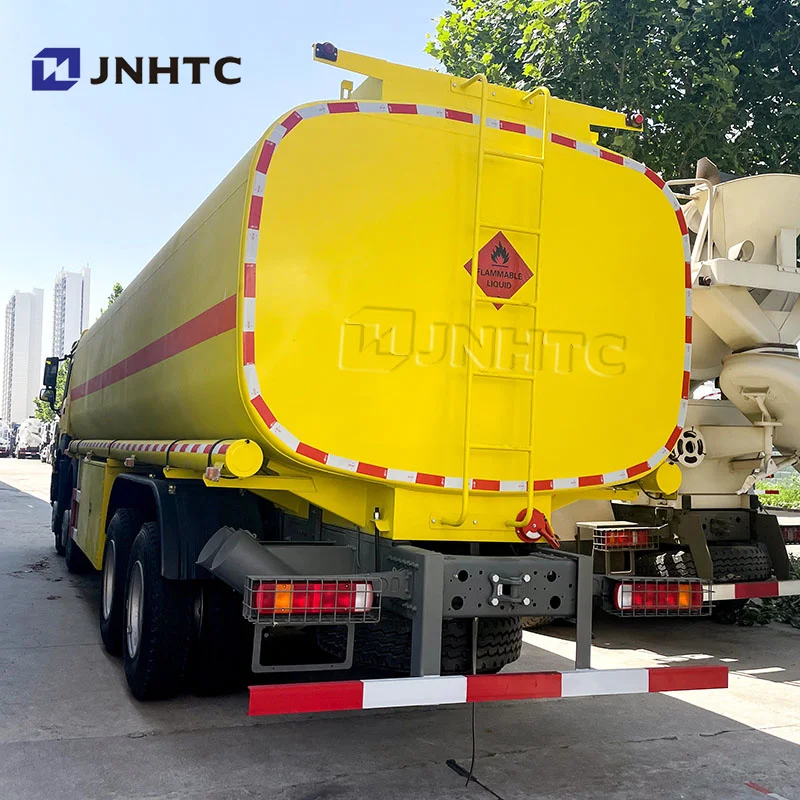

Oil Tank Body

20 Cubic Meters, can be customized
