WLD IP67 сенсорный водонепроницаемый высокотемпературный верхний Плунжер
- Категория: Limit Switches >>>
- Поставщик: Yueqing,Winston,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5.82 $* | 5.58 $* |
| Aug-18-2025 | 5.96 $* | 5.79 $* |
| Jul-18-2025 | 4.7 $* | 4.10 $* |
| Jun-18-2025 | 5.63 $* | 5.3 $* |
| May-18-2025 | 4.46 $* | 4.60 $* |
| Apr-18-2025 | 5.9 $* | 5.67 $* |
| Mar-18-2025 | 5.42 $* | 5.1 $* |
| Feb-18-2025 | 4.8 $* | 4.79 $* |
| Jan-18-2025 | 4.54 $* | 4.44 $* |
Характеристики
WLD IP67 waterproof high temperature top plunger limit switch
Feature
Double-circuit limit switch,is widely used;
Firm alumium alloy enclosure;
High mechanical strength;
Structure preventing oil,water and pressure;
Indicating plating with setting position is installed in it,so it is easy to maintain;
Kinds of actuators is taken convenience for using;
Built-in contact stand has double-reed,so it has long mechanical life;
Widely used in mechanical equipment,automatic machine,and instrument,electro motion tool etc.
characteristics
| Operation speed | 1mm-2m/s |
| Operating frequency | Mechanical: 120 operations/minute, Electrical: 30 operations/minute |
| Contact resistance | 15mΩ max. (initial value) |
| Insulation resistance | 100mΩ min. (at 500VDC) |
| Dielectric strength | 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity |
| 2200VAC, 50/60 HZ for 1 minute between current carryingand non-current-carrying metal parts | |
| 2200VAC, 50/60 HZ for 1 minute between each terminal and ground | |
| Vibration | 10-55HZ,1.5mm double amplitude |
| Shock | Mechanical durable: 1, 000m/Sec2 (about 100GS)Malfunction: 300m/Sec2 (about 30GS) |
| Ambient temperature | -10°C to +80°C |
| Life | Mechanical: 15,000,000 operations aboveElectrical: 500,000 operations above |
| Weight | About 275g. |
| Degree of protection | IP67 |

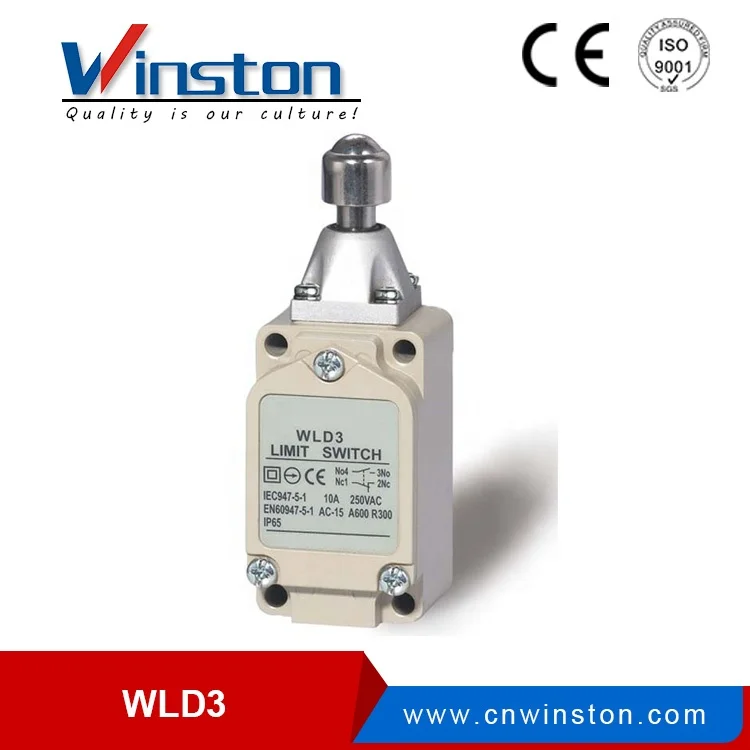

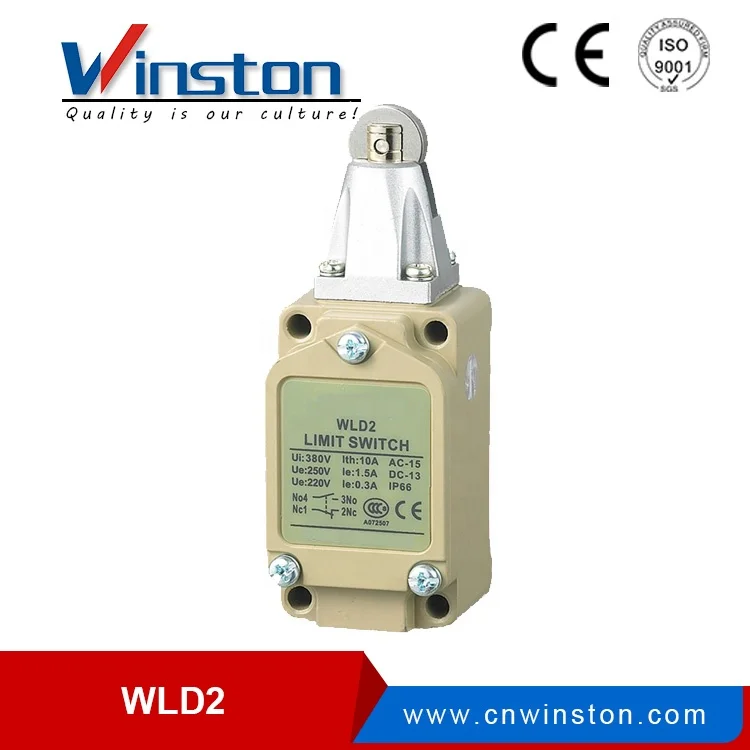

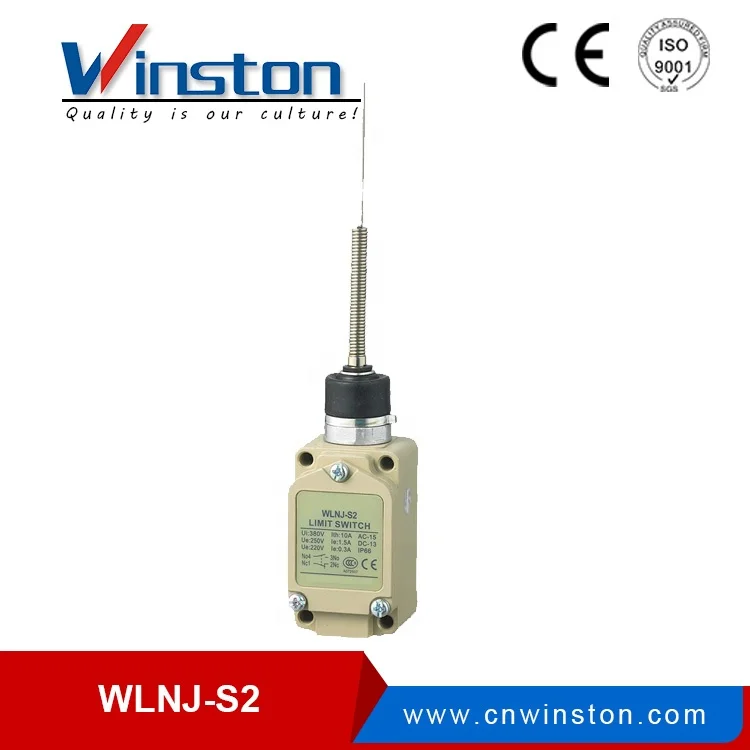

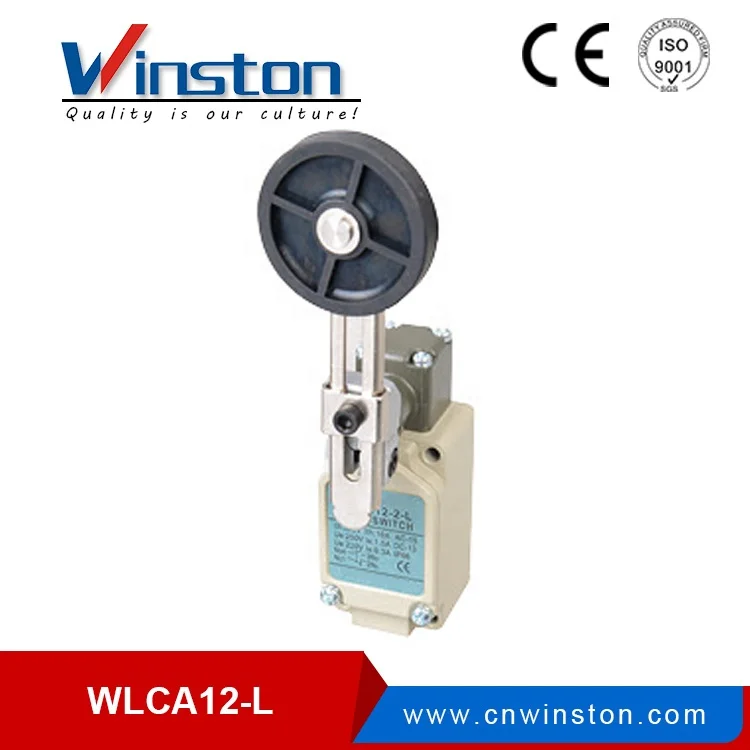

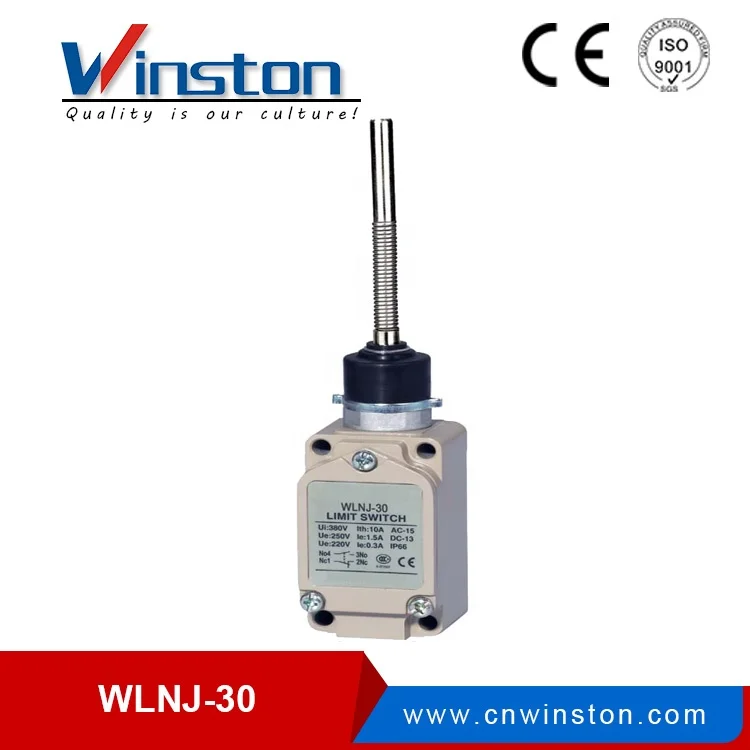

| Models | WLCA2-2 | WLD2 | WLNJ | WLNJ-S2 | WLCA12-2 | WLCL | WLNJ-2 | WLNJ-30 | WLD1 | WLD3 |
| OF Max. | 1360g | 2720g | 150g | 29g | 1360g | 142g | 120g | 80g | 2720g | 2720g |
| RF Min. | 227g | 910g | - | - | 227g | 28g | - | - | 910g | 910g |
| PT Max. | 20º | 1.7mm | 28mm | 28mm | 20º | 20º | 28mm | 28mm | 1.7mm | 1.7mm |
| OT Min. | 30 º | 5.6mm | - | - | 30º | 30º | - | - | 5.6mm | 5.6mm |
| MD Max. | 12 º | 1mm | - | - | 12º | 12º | - | - | 1mm | 1mm |
| TF Max. | 2720g | - | - | - | 2720g | 200g | - | - | 2720g | 2720g |
| TT Min. | 50 º | 6.5±0.8mm | - | - | 50º | 50º | - | - | 6.5±0.8mm | 9±0.8m |
Specifications
FAQ
Q1: Are you a manufacturer?
A1:yes. We have 10 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the received product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send the new one again.
