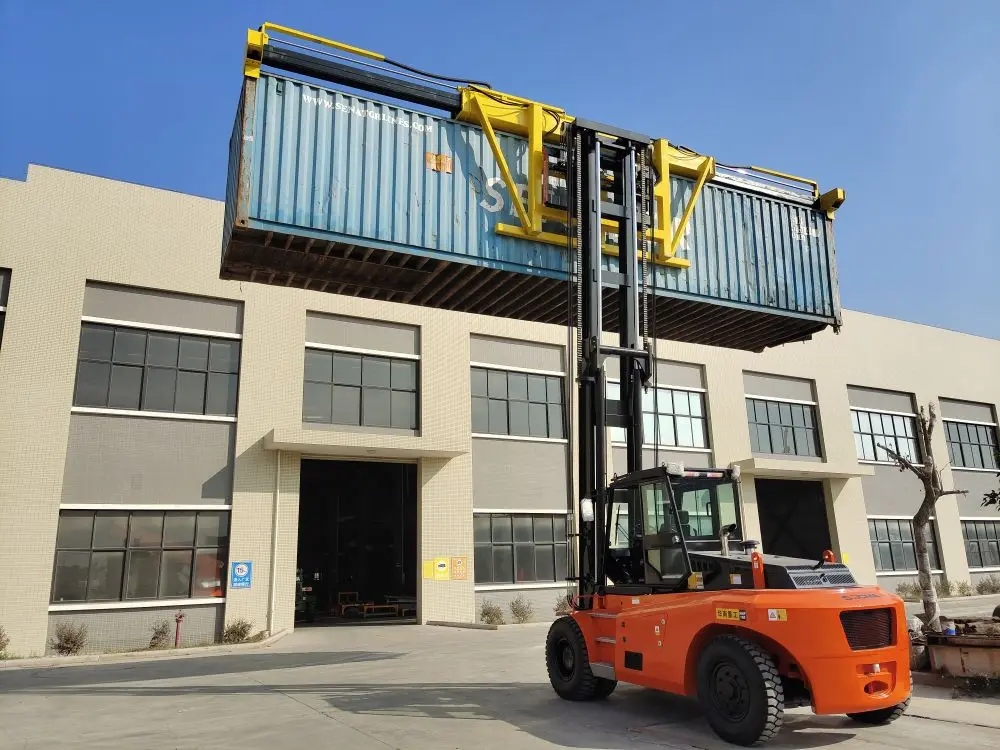

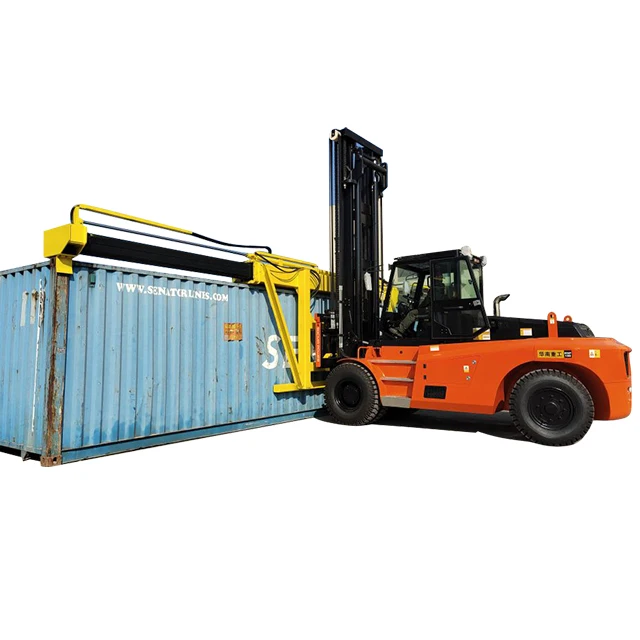

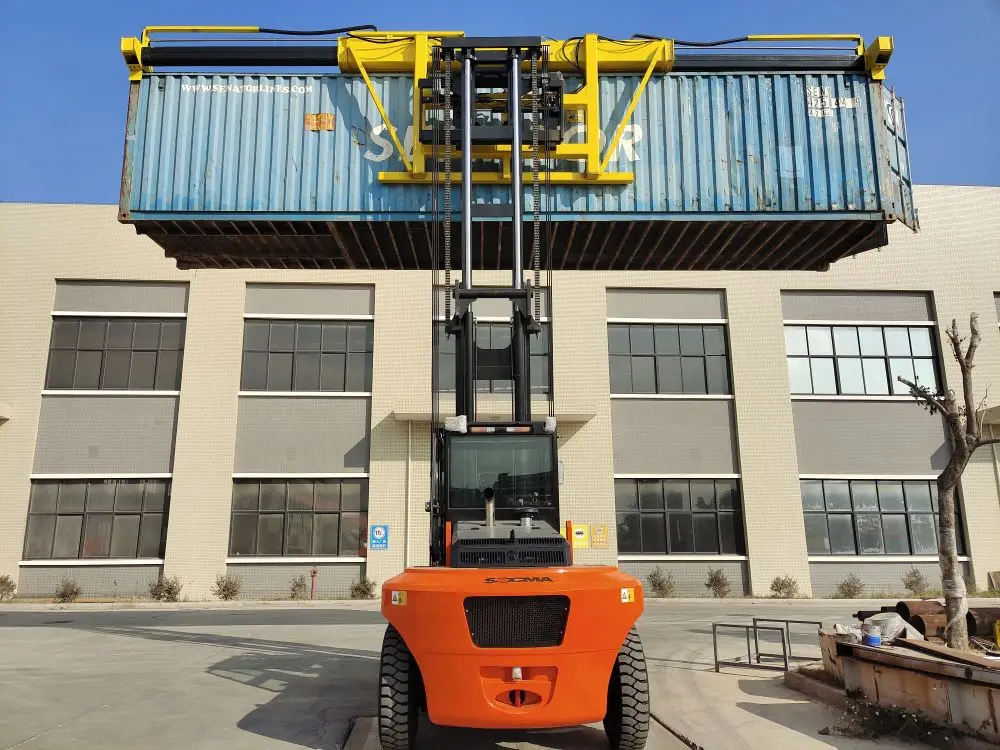

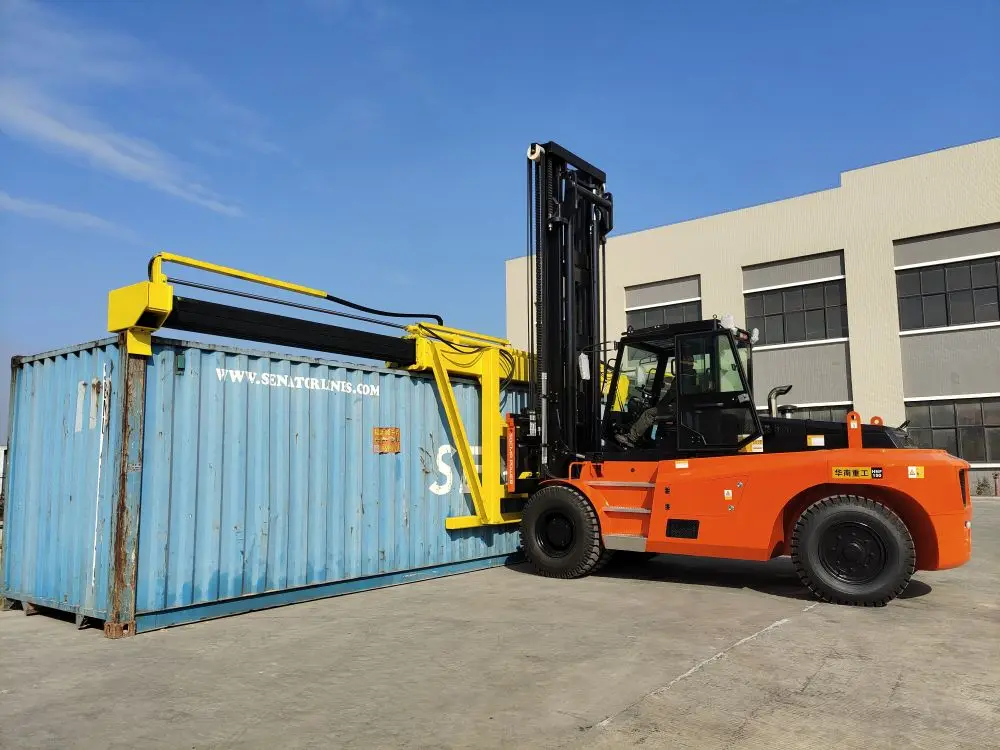

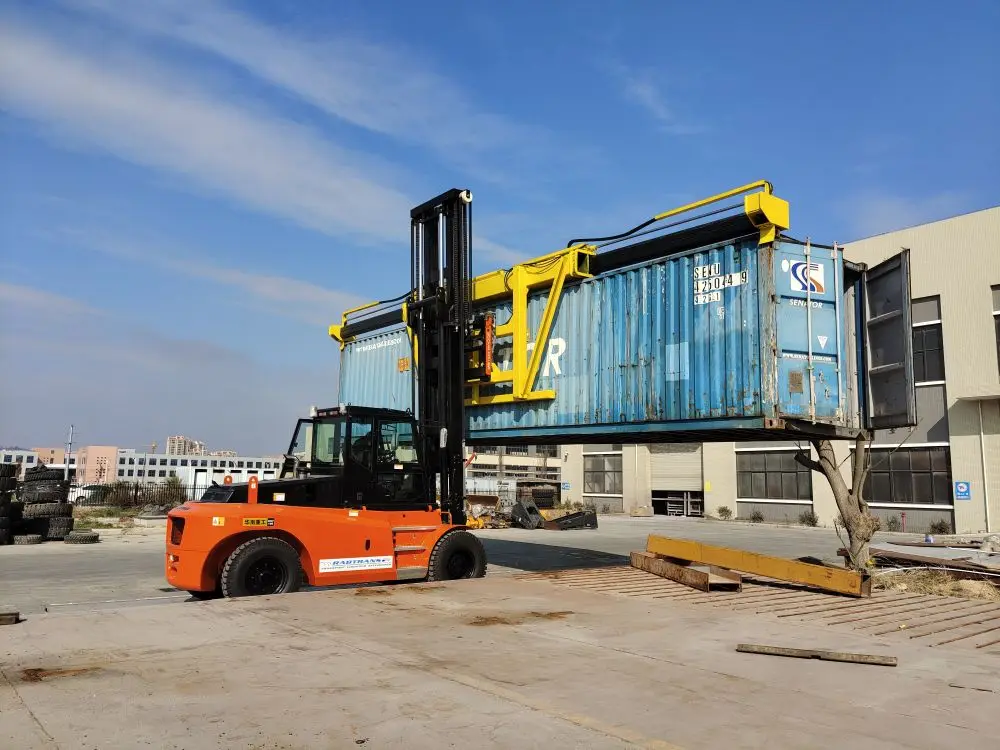

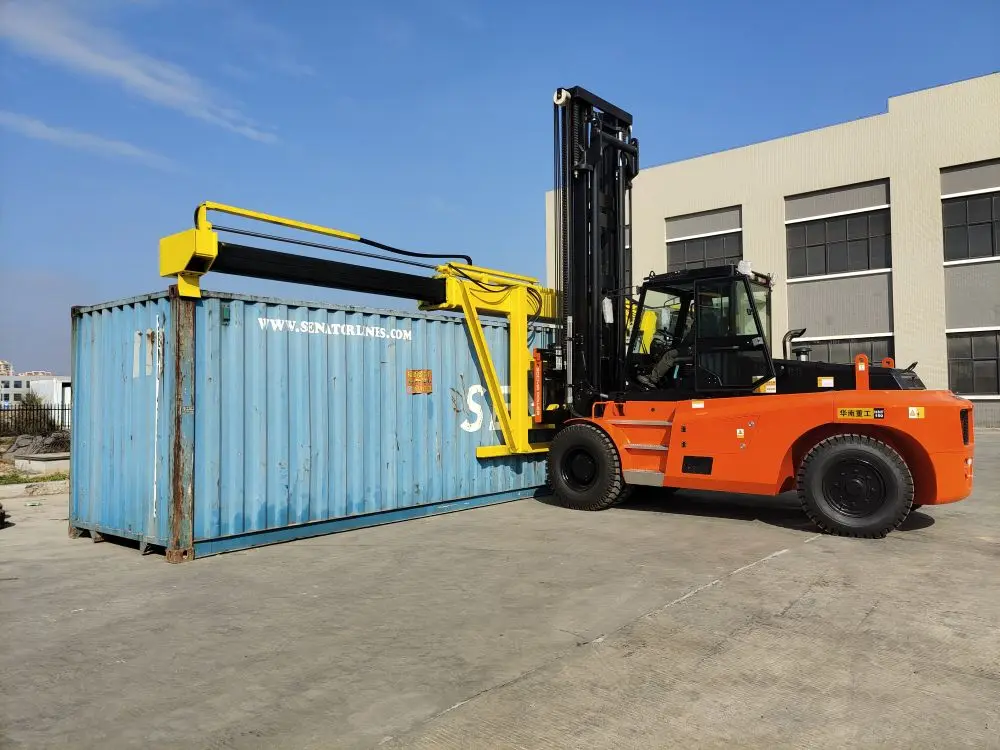

15 тонн компактный дизельный вилочный погрузчик с разбрасывателем контейнеров большой грузоподъемный


Поделиться:


Цена:92 213,00 $ - 94 286,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 117111.5 $* 119453.38 $*
Jul-19-2025 94979.76 $* 96879.56 $*
Jun-19-2025 115266.19 $* 117571.2 $*
May-19-2025 114344.45 $* 116631.21 $*
Apr-19-2025 91291.29 $* 93117.8 $*
Mar-19-2025 112500.28 $* 114750.70 $*
Feb-19-2025 111578.41 $* 113810.61 $*
Jan-19-2025 110656.11 $* 112869.69 $*

Характеристики



Product Overview


HNF-120 12 Ton Froklift







PRODUCT SPECIFICATIONS


Configuration
Model
Unit
CPCD1150S
Vehicle configuration
HNF-150S
Character
Rated Capacity
t
15
Load Center
mm
600
Wheelbase
mm
3300
Weight
Operation Weight
kg
19500
Chassis
Tyre, front
12.00-20-16PR
Tyre, rear
11.00-20-16PR
Tyres Qty. front/rear (x=driving wheel)
4×/2
Wheel tread, front
mm
1740
Wheel tread, rear
mm
2013
Basic dimension
Mast Tilt Angle (front/rear)
°
6/12
Mast height (fork lowered)
mm
3140
Mast lifting height
mm
3000
Max. lifting height
mm
4640
Height to head guard (height to cab)
mm
3040
Overall length (with fork)
mm
6355
Fork front vertical surface to the rear end of the vehicle
mm
5155
Overall width
mm
2400
Fork dimension
mm
1200x180x90
Fork carrier width
mm
2200
Mast Min. ground clearance, full loaded
mm
225
Wheelbase center Min. ground clearance
mm
350
Min. turning radius
mm
4750
Parameter
Travel speed (full loaded/without load)
km/h
23/26
Max. lifting speed (full loaded/without load)
mm/s
205/255
Max. lowering speed (full load/without load)
mm/s
435/285
Traction
kN
90
Gradeability (full loaded/without load)
%
20/22
Driving brake
Hydraulic clamp disc
Engine
Brand
DF Cummins 6BT5.9-C130
Rated rotor speed
min-1
2200
No. of Cylinder
6/4
Transmission gears (Front/rear)
2/2
Attachments working pressure
Mpa
16
Attachments using oil amount
L/min
40
