Фильтр предварительного фильтра и Hepa блок вентилятора (Ffu) ламинарный вытяжной кожух для чистой комнаты сертификация микологии 99.99% ЛАМИНАРНЫЙ ВОЗДУШНЫЙ
- Категория: Air Cleaning Equipment >>>
- Поставщик: Guangzhou,Airwoods,Environment,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 20994.51 $* | 21414.23 $* |
| Jul-16-2025 | 17027.38 $* | 17368.31 $* |
| Jun-16-2025 | 20664.28 $* | 21077.96 $* |
| May-16-2025 | 20498.69 $* | 20908.10 $* |
| Apr-16-2025 | 16366.46 $* | 16693.90 $* |
| Mar-16-2025 | 20168.56 $* | 20571.67 $* |
| Feb-16-2025 | 20003.16 $* | 20403.85 $* |
| Jan-16-2025 | 19837.96 $* | 20234.80 $* |
Характеристики

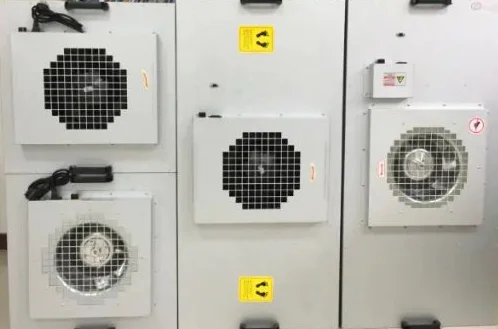

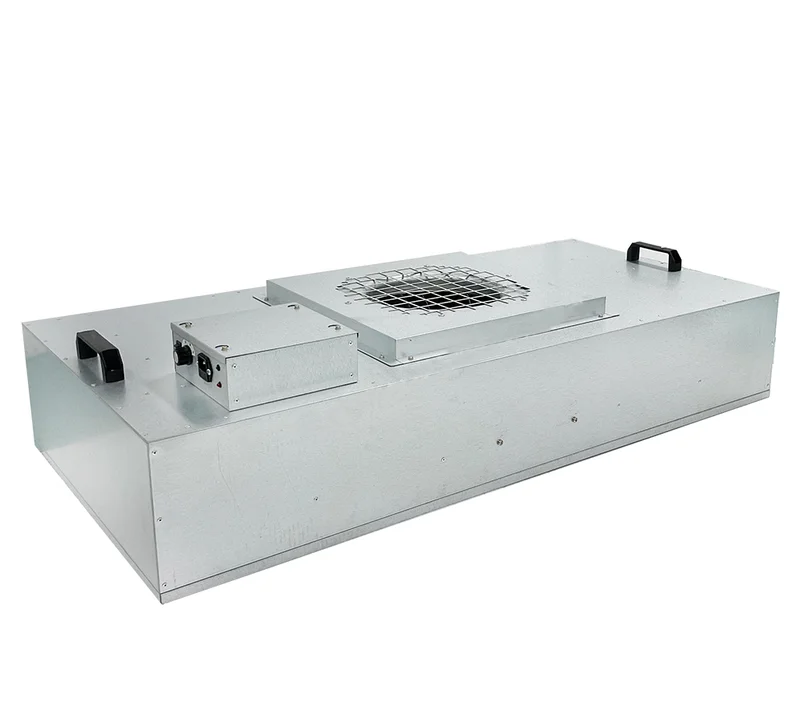

Products Showing
Aluminum-zinc clad sheet
The overall is made of environmentally friendly zinc-aluminum coated steel sheets(Standard type).Anti-rusty\\ Anti-corrosion\\ Smooth surface \\Durable
Insulation design
Insulated handles are installed at both side, using high hardness material.The machine is safe to use with insulation. It is convenient to install and disassemble.

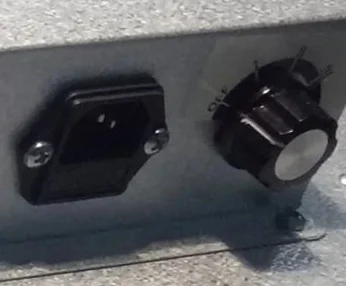

Speed control
The machine adopts three-speed control, Can be freely switch between different speed.

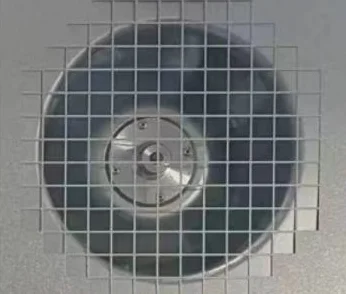

Safety net
It is convenient and safer for installation and maintenance. It can prevent contact with the impeller, and protect the fan from Vulnerable. Equipe with wind guide ring, can converge the air
Features:
1. It adopts high-quality FFU special centrifugal fan, which has the characteristics of long life, low noise, small vibration and long working life.
2. It has a three-speed speed regulation function, and the speed gear can be manually adjusted according to the needs of the site or the use of high-efficiency filters.
3. When the clean production line is used on a large scale, a group control device is optional.
4. The box body is made of galvanized plate, which is beautiful and generous.
5. The products are tested one by one before leaving the factory, with high reliability, which can meet the requirements of American standard FDA 209E and national standard GMP.
1. It adopts high-quality FFU special centrifugal fan, which has the characteristics of long life, low noise, small vibration and long working life.
2. It has a three-speed speed regulation function, and the speed gear can be manually adjusted according to the needs of the site or the use of high-efficiency filters.
3. When the clean production line is used on a large scale, a group control device is optional.
4. The box body is made of galvanized plate, which is beautiful and generous.
5. The products are tested one by one before leaving the factory, with high reliability, which can meet the requirements of American standard FDA 209E and national standard GMP.

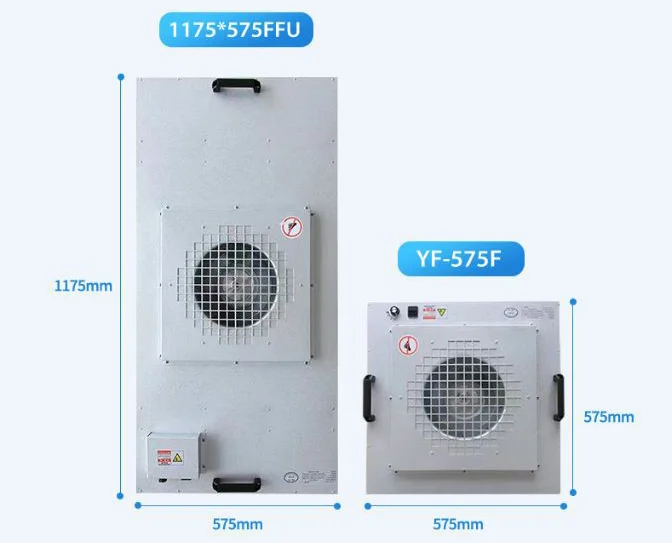

Model | FFU-2X4 | FFU-2X2 | |
Dimension(mm) | L1175xW575xH265 | L575xW575xH265 | |
Air Volume(m3/h) | 1000m3/h | 500m3/h | |
Purification rank | Class 100 | 1170×600×600 | |
Filter Efficiency | 99.995%@0.3um | ||

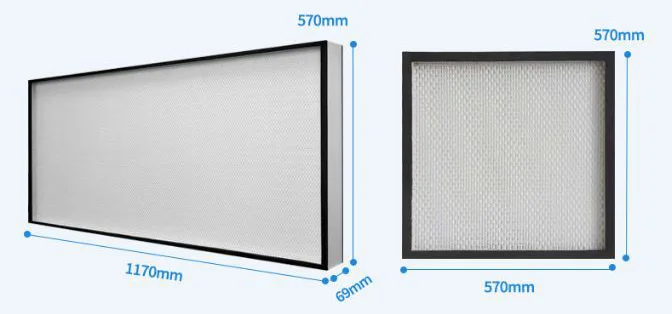

HEPA Filter Size (mm) | L1170xW570xD69 | L570xW570xD69 | |
Noise | ≤54dB (A) (0.45m/sOPa) | ||
Casing material | Aluminized zinc | ||
Supply power | AC 1Ph, 200 ~ 240 50/60HZ | 300 | |
Power | 180W | 180W | |
Products Structure
1. Control box
2. Fan
3. High efficiency filter box
Installation Instructions
Company Profile
Cleanroom Service
Airwoods is turnkey solutioner for Different Project In domestic and abroad.
* Cleanroom Site Survey
* Cleanroom HVAC System Consultancy
* Cleanroom HVAC System Design
* Cleanroom HVAC System Equipment and Materials Supply
* Site Installation and Commissioning
* Site Tranining
* Aftersales Support
