Honsun ASME стандартная очистка сточных вод 450psi 8-дюймовый боковой порт из стекловолокна сосуд высокого давления 8040 FRP RO
- Категория: Other Environmental Products >>>
- Поставщик: Huzhou,Xianhe,Instrument,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 253.43 $* | 258.8 $* |
| Jul-18-2025 | 205.60 $* | 209.63 $* |
| Jun-18-2025 | 249.11 $* | 254.45 $* |
| May-18-2025 | 247.50 $* | 252.2 $* |
| Apr-18-2025 | 197.94 $* | 201.99 $* |
| Mar-18-2025 | 243.34 $* | 248.29 $* |
| Feb-18-2025 | 241.25 $* | 246.95 $* |
| Jan-18-2025 | 239.86 $* | 244.20 $* |
Характеристики
Product Description

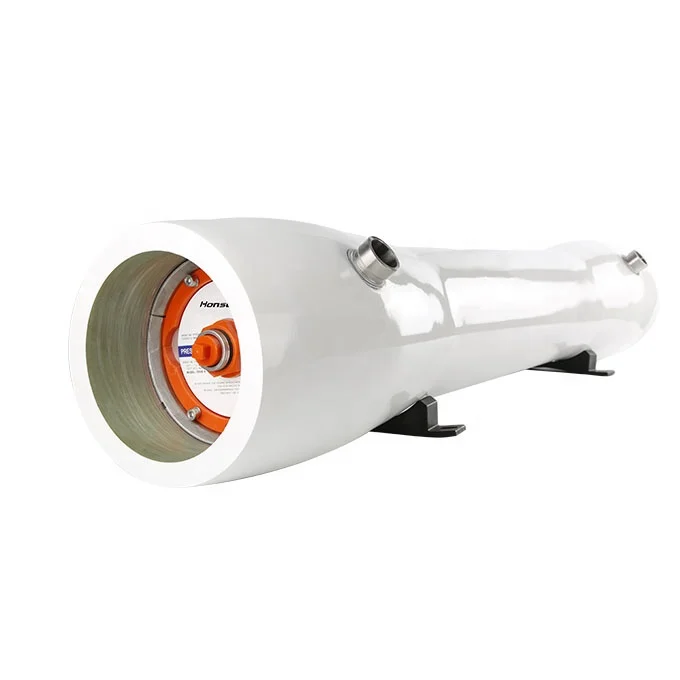

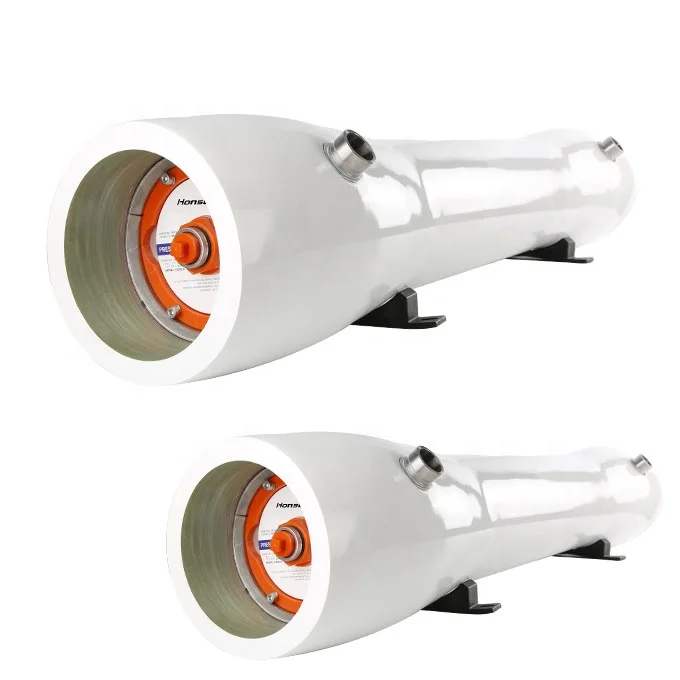

HS80S/HS80E 8 INCH FRP membrane housing cover working pressure 300PSI~2000PSl, which can be loaded with 1-7 cores membrane elements. It is applicable to a variety of international standard membrane elements.
Our FRP membran housing is designed and manufactured according to ASME standard, and can withstand more than 100,000 cycles of water pressure.
Low pressure HS80S/HS80E series FRP membrane housing 300 PSI/450PSI(1-7 elements)
High pressure HS80S/HS80E series FRP membrane housing 600PSI/1000 PSI/1200 PSI/1500PSI/1800PSI/2000PSI
High pressure HS80S/HS80E series FRP membrane housing 600PSI/1000 PSI/1200 PSI/1500PSI/1800PSI/2000PSI
(1-7 elements)
8 inch side/end open low pressure membrane housing | 8 inch side/end open high pressure membrane housing | ||
Models | HS80S300/450 HS80E300/450 | HS80S600/1000/1200/1500/1800/2000 HS80E600/1000/1200/1500/1800/2000 | |
Design Pressure | 300PSI(2.1Mpa)/450PSI(3.1Mpa) | 600PSI(4.1Mpa)/1000PSI(6.9Mpa)/ 1200PSI(8.3Mpa)/1500PSI(10.3Mpa)/ 1800PSI(12.4Mpa)/2000PSI(13.8Mpa) | |
Cyclic Test | 100,000Times | ||
Elements Quantity | 1-7 cores | ||
Operating PH Range | PH3-11 | ||
Operating Tem. | -10℃-66℃(14℉-150℉) | ||
Feed/ concentration Port | 1.5''/2''/2.5''/3'' | ||
Permeated Port | 1'' | ||
HS40S/HS40E 4 INCH FRP membrane housing cover working pressure 300PSI~1200PSl, which can be loaded with 1-6 cores membrane elements. It is applicable to a variety of international standard membrane elements. Our membrane housing is designed and manufactured according to ASME standard, and can withstand more than 100,000 cycles of water pressure.
Low pressure HS40S/HS40E series FRP membrane housing 300 PSI/450PSI(1-6 elements)
High pressure HS40S/HS80E series FRP membrane housing 600PSI/1000 PSI/1200 PSI(1-6 elements)
4 inch side/end open low pressure membrane housing | 4 inch side/end open high pressure membrane housing | ||
Model | HS40S300/450 HS40E300/450 | HS40S600/1000/1200 HS40E600/1000/1200 | |
Design Pressure | 300PSI(2.1Mpa)/450PSI(3.1Mpa) | 600PSI(4.1Mpa)/1000PSI(6.9Mpa)/ 1200PSI(8.3Mpa) | |
Cyclic Test | 100,000 Times | ||
Elements Quantity | 1-6 cores | ||
Operating PH Range | 3-11 | ||
Operating Tem. | -10℃-66℃(14℉-150℉) | ||
Feed/concentration Port | 1'' clamps(HS40S300/450) 3/4''NPTF(HS40E300/450) 3/4''NPTM(HS40E/600/1000/1200) | ||
Permeated | 1/2"NPTF | 1/2"NPTM | |
Packing & Delivery
FOR BETTER PROTECTION, WE UTILIZE THE STRONG CARTON BOX.
Company Profile
We are a one-stop purchasing water purification solution provider from 2004 in China, with rich experience in import and export and perfect after-sales safeguards.Our water purifier factory can produce FRP membrane housing and ro reverse osmosis equipment, we also manufacture UF/RO membranes/system, SS membrane housing, water quality testing instruments(conductivity/resistivity controller, PH/ORP tester), ss water filters, EDI and EDI equipment, ultraviolet sterilizer, kinds of water treatment resin, dosing tank and dosing pump etc. We strive to satisfy all customers. We take the needs and expectations of customers as our purpose, and strive to exceed customer needs and expectations, and provide them with first-class products and services. In addition, the company's production has been promoted through continuous technological innovation and new product development and application. All products must undergo thorough testing and calibration to qualify. Strict quality control guarantees product stability, durability and working performance. Make our products have leading technology level and provide competitive price.
Certificate
Related Models
*Quick assembly and disassembly end cover FRP membrane housing
The quick disassembly and assembly of the end cover can improve the working efficient to deal with the frequent loading and unloading of the membrane components during the cleaning process.The smooth inner wall of the membrane shell can facilitate the disassembly of the membrane core and ensure that the membrane shell has no leakage problem.
*8 inch DTRO landfill Leachate membrane housing
Product pressure: 75bar/90bar/120bar/150bar/200bar;
Product length:
945/1000/1145/1150/1200/1250mm,
or customized according to customer need.
* 8 inch washing membrane FRP membrane shell
This series of washing membrane is specially designed for the membrane element cleaning pressure vessel, the biggest feature of the product is the rapid disassembly of the end cap, in order to cope with the frequent loading and unloading of membrane elements during the cleaning process, improve operational efficiency, reduce time and labor costs, in addition, the product has excellent corrosion resistance, it can withstand a variety of corrosive cleaning agents.
FAQ
Q:1. Do you provide OEM service?
A: Yes. Any required logo is available.
Q2. Are you trading company or manufacturer?
A: We are truely manufacturer. Huamo Group is super-big group company in China, and we have thousands of waste and pure water treatment products who supports one-stop purchasing. All price are reasonable, and quality is in premier level.
Q3. How could we trust your company by the first time transaction?
A:Trade assurance is supported, you could get a sample first to test and check the quality if need. We are a company which has more than 20 years history, and the products are popular in domestic and overseas.
Q4. Can you support to send me sample to have a check first?
A:Yes, absolutely support.
Q5. What can we buy from you except for water analysis instruments?
A: UF membrane and UF equipments, RO membrane and RO equiments, MBR membrane, Membrane housing，SS tank and FRP tank, EDI and EDI equipment, ultraviolet sterilizer, kind of water treatment resin, dosing tank and dosing pump
and many other water treatment products.
Q6. Can we be your wholesaler and agent ?
Yes, welcome to be our water treatment wholesaler and agent. A high efficiency team and high-end products will create your company's bright future.
Q7. What's kind of payment can you accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Moneygram.
A: Yes. Any required logo is available.
Q2. Are you trading company or manufacturer?
A: We are truely manufacturer. Huamo Group is super-big group company in China, and we have thousands of waste and pure water treatment products who supports one-stop purchasing. All price are reasonable, and quality is in premier level.
Q3. How could we trust your company by the first time transaction?
A:Trade assurance is supported, you could get a sample first to test and check the quality if need. We are a company which has more than 20 years history, and the products are popular in domestic and overseas.
Q4. Can you support to send me sample to have a check first?
A:Yes, absolutely support.
Q5. What can we buy from you except for water analysis instruments?
A: UF membrane and UF equipments, RO membrane and RO equiments, MBR membrane, Membrane housing，SS tank and FRP tank, EDI and EDI equipment, ultraviolet sterilizer, kind of water treatment resin, dosing tank and dosing pump
and many other water treatment products.
Q6. Can we be your wholesaler and agent ?
Yes, welcome to be our water treatment wholesaler and agent. A high efficiency team and high-end products will create your company's bright future.
Q7. What's kind of payment can you accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Moneygram.
