Характеристики
Product Overview

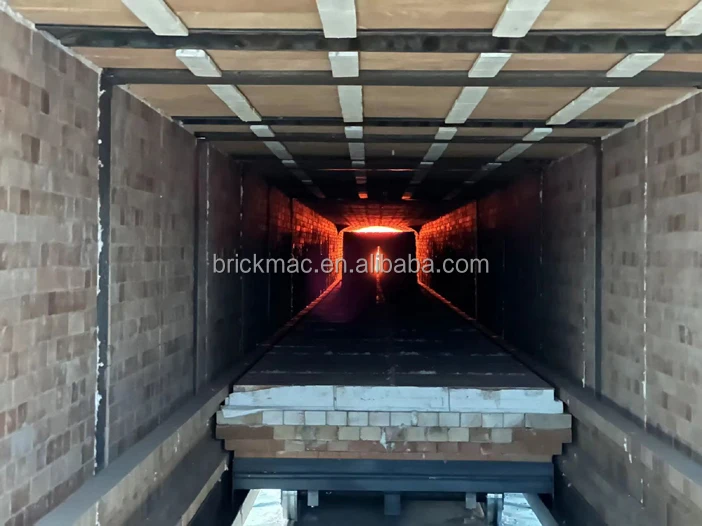

MODERN TUNNEL KILN
Tunnel Kiln is computer-controlled, continuously operating modern industrial oven. Hydraulic pushers move the train of kiln cars go through tunnel non-stop at a predetermined rate. This method is ideal for heavy clay and ceramic industries requiring high volume production and/or a continuous production process.
Computer technology allows kiln car movement through the kiln to be controlled for changes in firing curves and firing temperatures. This increases product recovery and minimizes production disruptions Automatic controls can be programmed to make firing changes for differences in product size and color.
Tunnel kilns is vary in width and length, some kiln may be over 90 feet width and 500 feet long.
Computer technology allows kiln car movement through the kiln to be controlled for changes in firing curves and firing temperatures. This increases product recovery and minimizes production disruptions Automatic controls can be programmed to make firing changes for differences in product size and color.
Tunnel kilns is vary in width and length, some kiln may be over 90 feet width and 500 feet long.
Scope of application:
Modern tunnel kiln is widely used in building materials manufacturing industries of all types of high-end ceramics, clay bricks, clay tiles and porous blocks, cement and other building materials extrusion, the kiln and handling system control are highly intellectualized and integrated, technology is tested by market, which assure stable performance and high efficiency.
Modern tunnel kiln is widely used in building materials manufacturing industries of all types of high-end ceramics, clay bricks, clay tiles and porous blocks, cement and other building materials extrusion, the kiln and handling system control are highly intellectualized and integrated, technology is tested by market, which assure stable performance and high efficiency.
FEATURES AT A GLANCE
Continuous Production
A tunnel kiln is a type of continuous oven that is typically open on both ends and heated centrally. Building materials, such as tiles and
bricks, may be passed through the device in an uninterrupted fashion, allowing large volumes to be processed without shutting off
the kiln between batches.
bricks, may be passed through the device in an uninterrupted fashion, allowing large volumes to be processed without shutting off
the kiln between batches.
Vary in Fuel
A number of different fuel can be used to heat tunnel kilns. Typical heat sources include coal powder, petcoke, natural gas, coal gas, biomass gas, furnace oil , etc.
Tunnel Kiln is computer-controlled, continuously operating car-bottom oven. Computer technology allows kiln car movement through the kiln to be controlled for changes in firing curves and firing temperatures. Automatic controls can be programmed to make firing changes for differences in product size and color.
High capacity
Pushers move the train of cars non-stop at a predetermined rate. This method is ideal for all ceramic industries requiring high
volume production and/or a continuous production process
volume production and/or a continuous production process
PRODUCT SPECIFICATIONS
Model | Capacity | Firing Cycle (h) | Firing pass(%) | Suitable for the products |
2.5 m (W) * 120 m (L) | 150-180 Ton/Day | 35 ~ 45 | ＞95 | good quality solid bricks/tiles，perforated bricks and porous blocks, or any kinds of Facing Bricks, wall cladding |
3.6 m (W) * 130 m (L) | 180-260 Ton/Day | 35 ~ 45 | ＞95 | good quality solid bricks/tiles，perforated bricks and porous blocks, or any kinds of Facing Bricks, wall cladding |
4.8 m (W) * 140 m (L) | 260-350 Ton/Day | 35 ~ 45 | ＞95 | good quality solid bricks/tiles，perforated bricks and porous blocks, or any kinds of Facing Bricks, wall cladding |
7.6m (W) * 150 m (L) | 350-460 Ton/Day | 35 ~ 45 | ＞95 | good quality solid bricks/tiles，perforated bricks and porous blocks, or any kinds of Facing Bricks, wall cladding |

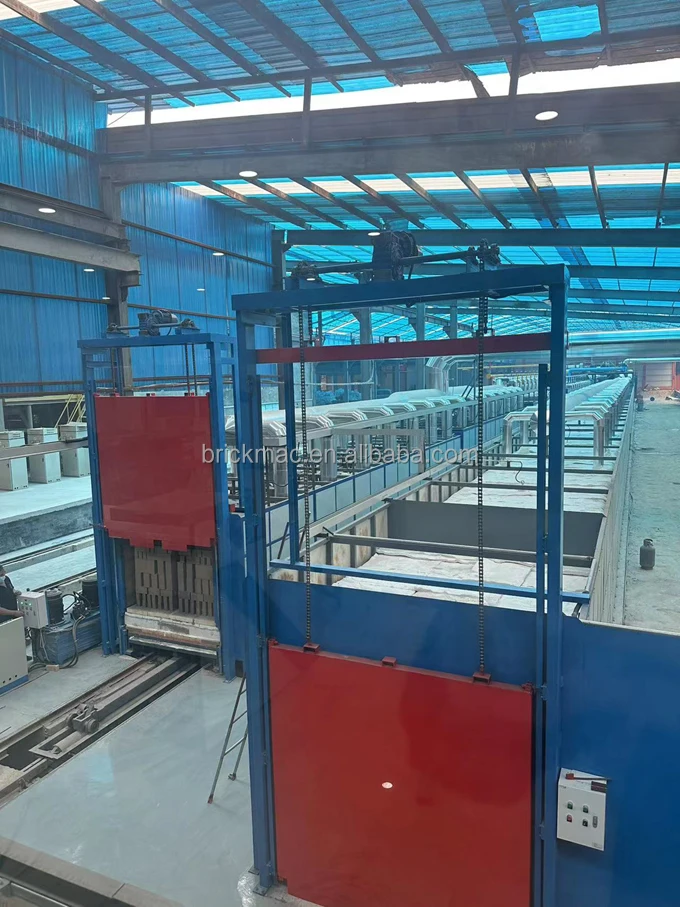

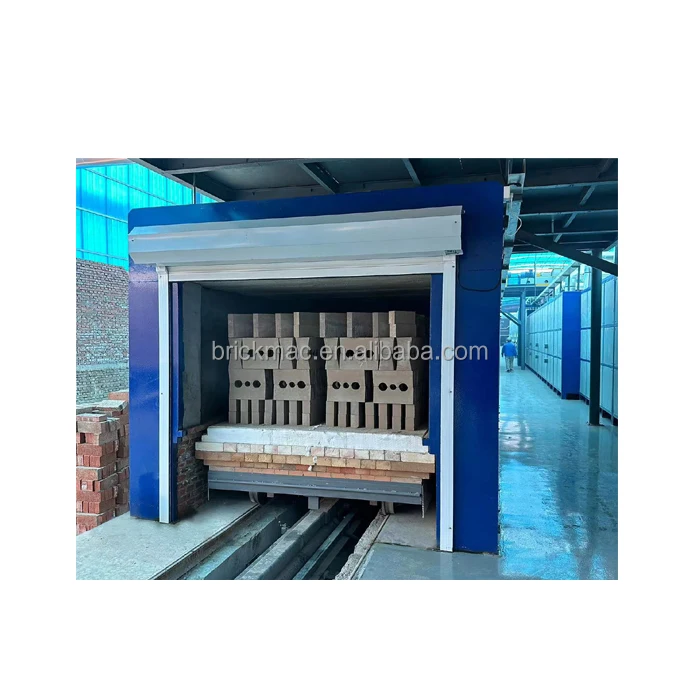

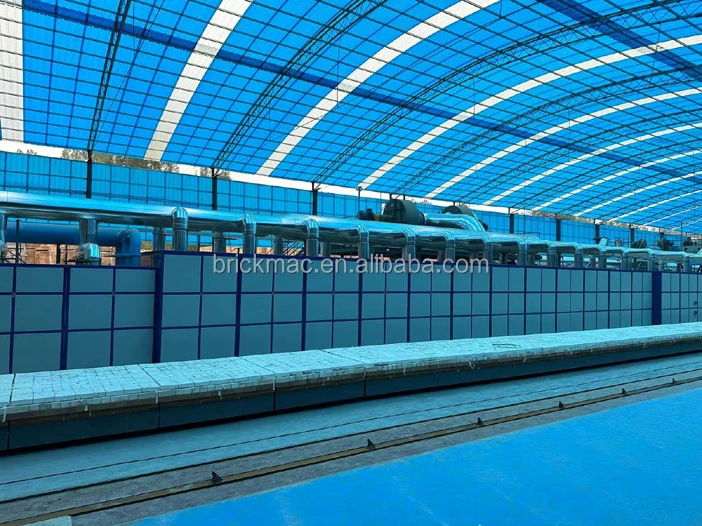

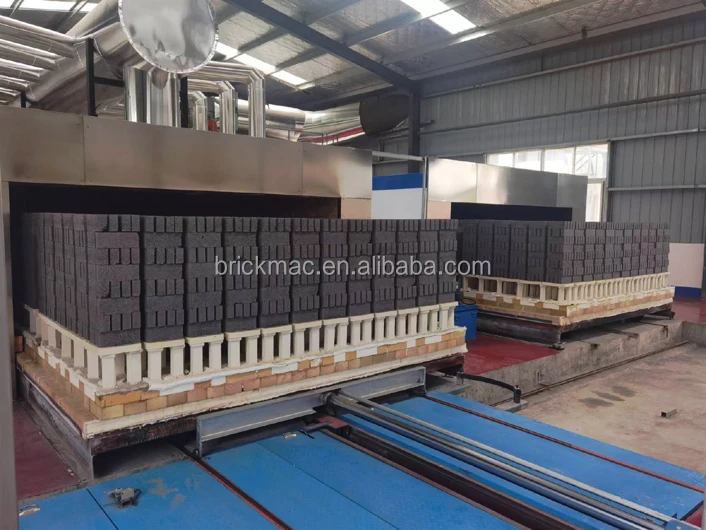

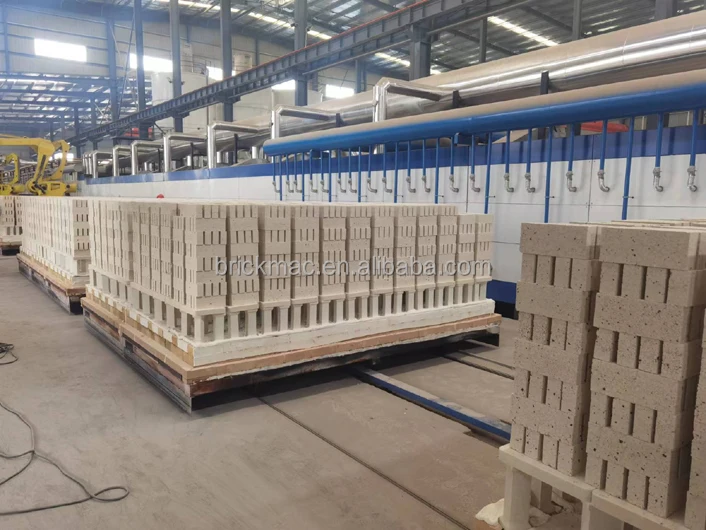

Successful Project
Project in India
Project in Vienam
Project in China
Company Profile
Nanjing Brickmac Engineering Co., Ltd.
is professional turn-key brick project provider and brick making machinery supplier in Nanjing, Jiangsu Province, China. We provide:
a) Turn-key design and technical consultation of bricks/tiles production line;
b) Manufacturing and set up of brick/tile machinery, dryer and kiln.
We export machinery to over 15 countries including Vietnam, India, Nepal, Uzbekistan, Malaysia, South Africa, etc. Our product range incuding Box feeder, Crusher, Mixer, Vacuum Extruder, Brick Cutter, Bricks Loading & Unloading system, Robotic Setting Machine, Tunnel Dryer, Chamber Dryer, Tunnel Kiln, Assembly tunnel kiln, Kiln Gas Burner, Bricks Packing System, etc.
b) Manufacturing and set up of brick/tile machinery, dryer and kiln.
We export machinery to over 15 countries including Vietnam, India, Nepal, Uzbekistan, Malaysia, South Africa, etc. Our product range incuding Box feeder, Crusher, Mixer, Vacuum Extruder, Brick Cutter, Bricks Loading & Unloading system, Robotic Setting Machine, Tunnel Dryer, Chamber Dryer, Tunnel Kiln, Assembly tunnel kiln, Kiln Gas Burner, Bricks Packing System, etc.
