Высокое качество поли v ленточный конвейер
- Категория: Material Handling Equipment Parts >>>
- Поставщик: Hangzhou,Nuohua,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.4 $* | 0.83 $* |
| Aug-19-2025 | 0.52 $* | 0.48 $* |
| Jul-19-2025 | 0.99 $* | 0.50 $* |
| Jun-19-2025 | 0.32 $* | 0.19 $* |
| May-19-2025 | 0.90 $* | 0.9 $* |
| Apr-19-2025 | 0.56 $* | 0.10 $* |
| Mar-19-2025 | 0.51 $* | 0.70 $* |
| Feb-19-2025 | 0.70 $* | 0.92 $* |
| Jan-19-2025 | 0.59 $* | 0.19 $* |
Характеристики

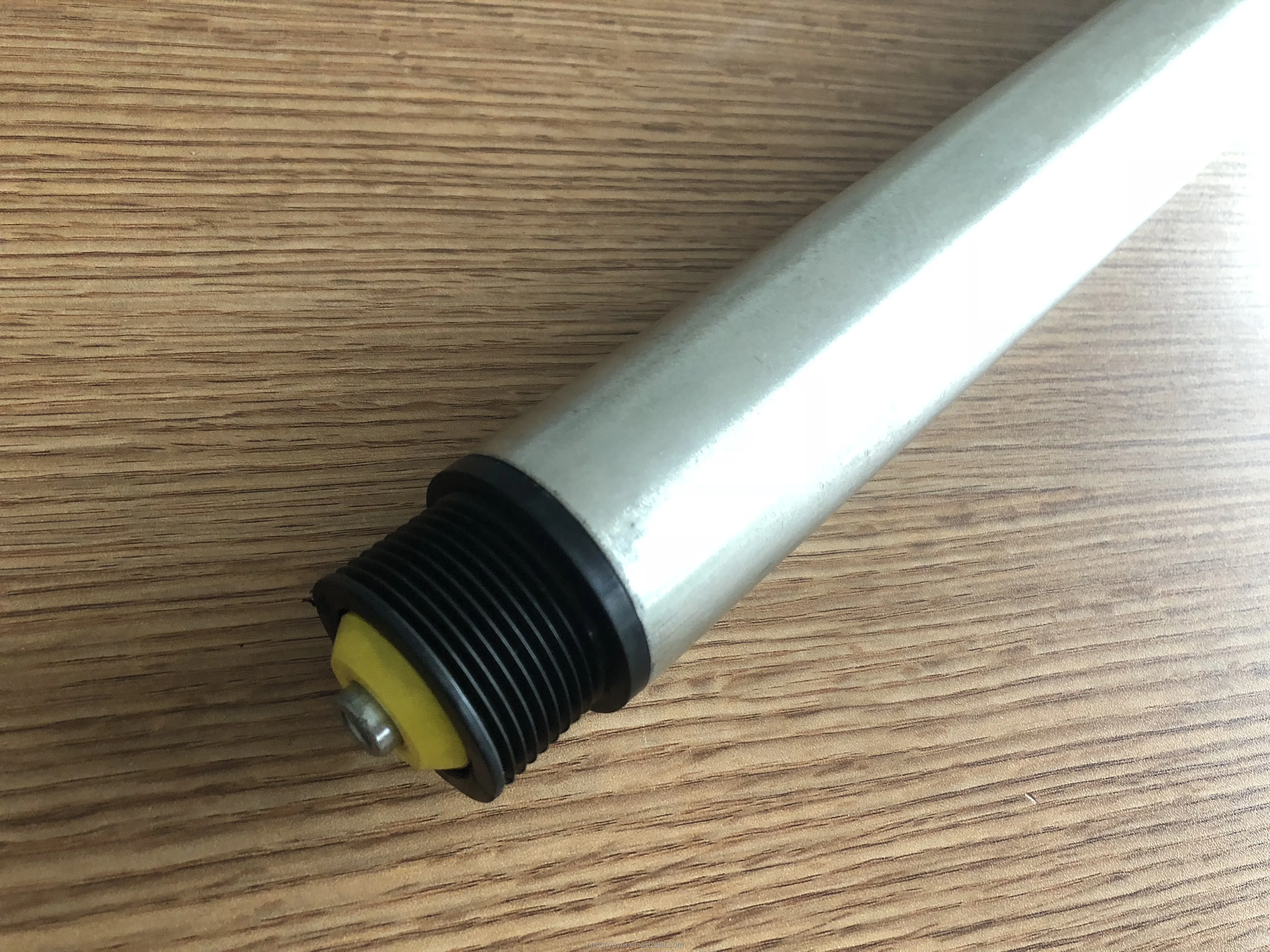

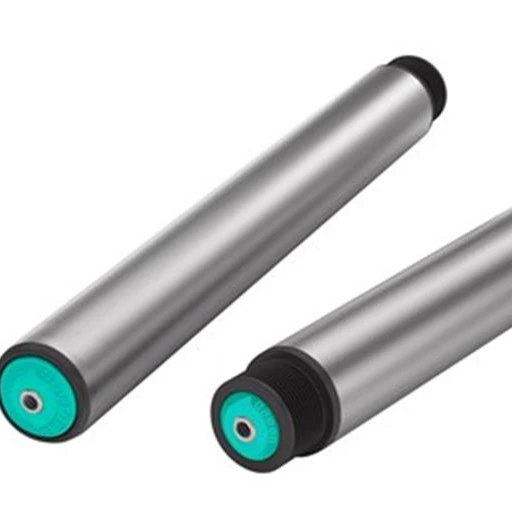

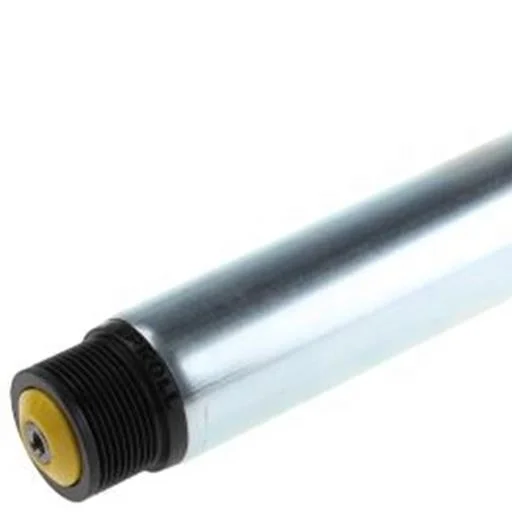

Nuohua Conveyor Roller Models
Why Choose Gravity Rollers?
These rollers are obtained from an excellent combination of Polymers making them extremely light, smooth running, noiseless and consequently limiting gravity conveyors slopes even with light packages. The tube in grey color is obtained from special high impact and noise-absorbing PVC, extruded under strict tolerances. We can also foresee the version with zinc-plated tube or .stainless steel AISI 304 tube. The end caps, yellow color RAL 1023 or in the alternative color on request, are made by a housing in Polypropylene, by an inner race in POM (acetalyc resin), with AISI 420C stainless steel balls. This grants them high performances. Furthermore, the particular shape of the end-caps makes a centrifugal labyrinth sealing. The standard spring loaded shaft makes the installation easy; on request the shaft is supplied in stainless steel AISI 304. These rollers have their ideal application in light units handling in corrosive and wet environments, and in the packaging food processing, especially when they have AISI 304 stainless steel tube and shaft execution. Allowable temperatures range from –5°C to +50° C for the PVC tube and –5°C to +80° C for steel tube; applications in lower temperatures must be verified according to the different working conditions.
Tube D(mm) | L(mm) | Shaft d(mm) | Material | Bearing | Tube Thickness | ||||
25 mm | 100-2200 Customized | 8 or 10 | Mild Steel SUS | Machined Bearing, Pressing Bearing | 0.8mm | ||||
38mm | 12 | 1.0mm | |||||||
50 | 12 or 15 | 1.2mm | |||||||
60 | 12 or 15 | 1.5mm | |||||||
76 | 12 or 15 or 20 | 2.0mm | |||||||
89 | 25 or 20 | 2.5mm | |||||||
110 | 30 | 3.0mm | |||||||
160 | 30 | 4.0mm | |||||||
220 | 30 | Customized | |||||||
Surface Treatment | Carbon steel/stainless steel | ||||||||
Installation Method | External Thread, Internal Thread | ||||||||
Customized size available
Features

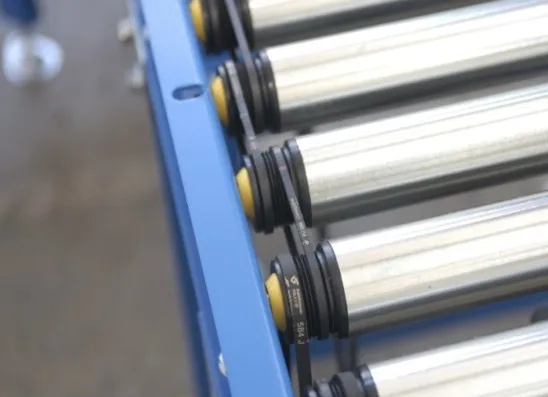

1 Plastic multi-wedge belt wheel is installed at the end of the roller, so that the drive and transmission are separate in the area, conveying more stable, with the characteristics of high speed quiet. Precision ball bearing and plastic inside and outside of the design constitute the key bearing components, it is not only beautiful, the more important thing is to make the roller run more quietly.
2 The design of the plastic end cover of the roller end can prevent to a certain extent damage of dust and splashing to the
bearings.
bearings.
3 ISO9982, PJ type, groove spacing of 2.34mm, a total of 9 grooves. Suitable for high-speed transmission, according to the diameter and length of the roller, the speed will vary, up to 120m / min.
4 The weight of the cargo normally suitable for delivery does not exceed 150kg.
5 Suitable temperature: 23.00000℉~104.0000℉.
Company Profile
Founded in 2008 and based in Hangzhou, China, Nuohua has been in the field of conveyors for more than 15 years. We design and manufacture conveyor systems as well as a wide range of conveyor components. We’ve set up a distribution center in South Korea in 2008, offering OEM/ ODM flexible conveyors, roller conveyors, etc. to many distributors all over the world. We also handle conveying system projects in and outside of China, mainly cooperating with furniture companies, express enterprises, garment factories, E-commerce warehouses, etc. to offer them automation solutions. More than 10 years of expert experience makes us could offer better services and technical support to our customers from the beginning to after sales. We could say a lot more, but we prefer proving ourselves a good supplier through our competitive price, services, and quality!
Global bestsellers
FAQ
Q: Are you a factory or trading company?
A: We are Professional manufacturer.
A: We are Professional manufacturer.
Q: How to buy?
A: Clear your requirements to our sales - get quotation - discuss details - order confirm - deposit payment - drawing reconfirm -
production - finished products photo and test video sent -packing - balance payment - delivery.
A: Clear your requirements to our sales - get quotation - discuss details - order confirm - deposit payment - drawing reconfirm -
production - finished products photo and test video sent -packing - balance payment - delivery.
Q: What about your delivery period?
A: Sample order or small quantity order 3-7 days, bulk production: 20 days.
A: Sample order or small quantity order 3-7 days, bulk production: 20 days.
Q: How can you guarantee quality?
A: 1. We have completed working system and procedures and we follow them very strictly.
2. We will do strict test running after the machine is finished.
A: 1. We have completed working system and procedures and we follow them very strictly.
2. We will do strict test running after the machine is finished.
Q: How long is the warranty of the product?
A: 1 years.
A: 1 years.
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Paypal & Money Gram and so on.
A: T/T, L/C, West Union, Paypal & Money Gram and so on.
