Характеристики
Description & Specs

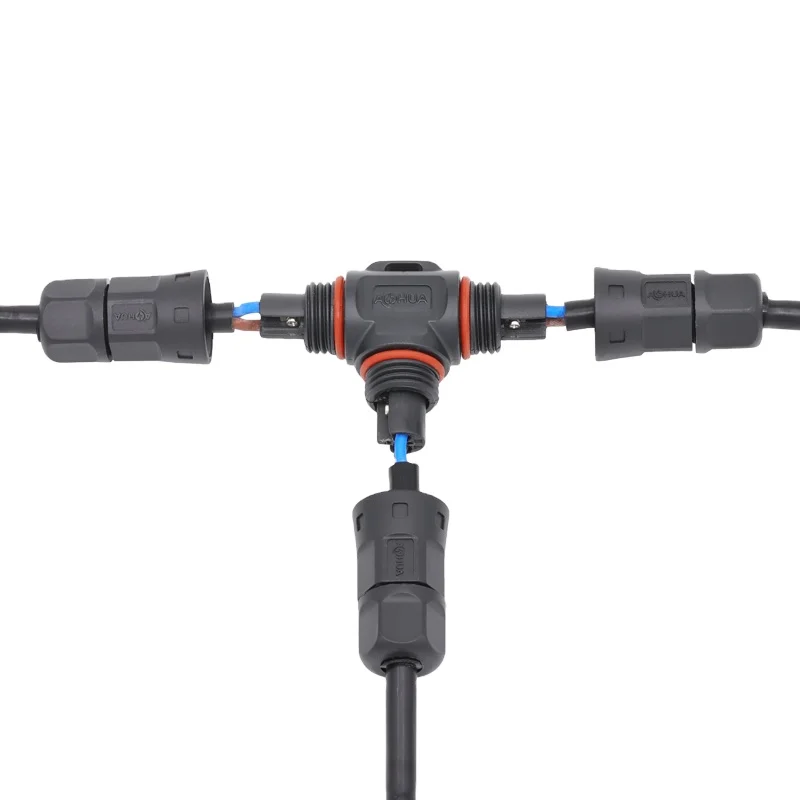

Lighting Project Power Splitter Cable Wire Waterproof 2 Pin T Type LED Connector
Feature: T connector with favorlable waterproof level IP67, easy installation.
Application: T connector widely used in led light, power, driver, electrical equipment, splitter, etc.
How to assembly this T connector? You will need a small fine screwdriver to tighten up the screws on these sockets.
Application: T connector widely used in led light, power, driver, electrical equipment, splitter, etc.
How to assembly this T connector? You will need a small fine screwdriver to tighten up the screws on these sockets.
AH-M15-1002T01122
Plastic Material: nylon PA66
Metal Material: gilded brass
O-ring/cable gland: silicone rubber
Voltage: 300V
Current: 10A
Wire Gauge: ≤0.5mm²
Cable OD: 3.0-7.5mm
Components: waterproof nut, cable gland, enclosure, O-ring, connector core.
Tips for choices
Before quotation, please tell us the cable details.
1. Current Rating, such as: 8A...
2. Wire size, such as: 2*1.5mm2...
3. Cable OD(over diameter), such as 8mm...
1. Current Rating, such as: 8A...
2. Wire size, such as: 2*1.5mm2...
3. Cable OD(over diameter), such as 8mm...
Contact Numbers | 2 |
Voltage Rating | 250V |
Current Rating | 5A |
Wire Gague | ≤0.75mm² |
Cable OD | 3.0mm-7.5mm |
Operating Rating | -40℃-+105℃ |
Waterproof level | IP67 |
Seal Ring | 9*9*3.6/4.1/5.5/6.5/7.5 |
Details Images
Related Products
Certifications
Application
FAQ
1. What is the packing ?
A: Well , we pack it in neutral brown cartons. Also your packing requirement is considered.
2.What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.How about your delivery time?
A: Generally, it will take 5 to 10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4.Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
5.Can you off er samples ?
A: We can supply the sample if we have ready parts in stock, but you need to bear the courier cost.
6.Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
7.How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
