Пневматическая маркировочная машина для
- Категория: Metal Engraving Machinery >>>
- Поставщик: Jiangsu,Kuntai,Industrial,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.69 $* | 0.59 $* |
| Aug-16-2025 | 0.47 $* | 0.32 $* |
| Jul-16-2025 | 0.38 $* | 0.97 $* |
| Jun-16-2025 | 0.27 $* | 0.52 $* |
| May-16-2025 | 0.5 $* | 0.16 $* |
| Apr-16-2025 | 0.12 $* | 0.28 $* |
| Mar-16-2025 | 0.59 $* | 0.25 $* |
| Feb-16-2025 | 0.75 $* | 0.60 $* |
| Jan-16-2025 | 0.76 $* | 0.57 $* |
Характеристики
DOT PEEN MARKING TECHNOLOGY
The KT Dot Peen Marking Machine is a high-performance pneumatic machine that produces unbeatable marking results.If you're looking for a marking machine that marks a wide variety of hard materials like metals and plastics,our integrated dot peen marking machine may be the right choice for your application.This machine offers the best to all industries with spare parts and assembiles to be marked such as Vehicle,Machine,Steel and Electronic Machinery.
Integrated Software Specifics
Impots logos (.plt format)
Automatic marking
Automatic serialization
Standard letters marking
Round letters marking
Characters outline marking
VIN code marking
Chart markin
KT-PS01
Marking area:120X 80mm
KT-PS04
Marking area:300X 200mm

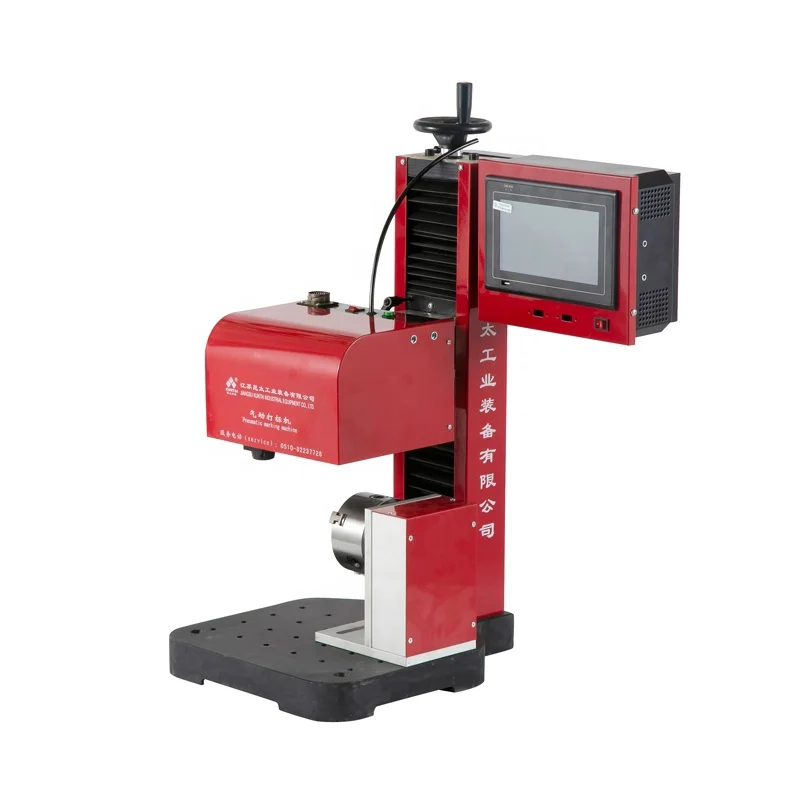

KT-PS01-R
Marking area:120X 80mm
Rotary Device:100mm
KT-PS04-R
Marking area:300X 200mm
Rotary Device:100mm
Specification
Model | KT-PS01 | KT-PS02 | KT-PS03 | KT-PS04 | |||
Marking Area | 120mm X 80mm | 150mm x 130mm | 200mm x 150mm | 300mm x 200mm | |||
Marking speed | 30mm~40mm/s | ||||||
Impact Frequency | 300times/s | 300times/s | 300times/s | 300times/s | |||
Repeated Accuracy | 0.001mm | 0.001mm | 0.001mm | 0.001mm | |||
Marking Depth | 0.1mm~2mm(depends on material) | 0.1mm~2mm(depends on material) | 0.1mm~2mm(depends on material) | 0.1mm~2mm(depends on material) | |||
Power Supply | AC100V-240V 50Hz/60Hz | AC100V-240V 50Hz/60Hz | AC100V-240V 50Hz/60Hz | AC100V-240V 50Hz/60Hz | |||
Air Power Request | 0.2Mpa~0.6Mpa | 0.2Mpa~0.6Mpa | 0.2Mpa~0.6Mpa | 0.2Mpa~0.6Mpa | |||
Humidity | 0~90%(Non-condensing) | 0~90%(Non-condensing) | 0~90%(Non-condensing) | 0~90%(Non-condensing) | |||
Temperature | From 0 to 40 Centigrade Degree | From 0 to 40 Centigrade Degree | From 0 to 40 Centigrade Degree | From 0 to 40 Centigrade Degree | |||

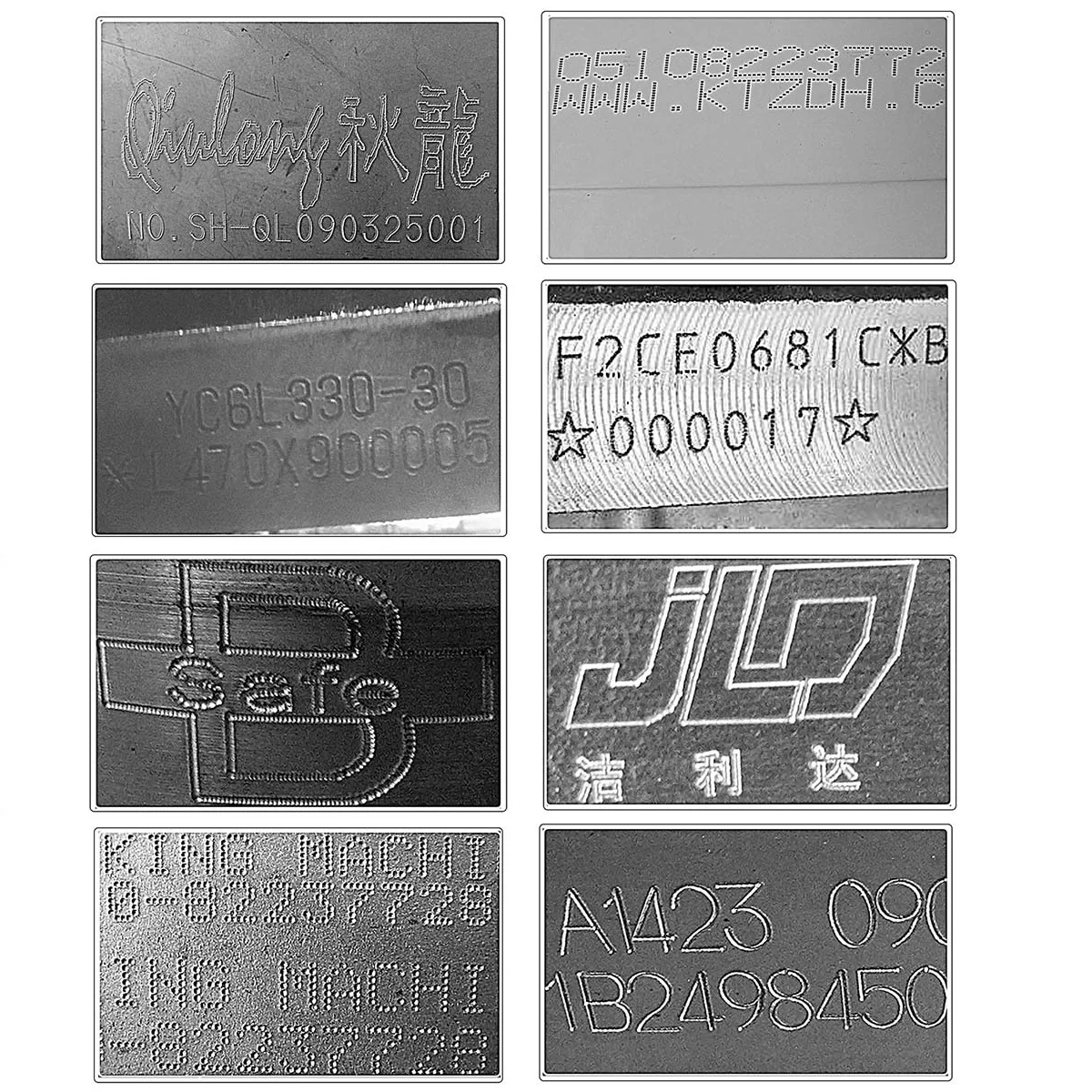

Making content | English characters, number, all kinds of graphic, logo, dot matrix 2D codes, Barcode, Serial Number, circle letter and etc. | ||||||
Integrated controller | The controller integrates software, keyboard, screen, no need computer anymore. | ||||||
Rotary device | KT-PS series with -R including a rotary device,100mm in diameter,hold parts weight within 5KG. | ||||||
PACKING LIST:
Model:KT-PS02r
Marking area:150mm x 130mm
Rotary device:100mm
1× Pneumatic Marking Machine

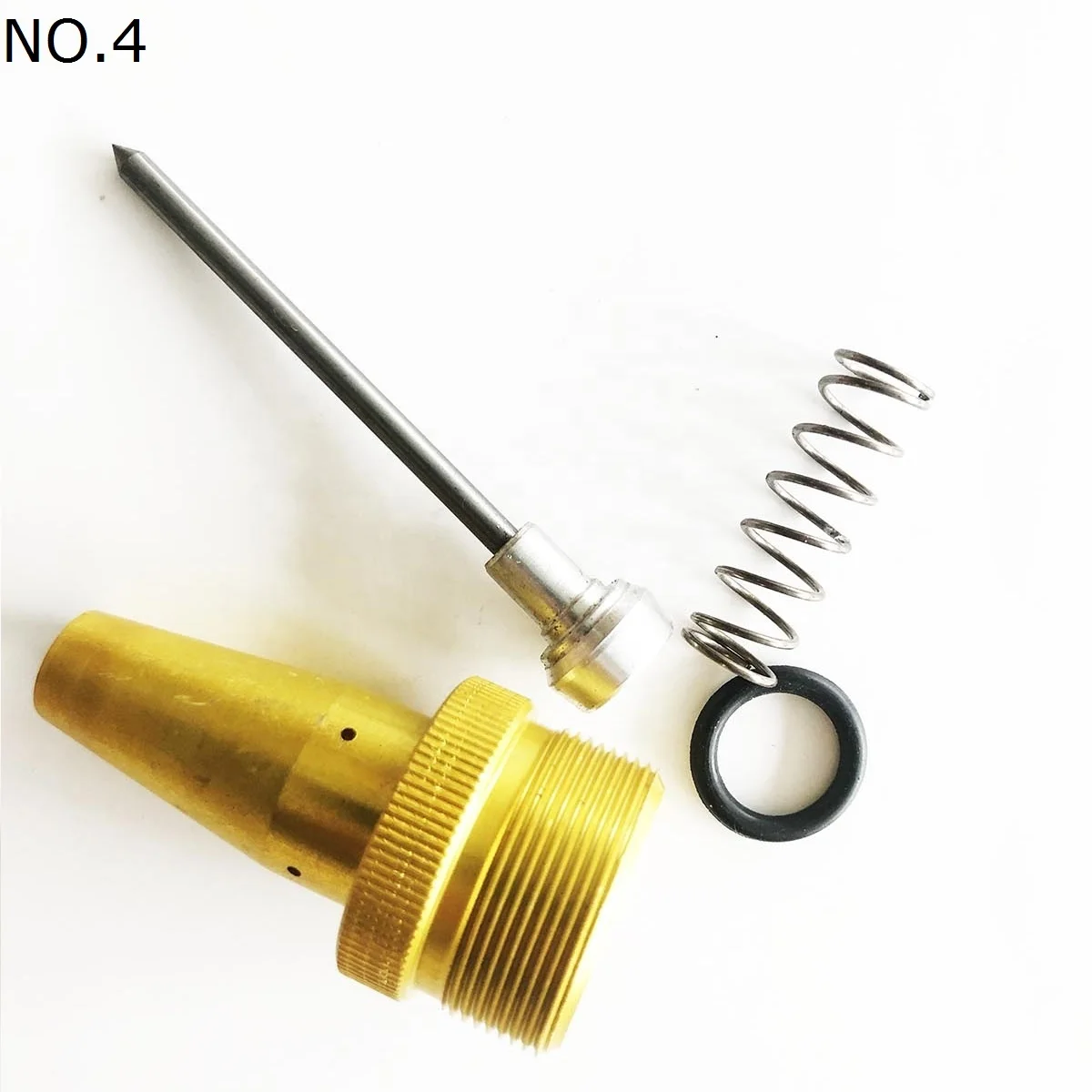

2× Marking pins
1× 60mm Cable
1× Oil-Water Separator Filter
1× Power Adapter
1× Oil-Water Separator Filter
1× Power Adapter
1× USB flash drive with operator's manual & guide video
Warranty:
One-Year Warranty covers all machine parts(not include consumables);
KUNTAI offers free lifetime tech support.
Why Choose Us
FAQ
Q: I am not sure if this machine can work on my product or not, how do I choose?
A: We will help you choose the suitable machine and give you solution, you can tell us the material of product, shape of workpiece, marking position, marking content size, and marking depth requirement.
Q: Is this machine easy to operate, what should I do if I don't know how to use it?
A: We send installation and operation manual with machine, operation video, online training via Skype, Wechat, Whatsapp, phone conversation etc. are available. Staff training in our factory is free of charge, if needed, we can send our engineer overseas for training.
Q: If machine is out of order, what shall I do?
A: We provide one year warranty for machine, two years warranty for laser generator.
If find problem, please contact us, we will reply you within 24 hours and help you find out problem then figure it out. We provide lifelong maintenance and replacement parts.
Q: What are the interface language options of marking software?
A: The marking software interface language options are English, Korean, Japanese, Chinese simplified, Chinese traditional.
Q: Will the package be strong enough because it might be multi-way transportation.
A: We have three layers, for the inner layer, the machine is wrapped with waterproof shrink film. The outside layer is strong wooden case free of fumigation. Between these two layers, we will fill EPE foam, bubble bag, carboard and so on to avoid the machine damage by shaking.
Q: What is the delivery time?
A: Commonly the lead time is 5 working days after receiving payment. For customized machines and large quantity order, the lead time will be longer.
Q: What is the payment terms?
A: We accept payment by TT, LC, Paypal, Western Union, Mastercard, VISA, Cash, Alibaba trade assurance etc.
A: We will help you choose the suitable machine and give you solution, you can tell us the material of product, shape of workpiece, marking position, marking content size, and marking depth requirement.
Q: Is this machine easy to operate, what should I do if I don't know how to use it?
A: We send installation and operation manual with machine, operation video, online training via Skype, Wechat, Whatsapp, phone conversation etc. are available. Staff training in our factory is free of charge, if needed, we can send our engineer overseas for training.
Q: If machine is out of order, what shall I do?
A: We provide one year warranty for machine, two years warranty for laser generator.
If find problem, please contact us, we will reply you within 24 hours and help you find out problem then figure it out. We provide lifelong maintenance and replacement parts.
Q: What are the interface language options of marking software?
A: The marking software interface language options are English, Korean, Japanese, Chinese simplified, Chinese traditional.
Q: Will the package be strong enough because it might be multi-way transportation.
A: We have three layers, for the inner layer, the machine is wrapped with waterproof shrink film. The outside layer is strong wooden case free of fumigation. Between these two layers, we will fill EPE foam, bubble bag, carboard and so on to avoid the machine damage by shaking.
Q: What is the delivery time?
A: Commonly the lead time is 5 working days after receiving payment. For customized machines and large quantity order, the lead time will be longer.
Q: What is the payment terms?
A: We accept payment by TT, LC, Paypal, Western Union, Mastercard, VISA, Cash, Alibaba trade assurance etc.
