Буровое долото из карбида вольфрама 8 1/2

Категория: Mining Machine Parts >>>
Поставщик: Shaanxi,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.Shaanxi,Ltd.

Цена:32 076,44-57 516,37 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	38170.5 $*	40079.20 $*
Aug-19-2025	37850.78 $*	39743.10 $*
Jul-19-2025	31755.22 $*	33343.4 $*
Jun-19-2025	37208.66 $*	39068.51 $*
May-19-2025	32397.58 $*	34017.7 $*
Apr-19-2025	36567.32 $*	38395.46 $*
Mar-19-2025	36246.87 $*	38058.11 $*
Feb-19-2025	35925.99 $*	37721.1 $*
Jan-19-2025	35604.73 $*	37384.71 $*

Характеристики

Product Description

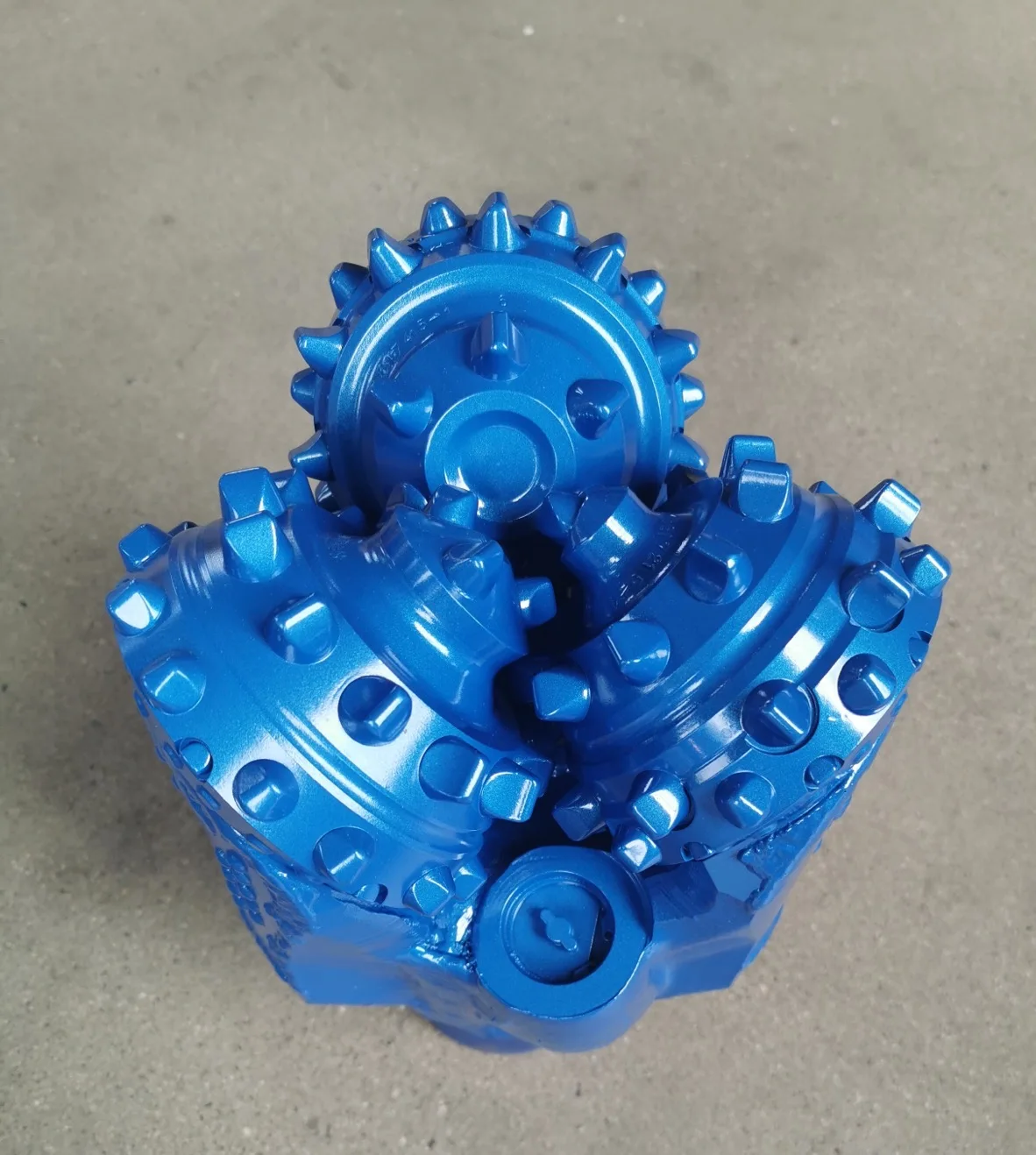

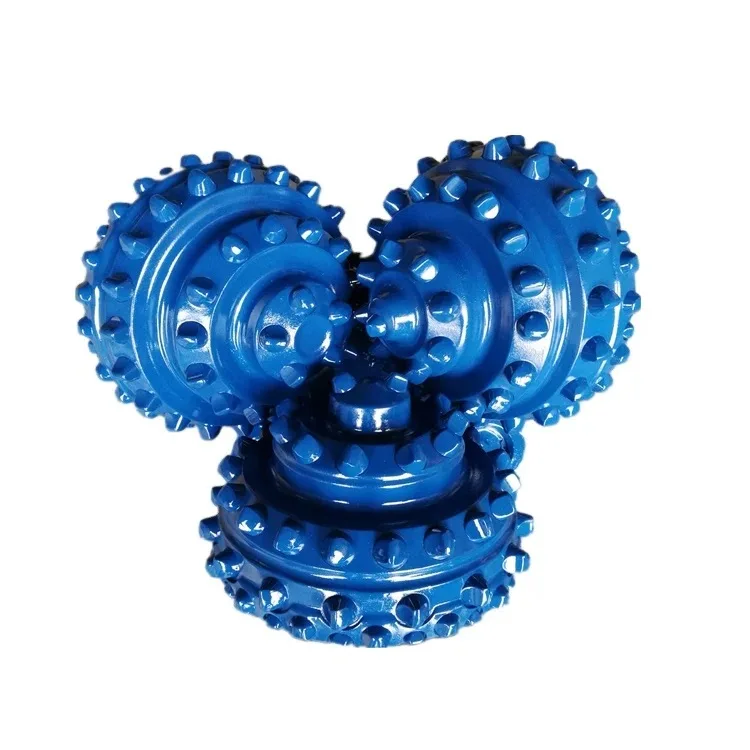

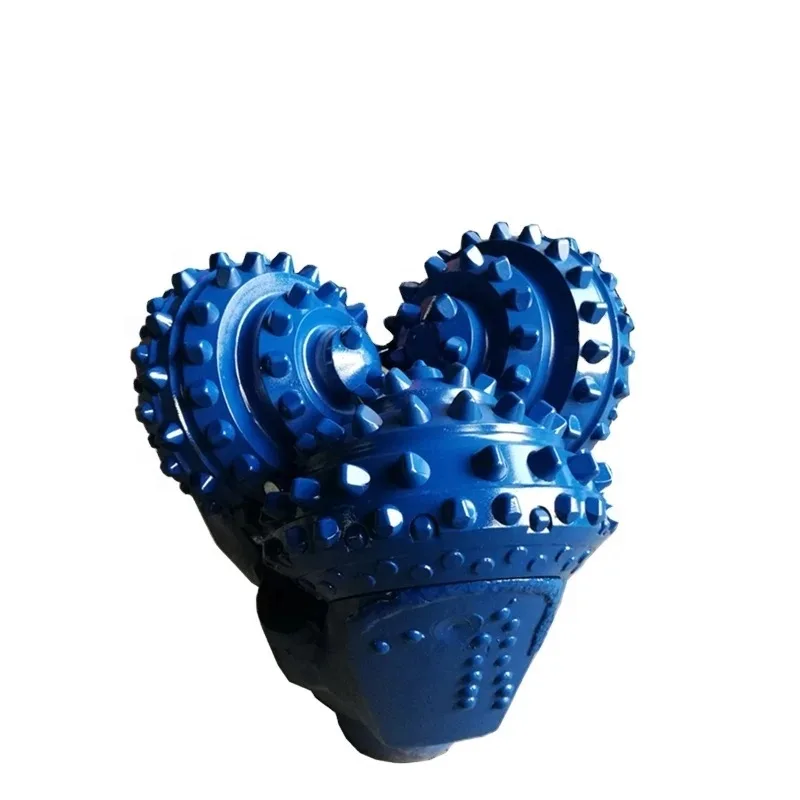

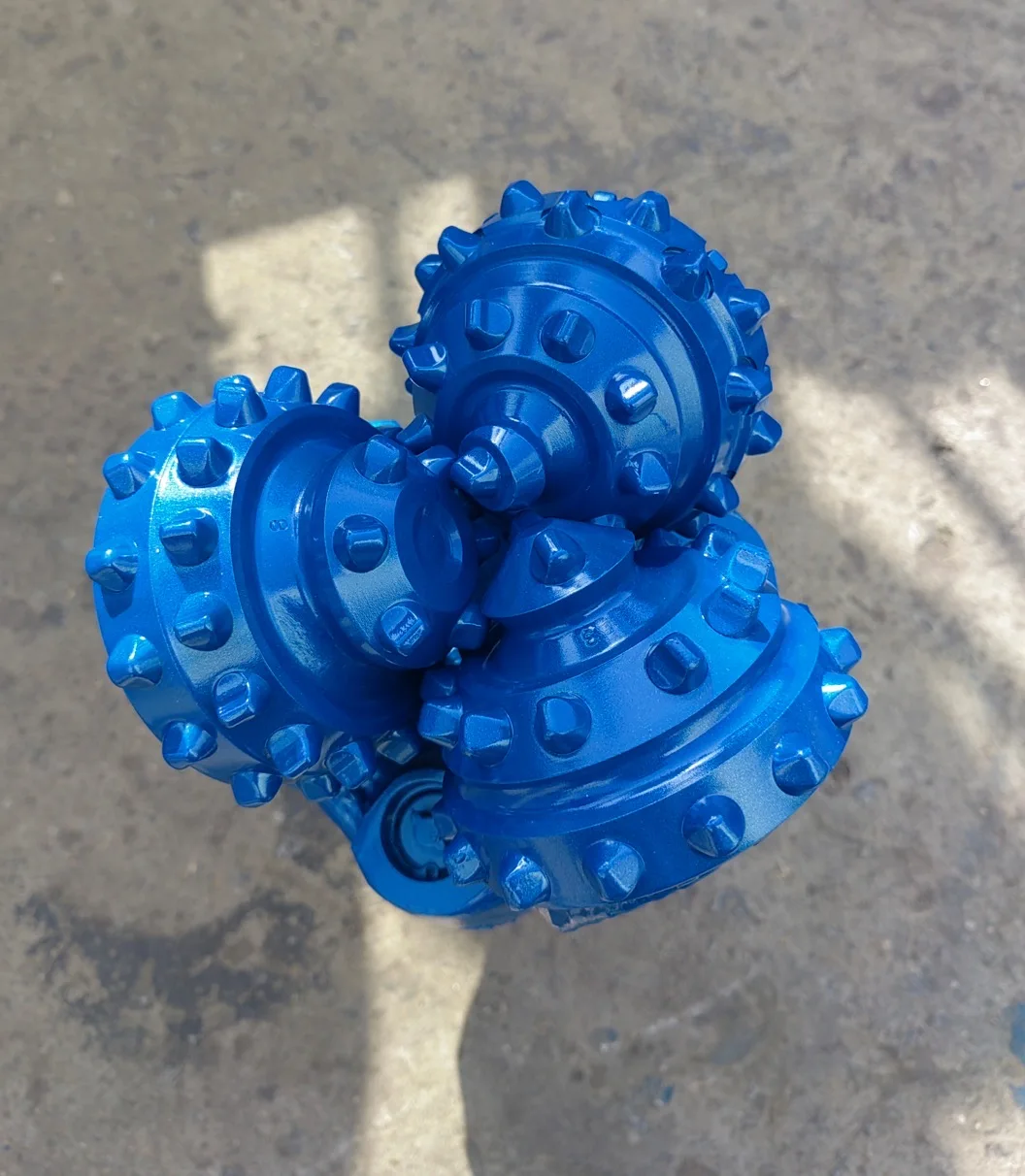

Tricone bit used for geoloical prospecting,development of oil and gas,drilling water wells,blast holes and making holes for seismic prospecting,construction engineering.now there are eleven common types of tricone rock bits.

Steel teeth series:IADC CODE:116,117,126,127,136,137,216,217,317,337,

TCI series:IADC CODE:417,437,447,517,527,537,547,617,627,637,647,737,837.

TCI tricone bit, tci roller Bits ,roller bit,steel tooth roller bit,TCI roller bit,TCI tricone bit

1.Sizes rang from 3 7/8" to 26"

2.Covers almost all IADC code. 3.Reliable quality and reasonable price

Normal IADC:

437Soft Formation TCI Tricone Bits:

The 437 TCI bits are used to drill low compressive strength, very soft formations. TCI bits maximize the use of both conical and
chisel tungsten carbide inserts of large diameters and high projection. This cutting structure design, combined with maximum cone
offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit bailing in sticky formations.

517Medium Formation TCI Tricone Bits:

The 517 features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling
rate and added cutting structure durability in medium-to-medium hard formation. The HSN rubber O-ring provides adequate sealing
for bearing durability.

637Hard Formation TCI Tricone Bits:

The 637 bits can be used to drill hard and abrasive formation. Wear-resistant tungsten carbide inserts are used in the outer rows
to prevent loss of bit gauge. Maximum numbers of hemispherical-shaped inserts are used in all rows to provide cutter durability
and long life.

617Medium-Hard Formation TCI Tricone Bits:

The 617 features robust chisel tungsten carbide inserts on the heel row and conical on the inner rows. This design provides a fast
drilling rate and added cutting structure durability in medium to medium hard formations. The HSN rubber O-ring provides adequate
sealing for bearing durability.

Specifications

IADC	WOB	RPM	Application
IADC		(KN/mm)	Application	(r/min)
111/114/115	0.3-0.75	200-80	very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk
116/117	0.35-0.8	150-80	very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk
121	0.3-0.85	200-80	soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
124/125		180-60
131	0.3-0.95	180-80	soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds
136/137	0.35-1.0	120-60
211/241	0.3-0.95	180-80	medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds.
216/217	0.4-1.0	100-60
246/247	0.4-1.0	80-50	medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite
321	0.4-1.0	150-70	medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble
324	0.4-1.0	120-50
437/447/435	0.35-0.9	240-70	very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone
517/527/515	0.35-1.0	220-60	soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
537/547/535	0.45-1.0	220-50	soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds
617/615	0.45-1.1	200-50	medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite
637/635	0.5-1.1	180-40	hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble
Note: Above limits of WOB and RRPM should not be used simultaneously

Size			Steel tooth bit	TCI bit
in	mm	Weight(kgs)	Weight(kgs)
3 7/8	98.4	5	6
4 5/8	117.5	6	6.5
5 7/8	149.2	17	18
6	152.4	18	19.5
6 1/2	165.1	19	22
7 7/8	200	29	29.5
8 1/2	215.9	35	38
8 3/4	222.2	36	40
9 1/2	241.3	57	59
9 7/8	250.8	58	60
10 5/8	269.9	66	74
12 1/4	311.1	85	111
13 5/8	346.1	118	120
14 3/4	374.6	140	160
17 1/2	444.5	230	255
20	508	428	443
22	558.8	520	560
26	660.4	720	810

Details Images

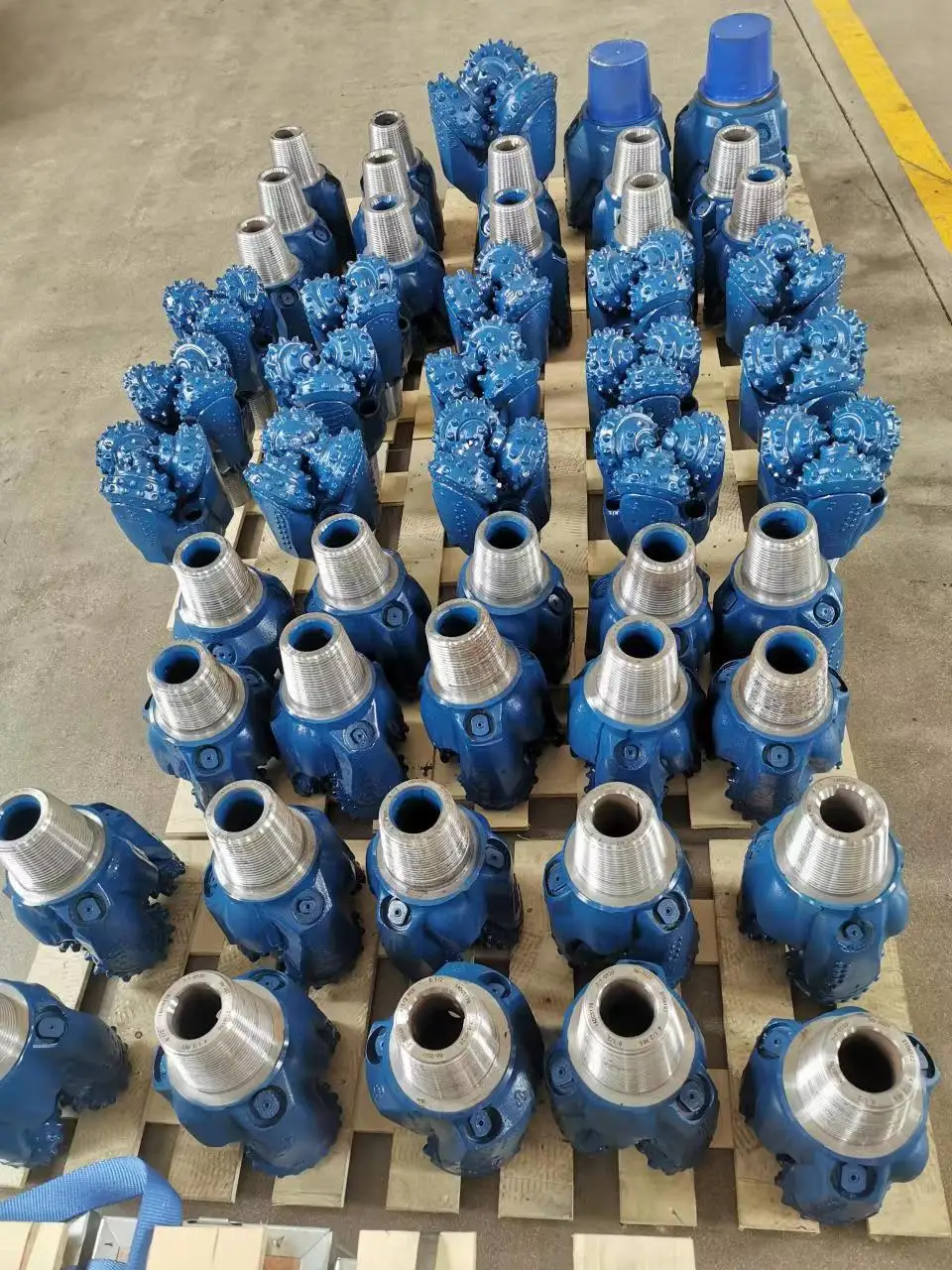

Packing & Delivery

Company Profile

FAQ

1. who are we?
We are based in Shaanxi, China, start from 2007,sell to Domestic Market(00.00%),South America(00.00%),Southeast Asia(00.00%),Africa(00.00%),Mid East(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Air Compressor,Drilling Rig,Drill Bit,Spare Parts

4. why should you buy from us not from other suppliers?
1.The biggest air compressor manufacture in China
1.More than 50 years air compressor& drilling rig manufacture.
2.Full experience of mine and industrial projects.
3.Professional and strong after - sales team.
4.Design as customer's requirement.
5.OEM

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
