 Xgzp piezoresistive pressure sensor

Product features measurement range - 100KPA ~ 10KPA 1000kPa MEMS technology gauge pressure form s0p or dip is suitable for non corrosive gas working temperature range: - 30 ℃ ~ + 100 ℃ chip back pressure chamber pressure pin direction can be selecte



 Application fields:

electronic sphygmomanometer, ventilator, gas generator, lanhuzhi and other medical leading tire pressure meters, map, steering power, car making power, etc. in the electronic field, rubbing device, chair, air bed and other sports and fitness equipment field, washing machine, Beijiu machine, coffee machine, emergency light, vacuum cleaner, water purification, pressure instrument, pneumatic components and other fields

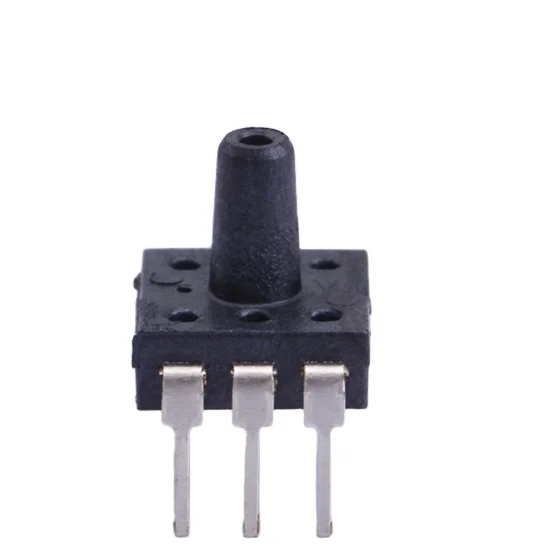

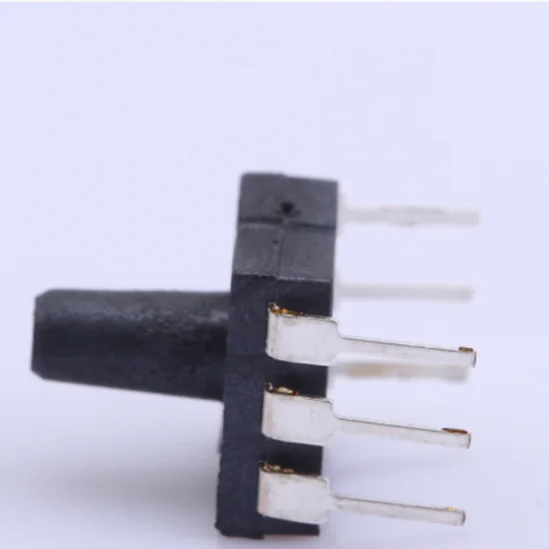

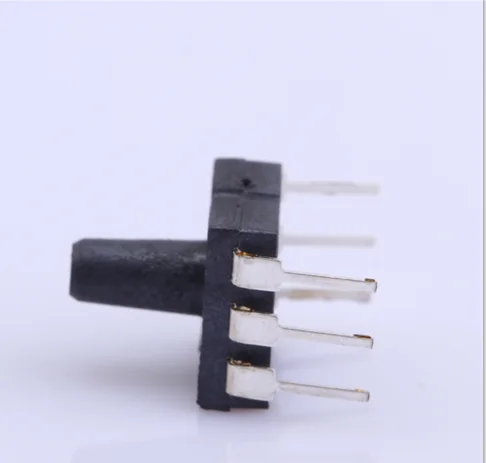

Product overview xgzp piezoresistive pressure sensor is a kind of pressure sensor suitable for biomedicine, automotive electronics and other fields. Its core part is a piezoresistive piezoresistive sensing chip fabricated by MEMS technology. The pressure sensitive chip is composed of a thin film and four resistors integrated on the film. The four varistors form the Zhongshi bridge structure. When the pressure acts on the elastic film, the bridge will produce a voltage output signal which is linearly proportional to the applied pressure. Xgzp pressure sensitive element is a 0m component packaged in the form of standard s0p6 and d1p6, It is convenient for users to install surface mount or dual in-line, with good linearity, repeatability and stability, and high sensitivity. It is convenient for users to use op amps or integrated circuits to test and compensate the output and temperature
