AOHUA M20 печатная плата штекер и Женская Панель Водонепроницаемый 3-контактный круглый монтажный разъем с кабелем 3
- Категория: Connectors >>>
- Поставщик: Shenzhen,Aohua,Electric,Corporation,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.24 $* | 1.10 $* |
| Jul-16-2025 | 1.5 $* | 1.53 $* |
| Jun-16-2025 | 1.72 $* | 1.57 $* |
| May-16-2025 | 1.61 $* | 1.28 $* |
| Apr-16-2025 | 1.5 $* | 1.22 $* |
| Mar-16-2025 | 1.36 $* | 1.28 $* |
| Feb-16-2025 | 1.37 $* | 1.29 $* |
| Jan-16-2025 | 1.31 $* | 1.93 $* |
Характеристики
Product Description
What are details of our high-quality waterproof connectors?

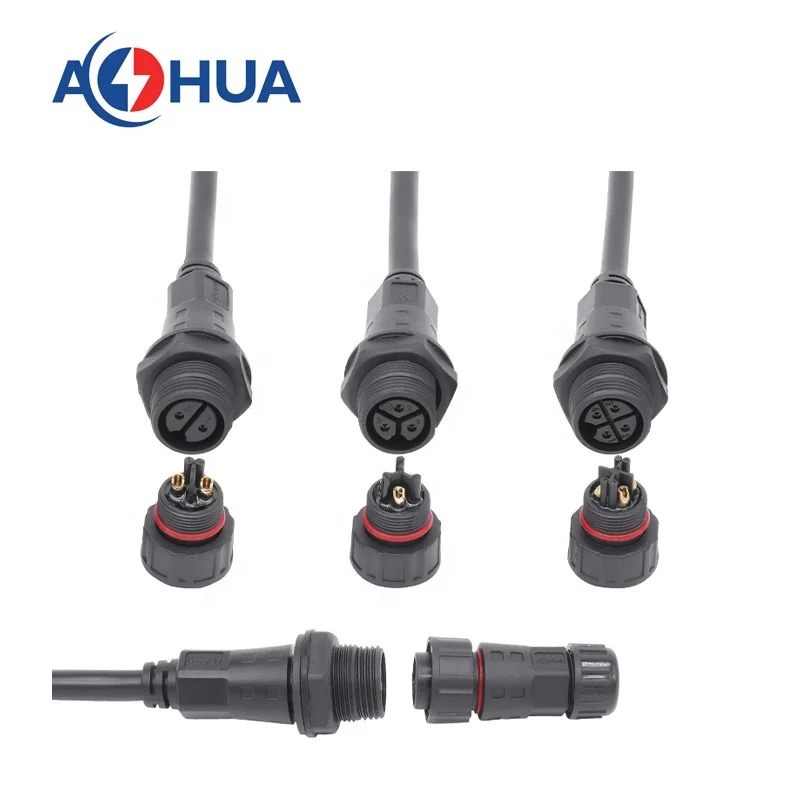

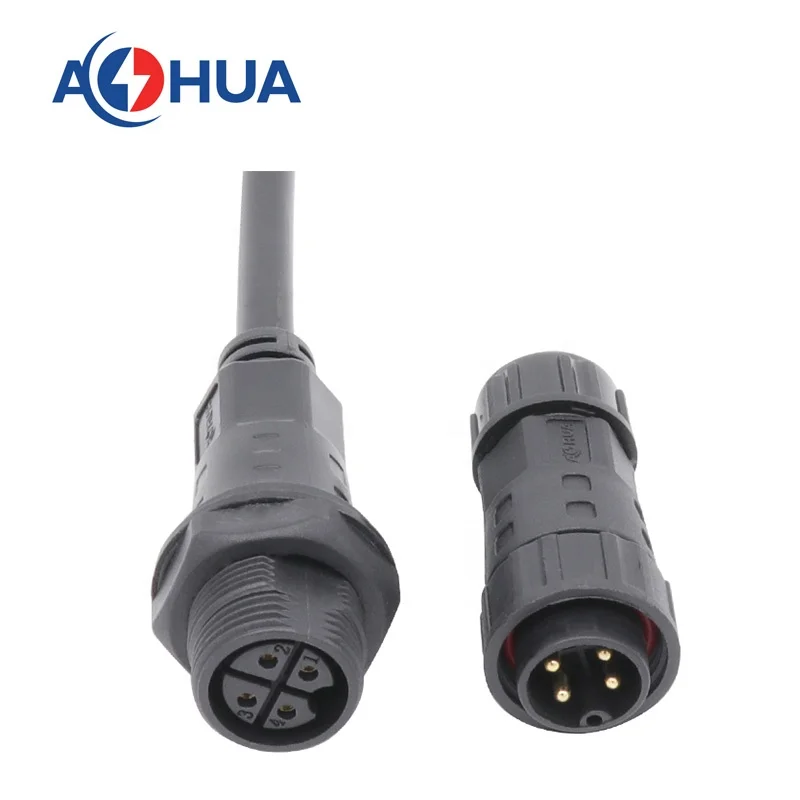

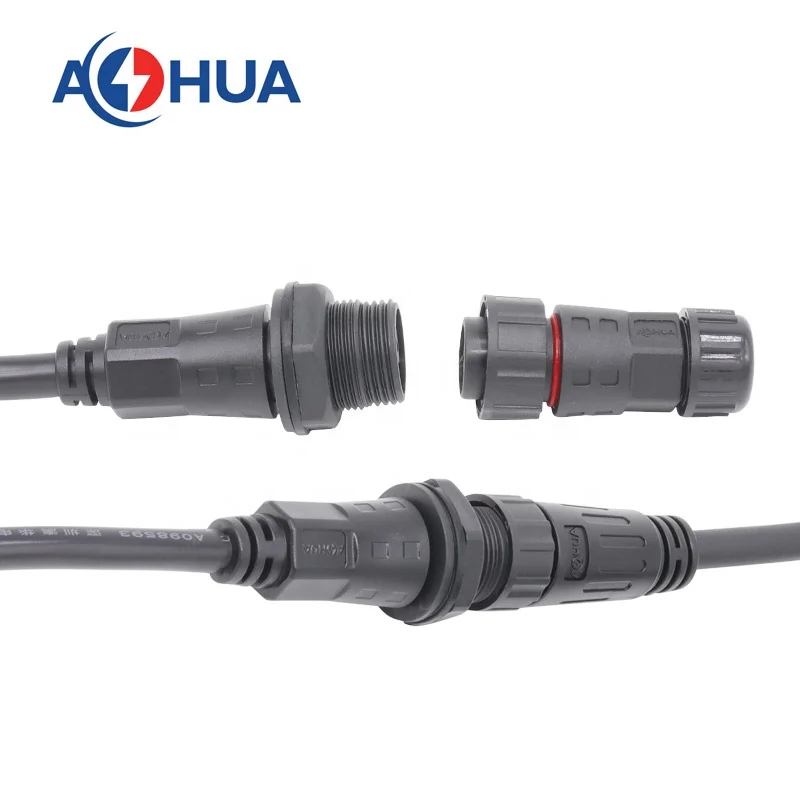

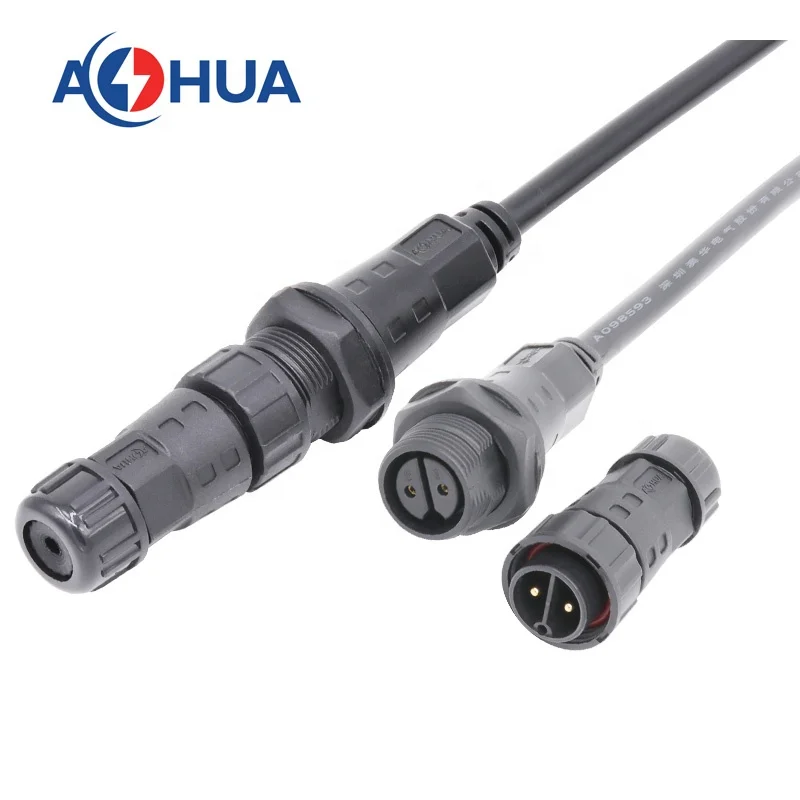

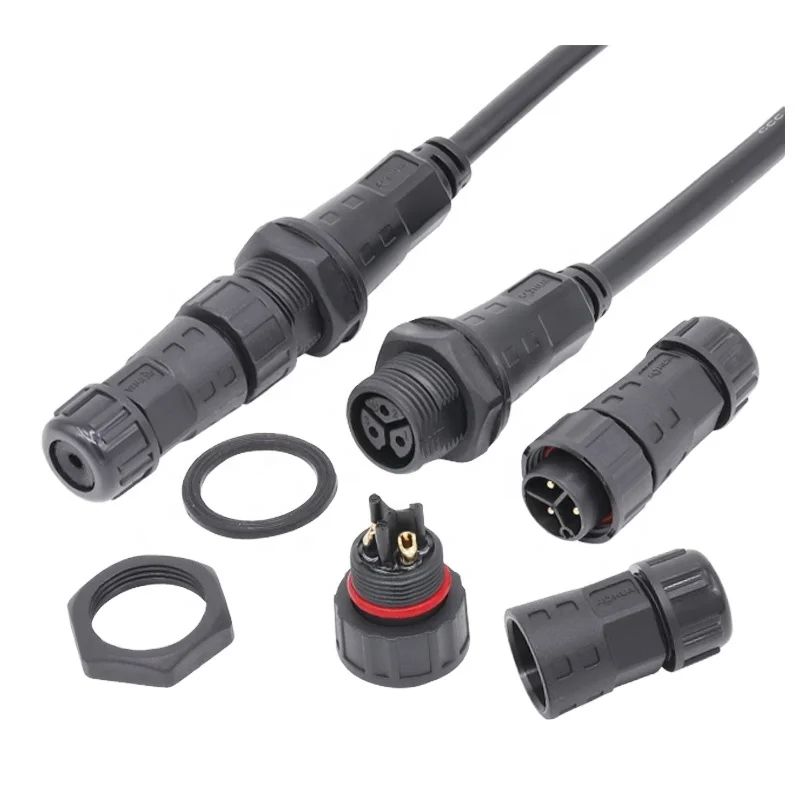

M20 female panel with cable connector
This connector is female panel mount molded cable connector, male connector is assembly type.
In order to save your processing time, we molded with cable once you can confirm the wire size and cable length. For the male connector, we can also help to make the solder with cable. Please note that the female plug is front panel mount, it mean that the hex nut is outside junction box.
The panel connector is made of environmentally friendly nylon PA66 material, this material has high temperature resistance, 94V0 flame retardant, which greatly improves the durability and safety of the products; pins are all gold-plated to ensure that the conductivity of the products durable and stable, safe and reliable. Easy installation and quick threaded plug and pull, male and female plug and pull small volume, beautiful appearance, high performance, very convenient assembly socket plug, solid shell
explosion-proof, waterproof.
Widely used in LED plant growth lamp, junction box of power control, lighting control, electric device, and so on.
In case of failure, there is no need to clamp off the cable, electric plastic sleeve, etc., only need to unscrew the two ends of the waterproof connector, very convenient for product maintenance.
In order to save your processing time, we molded with cable once you can confirm the wire size and cable length. For the male connector, we can also help to make the solder with cable. Please note that the female plug is front panel mount, it mean that the hex nut is outside junction box.
The panel connector is made of environmentally friendly nylon PA66 material, this material has high temperature resistance, 94V0 flame retardant, which greatly improves the durability and safety of the products; pins are all gold-plated to ensure that the conductivity of the products durable and stable, safe and reliable. Easy installation and quick threaded plug and pull, male and female plug and pull small volume, beautiful appearance, high performance, very convenient assembly socket plug, solid shell
explosion-proof, waterproof.
Widely used in LED plant growth lamp, junction box of power control, lighting control, electric device, and so on.
In case of failure, there is no need to clamp off the cable, electric plastic sleeve, etc., only need to unscrew the two ends of the waterproof connector, very convenient for product maintenance.
Contacts Numbers | 2 | 3 | 4 | ||
Voltage Rating | 300V | 300V | 250V | ||
Current Rating | 15A | 15A | 6A | ||
Wire Gauge | ≤1.5mm² | ≤1.5mm² | ≤1.0mm² | ||
Cable OD | 6mm~10mm | ||||
Mechanical Life | 3000 mating cycles | ||||
Operating Rating | -20℃~+80℃ | ||||
Waterproof Level | IP65 | ||||
Seal Ring | 13*9*6.5/7.5/8.5/9.5/10mm | ||||
1. Current rating, such as: 15A...
2. Pins, such as : 2pin, 3pin...
3. Wire size, such as: 3*1.0mm²...
4. Cable outer diameter(OD), such as: 7.2mm.
2. Pins, such as : 2pin, 3pin...
3. Wire size, such as: 3*1.0mm²...
4. Cable outer diameter(OD), such as: 7.2mm.
5. Cable length, such as: length of each cable 300mm....
