Новый материал эпоксидного стекла ламинат
- Категория: Electronic Accessories & Supplies >>>
- Поставщик: Shenyang,Youda,Insulation,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.40 $* | 0.52 $* |
| Aug-18-2025 | 0.31 $* | 0.4 $* |
| Jul-18-2025 | 0.3 $* | 0.36 $* |
| Jun-18-2025 | 0.22 $* | 0.26 $* |
| May-18-2025 | 0.31 $* | 0.11 $* |
| Apr-18-2025 | 0.94 $* | 0.57 $* |
| Mar-18-2025 | 0.20 $* | 0.15 $* |
| Feb-18-2025 | 0.27 $* | 0.48 $* |
| Jan-18-2025 | 0.36 $* | 0.2 $* |
Характеристики
Product Parameters
No. | Index name | Unit | Value |
1 | vertical bending strength | MPa | ≥340 |
2 | parallel impact strength | KJ/m2 | - |
3 | water absorbency | mg | - |
4 | vertical electrical strength | Kv/mm | 13-19.5 |
5 | vertical layer voltage resistance | KV | - |
6 | parallet layer breakdown voltage | KV | ≥35 |
7 | dielectric constant | / | ≤5.5 |
8 | dielectric loss factor | / | ≤0.04 |
9 | surface resistivity | Ω | - |
10 | volume resistivity | MΩ·m | - |
11 | heat resistance grade | / | ≥5x104 |

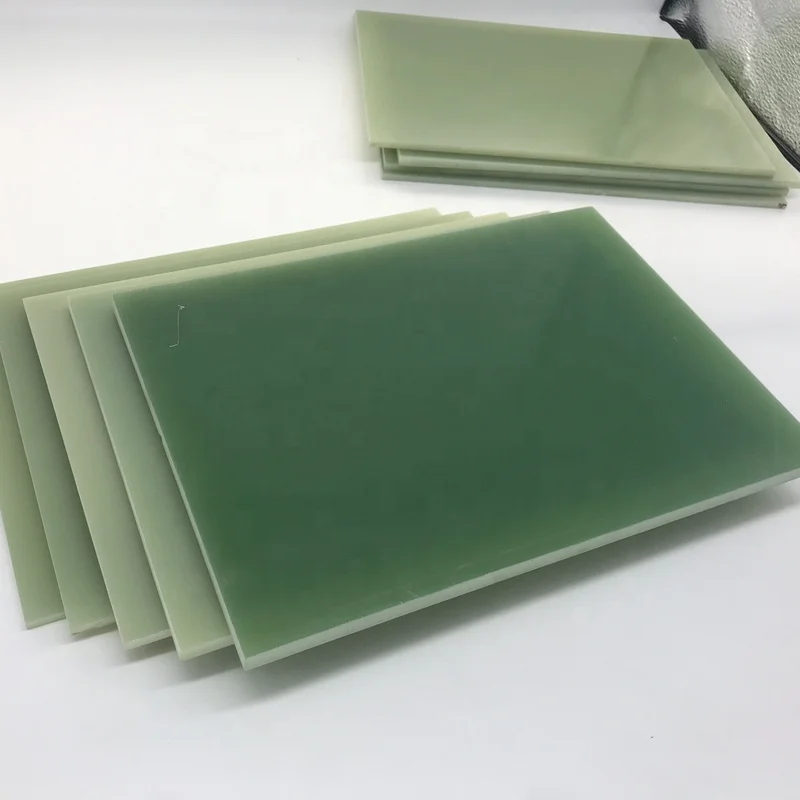

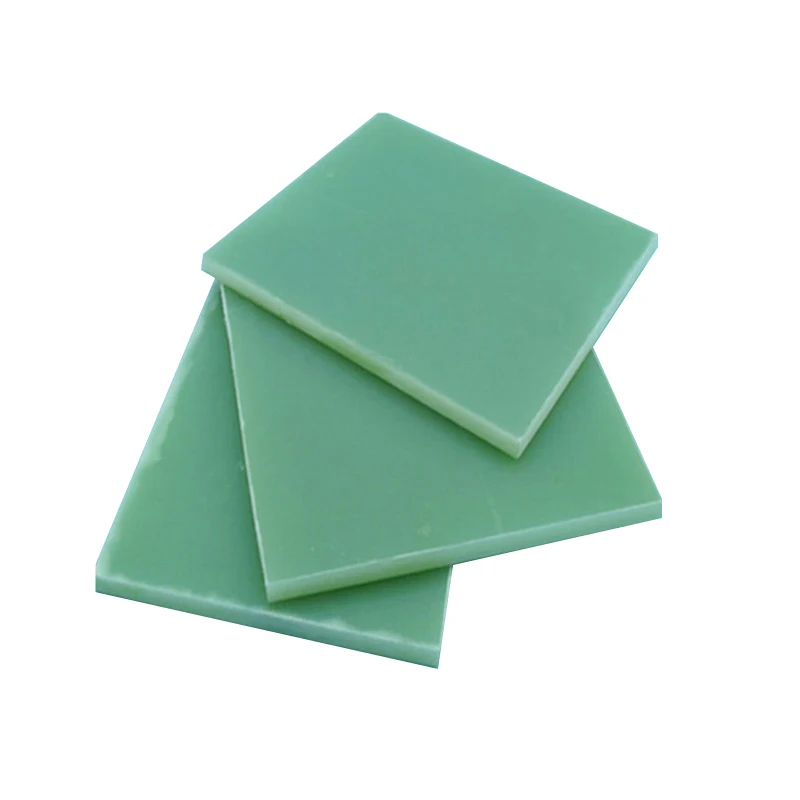

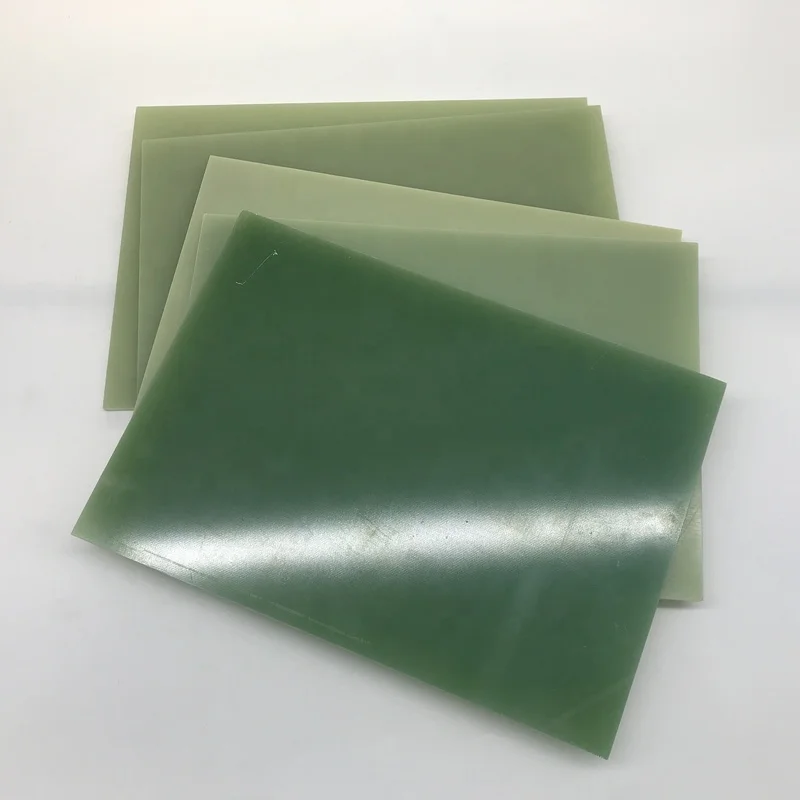

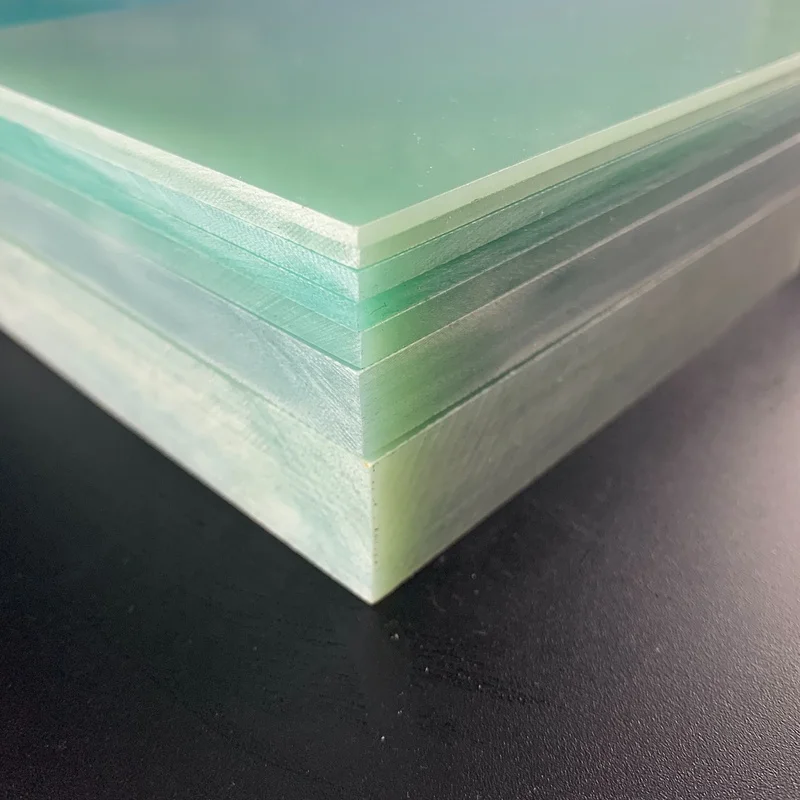

FR4/G10 Glass Fiber Sheet is a composite sheet material that consists of glass fabric, electrical grade epoxy resin. The epoxy material is extremely strong and stiff, has a low coefficient of thermal expansion, and has outstanding electrical properties. Epoxy resins are among the most versatile and widely used plastics in the electronics field, primarily because water absorption is virtually nil, rendering it an outstanding insulator.
