Ahouse Automatic Swing Gate Opener

1. Manufacturer has patent for manual release mechanism. Use this feature in case of power failure,during installation or maintenance


2. Easy Self-learning feature

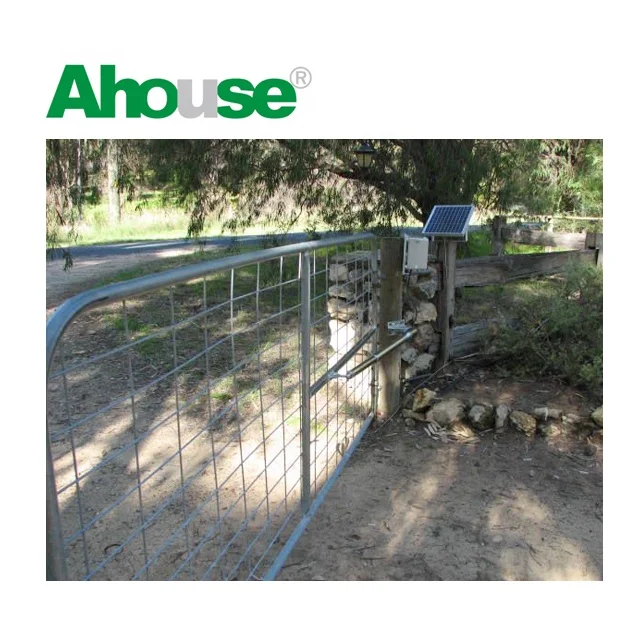

3. Commercial power & solar energy power source can be connected at the same time


4. Over current immediate stop function


5. Adjustment time of fast speed & slow speed


6. Adjustment of force during fast speed & slow speed


7. Auto Close function with adjustable closing time delay


8. Single or dual swing


9. Use max up to 50 sets of remote controllers


10. Quality assurance: CE and IP66 certificate obtained


11. Optional parts: DC24V gate lock, flashing light, photocell, keypad, push button, backup battery



we Also have

Sliding Gate Opener

Sliding Glass Door Opener

Underground Swing Gate Opener

Awning Opener

Window Opener





Electrical:

Operating Voltage	DC 24V
Electronic Controller	Microcontroller Based
Safety Detection	Over Current Detection
Safety Barrier	Infrared Beam Sensor (Optional)
IP Rating	IP66



Mechanical:

Swing Type	EM3 Plus	EM 3	EM 2
Max. Piston Stroke	450 mm	350 mm	200 mm
Max. Length of motor	1255 mm	1030 mm	730 mm
Max. Leaf's Weight	300 kg/ Leaf	300 kg/ Leaf	300 kg/ Leaf
Suitable Leaf's Length	2 to 3.5 meter/ Leaf	1.5 to 2.5 meter/ Leaf	1 to 1.6 meter/ Leaf
Frame Housing	Stainless Steel / Aluminum Alloy
Driving Method	Screw Driven Piston Type
Stroke Speed	4.5 cm / sec
Opening Degree	0 to 110 degree
90 Degree Rotation Time	8 to 12 seconds
Temperature	-15°C to +55°C













Some Key Benefits of an EM3 Gate Automation System fitted on your gates

(1) Fast operating speed on opening and closing-The fastest screw drive gate motor available

(2)Stylish remotes with button protectors

(3) Full open and pedestrian open functions

(4) IP66 rated motors-built to withstand the harshest environments

(5) Striking Stainless Steel look and feel

(6) Full specification STGS inbuilt safety system that protects your motors, gates from mechanical stress

(7) Inbuilt safety systems against crushing- will stop and reverse if obstruction detected

(8) Silent and smooth operation

(9) 24vdc operating voltage reduces installation costs

(10) Universal mounting brackets for easy installation

(11) Can open gates inwards or outwards depending on your requirements

(12) Quality durable construction to last the test of time

(13) Backup battery compatible for when the power goes off

(14) Mechanical arm disabling with special key so that no tools are required when and if you need to

(15) Capable of connecting additional devices such as ground loops, keypads, safety beams, intercoms, locks etc

(16) Built in electrical overload protectors and adjustable current limiting (Will not stress lighter gates such as aluminium gates)

(17) 12 Month manufacturers warranty
