Машина для прокатки листового металла
US $10000
Китай высокопроизводительная плитка оборудование для производства глиняного
- Категория: Tile Making Machinery >>>
- Поставщик: Nanjing,Brickmac,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 130900.13 $* | 137445.0 $* |
| Aug-15-2025 | 129800.95 $* | 136290.72 $* |
| Jul-15-2025 | 108900.64 $* | 114345.9 $* |
| Jun-15-2025 | 127600.77 $* | 133980.3 $* |
| May-15-2025 | 111100.82 $* | 116655.45 $* |
| Apr-15-2025 | 125400.76 $* | 131670.8 $* |
| Mar-15-2025 | 124300.89 $* | 130515.21 $* |
| Feb-15-2025 | 123200.68 $* | 129360.12 $* |
| Jan-15-2025 | 122100.32 $* | 128205.20 $* |
Характеристики
Product Overview

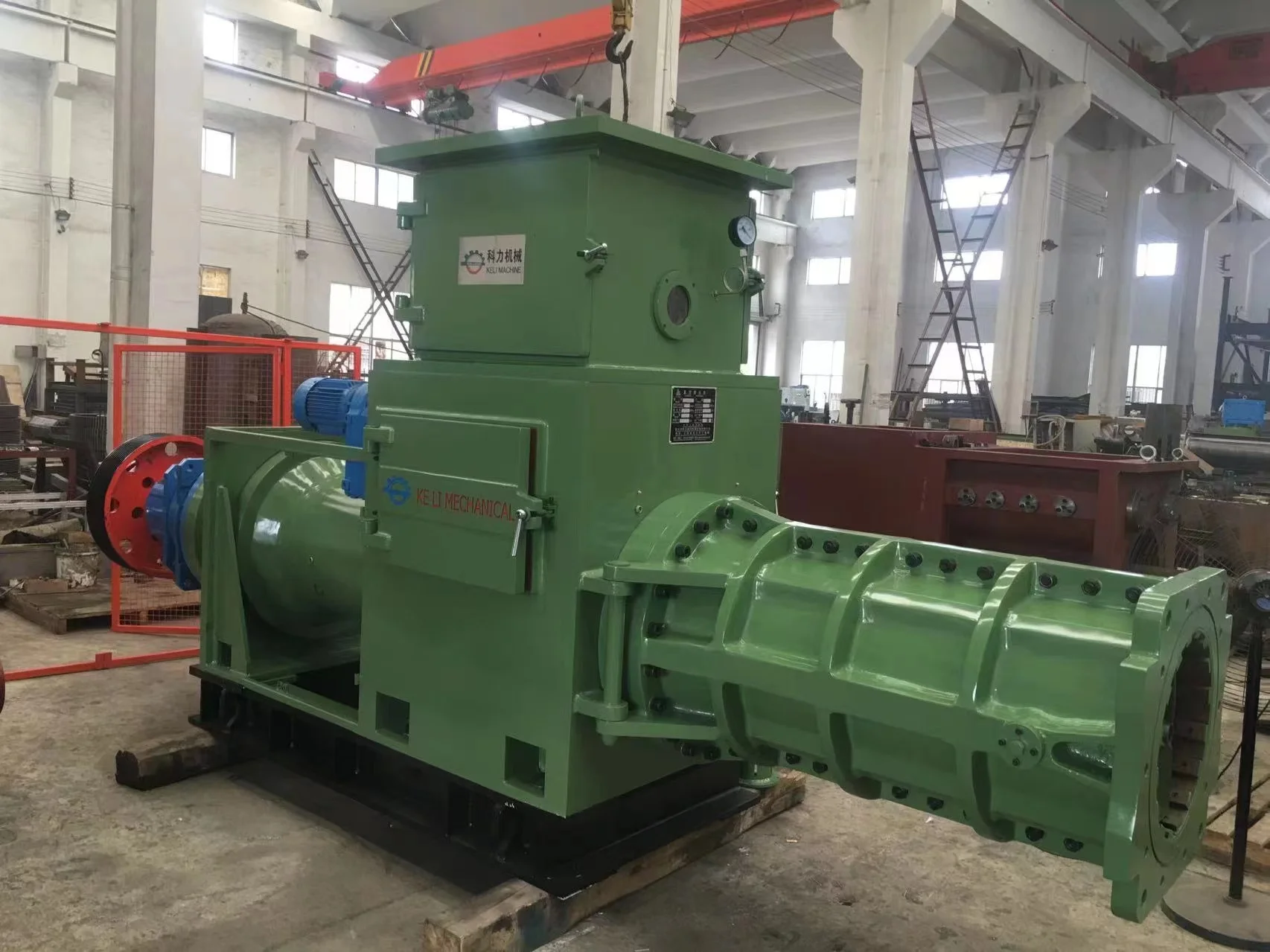

DOUBLE STAGE VACUUM CLAY BRICK EXTRUDER
This serious of machines adopt the latest manufacturing technology from Europe, its specialized for extruding high-end ceramic materials, cement products, and other types of semi-hard materials. The equipment’s material, technical structure, electrical system as well as operating system are manufactured in accordance with European standards, which have features of high degree of automation, easy operation, long life and saving maintenance costs.
Scope of application:
High-performance vacuum extruder is widely used in building materials manufacturing industries of all types of high-end ceramics, clay tiles and hollow blocks, cement and other building materials extrusion, the equipment has advanced European-level technology, stable performance and high efficiency.
Scope of application:
High-performance vacuum extruder is widely used in building materials manufacturing industries of all types of high-end ceramics, clay tiles and hollow blocks, cement and other building materials extrusion, the equipment has advanced European-level technology, stable performance and high efficiency.
- planet reducer (standard)
- Cr. Alloy screw (standard)
- automatic electric control cabinet（optional）
- automatic electric control cabinet（optional）
- extrusion die (standard)
- installation drawing and foundation drawing（standard）
- operating and maintenance manual（standard）
- installation drawing and foundation drawing（standard）
- operating and maintenance manual（standard）
FEATURES AT A GLANCE

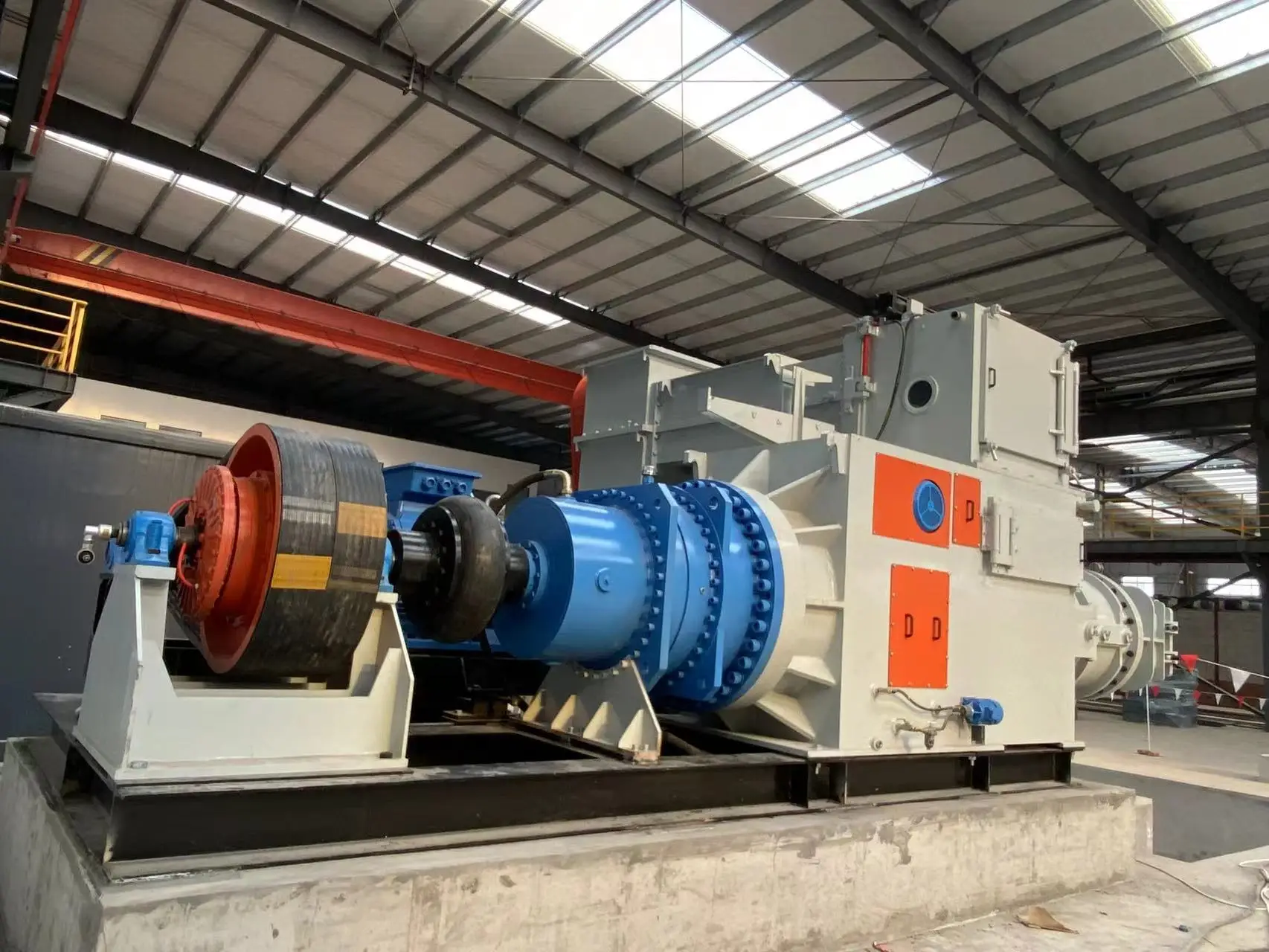

This serious of extruder adopts the European-level planet reducer to make sure stable and longer work performance.
Custom design
This serious of extruder screw is custom designed according to client's real production condition, so the production performance and easy maintenance is guaranteed.
With latest material treatment technology, main screw and die are able to work over 10,000,000 ~ 20,000,000 bricks(China standard brick) and no additional maintenance is needed.
PRODUCT SPECIFICATIONS
Descriptions | Remark | |
Model No. | KLJ56/50-S | |
Output | 50-60 ton/h | |
Voltage | 380 v | |
Frenquency | 50 hz | |
Vacuum degree | 92% | |
Extrusion pressure | 3.0 mpa | |
Bottom screw dismeter | 560/500 mm | |
Main bearing brand | NSK | |
Total power | 160+90+11 kw | |
Total weight | 20,000 kg | with motor and reducer |
Dimensions | 7000*5500*2600 mm | installation |

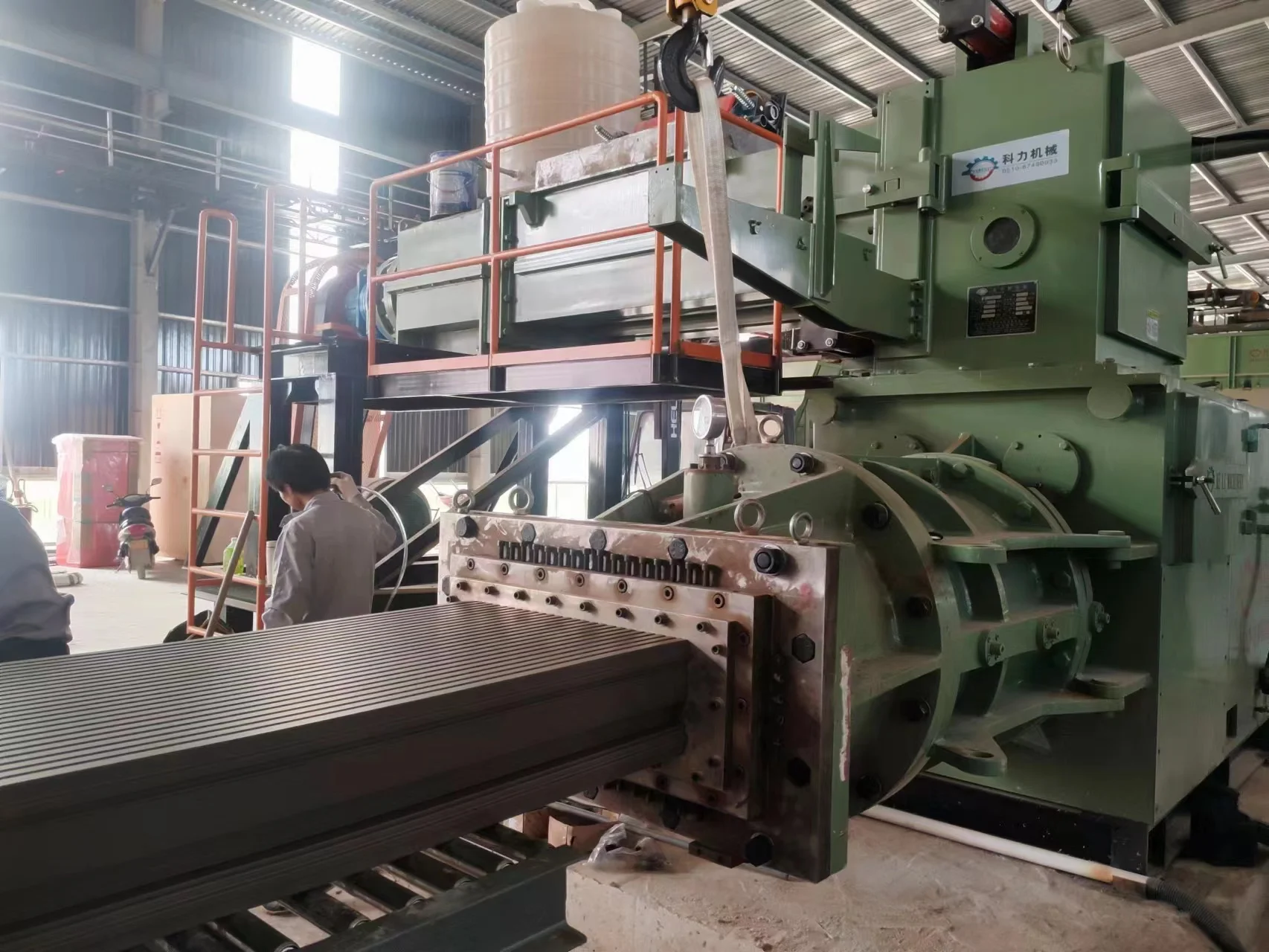

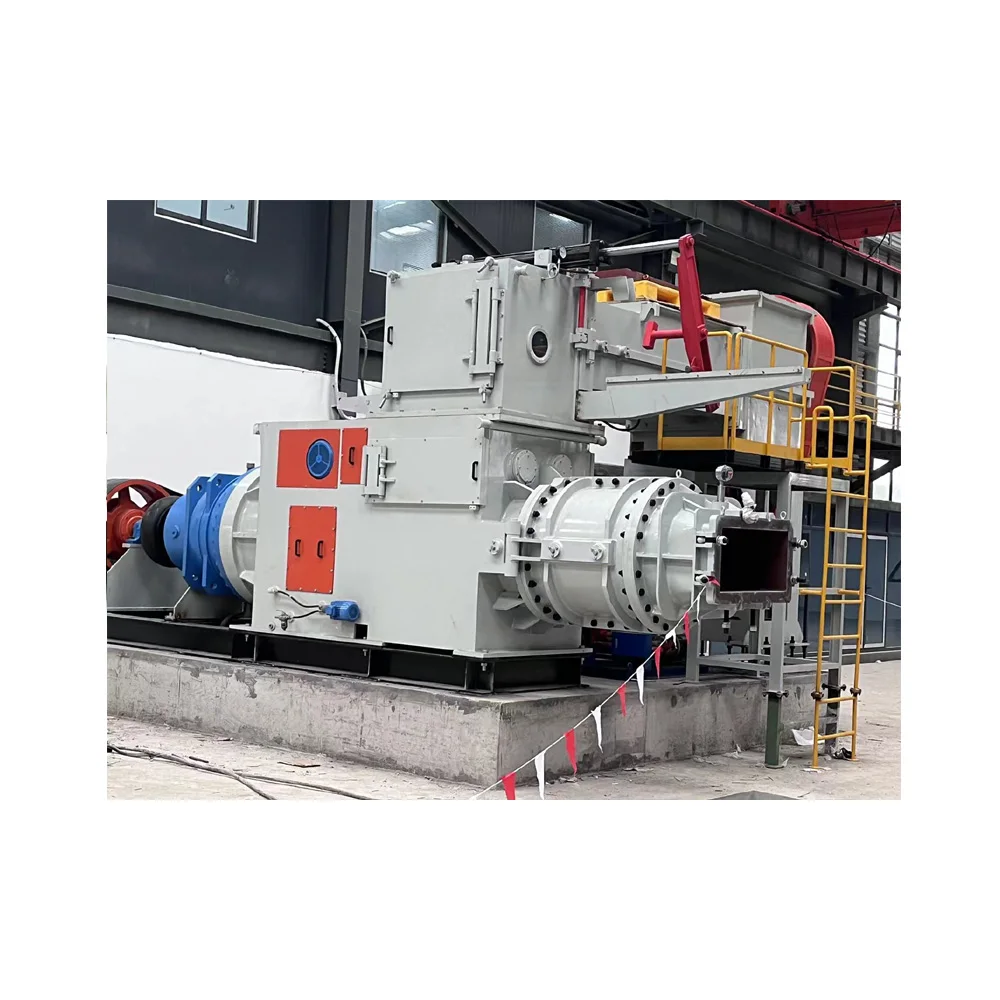

Successful Project
Company Profile
Nanjing Brickmac Engineering Co., Ltd.
is professional turn-key brick project provider and brick making machinery supplier in Nanjing, Jiangsu Province, China. We provide:
a) Turn-key design and technical consultation of bricks/tiles production line;
b) Manufacturing and set up of brick/tile machinery, dryer and kiln.
We export machinery to over 15 countries including Vietnam, India, Nepal, Uzbekistan, Malaysia, South Africa, etc. Our product range incuding Box feeder, Crusher, Mixer, Vacuum Extruder, Brick Cutter, Bricks Loading & Unloading system, Robotic Setting Machine, Tunnel Dryer, Chamber Dryer, Tunnel Kiln, Assembly tunnel kiln, Kiln Gas Burner, Bricks Packing System, etc.
We export machinery to over 15 countries including Vietnam, India, Nepal, Uzbekistan, Malaysia, South Africa, etc. Our product range incuding Box feeder, Crusher, Mixer, Vacuum Extruder, Brick Cutter, Bricks Loading & Unloading system, Robotic Setting Machine, Tunnel Dryer, Chamber Dryer, Tunnel Kiln, Assembly tunnel kiln, Kiln Gas Burner, Bricks Packing System, etc.
