Сапфировое


Поделиться:


Цена:0,50 $ - 10,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 0.84 $* 0.91 $*
Aug-17-2025 0.9 $* 0.97 $*
Jul-17-2025 0.84 $* 0.42 $*
Jun-17-2025 0.49 $* 0.57 $*
May-17-2025 0.24 $* 0.13 $*
Apr-17-2025 0.29 $* 0.84 $*
Mar-17-2025 0.98 $* 0.0 $*
Feb-17-2025 0.48 $* 0.75 $*
Jan-17-2025 0.10 $* 0.48 $*

Характеристики


\t\t\t\t\t\t\t\t\tTechnical indicators \t\t\t\t\t\t\t
product details

Product introduction:

1.good hardness
2.laser grade
3.high purity.99.996%
Note for sapphire window:
(1). Custom-made sapphire windows at any size from Φ1.0mm to Φ300mm clear aperture are available.

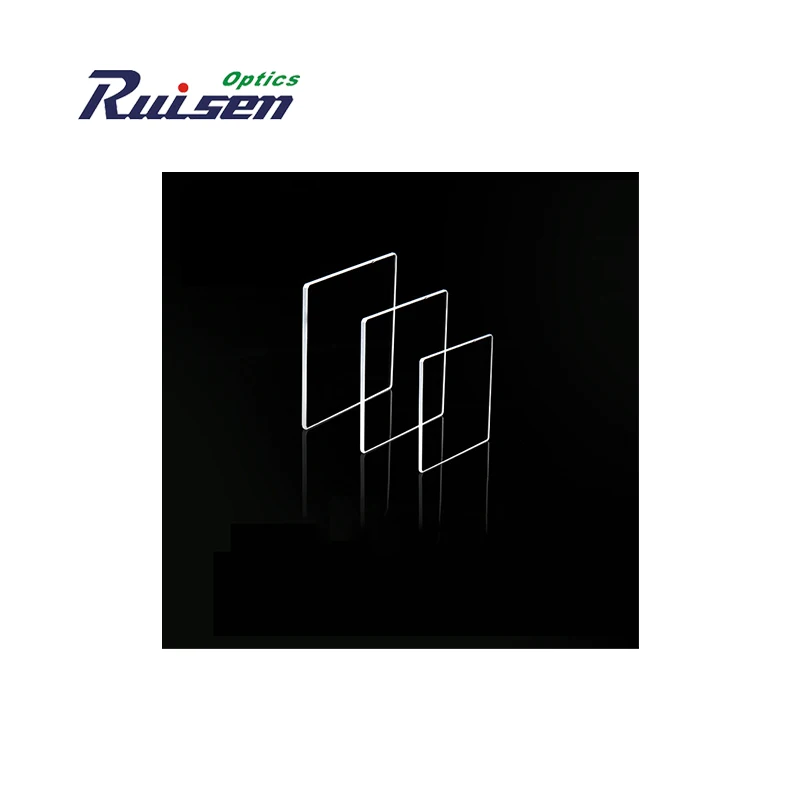

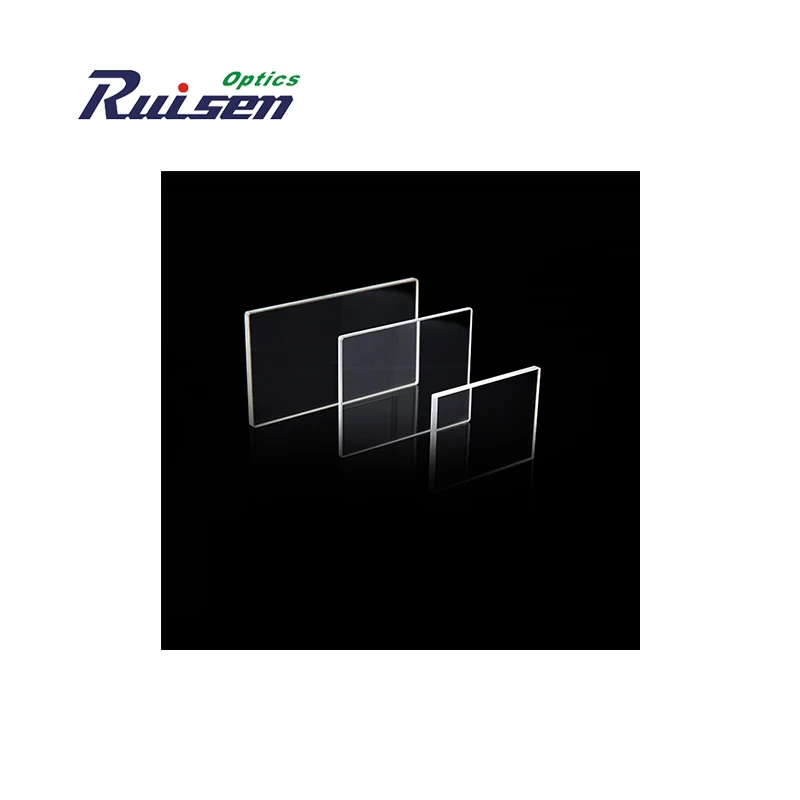

Besides round, sapphire windows at shape of rectangular, wedge, step windows or other shapes are available.
(2). Thickness from 1.0mm to 75.0 mm is available upon request.
(3). 100% clear aperture is available upon request.
(4). Sharp edge is available upon request.
(5). Sapphire windows with Anti-Reflective(AR), High-Reflective(HR), Partial-Reflective(PR) coating are available.

\t
Attribute
\t
Specification
\t
Typical Diameter (Φmm)
\t
8.0, 10.0, 12.7, 15.0, 20.0, 25.4, 30.0
\t
Typical Thickness (mm)
\t
0.5, 1.0, 2.0
\t
Diameter Tolerance (mm)
\t
+0.0/-0.2 (General), +0.0/-0.1 (High Precision)
\t
Thickness Tolerance (mm)
\t
±0.2 (General), ±0.05 (High Precision)
\t
Clear Aperture
\t
>75% (Small Size), >90% (Large Size)
\t
Parallelism
\t
3 min. (General), 10 sec. (High Precision)
\t
Surface Quality
\t
80/50 (General), 40/20 (High Precision)
\t
Flatness (per 25mm@633nm)
\t
λ(General), λ/4 (High Precision)
\t
Bevel (face width x 450 0)
\t
<0.25mm
\t
Coating
\t
Uncoated, AR, HR, PR, Coating, etc.

Application:

√ Microscopic instruments
√ Optical metrological instrumentsLaser protective windows
√ Optical instruments of surveying and mapping
√ Machine vision devices
√ Optical detection instruments
√ The popular science optical
√ A digital opticalOptical test instruments
√ Fiber optic instruments
√ Laser Instruments
√ Electro-optic displays
√ Medical opticalInfrared thermography
√ Observation instrument measuring instrument andphotography

About Ruisen
Packaging
\t\t\t\t\t\t\t\t\tProduction line \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t

Q:What's the way of shipping and cost?
1,We accept DHL, Fedex,TNT, UPS,EMS,SF and etc.
2,If you have your own express number, it's great.
3,Freight=USD35(the first weight )+USD12/kg

Q:How to pay?
You can choose T/T,Paypal and Assurance payment on Alibaba and etc.

Q:What's the deliver time?
1,For inventory: the delivery time is 3 days.
2,For customized products: the delivery time is 5-25 workdays.According to the quantity.
