Быстрая универсальная интеллектуальная печатная плата PCB от производителя Электронная сборка печатной платы для
- Категория: PCB & PCBA >>>
- Поставщик: Shenzhen,PCBAonline,DT,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2.15 $* | 2.6 $* |
| Aug-16-2025 | 2.72 $* | 2.3 $* |
| Jul-16-2025 | 2.88 $* | 2.20 $* |
| Jun-16-2025 | 2.9 $* | 2.8 $* |
| May-16-2025 | 2.74 $* | 2.29 $* |
| Apr-16-2025 | 2.73 $* | 2.54 $* |
| Mar-16-2025 | 2.62 $* | 2.48 $* |
| Feb-16-2025 | 2.27 $* | 2.82 $* |
| Jan-16-2025 | 2.88 $* | 2.84 $* |
Характеристики
Products Description
Item （PCB Assembly） | One-Stop OEM Service |
Max Board Size | 680*550mm Smallest:0.25"*0.25" |
Min Components size | 0201-54 sq.mm (0.084 sq.inch),Long Connector,CSP,BGA,QFP |
Speed | 0.15sec/chip, 0.7sec/QFP |
Wave-Solder | Max.PCB Width:450mm |
Min.PCB Width:unlimited | |
Components Height:Top 120mm/Bot 15mm | |
Sweat-Solder | Metal Types:Part,Whole,Inlay,Side-step |
Metal Material:Copper,Aluminum | |
Surface Finish:Plating Au,Plating Silver,Plating Sn | |
Air Bladder Rate:less than 20% | |
Assembly Types | SMT and Thru-hole |
Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free |
File Formats | Bill of Materials ,Gerber Files,Pick-N-Place Files(XYRS) |
Type of Service | Turn-Key,Partial Turn-Kye or Consignment |
Component Packaging | Cut Tape,Tube Reels Loose,Parts |
Turn Time | 1-15 Days |
Testing | XRAY Inspection,AOI Testing ICT,Flying Probe,Burn-in,Function Test |
Layers: 1 & 2 & 4 Qty: 10 pcs Material: Rigid FR-4 Size: Within 100*100 mm Assembly Parts: Within 20 pcs | |
What is needed for PCBA quotation? | 1.Gerber file & Bom list. 2.Clear pics of pcba or pcba sample for us. 3.Test method for PCBA. |
Company Profile
Shenzhen PCBAonline Technology Co., Ltd.(YYFab) is a PCBA factory of Allchips. Characterized by self-developed BOM tool, Allchips has been devoted to building the leading intelligent electronics supply and smart production platform in order to achieve the digitized and intelligentized transformation of important processes in the electronic industrial chain from hardware design, electronic component delivery to PCB Assembly.
YYFab mainly provides PCBA projects management, BOM procurement, online PCB and SMT quote services for small and medium sized electronics terminal enterprises. YYFab aims at offering one-stop PCBA turnkey customized service from prototying to mass production in order to improve the production efficiency and shorten production lead time.
YYFab is one of important section of Allchips to create a digitized production centre and is also the standardized factory that Allchips has been dedicated to building. Through the standardized factory of YYFab, Allchips aims to transform the digitization of cooperated factories, which makes the production process digitized and transparent and builds the intelligent order matching system. In such ways, the PCB assembly costs can be reduced and lead time can be shortened greatly. Meanwhile, it empowers the electronics terminal enterprises to reduce production cost and increase efficiency.

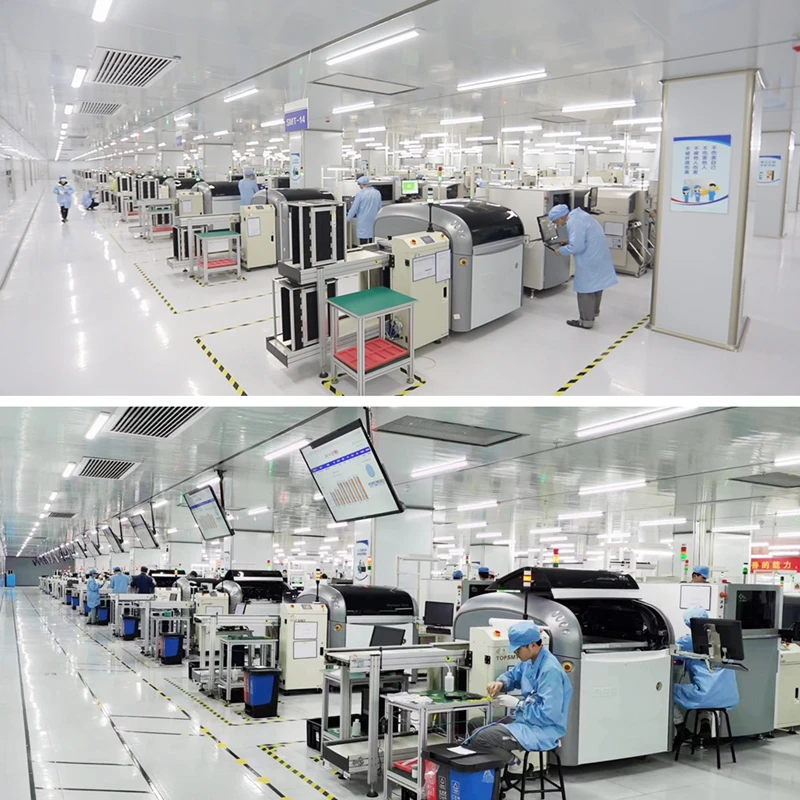

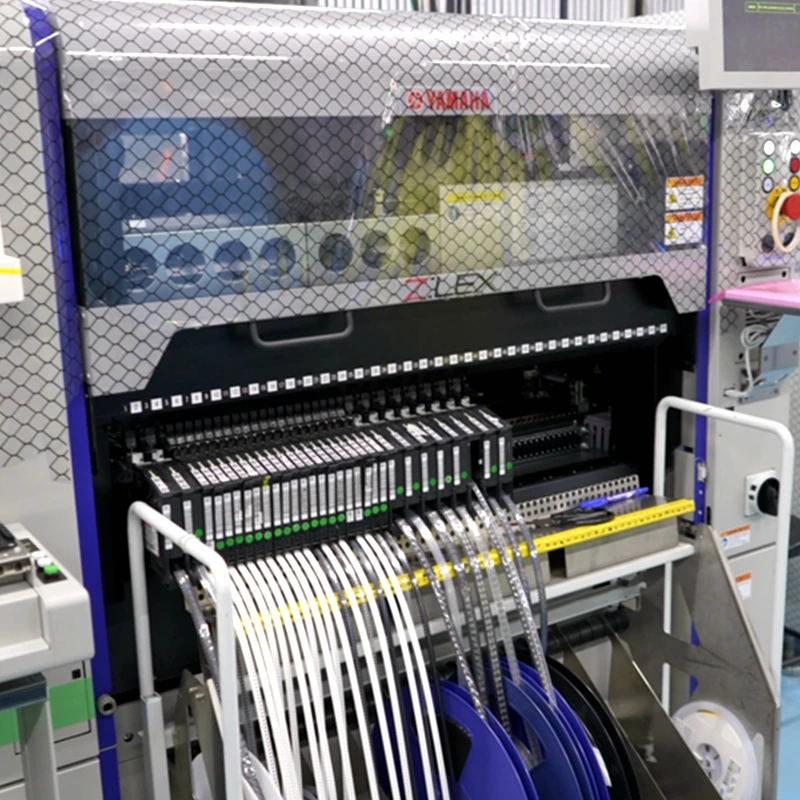

YYFab is equipped with a 2000 square meter dust-free production workshop, Yamaha automatic SMT machine, 3D-SPI (solder paste inspection) machine, AOI, X-ray, BGA reworks station, and other equipment. With the advantages of advanced manufacturing equipment, intelligent MES management system, and engineering & technical support, YYFab offers high-quality and high-demand one-stop PCBA intelligent manufacturing services including the prototype, trial production, and mass production. YYFab aims to become your powerful online smart factory to improve your production efficiency and reduce product lead time.
Why Choose Us
Contact US
Packaging & Shipping
FAQ
Q1. What is needed for quotation?
1.Gerber file & Bom list.
1.Gerber file & Bom list.
2.Clear pics of pcba or pcba sample for us.
3.Test method for PCBA.
Q2. What file formats do you accept for production?
Gerber file：CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel(PDF, WORD, TXT)
Q3. Are my files safe?
Your files are held in complete safety and security. We protect the intellectual property for our customers are never shared with any third parties.
Q4. MOQ?
There is no MOQ in PCBAonline. We are able to handle small as well as large volume production with flexibility.
Q5. Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the freight.
Q6. How can you ensure the quality of the PCBs?
Our PCBs are 100% test including Flying Probe Test, E-test and AOI.
Q7. Can we visit your company?
No problem.You are welcome to visit us in Shenzhen.
3.Test method for PCBA.
Q2. What file formats do you accept for production?
Gerber file：CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel(PDF, WORD, TXT)
Q3. Are my files safe?
Your files are held in complete safety and security. We protect the intellectual property for our customers are never shared with any third parties.
Q4. MOQ?
There is no MOQ in PCBAonline. We are able to handle small as well as large volume production with flexibility.
Q5. Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the freight.
Q6. How can you ensure the quality of the PCBs?
Our PCBs are 100% test including Flying Probe Test, E-test and AOI.
Q7. Can we visit your company?
No problem.You are welcome to visit us in Shenzhen.
