Product Description
130kw air cooled chiller for hotel office shopping mall use air conditioner
Features:
1. Heating+refrigeration two-in-one
The unit can achieve summer refrigeration, winter heating, replace traditional heating and refrigeration equipment

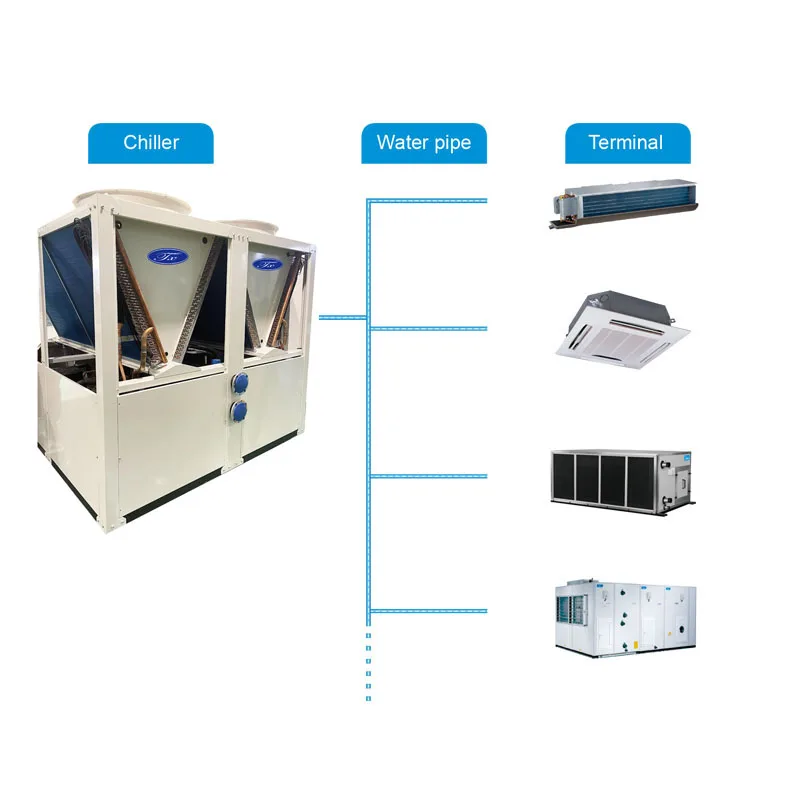

Water system design, warm and comfortable cooling
Water system design, warm and comfortable cooling
2.Module design
Multi -system module design, even single system failure, it does not affect system operation.
3. Compact body, flexible installation
The installation location can be concentrated, scattered, more agile and convenient.
4.Intelligent stability
Equipped with US Emerson variable frequency drive and the pressure sensor The whole machine control is more stable, efficient, and
energy saving.
energy saving.
5. Smart control
Cloud Online: The entire system is equipped with cloud+remote intelligent control system, and the operation unit is implement detection in 24 hours
Cloud Interactive: Transfer system data once a minute, which can be remotely controlled and adjusted the unit's core parameters
Cloud Interactive: Transfer system data once a minute, which can be remotely controlled and adjusted the unit's core parameters

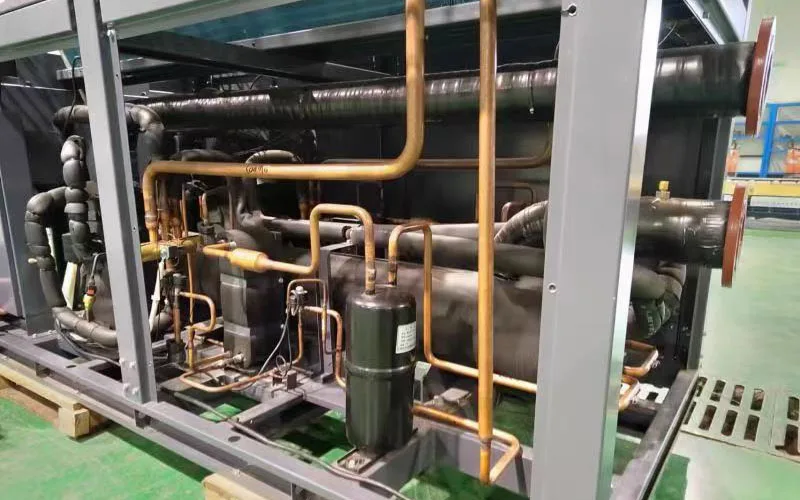

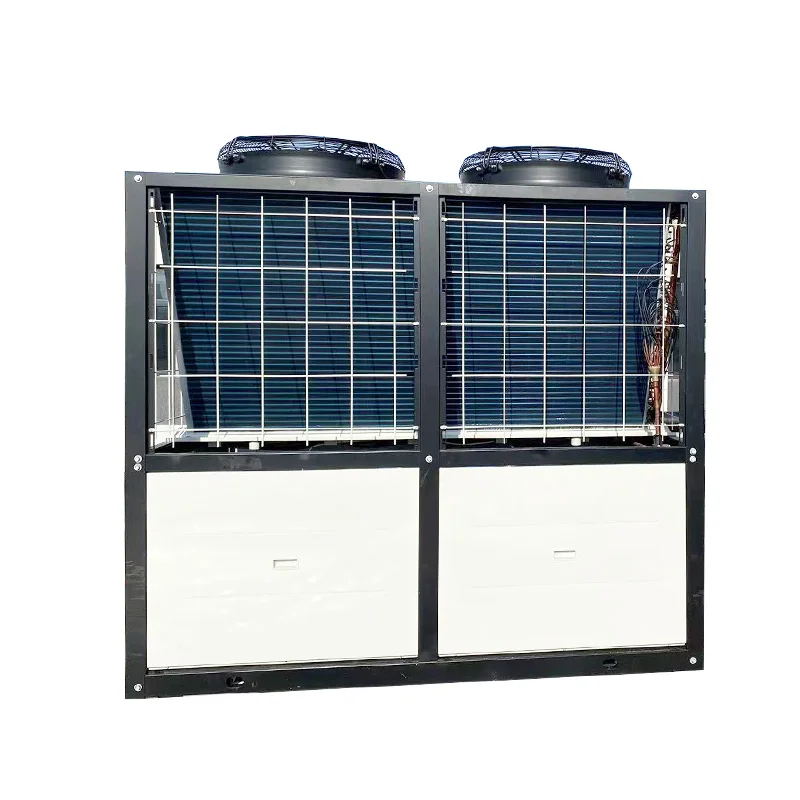

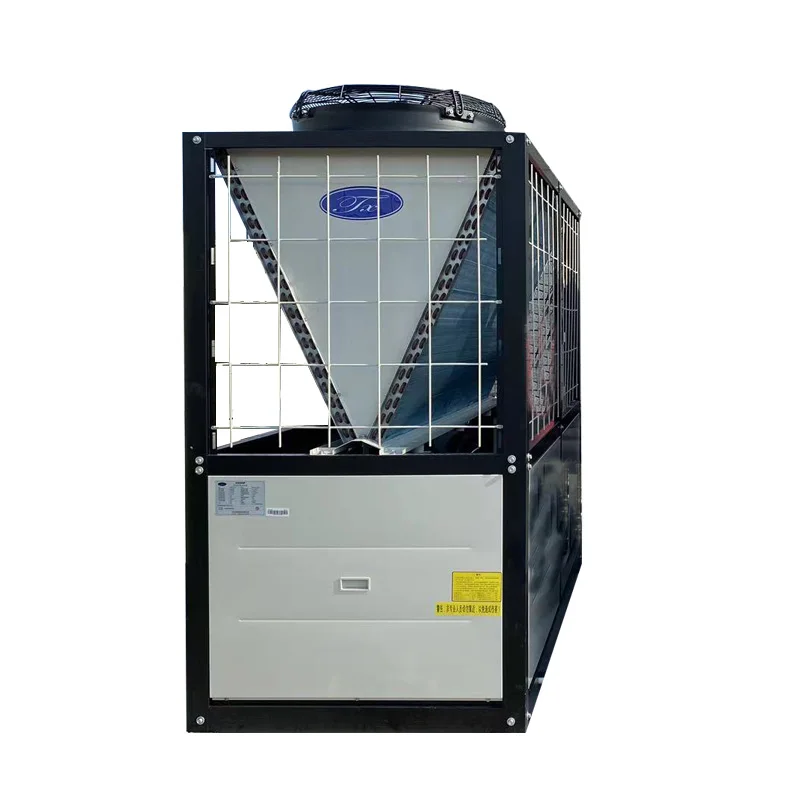

Detailed real pictures
Specification
Model Type | LRDW130TXZZ | LRDW065TXZZ | LRDW050TXZZ | ||
Low temperature cooling & heating | |||||
Refrigerant | R410A | ||||
Power supply | 380-410V/3N/50/60Hz | ||||

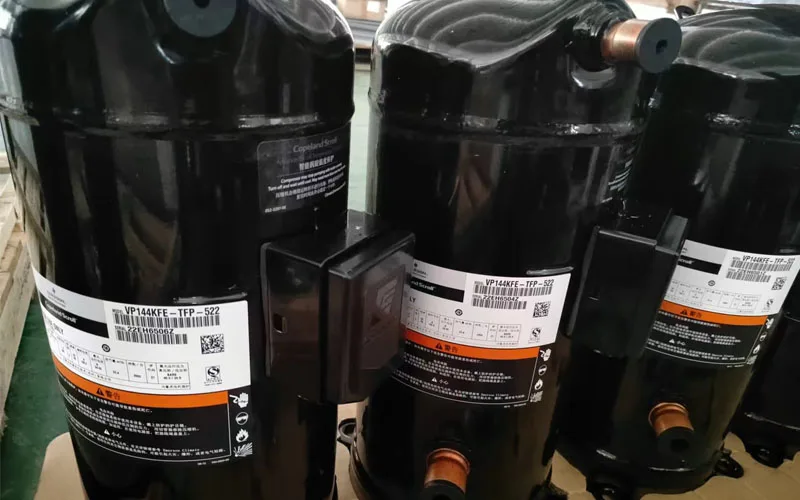

Compressor | scroll type | rotor type | |||
Compressor qty | 2 | 4 | |||
Fin | V shaped efficient heat exchanger | ||||
Water side heat exchanger | efficient shell-tube heat exchanger | ||||
Restrictor | Electronic expansion valve | ||||
-12℃ heating capacity(KW) | 100 | 50 | 40 | ||
-12℃ Cop | 2.5 | ||||
-12℃ heating power imput（KW) | 40 | 20 | 16 | ||
7℃ heating capacity(kW) | 150 | 75 | 60 | ||
7℃ heating COP | 3.55 | ||||
7℃ heating power input (kW) | 42.2 | 21.1 | 16.9 | ||
35℃ cooling capacity(kw) | 130 | 65 | 50 | ||
35℃ cooling COP | 3.25 | ||||
35℃ cooling power input(kW) | 40 | 20 | 15.4 | ||
Max frequency( A) | 110 | 55 | 42 | ||
water flow volume (m³/h ) | 22 | 11 | 10 | ||
connection pipe | DN65 | ||||
water side heat exchanger bearing pressure(MPa) | 1Mpa | ||||
water side pressure drop（Kpa） | 30 | ||||
Operation sound level dB(A) | 74 | 70 | 68 | ||
Net weight(Kg) | 1300 | 760 | 660 | ||
Main products
Our main products
❤VRF system
❤Light commercial one drive on system: duct type, cassette type, floor ceiling type, floor standing type
❤Solar air conditioner(Off-grid/on grid)
❤Home use mini split air conditioner
❤Air-cooled chillers
❤Air source heat pump
The advantages of choosing our supplier
Professional Experience Warmly service Authorized One step supply Turnkey servic Certification
Professional
● Engineer and designer team
● Air conditioning system sale engineer
● Professional supply chain
● Project evaluation and management
● Air conditioning system sale engineer
● Professional supply chain
● Project evaluation and management
Experience
● 17+ years of central air conditioning
● 400+ projects all over the world
● 100 million USD total project cost
● 5 million sqm
● 400+ projects all over the world
● 100 million USD total project cost
● 5 million sqm
Warmly Service
● Customer-oriented
● 24 hours on line
● 365 days, all year around
● 1 to 1 service
● 24 hours on line
● 365 days, all year around
● 1 to 1 service
The price instruction
When you buy the VRF system locally, there are many stages can add profit and increase the final price
When you buy from us, there is no middle man, and only the extra freight cost.
When you buy from us, there is no middle man, and only the extra freight cost.
Install Kits
Project Design
FAQ
Company Profile
A leader in energy saving service industry, Tongxing Company was founded in 2000 and located in Zhengzhou, China. Tongxing is engeged in the fields of air conditioning product R&D, manufacture, sales, service and provide one-stop energy system solution to customs
