Кабель питания промышленной камеры Basler, PoCL, SDR/MDR, P, 10 м, 3 м, 5 м
US $100.00-$340.00
Заводская RF Коаксиальная RG316 RG174 Соединительная Кабельная сборка SMA Женский Соединительный разъем Fakra SMB женские
- Категория: Other Wires, Cables & Cable Assemblies >>>
- Поставщик: Four,Star,Communication,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.52 $* | 1.22 $* |
| Jul-16-2025 | 1.0 $* | 1.25 $* |
| Jun-16-2025 | 1.43 $* | 1.10 $* |
| May-16-2025 | 1.28 $* | 1.6 $* |
| Apr-16-2025 | 1.58 $* | 1.20 $* |
| Mar-16-2025 | 1.84 $* | 1.22 $* |
| Feb-16-2025 | 1.22 $* | 1.85 $* |
| Jan-16-2025 | 1.38 $* | 1.33 $* |
Характеристики
Product Description

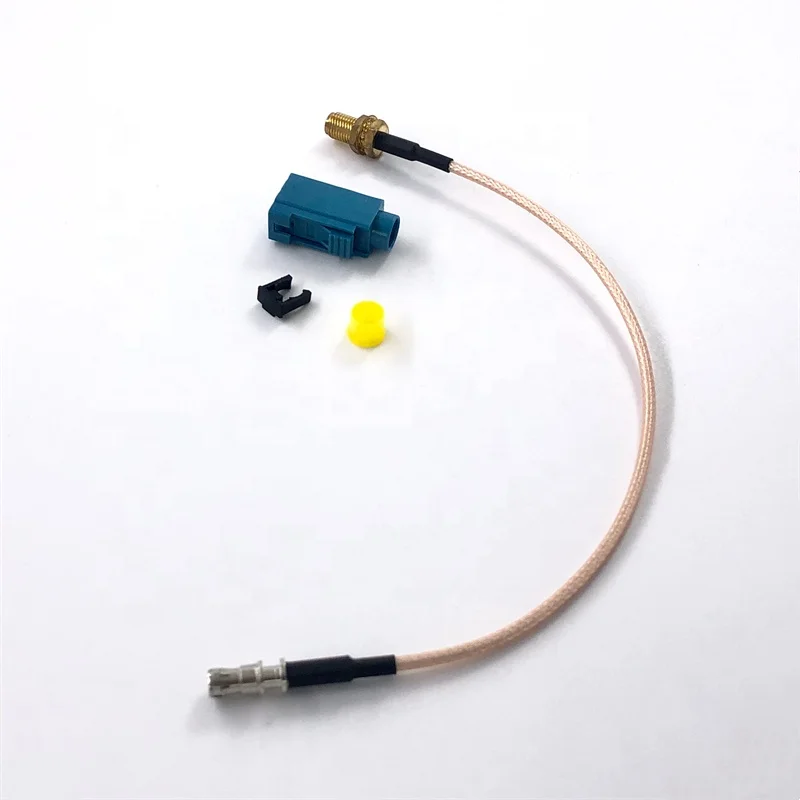

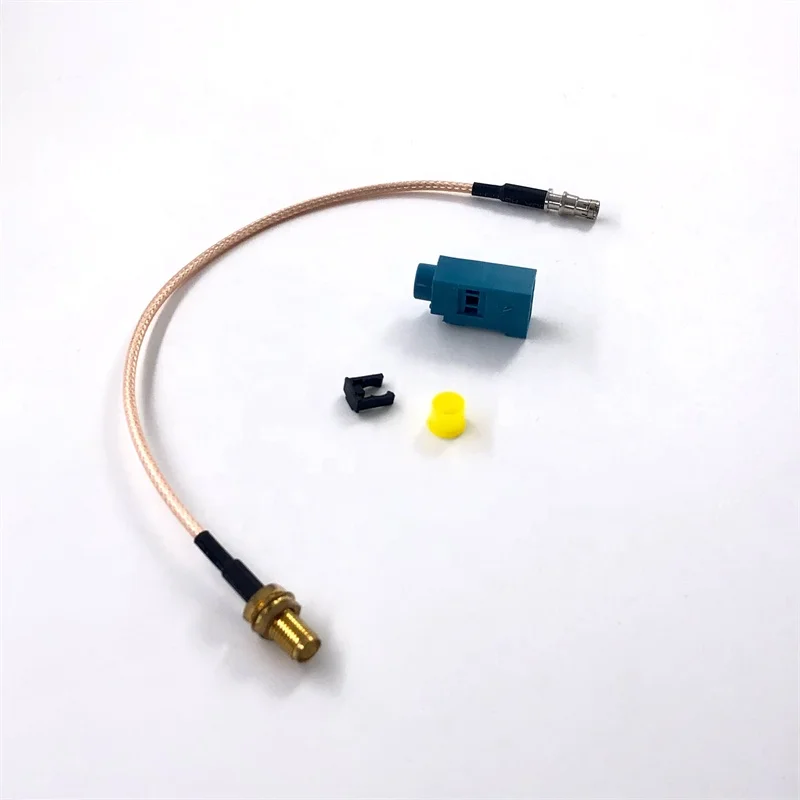

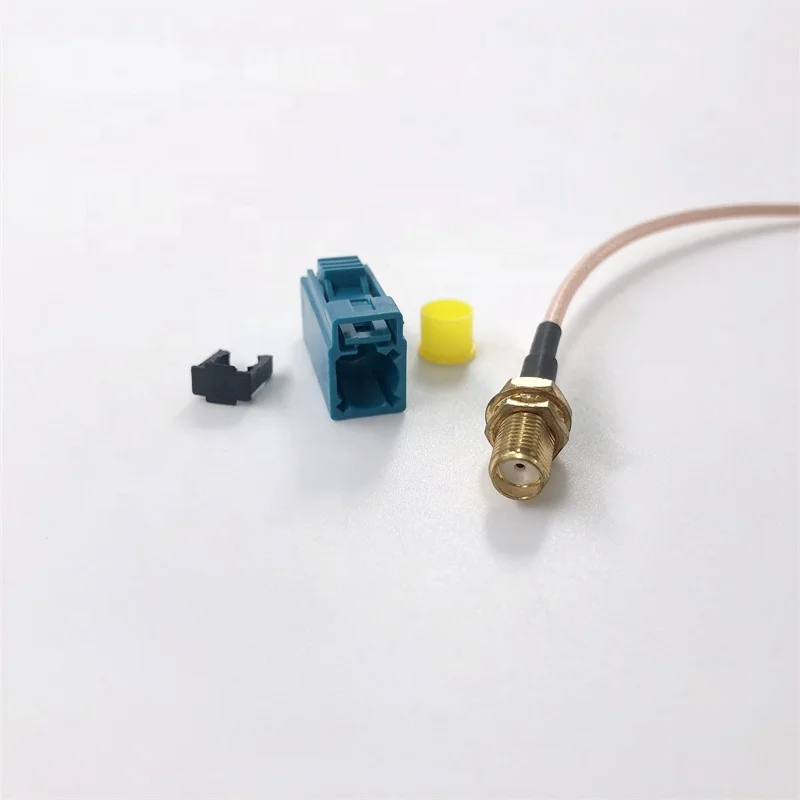

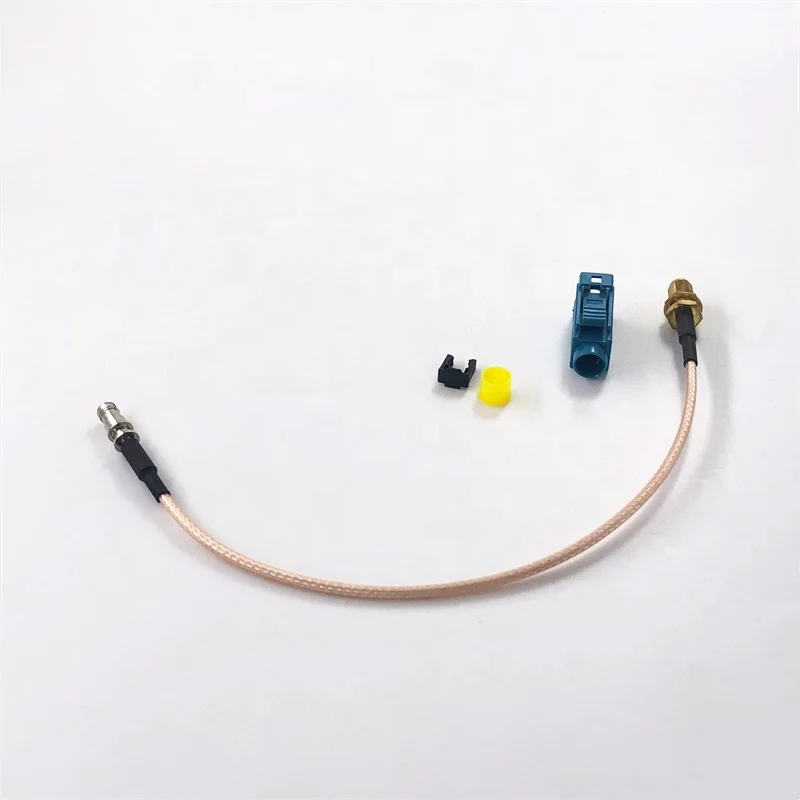

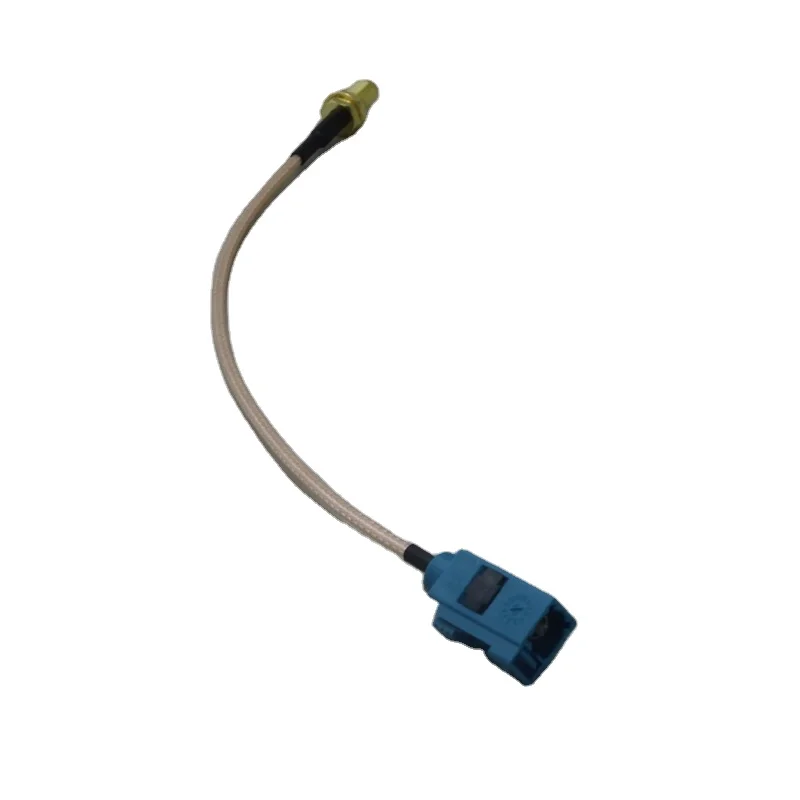

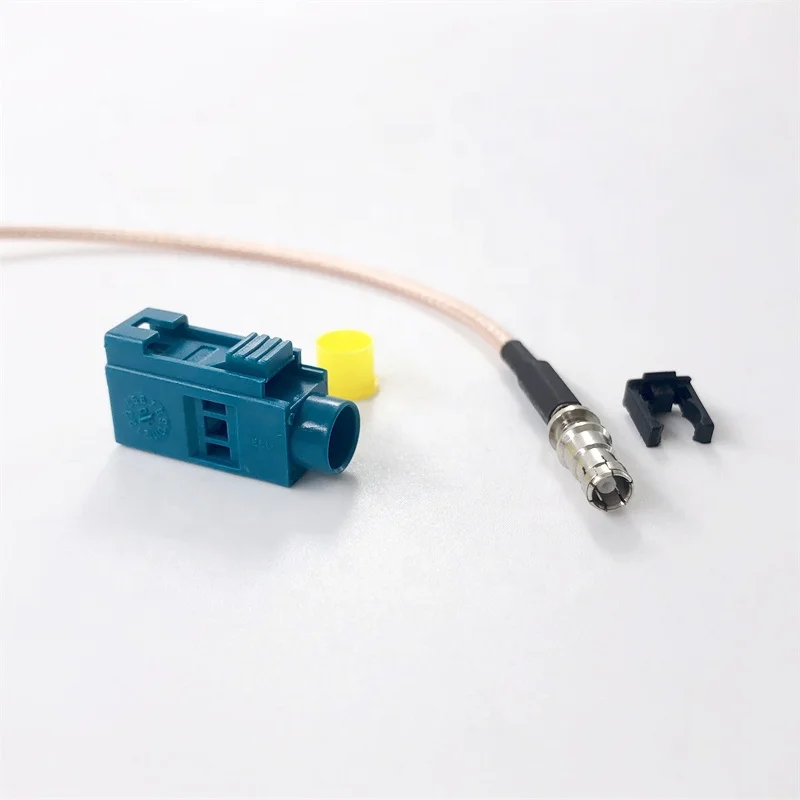

RF Coaxial RG316 RG174 Jumper Cable Assembly with SMA Female Bulkhead to Fakra SMB Female Connectors
Our company produces the cable packages are for the cable of line connection for the GSM. PCN and everya communication system between the cabinet of machine and the cabinet of machine, between the antenna and the trunk cable, between the trunk cable and the cabinet of machine.Model of cable package, the variety is various. User may be according to the nccd. Choice not of the came kind pattern connector of different model and different the cable of length and model buy the cable package, may reduce the user himself load the cost to receive cable, guaranteed the usage mass.
Specification
Model No. | SMA/SMB-KYK-174-210 | |||
Interface | IEC 60169-15 | |||
Electrical | ||||
Characteristic Impedance | 50ohm | |||
Frequency Range | DC-4GHz | |||
Dielectric Withstanding Voltage | ≥1000V RMS,50Hz,at sea level | |||
Working Vlotage | ≤335V RMS,50Hz,at sea leve | |||
Dielectric Resistance | ≥5000MΩ | |||
Mechanical | ||||
Durability | Mating cycles ≥500 | |||
Material and Plating | ||||
Parts Name | Material | Plating | ||
Body | Brass | Au | ||
Insulator | PTFE | — | ||
Center conductor | Beryllium bronze | Au | ||
Coupling nut | Brass | Au | ||
Gasket | Silicone rubber | — | ||
Shrinkable tube | PVC | — | ||
Environmental | ||||
Temperature Range | -40℃~+85℃ | |||
RoHS | Compliant | |||
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t
Packing & Delivery
Our services
1.Reply your enquiry within 24 hours. | ||||||||
2.Payment model: T/T, L/C,Paypal and Western Union | ||||||||
3.Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT UPS...) | ||||||||
4.Lead(Delivery) time: Normally 14 days after getting order | ||||||||
5.Port of loading: Shanghai, Ningbo and Shenzhen. | ||||||||
6.Guarantee Period : Within 12 months after shipment. | ||||||||
7.Operating guide(Instruction)upon request. | ||||||||
8.Customized drawing ,sample and package can be done. | ||||||||
FAQ
Q:What about the quality of your products? | ||||||||
A: Our production process is in conformity with ISO 9001:2008. All products we supplied are strictly tested by our QC department before shipment. | ||||||||
Q:Can you offer samples to test before placing one formal order? | ||||||||
Samples for test purpose can be presented free provided that you bear the shipping cost. | ||||||||
Q:How long is usually your delivery time? | ||||||||
A: Our delivery time is usually within 14 days after we receive your order . | ||||||||
Q:What’s your Shipping Methods? | ||||||||
A: By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc. | ||||||||
Q: Can you send a sample for us to develop? | ||||||||
A: Yes, we can. The samples can be delivered within 7 business days. | ||||||||
Q: Can we have our logo or company name to be printed on your products or the package? | ||||||||
A: Yes, you can. Logo and company name can be printed on our products . You can send us the artwork by email in JPEG or TIFF format. | ||||||||
Q: Is the MOQ fixed? | ||||||||
A: The MOQ is flexible and we accept small order in the first time as trial order. | ||||||||
Company Profile
Information
Founded in 1994, Four Star Communication Parts Co., Ltd is located in No.88 S338 Road Zhenjiang City, Jiangsu Province China (230Km away from Shanghai).
Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF cable assembly, Microwave components.
Our products range:
RF coaxial connectors Series: F, SMA, SMB, SMC, BNC, TNC, N, 7/16 DIN, 1.0/2.3, 1.6/5.6, SMZ (BT43), QMA, FME, UHF, MCX, MMCX, EIA Flange, 4.3/10 etc.
RF coaxial Cable assembly (Jumper Cable)
Micro-wave Components: Dummy Load (Terminator), Attenuator, Surge Arrestor (Surge Protector), Power Splitter (Divider), Directional Coupler.
Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF cable assembly, Microwave components.
Our products range:
RF coaxial connectors Series: F, SMA, SMB, SMC, BNC, TNC, N, 7/16 DIN, 1.0/2.3, 1.6/5.6, SMZ (BT43), QMA, FME, UHF, MCX, MMCX, EIA Flange, 4.3/10 etc.
RF coaxial Cable assembly (Jumper Cable)
Micro-wave Components: Dummy Load (Terminator), Attenuator, Surge Arrestor (Surge Protector), Power Splitter (Divider), Directional Coupler.
Production process
Equipments & Instruments
Certificates
Adress
Zhenjiang City , Jiangsu Province, China
CALL US:
Tel: 0086-511-88896930
0086-511-88892318
Website: www.fscommunication.com
