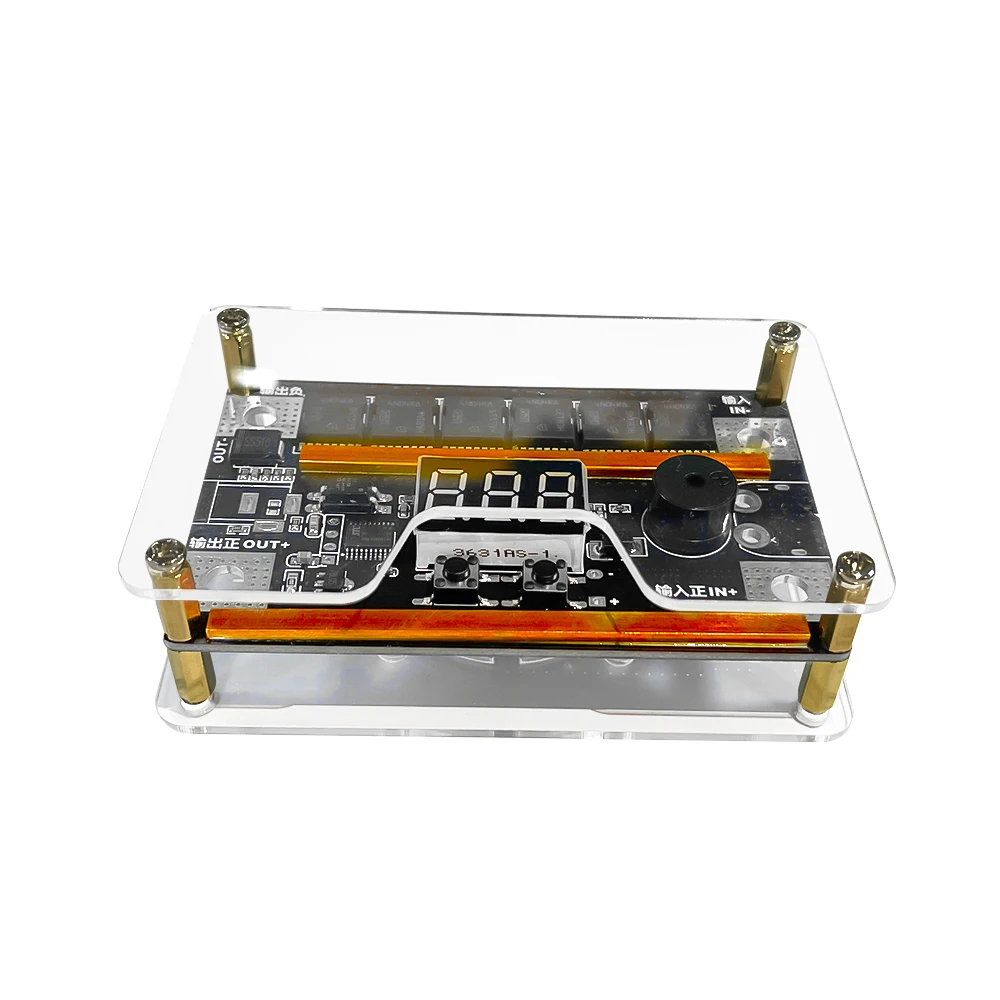

18650 литиевая батарея точечная сварочная машина diy полный набор

Description:

Intelligent numerical control spot welding machine, 99 gear accurate shift, high-speed single-chip intelligent program, real-time display of battery voltage, spot welding strength can be seen.

6 imported MOS tube made in Germany, peak current up to 1600A, more transparent welding, welding spot more beautiful

3-digit LED digital display, gear voltage alarm, at a glance, Both spot welding machine and voltmeter.

1600A high-current load capacity, support 100-200A high-current welding, spot welding thickness further improved

12-bit high-precision ADC, voltage measurement accuracy up to 0.01, voltage test range: 8-24V, connected to the power
supply automatically display voltage

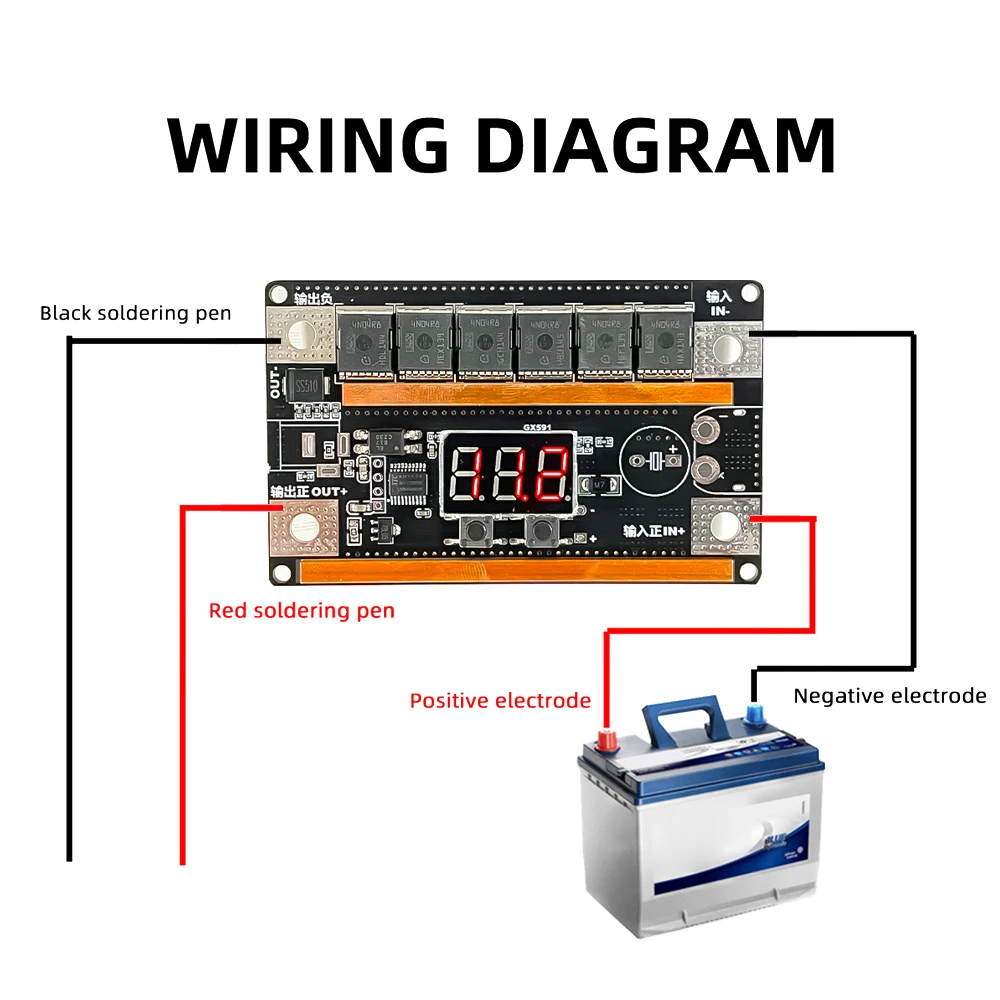

1 output negative: with black welding pen

2. Digital tube (3 bits) : used to display the voltage of the power supply or the current gear, gear and voltage alternating display, switch once per second

3. Buzzer: in spot welding, bonding, or abnormal alarm, will make a sound

4 power supply positive: power supply positive input, requirements: voltage: 10-16.8V, current: 100-200A

5. Foot switch interface: connect a switch to manually control the trigger of spot welding

6. Output positive electrode: connect red welding pen

7. Button 1: It has two functions: 1. Reduce the file size. In the main interface, press it to reduce the file size by 2. To enter or exit Settings: Hold down the main screen to enter the Settings menu, and hold down again to exit Settings

8. Button 2: has two functions: 1. Add file: In the main interface, press it to add 1 gear.

9. Negative voltage: the negative terminal of the power supply is connected.

10.XT60 interface: model airplane battery can be used as power supply. 3S4000MAH35C above the battery, that is, discharge requirements greater than 100A, the best 150A, but not recommended more than 200A in standby, digital tube will alternately display gear and power supply voltage, exchange once a second when the display is: d+ two digit for gear display such as: d99, meaning: 99 when the display: If the voltage is lower than 10V, the precision of 2 decimal places will be displayed. If the voltage is higher than 10V, the precision of 1 bit will be displayed.

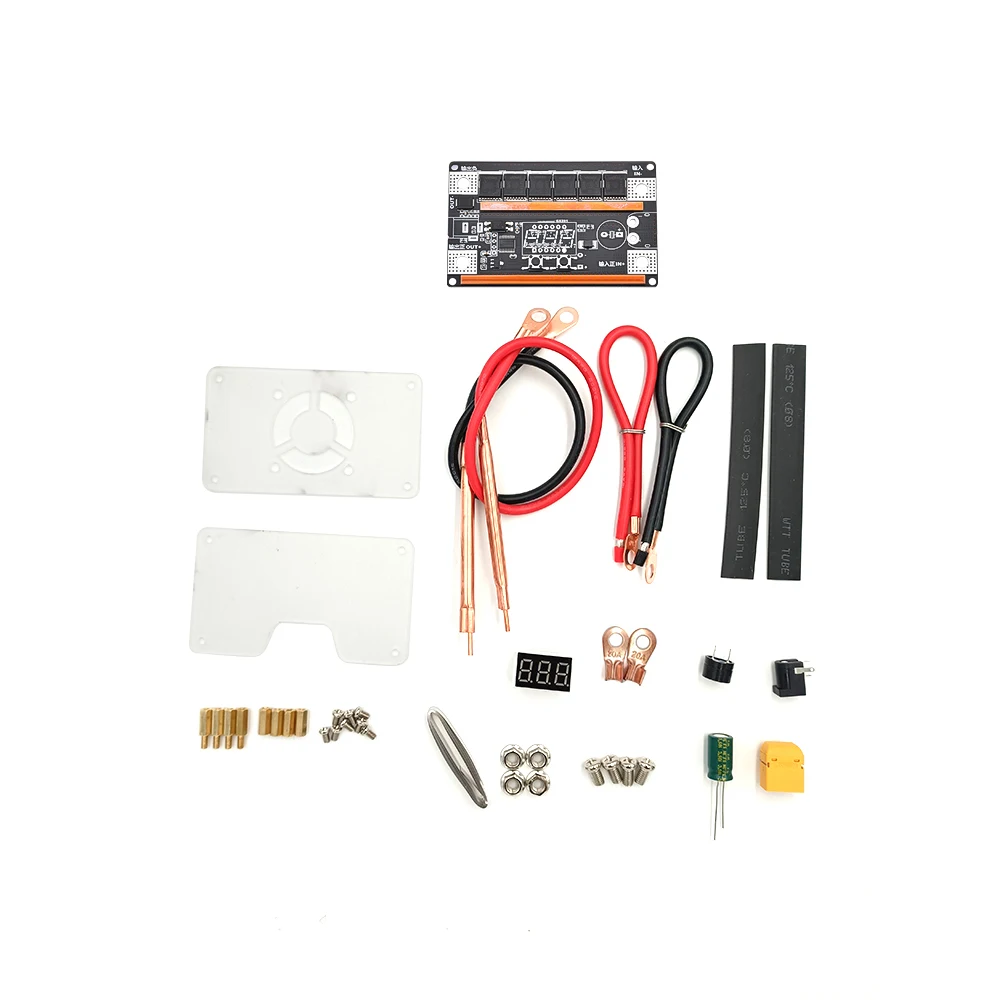

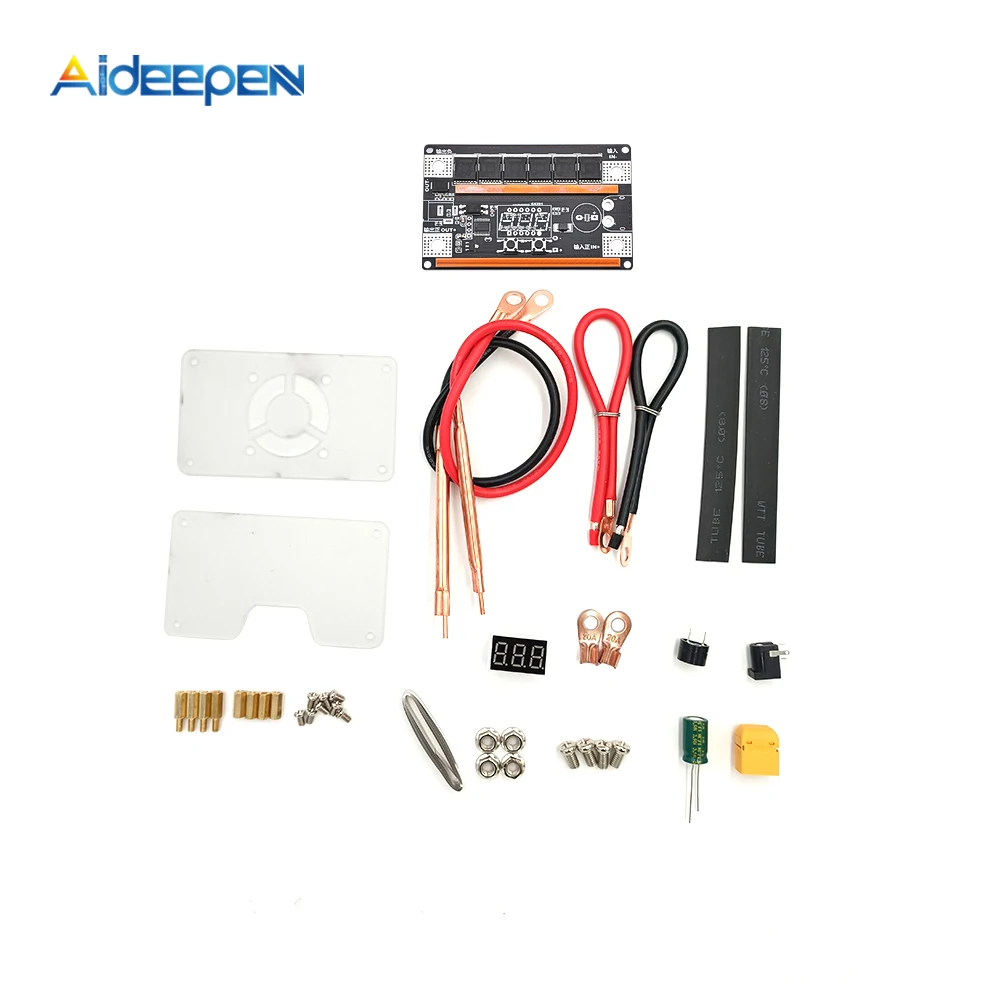

The full-function version is :

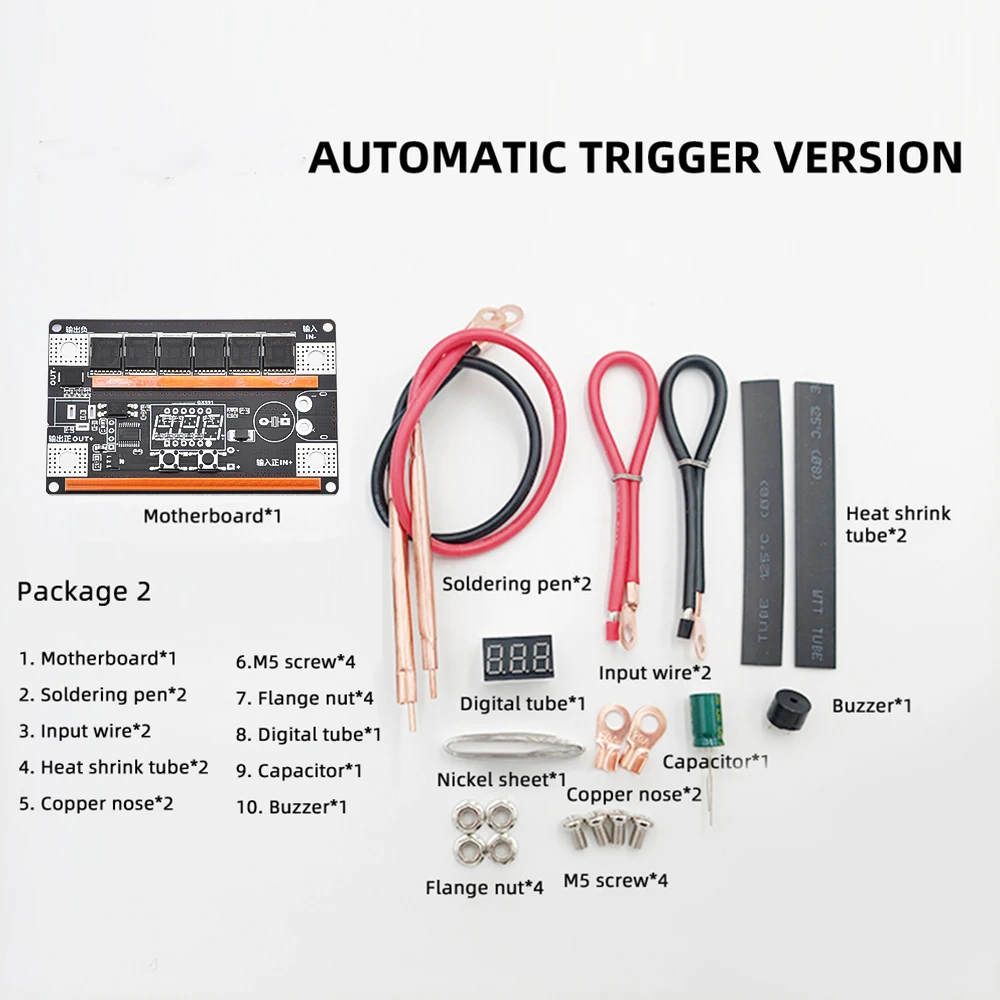

1 more than the automatic trigger version. There is a foot switch interface, can be connected with a button, click the point! Of course, you can also not connect the external switch, 2 pens on the nickel piece hold still.

2. With XT60 interface, model airplane battery can be used as power supply. It is very convenient to directly connect to the interface
