5 тонн Электрический литиевый аккумулятор свинцово-кислотный Колесный Погрузчик
- Категория: Earth-moving Machinery >>>
- Поставщик: SOCMA,INTERNATIONAL,TRADE,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 109337.45 $* | 114804.8 $* |
| Aug-16-2025 | 108418.55 $* | 113839.68 $* |
| Jul-16-2025 | 90961.85 $* | 95509.99 $* |
| Jun-16-2025 | 106581.68 $* | 111910.22 $* |
| May-16-2025 | 92799.32 $* | 97439.6 $* |
| Apr-16-2025 | 104743.77 $* | 109980.12 $* |
| Mar-16-2025 | 103824.54 $* | 109015.67 $* |
| Feb-16-2025 | 102906.78 $* | 108051.16 $* |
| Jan-16-2025 | 101987.99 $* | 107086.34 $* |
Характеристики
Product Overview

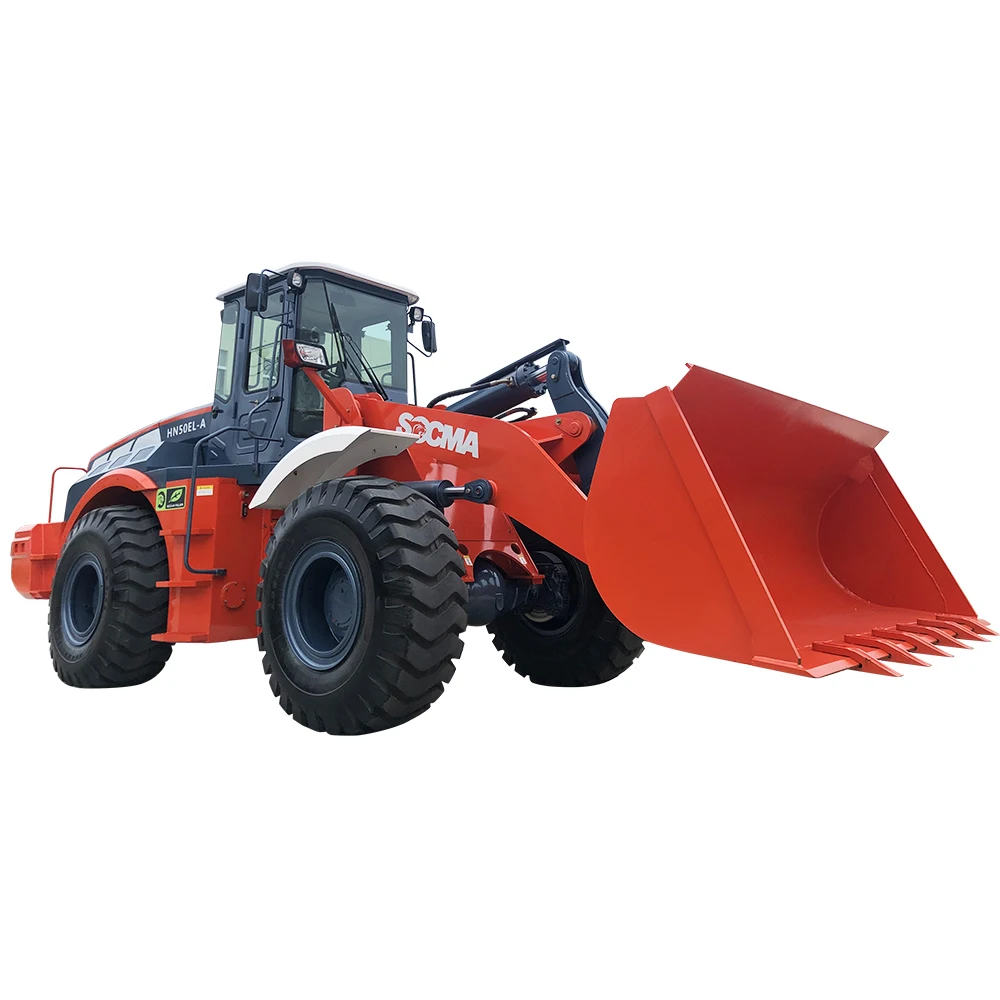

HNL-50EL 5Ton Lithium Battery Electric Wheel Loader
Battery type: lithium iron phosphate, dual-motor compound mode independent drive, motor type: permanent magnet synchronous motor/card issuing motor, positive flow system based on variable speed control, brake energy recovery
PRODUCT SPECIFICATIONS
Description | Unit | HNL50EL | ||||
Basic Technical Parameter | Bucket Capacity Range | m³ | 3 | |||
Rated Load | kg | 5000 | ||||
Operating Weight | kg | ≈18500 | ||||
Max.Tractive Force | KN | ≥150 | ||||
Breakout Force | KN | ≥160 | ||||
Overall Dimensions(L×W×H) | mm | 8700X3016X3380 | ||||
Dumping Height | mm | 3100 / 3400 | ||||
Dumping Distance | mm | 1100 / 1300 | ||||
Wheel base | mm | 3260 | ||||
Wheel Tread | mm | 2290 | ||||
Max.Tum ng Angle | ° | 35 | ||||
Max Gradeability | % | 53% | ||||
Forward I | Km/h | 12 | ||||
Forward ll | Km/h | 32 | ||||
Backward | Km/h | 24 | ||||
Battery Power System | Battery Type | Lithium iron phosphate | ||||
Ambient Temperature | ℃ | -35~+60 | ||||
Themal Management Model | Heating film heating, water cooling | |||||
Rated Energy Capacity | kwh | 282 | ||||
Rated Capacity | Ah | 228 | ||||
Charging Time | Fastcharging：2.0-2.5h / Slowcharging：8-10h(Based on charger) | |||||
Charging Method | Single gun independent charging/Dual guns charging together | |||||
Service Voltage Range | V | 618 | ||||
Sevice Life(25℃，100%SOC) | 4000Cycles， Capacity fade ＜30% | |||||
Dnive System： | Travel Motor | |||||
Motor Type | Permanent magnet synchroniza ion | |||||
Rated Power | kW | 120 | ||||
Rated Voltage | V | 380V | ||||
Transmission Type | Hydraulic shift | |||||
Transmission Gear | 2 Forward 1 Reverse | |||||
Main Drive | Sprial bevel gear one stage reduction | |||||
Hub Reductor type | Spur gear panet drive | |||||
Tire | 23.5-25-16PR | |||||
Braking System | Hydraulic caliper disc brake | Hydraulic caliper disc brake | ||||
Flexible shaft control drum brake | Hydraulic caliper disc brake | |||||
Steering Hydra uic System | Type | Full hydraulic on-load sensing steering system | ||||
output volume(Steering Pump) | ml/r | 80 | ||||
Service Pressure | Mpa | 15 | ||||
Steering Angle | ±35 | |||||
Sevice Hydrauic System | Hydraulic Pump Motor | |||||
Permanent magnet synchronization | Permanent magnet synchronization | |||||
Rated Power | kW | 90 | ||||
Rated Voltage | V | 380V | ||||
Output volume(Variable piston pump+Internal gear pump) | 100+80ml/r | |||||
Working pressure | Mpa | 18 | ||||
Total Time | Lift (load) | Dump | Lowing(unload) | Total | ||
6.0s | 1.5s | 4.5s | 12.0s | |||
Electrical System | Bettery Voltage (24) | V | 24 | |||
Battery Capacity | Ah | 60 | ||||
Lighting Voltage | V | 24 | ||||
Oil Capacity | Hydraulic Oil | L | 270 | |||
Transmission Oil | L | 49 | ||||
Dive/Steering Oil | L | 28 / 28 | ||||
