Кран для туалета и кухни TB6120, латунный, 1/2 градусов
US $1.52-$1.64
15 мм ход 12 В 24 Dc толкающая Электромагнитная
- Категория: Valves >>>
- Поставщик: Zhongshan,Landa,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 9.49 $* | 9.16 $* |
| Jul-17-2025 | 7.3 $* | 7.83 $* |
| Jun-17-2025 | 9.75 $* | 9.37 $* |
| May-17-2025 | 9.61 $* | 9.22 $* |
| Apr-17-2025 | 7.23 $* | 7.72 $* |
| Mar-17-2025 | 9.27 $* | 9.38 $* |
| Feb-17-2025 | 8.34 $* | 8.97 $* |
| Jan-17-2025 | 8.83 $* | 8.17 $* |
Характеристики

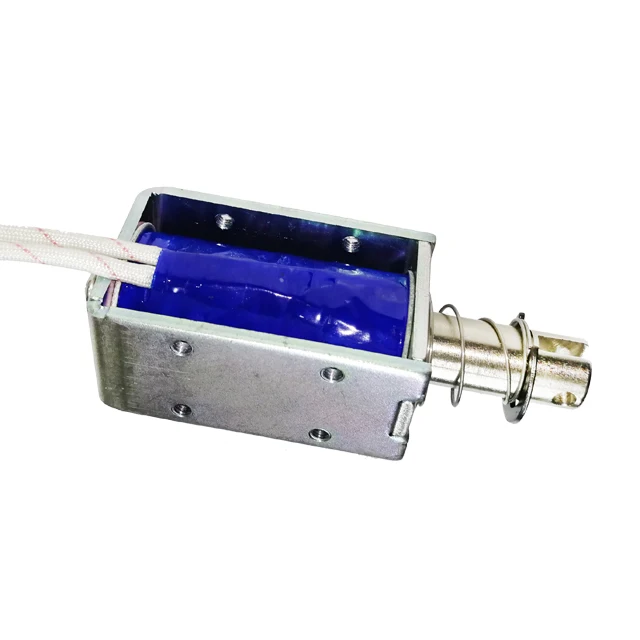

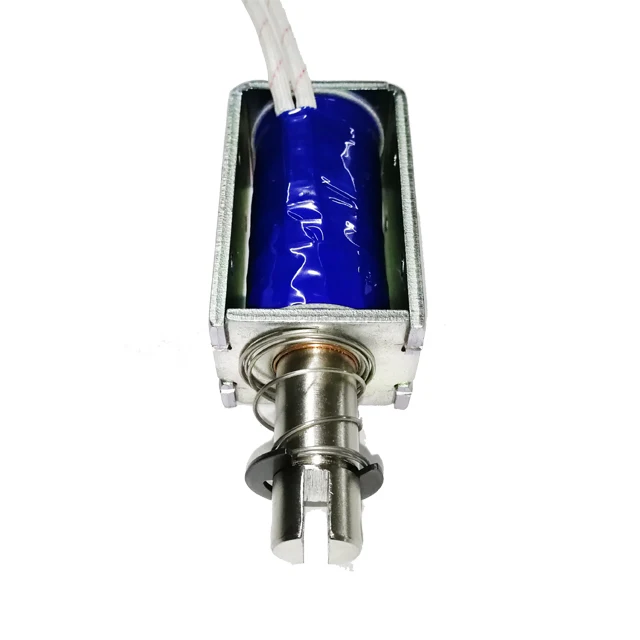

Products Description
Products Specifications | ||||||
Brand | Landa | Product Series | Open frame solenoid | |||
Model | SQ1564 | Voltage | 12v/24v dc | |||
Power | 9-90w | Force | 0-25N | |||
Stroke | 0-15mm | Duty Cycle | 10-100% | |||
Cable Length | 200mm or customization | Materials | steel & enamelled wire | |||
Action Form | Push pull type | Weight (N.W.) | 0.36kg | |||
Install style | Screw | Thread size & Deepth(mm) | 8-M4 | |||
Hi-Pot Test | AC 600V 50/60Hz 2s | Insulation Class | B | |||
Packaging details | ||||||

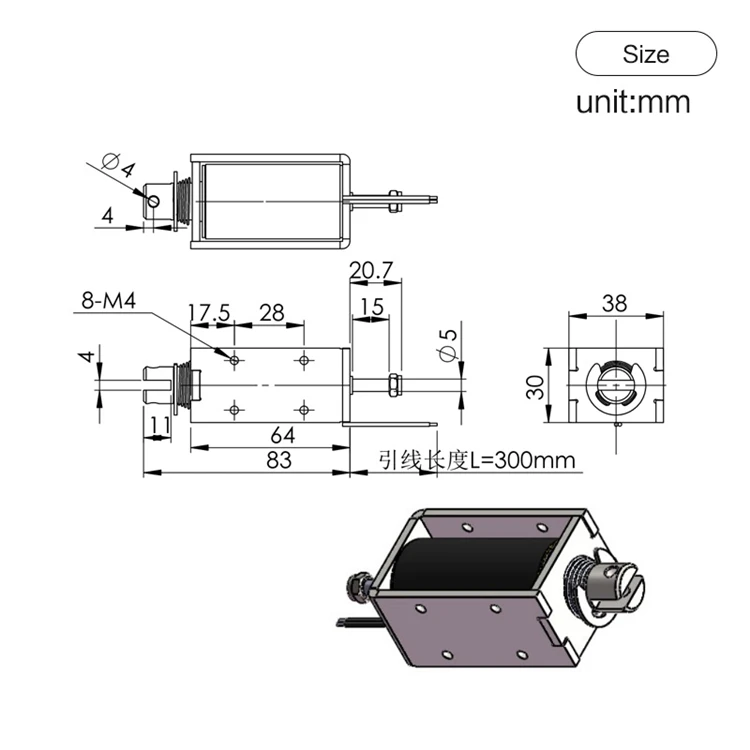

Body size(mm) | 64*38*30mm | Packaging box size(cm) | standard:21*14*13(cm), custom accepted | |||
Product Features
1. Push and pull type optional, linear motion, stroke optional, plunger spring reset (also you can choose not) , Dc power supply, Mini size, standard model voltage have 6v/12v/24v optional, we can custom the voltage as you need.
2.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.

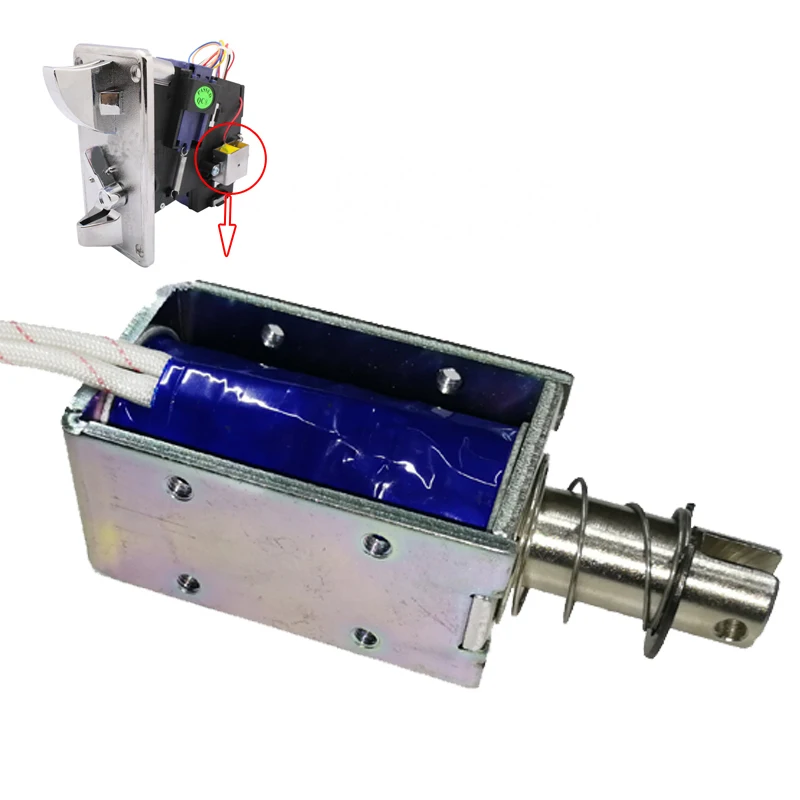

3. The push pull mini frame solenoid are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
4. Open frame structure with mounting holes, accepted custom as you needed.
welcome sent inquiry to Landa
2.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
3. The push pull mini frame solenoid are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
4. Open frame structure with mounting holes, accepted custom as you needed.
welcome sent inquiry to Landa
Details Images
Customer Review
Product Application
Company Information
Zhongshan Landa Technology CO.,LTD
Established in 2008, located in Xiao Lan Town, Zhongshan City, Guangdong Province, Landa technology Co., Ltd.is an enterprise specializing in R&D-ing, producing and selling electromagnet and solenoid. Presently we have 100 staffs, and covers an area of 5500 square.
We're one of the biggest electromagnet/solenoid manufacturer in China. Experienced in designing and producing for 15 years, we passed ISO9001 ISO 14001 ,got CE, ROHS UL certifications. Our products are widely used in the area of automation, suitable to fire doors, marking machines, printers, home appliances, communications equipment, electrically door locks, amusement equipment, medical equipment, automibles etc.
Based on our best quality and service, we have a reputation around the world. We take quality as life, timely delivery,
competitively priced electromagnet/solenoid valve products for global customers.Looking forward to become your trusted long-termpartner and achieve win-win sitution.
We're one of the biggest electromagnet/solenoid manufacturer in China. Experienced in designing and producing for 15 years, we passed ISO9001 ISO 14001 ,got CE, ROHS UL certifications. Our products are widely used in the area of automation, suitable to fire doors, marking machines, printers, home appliances, communications equipment, electrically door locks, amusement equipment, medical equipment, automibles etc.
Based on our best quality and service, we have a reputation around the world. We take quality as life, timely delivery,
competitively priced electromagnet/solenoid valve products for global customers.Looking forward to become your trusted long-termpartner and achieve win-win sitution.
Certifications
Packing & Shipping
FAQ
Q: Are you trading company or manufacturer?
A: We are original factory.
Q:How to choose a solenoid/electromagnet?
A:Following parameters should be provided: voltage(DC/AC), power, current, resistance, stoke, force, dimension limit, force,residual force, duty cycle, etc.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock. It is according to
quantity.
Q:What is your terms of payment?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q:Is there any extra charges if we want you to print our logo or company name on your products or the packaging?
A:There is no extra charges. Please offer us the LOGO files, and we will make it well on your product.
Q:Where is your factory located? How can I visit it?
A:Our factory is located in Zhongshan City, about 1.5 hours from Guangzhou Airport by car.
A: We are original factory.
Q:How to choose a solenoid/electromagnet?
A:Following parameters should be provided: voltage(DC/AC), power, current, resistance, stoke, force, dimension limit, force,residual force, duty cycle, etc.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock. It is according to
quantity.
Q:What is your terms of payment?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q:Is there any extra charges if we want you to print our logo or company name on your products or the packaging?
A:There is no extra charges. Please offer us the LOGO files, and we will make it well on your product.
Q:Where is your factory located? How can I visit it?
A:Our factory is located in Zhongshan City, about 1.5 hours from Guangzhou Airport by car.
