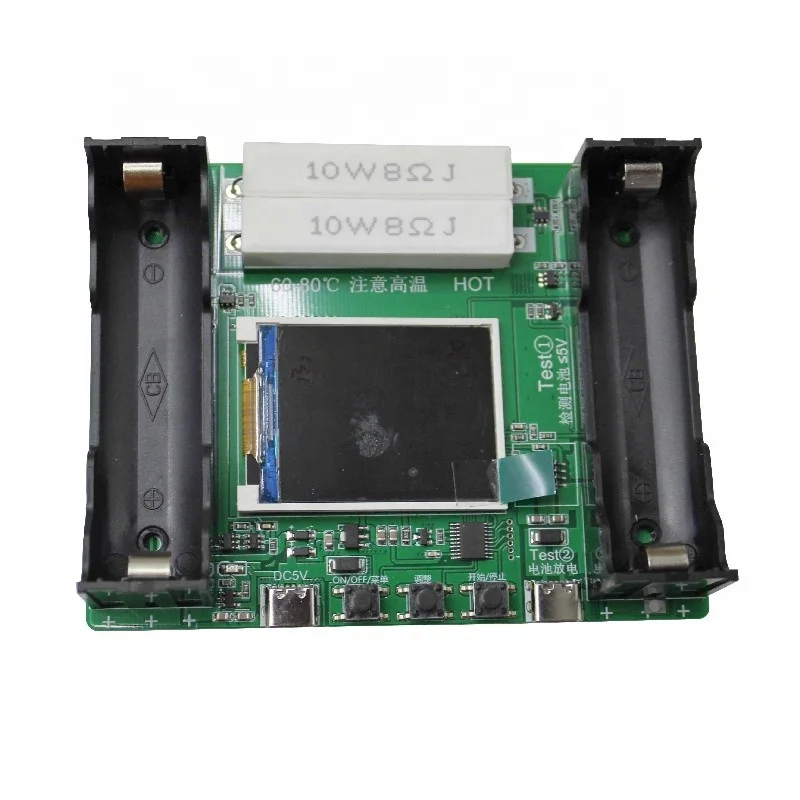

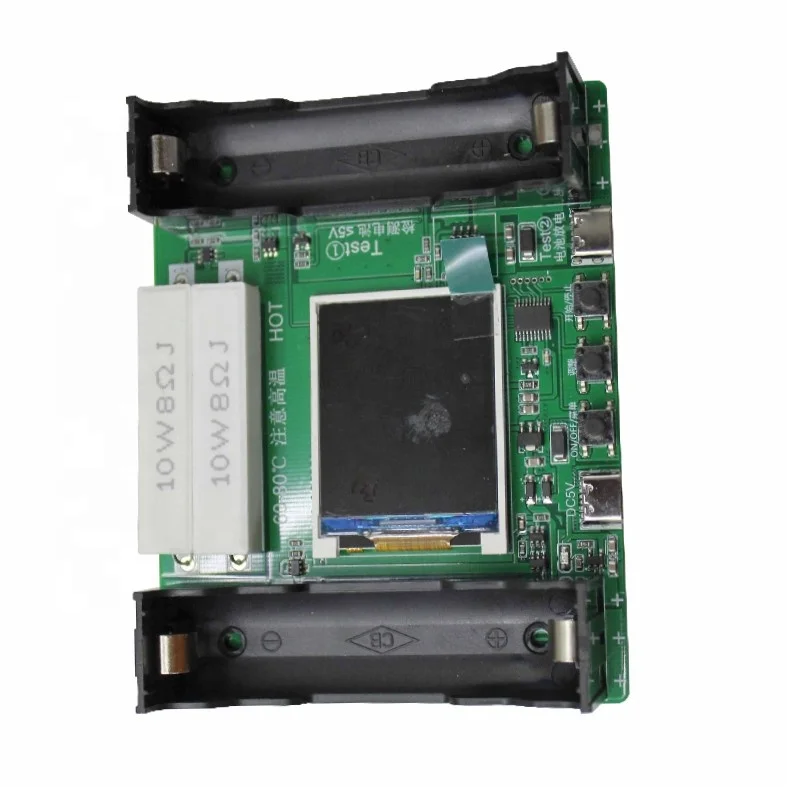

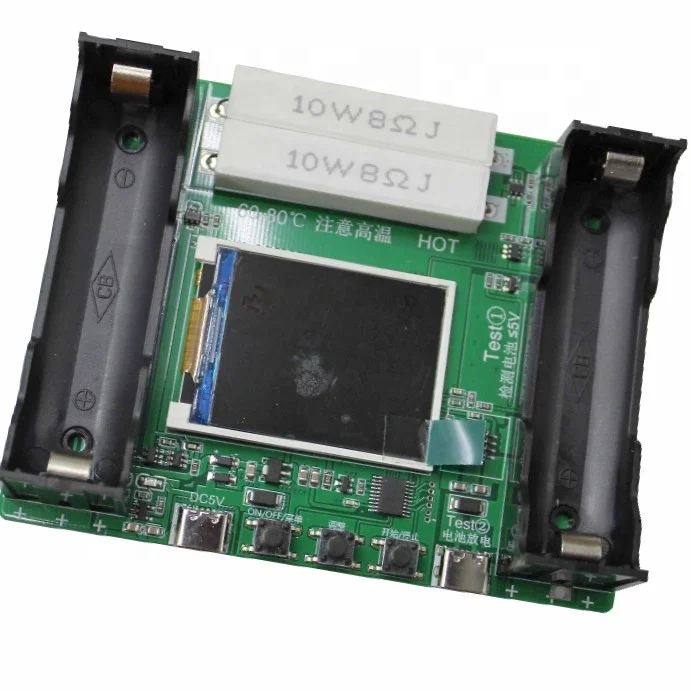

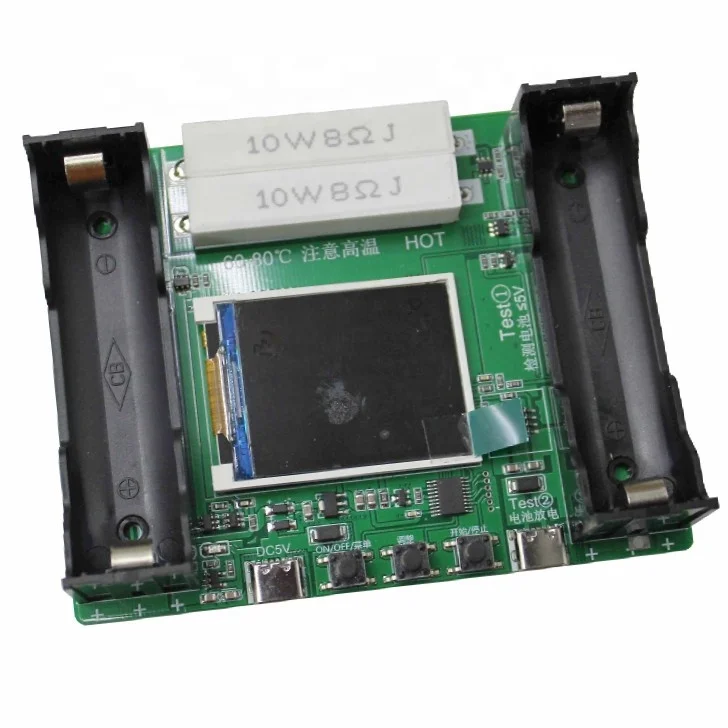

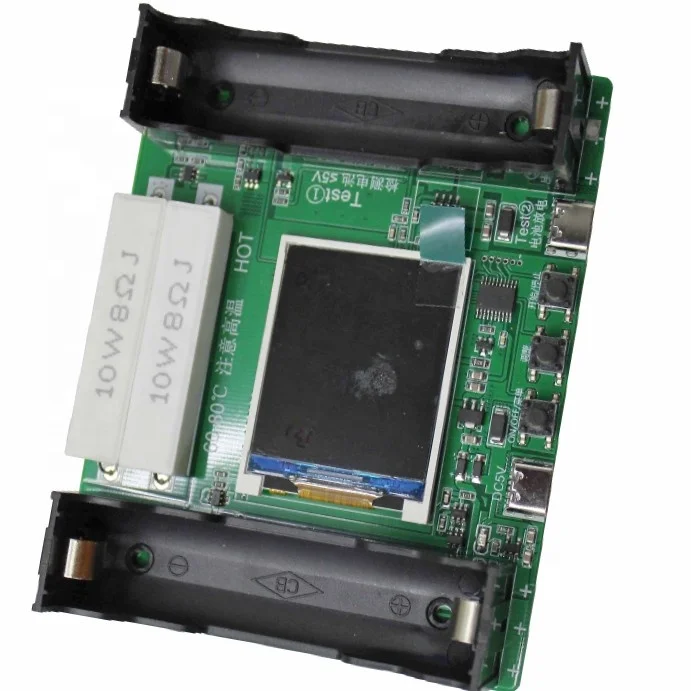

Type-C 18650 литиевая батарея емкостью тестер мАч MWh LCD цифровой экран батареи детектор питания модуль электрические

Working power: 5V power supply or 18650 battery (need to provide their own)

Applicable battery: meet the stop discharge voltage 2.5 ~ 3.5V, 2.8V start ~ 4.2V full battery are applicable

Power supply interface: Type-C interface, power supply line self-provided (C-port phone line)

System language: Chinese (default), English

Number of tests: 1-channel charging and discharging measurement (right side battery position only)

Internal resistance measurement: support, using the two-wire method to test the internal resistance

Charging function: support, full automatic cut off charging (does not support charging of lithium iron phosphate batteries)

Discharge function: support, automatically stop when conditions are met, discharge current is not adjustable

Automatic charging and discharging: support, automatic mode ends when the battery is fully charged

Cycle charging and discharging: support, 1~9 cycles adjustable (only automatic mode support)

Status prompt: support

Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, a total of 11 adjustable grades

Discharge current: two-way resistance, maximum of about 1A current, not adjustable, does not support independent transformation

Charging voltage: special battery charging chip control, maximum of about 1A charging, full charge voltage 4.2V

Power failure save: only save the setting parameters, not save the measurement data

Product size: 110×88×30mm

Package size: 153×100×42mm
