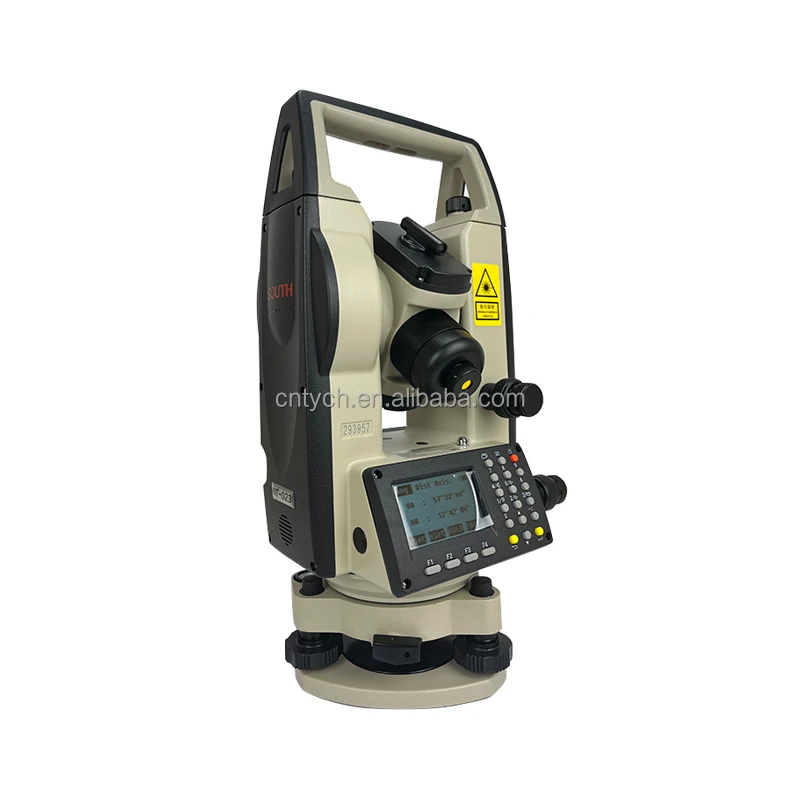

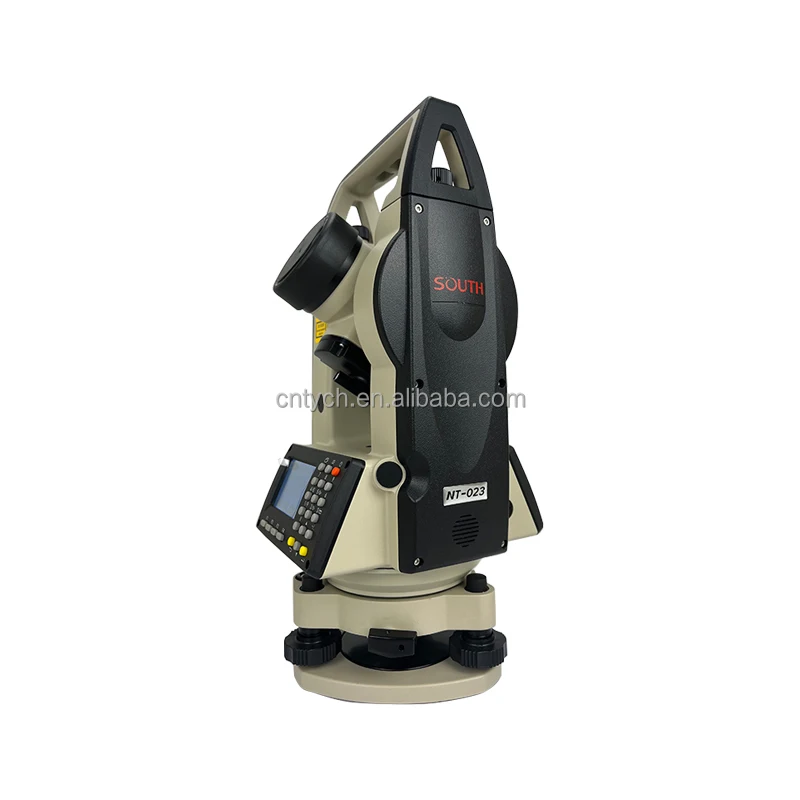

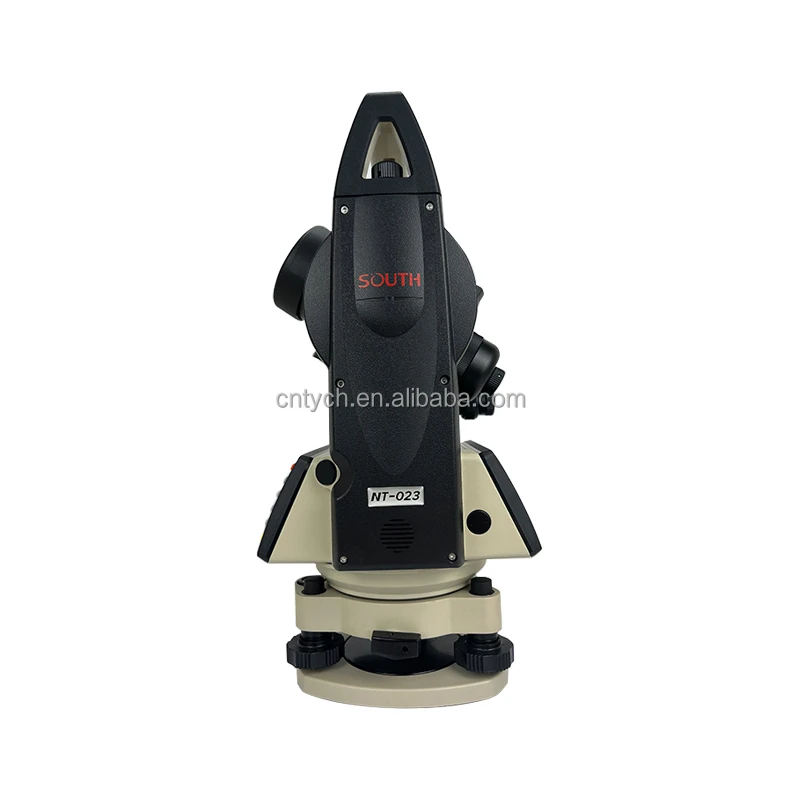

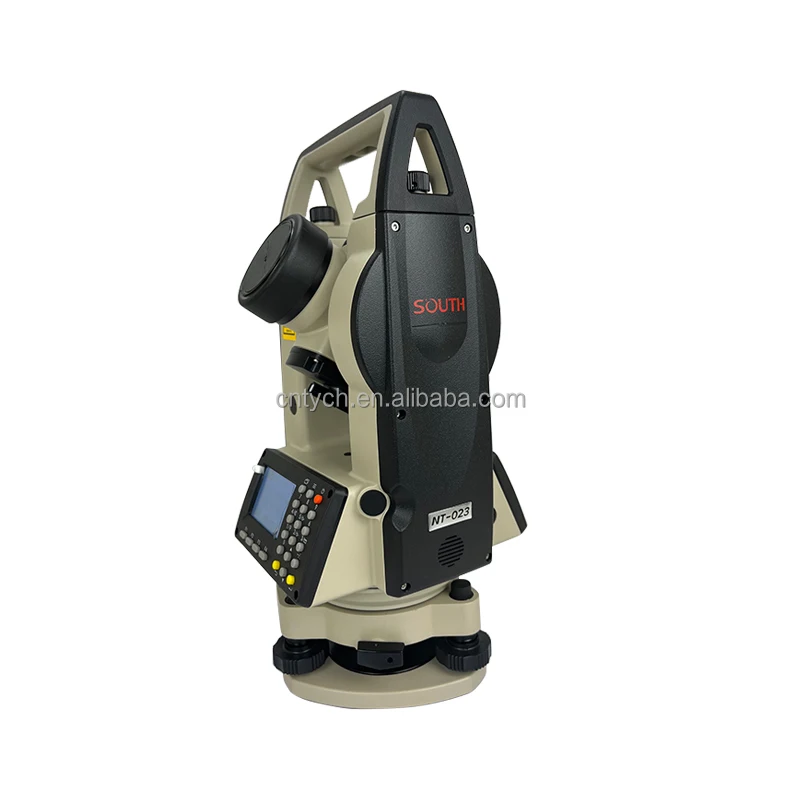

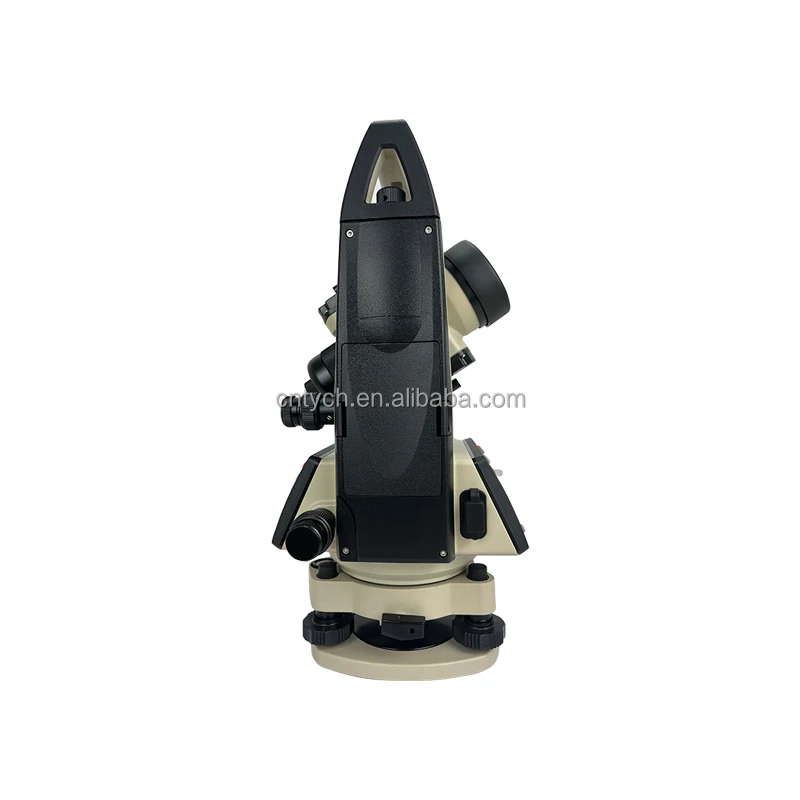

Цифровой теодолит геодезный инструмент NT023 300 м измерение

Цифровой теодолит геодезный инструмент NT023 300 м измерение

Категория: Theodolites >>>
Поставщик: Shandong,Tongyuan,Surveying,And,Mapping,Technology,Co.,Ltd.

Цена:700,00 $ - 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	833.43 $*	875.95 $*
Aug-16-2025	826.56 $*	867.28 $*
Jul-16-2025	693.60 $*	728.36 $*
Jun-16-2025	812.14 $*	853.92 $*
May-16-2025	707.18 $*	742.69 $*
Apr-16-2025	798.78 $*	838.33 $*
Mar-16-2025	791.34 $*	831.12 $*
Feb-16-2025	784.27 $*	823.35 $*
Jan-16-2025	777.19 $*	816.3 $*

Характеристики

ce Measurement (Single Prism)	Max. Range	300m
		Accuracy	±(3mm＋2ppm*D)
		Measure Time	Continuous: 0.35s, Single 1.5s
		Atmosphere Correction	Auto correction by input parameter
		Prism Constant	Auto correction by input parameter
Telescope	Image	Erect
		Magnification	26.5x
		Effective Aperture	152mm
		Resolving Power	3″
		Field of view	1°30′
		Minimum Focus Range	1.5m
		Multiple Constant	100
		Additive Constant	0
		Stadia Accuracy	≤0.40%/L
		Tube Length	155mm
Angle Measurement	Measuring Method	Absolute Encoding
		Dia. of Encoder Disk	79mm
		Minimum Reading	1″
		Accuracy	2″
		Detection Method	Horizontal: Dual, Vertical: Dual
Compensator	Type	Single Axis
		Working Range	±3′
		Accuracy	±3″
Laser Plummet	Accuracy	±1.5mm(@1.5m)
		Spot Diameter	±2.5mm(@1.5m)
		Wave Length	635±20mm
Display Unit	Type	2.6 Inch,160*96 LCD Screen
Power Supply	Battery	7.4V Lithium Rechargeable Battery
Environment	Working Range	﹣20℃ ～﹢50℃
Dimension	Size	165 × 160 × 340 (mm)
Dimension		Weight	4.7kg

NT-023

● Disruptive Innovation in Theodolite 300m Distance Measurement

● Supportable for Long-term Working
● Standard Laser Pointer
● Numeric Keypad
● 2.6 Inches LCD Screen with Illumination
● Angle, Distance and Axes Onboard Program
