Гофрированный ролик для
- Категория: Packaging Machinery Parts >>>
- Поставщик: Jctprint,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3570.92 $* | 3749.38 $* |
| Aug-15-2025 | 3540.53 $* | 3717.84 $* |
| Jul-15-2025 | 2970.45 $* | 3119.52 $* |
| Jun-15-2025 | 3480.46 $* | 3654.80 $* |
| May-15-2025 | 3030.66 $* | 3182.17 $* |
| Apr-15-2025 | 3420.74 $* | 3591.85 $* |
| Mar-15-2025 | 3390.32 $* | 3560.0 $* |
| Feb-15-2025 | 3360.8 $* | 3528.53 $* |
| Jan-15-2025 | 3330.39 $* | 3497.77 $* |
Характеристики
Products Description

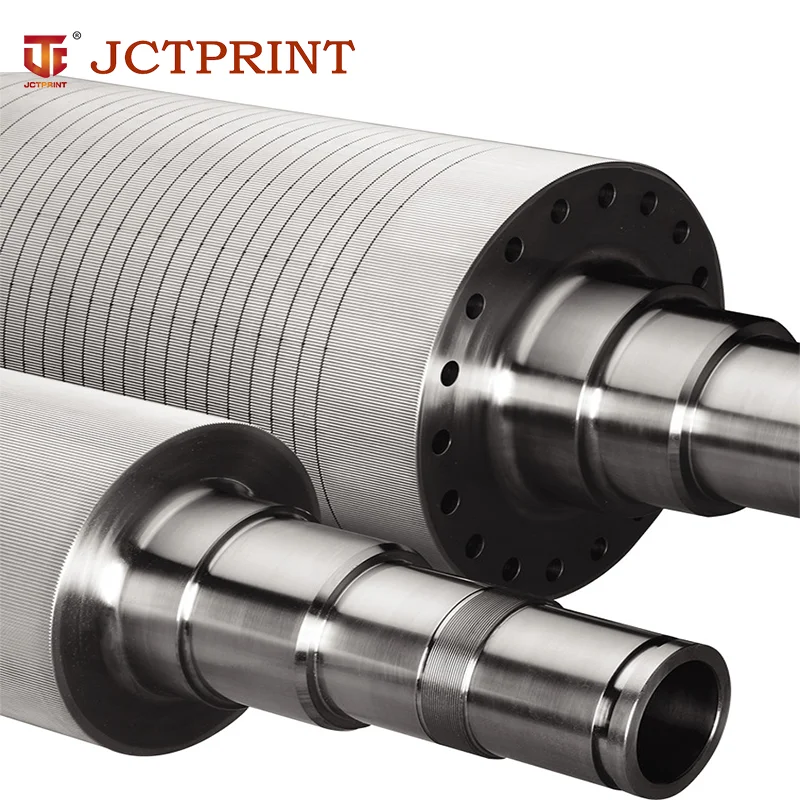

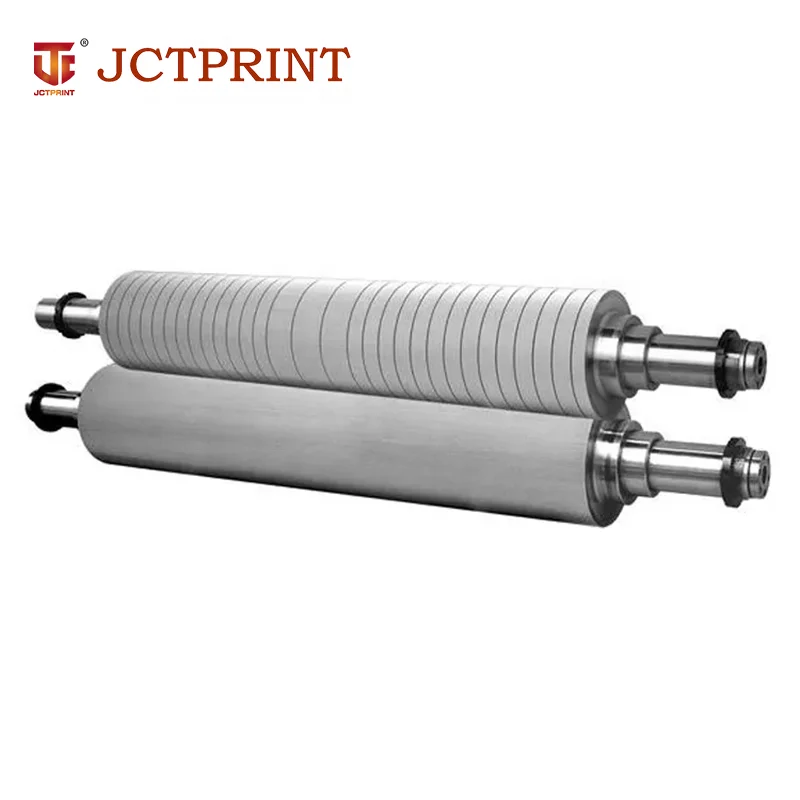

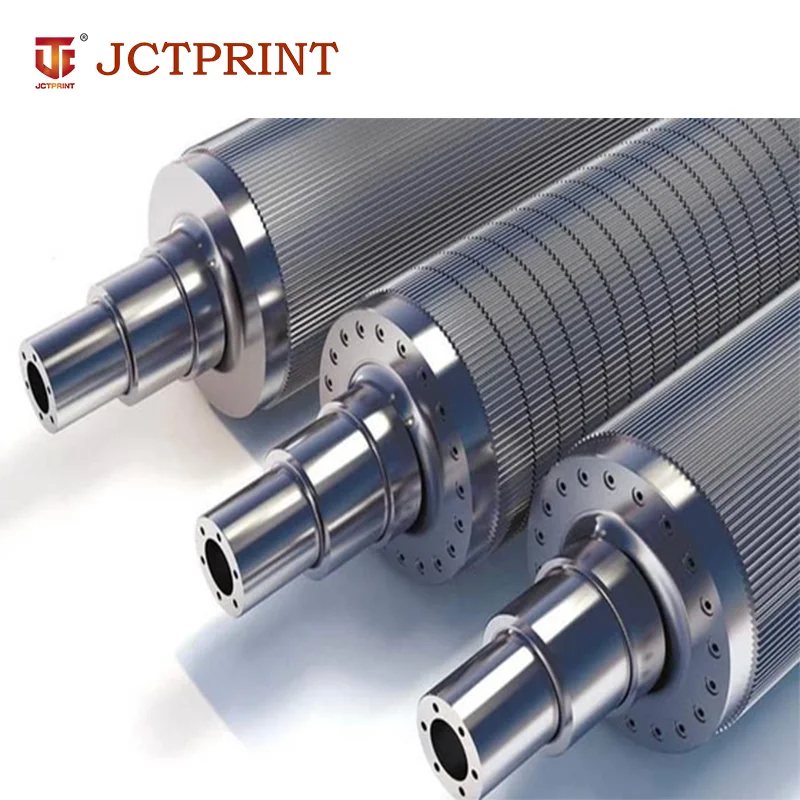

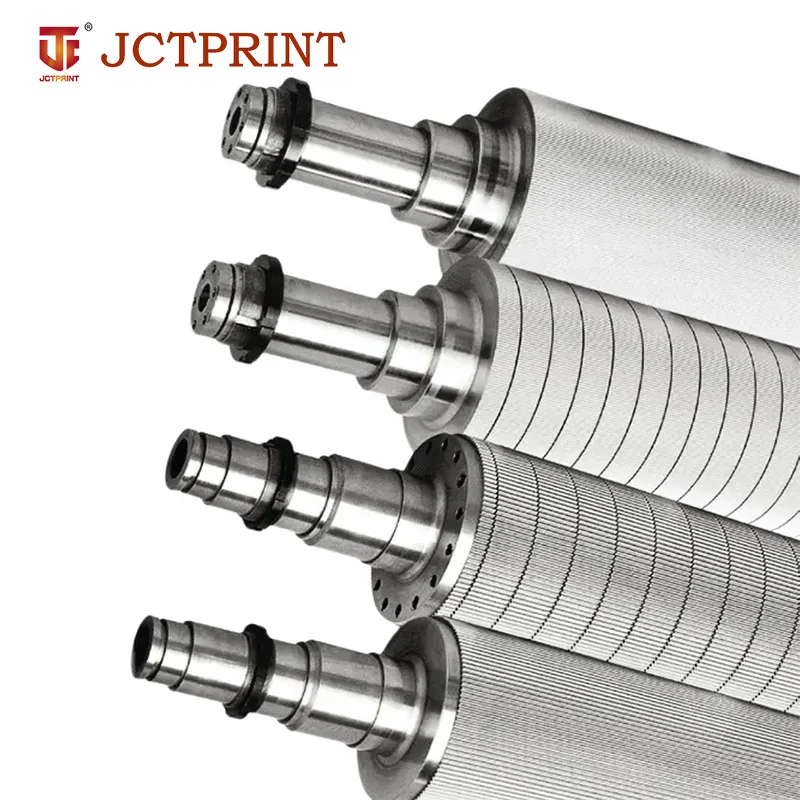

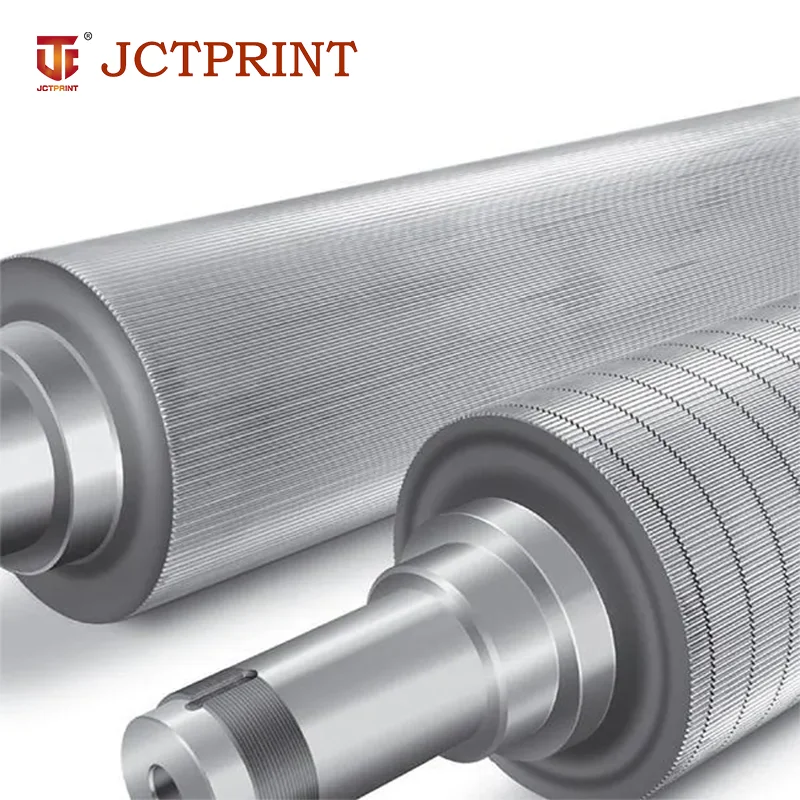

Corrugating roller is an important part of corrugated cardboard production line. Its wear resistance and service life are the main technical indicators to measure its quality and economy, and also directly affect the economic benefits of corrugated cardboard manufacturers.
Product parameters
Corrugated roller corrugated table
Flute | Profile | Height | Teeth space | Number of edges | Shrinkage |
A | UV | 4.5~5.0h/mm | 8.0~9.5t/mm | 34±3 | 1.45~1.52 |
B | UV | 3.5~4.0h/mm | 6.8~7.9t/mm | 41±3 | 1.37~1.47 |
C | UV | 2.5~3.0h/mm | 5.5~6.5t/mm | 50±4 | 1.33~1.41 |
D | UV | 1.1~2.0h/mm | 3.0~3.5t/mm | 93±6 | 1.24~1.36 |
E | UV | 0.6~0.9h/mm | 1.9~2.6t/mm | 136±20 | 1.19~1.25 |
*In addition to the above normal international flute types, special flute types can be customized according to customer needs.
Technical index of corrugating roll
●Material： special 50 CrMo alloy steel forging
●Roll hardness：>HRC58
●Tungsten carbide coating thickness：0.06-0.08mm
●Tungsten carbide coating microhardness：>HV1250-1400
●Bond strength：>75MPa
Our advantage
The shaft head forms an interference fit with the shaft head, and is precisely welded after strict inspection.
The final processing of the corrugated profile is carried out by a high-precision automatic CNC corrugated roller special grinder, and the limit deviation of the teeth is controlled within 0.01mm.
