WAW-600D 32 мм 600KN 60T гидравлический сервопривод автоматический тестер прочности
- Категория: Testing Equipment >>>
- Поставщик: Jinan,Hensgrand,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5950.19 $* | 6248.50 $* |
| Aug-17-2025 | 5900.44 $* | 6195.19 $* |
| Jul-17-2025 | 4950.57 $* | 5198.92 $* |
| Jun-17-2025 | 5800.96 $* | 6090.66 $* |
| May-17-2025 | 5050.93 $* | 5303.72 $* |
| Apr-17-2025 | 5700.44 $* | 5985.41 $* |
| Mar-17-2025 | 5650.78 $* | 5933.77 $* |
| Feb-17-2025 | 5600.95 $* | 5880.66 $* |
| Jan-17-2025 | 5550.11 $* | 5828.70 $* |
Характеристики
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies

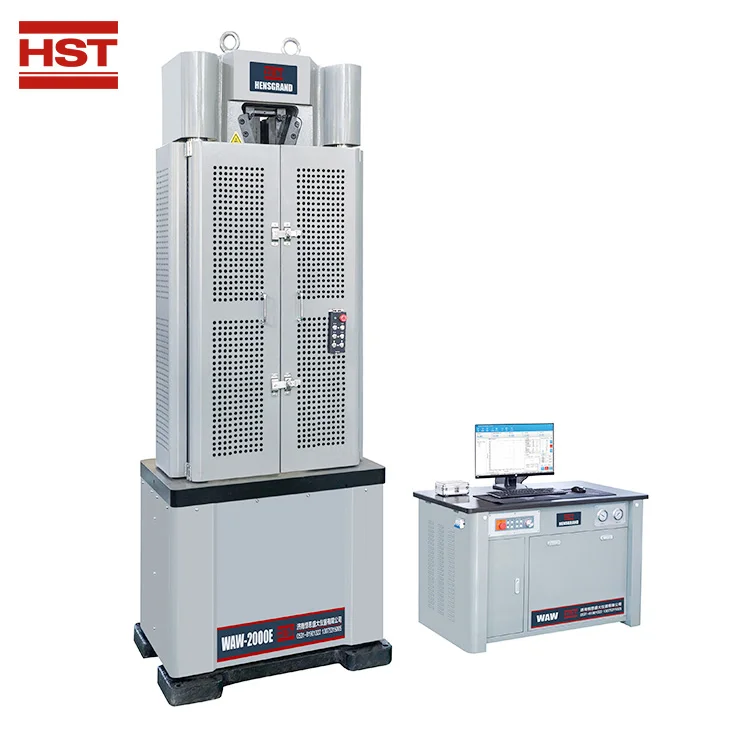

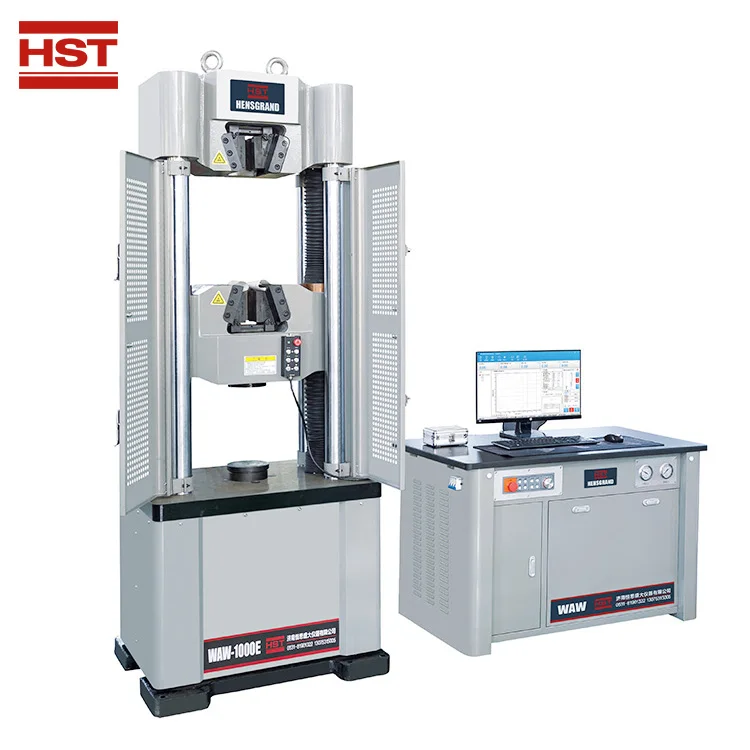

Model | WAW-100D | WAW-200D WAW-300D | WAW-500D WAW-600D | WAW-1000D/E | WAW-1200D | WAW-2000E | |||||
Control Way | Constant stress uniform deformation constant displacement three closed loop control and program control dealing | ||||||||||
Number of Screw drivers | 4 | ||||||||||
Max. Load(KN) | 100 | 200 /300 | 500/600 | 1000 | 1200 | 2000 | |||||
Load Accuracy | ≤± 1%/ ≤± 0.5% | ||||||||||
Load Range | 2%~100%FS | ||||||||||
Load Resolution | 1/300000 | ||||||||||
Deformation Measurement Range | 2%~100%FS | ||||||||||
Deformation Accuracy | ≤± 1% | ||||||||||
Displacement Resolution | 0.01mm | ||||||||||
Testing speeds (mm/min) | 0.1~118 | 0.1~123 | 0.1~123 | 0.1~70 | 0.1~70 | 0.1~70 | |||||
Adjustable crosshead speed(mm/min) | 450 | 450 | 350 | 350 | 320 | 320 | |||||
Displacement Error | ≤±0.5% | ||||||||||
Max. Piston Stroke(mm) | 200 | 200 | 200 | 200/250 | 250 | 250 | |||||
Max. Tension Test Space (mm) | 780 | 780 | 900 | 950/980 | 930 | 1250 | |||||
Max. Compression Test Space | 550 | 550 | 650 | 700 | 640 | 850 | |||||
Column Effective Spacing(mm) | 490 | 490 | 500 | 560/580 | 610 | 800 | |||||
Clamping Method | Hydraulic Automatic Clamp | ||||||||||
Flat Specimen Clamping Width(mm) | 80*80 | 80*80 | 90*90 | 100*100 | 120*110 | 150*120 | |||||
Compression Plate Size | Φ 160mm | ||||||||||
Bending Roller Distance | 450mm | ||||||||||
Width Of Bending Rollers | 120mm | ||||||||||
Power Supply | 3-phase, AC380V, 50Hz (Can Be Customized) | ||||||||||
Company Profile
Recommend Products
50N-5KN Single Column Universal Testing Machine | Electronic Universal Testing Machine with 10kN Pneumatic Grips | Electronic Universal Testing Machine with Hydraulic grips |
Electronic Universal Testing Machine with Temperature Chamber | 50kN -1000kN Hydraulic Dynamic Static Fatigue Testing Machine | 100kN -2000kN Servo Hydraulic Universal Testing Machine |

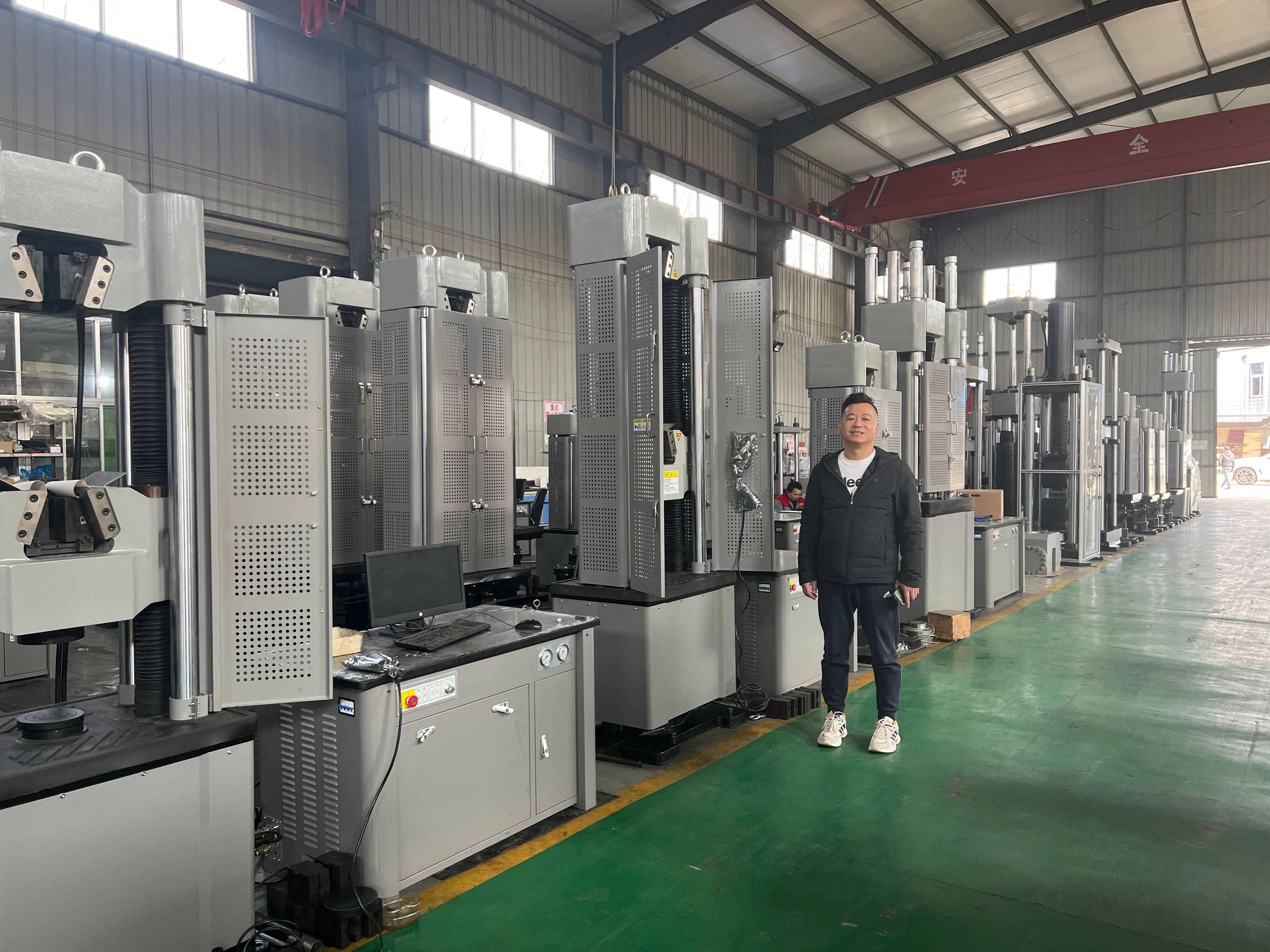

Customer Photos
