Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
Распродажа 2-Дюймовая ОБЖИМНАЯ машина для гидравлических шлангов экскаватор вилочный погрузчик труба высокого давления
- Категория: Rubber Product Making Machinery >>>
- Поставщик: Weifang,JYC,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 940.87 $* | 987.69 $* |
| Aug-16-2025 | 932.58 $* | 979.48 $* |
| Jul-16-2025 | 782.82 $* | 821.65 $* |
| Jun-16-2025 | 916.93 $* | 962.11 $* |
| May-16-2025 | 798.41 $* | 838.38 $* |
| Apr-16-2025 | 901.46 $* | 946.34 $* |
| Mar-16-2025 | 893.34 $* | 938.51 $* |
| Feb-16-2025 | 885.82 $* | 929.69 $* |
| Jan-16-2025 | 877.19 $* | 921.19 $* |
Характеристики
MACHINE Description

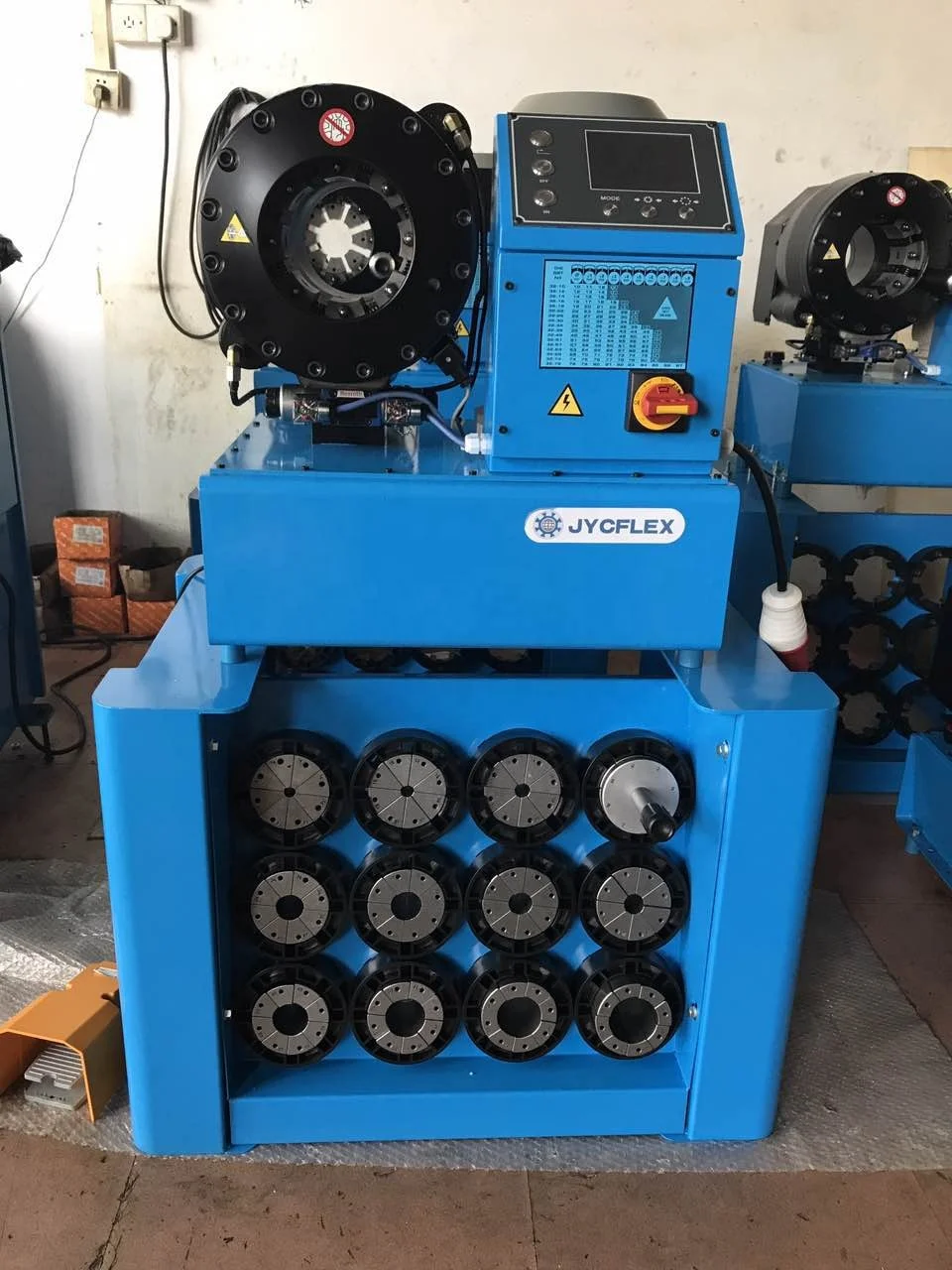

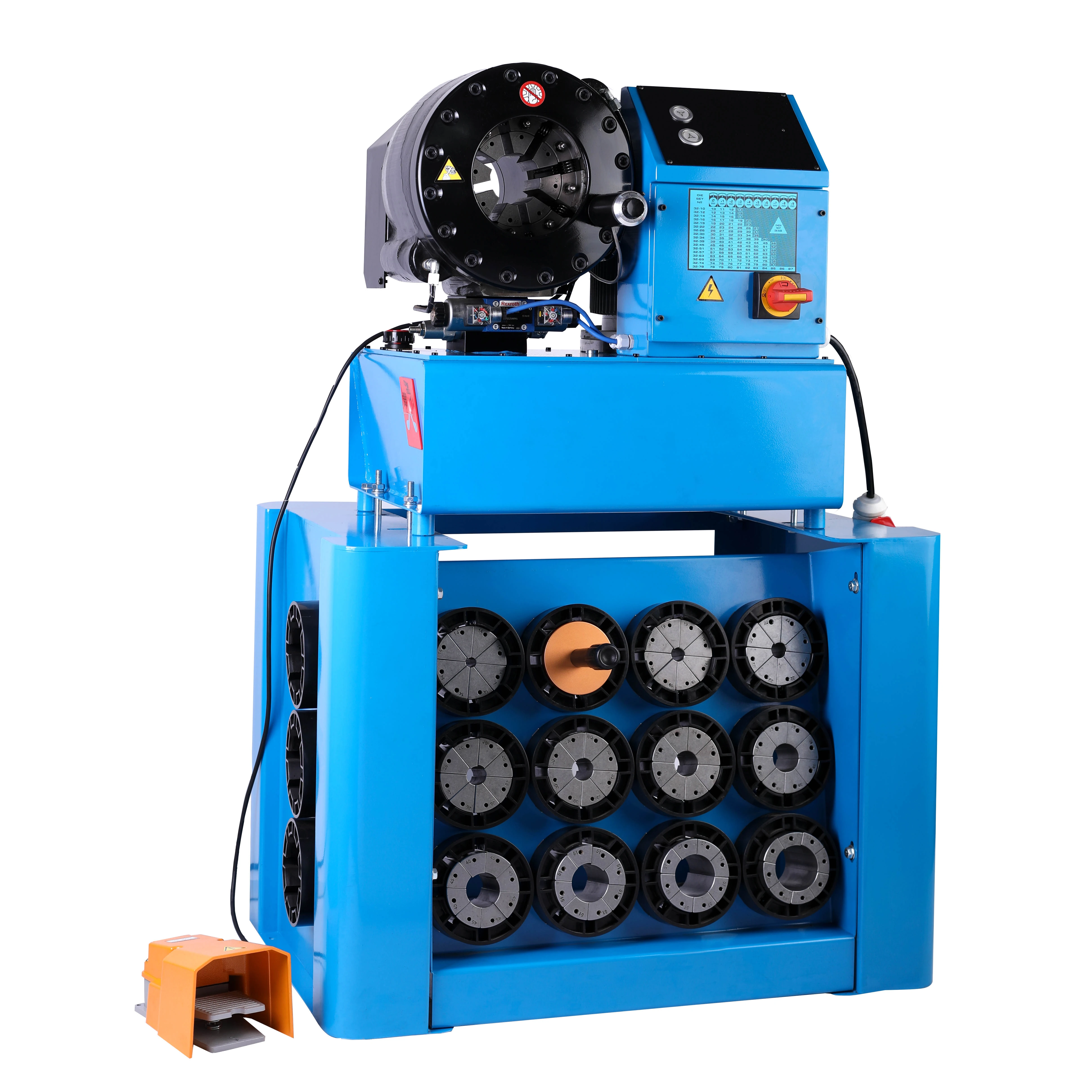

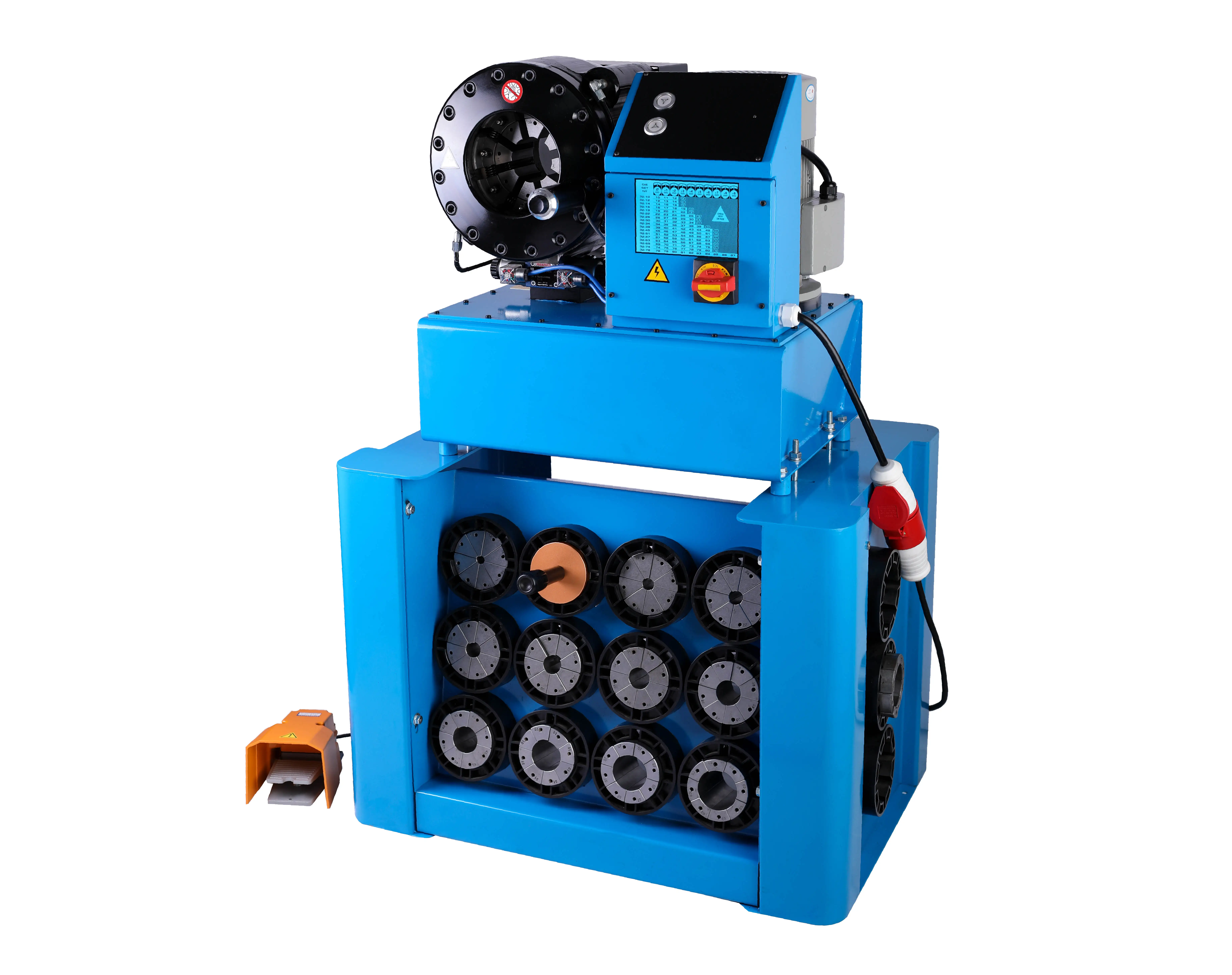

Hydraulic hose crimping machine Application
1.JYC-P32 hose crimping machine is ideal for crimping 51mm 4spiral hose.
2.P32 model crimper is with 200T hydraulic force, with a perfect performance on crimping 2 inch hydraulic hoses.
3.With large working stroke, and with Ergonomic design.Finn power style hose crimper.
4.All parts are imported from famous brand,durable operating performance.
5.With quick change tool, that will definately release your hands and imporve your working effieiceny.

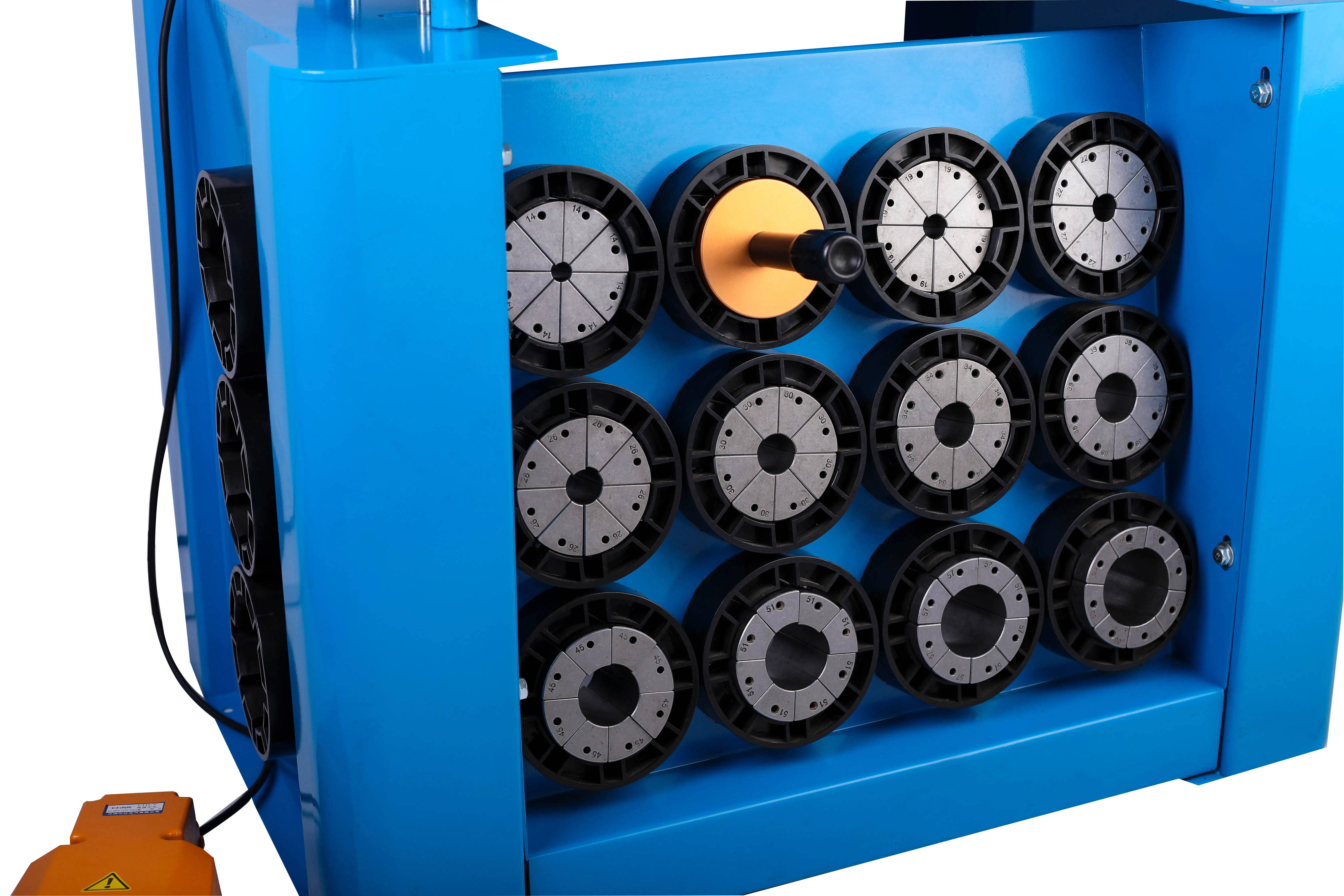

6.Comparing our P32X model, P32 is with dies stand and it will be more easy for you to install and stock your dies.
SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE | ||||||
Production name | hose crimping machine | Machine model | JYC-P32 | |||
Machine type | hydraulic crimping tool | Application | crimping hose | |||
Crimping range | 6-51mm(1/4--2 inch) | System pressure | 31.5Mpa | |||
Crimping force | 3200kN | Operation mode | electrical | |||
Dies set | 13 sets | Die length | 75mm | |||
Dimension | 650*470*620mm | Weight | 290KG | |||
Voltage | 220V/380V | Power | 3KW/4KW | |||
Rated Flow | 10ml/r | Prodection Class | IP54 | |||
P32 Hose Crimping Machine Features
This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
1) Using forge steel machine head, more durabler than general steel.
2) High crimp accuracy which is within 0.01mm.
3) Equipped with a foot pedal, very convenient for free hand operate.
4) Magnetic dies (Patented), very convenient to remove and install dies.
Our enterprise built up for 16 years! Made up of 10 years experienced professional R & D Worker and QC persons. Our hydraulic products will be checked in each step, then double checked by QC, last packed and delivered to warehouse.Our hydraulic crimping machines get the CE certification. Our factory have advanced industrial production process to save expenses,and offer all our customers a good price to win in their market!We have the deep desire to cooperate with you, we are experienced and have the faith to make you satisfaction with our hydraulic products and service. We have customers in UK, US, Russia, Australia,UAE,Kenya,Bolivia,Philippines, etc.Email me or call me directly, we can't wait to see you!
