1000 кг 1500 220 В переменного тока электрические раздвижные ворота автоматические системы для RS-SG02A дверей
- Категория: Gate Operators >>>
- Поставщик: Anhui,Risesat,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 126.91 $* | 129.35 $* |
| Jul-18-2025 | 102.81 $* | 104.92 $* |
| Jun-18-2025 | 124.40 $* | 126.94 $* |
| May-18-2025 | 123.72 $* | 125.65 $* |
| Apr-18-2025 | 98.14 $* | 100.86 $* |
| Mar-18-2025 | 121.77 $* | 123.73 $* |
| Feb-18-2025 | 120.87 $* | 122.66 $* |
| Jan-18-2025 | 119.93 $* | 121.10 $* |
Характеристики
Product Description
Product Paramenters
Features:

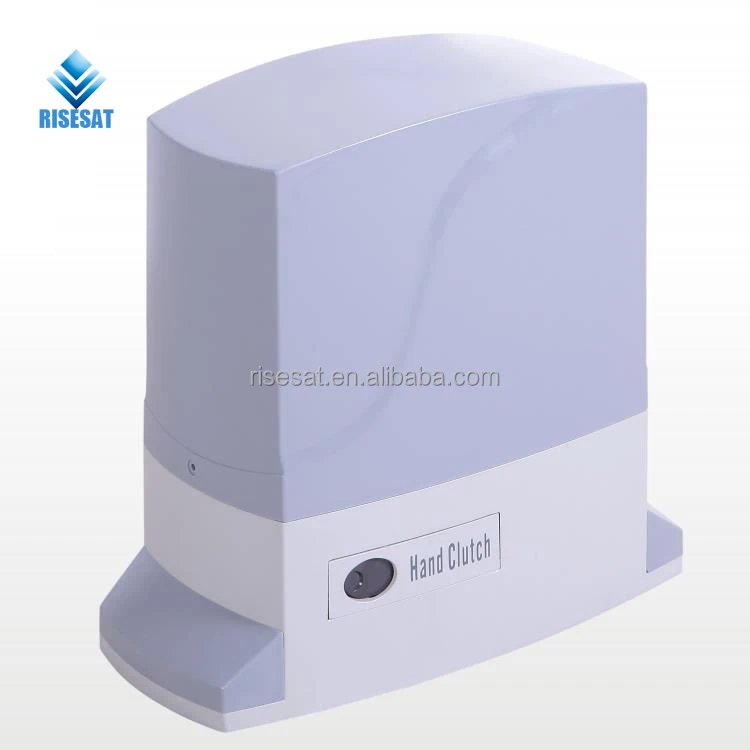

RS-SG01 is the new sliding gate opener.
The open door weighs up to 500kgs and is used in homes .
The motor will be automatically cut off when the temperature reaches the rate value.

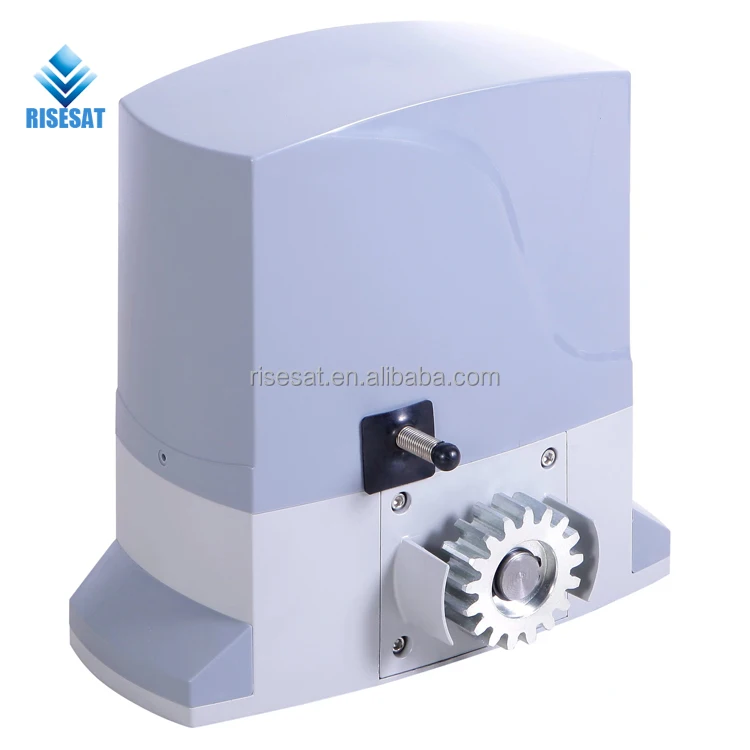

Gear with end cover protection, more secure and reliable.
Turbo worm transmission mechanism, transmission stability.
Auto-shuttering back the door against touching, soft start and soft stop.
Convenient installation, when power failure can open the clutch, manual opening.
Item No. | RS-SG02A | RS-SG02B |
Input voltage | 220V AC / 50Hz | 220V AC / 50Hz |
Motor speed | 1400r/min | 1400r/min |
Output torque | 25N.m | 32N. m |
Motor power | 370W | 550W |
Max. gate weight | 1000kg | 1500N |
Speed | 12m/min | 12m/min |
Limit switch | Spring/Magnetic NO/NC | Spring/Magnetic NO/NC |
Temperature | -45 ~ + 65 degree | -45 ~ + 65 degree |
Noise | <=56dB | <=56dB |
Gear Teeth | 17T/19T | 17T/19T |
