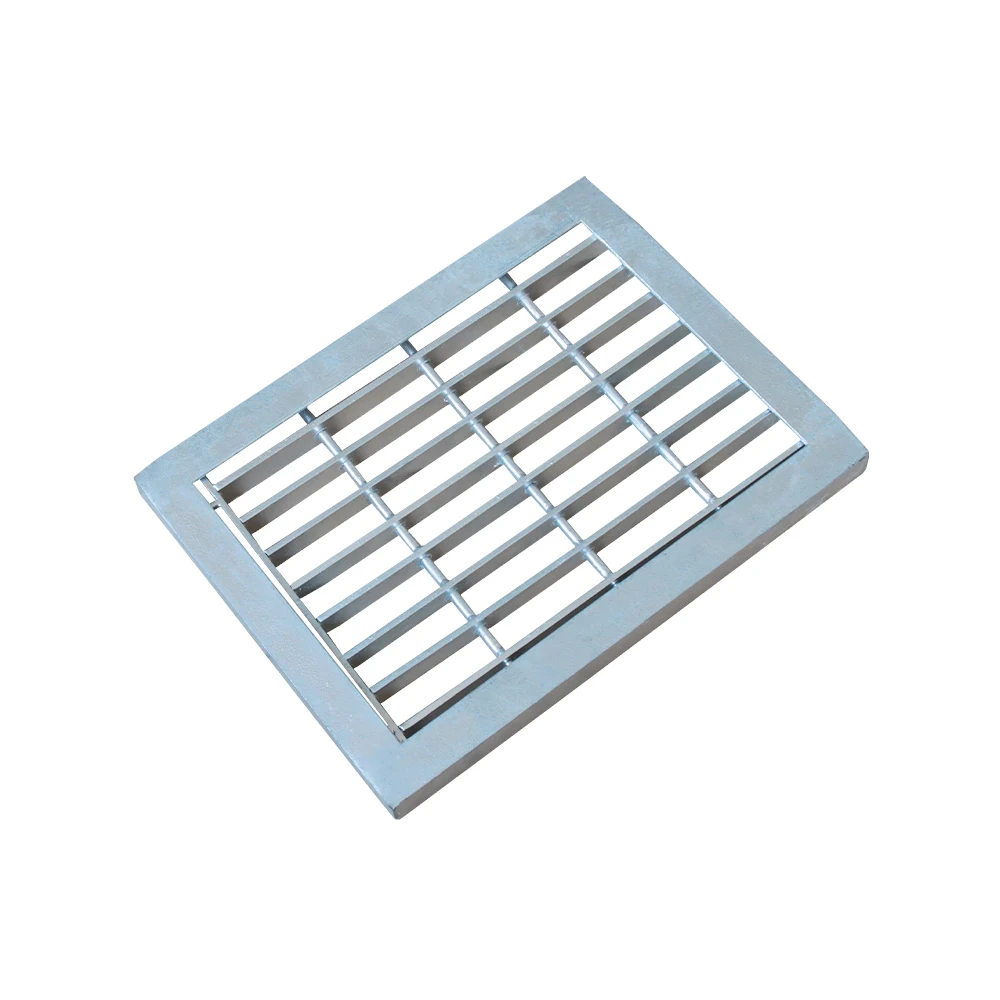

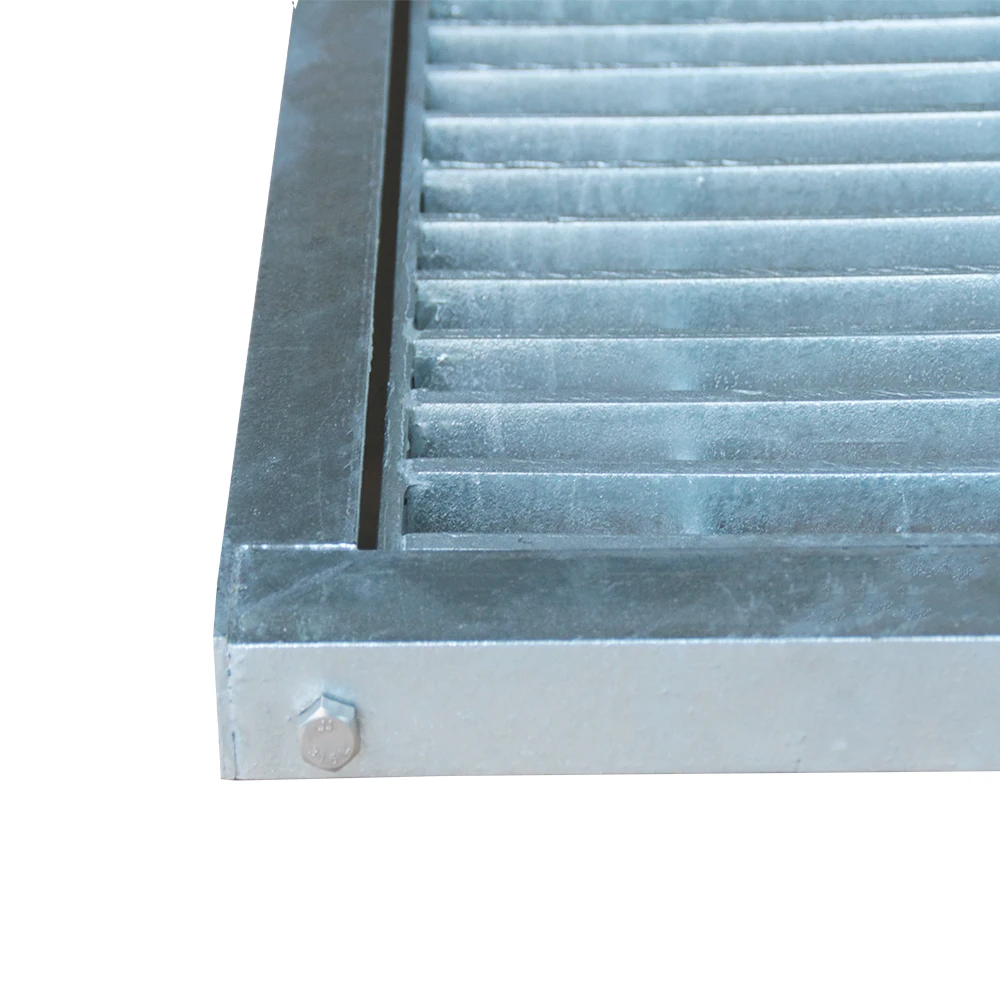

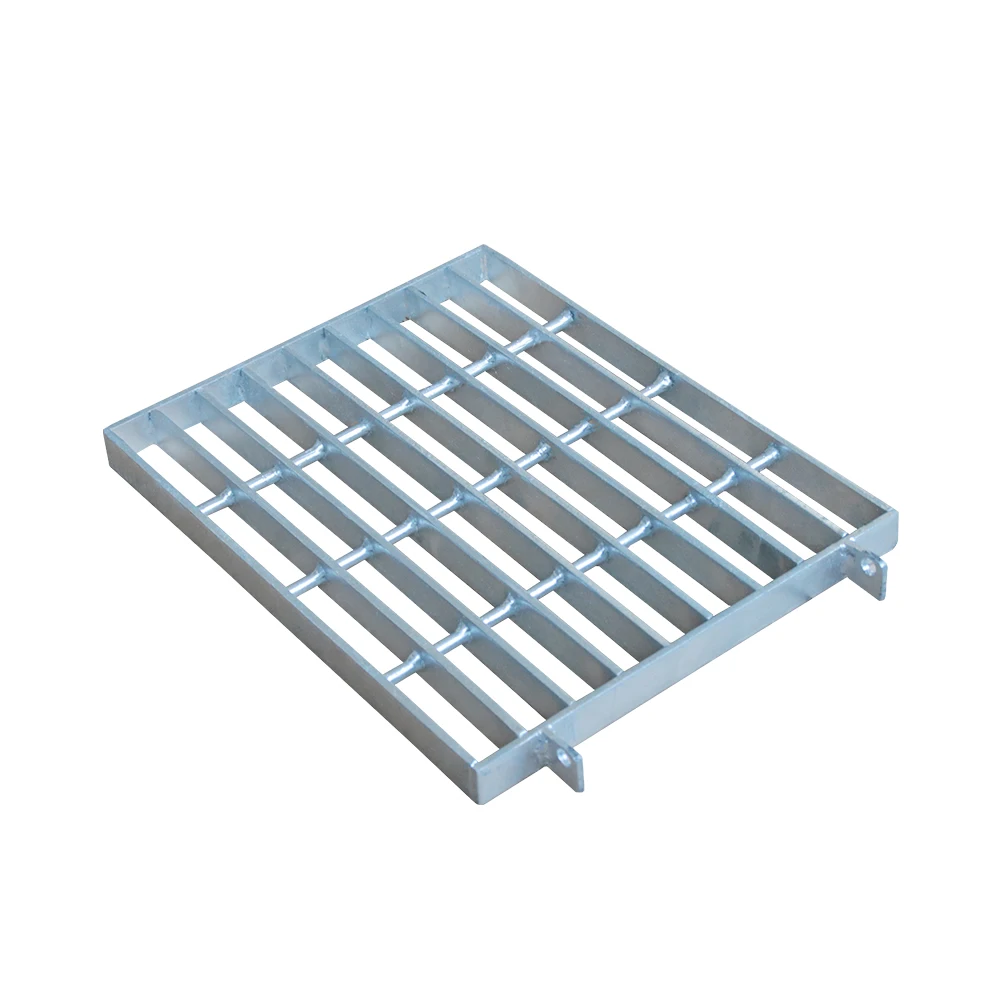

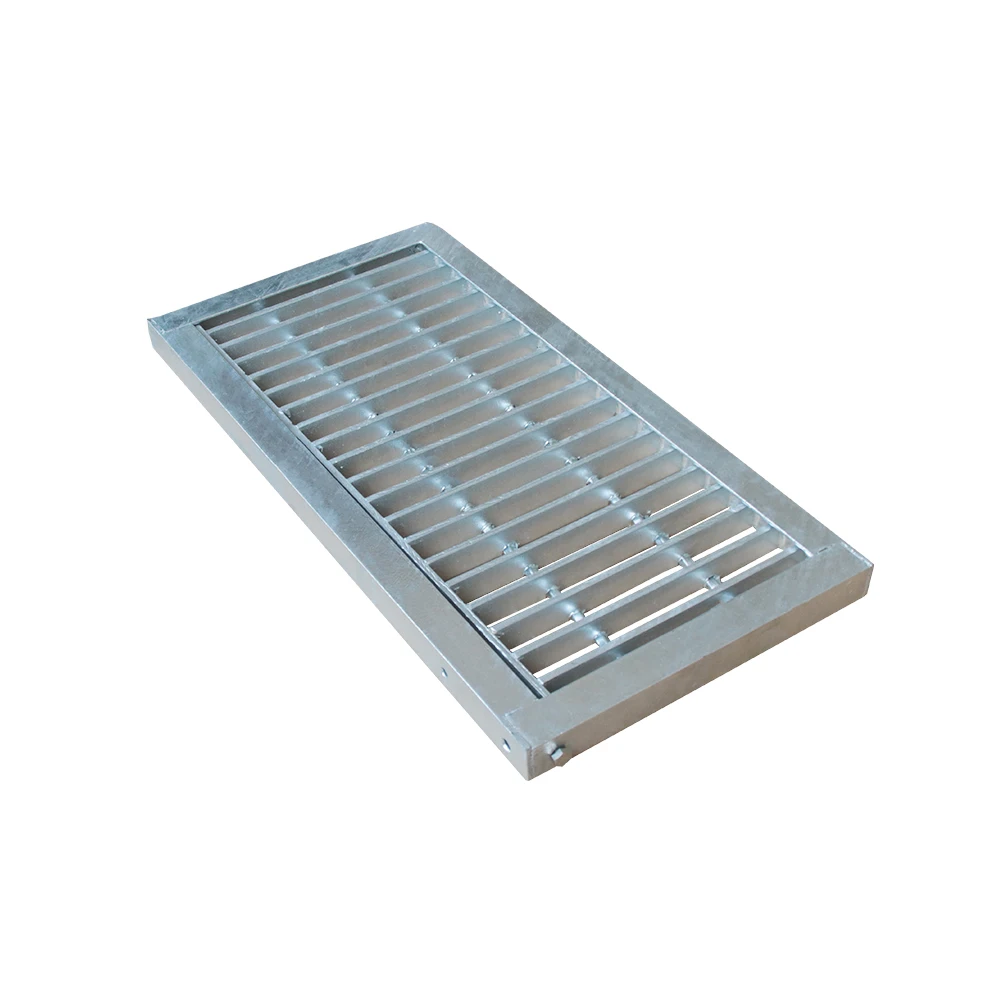

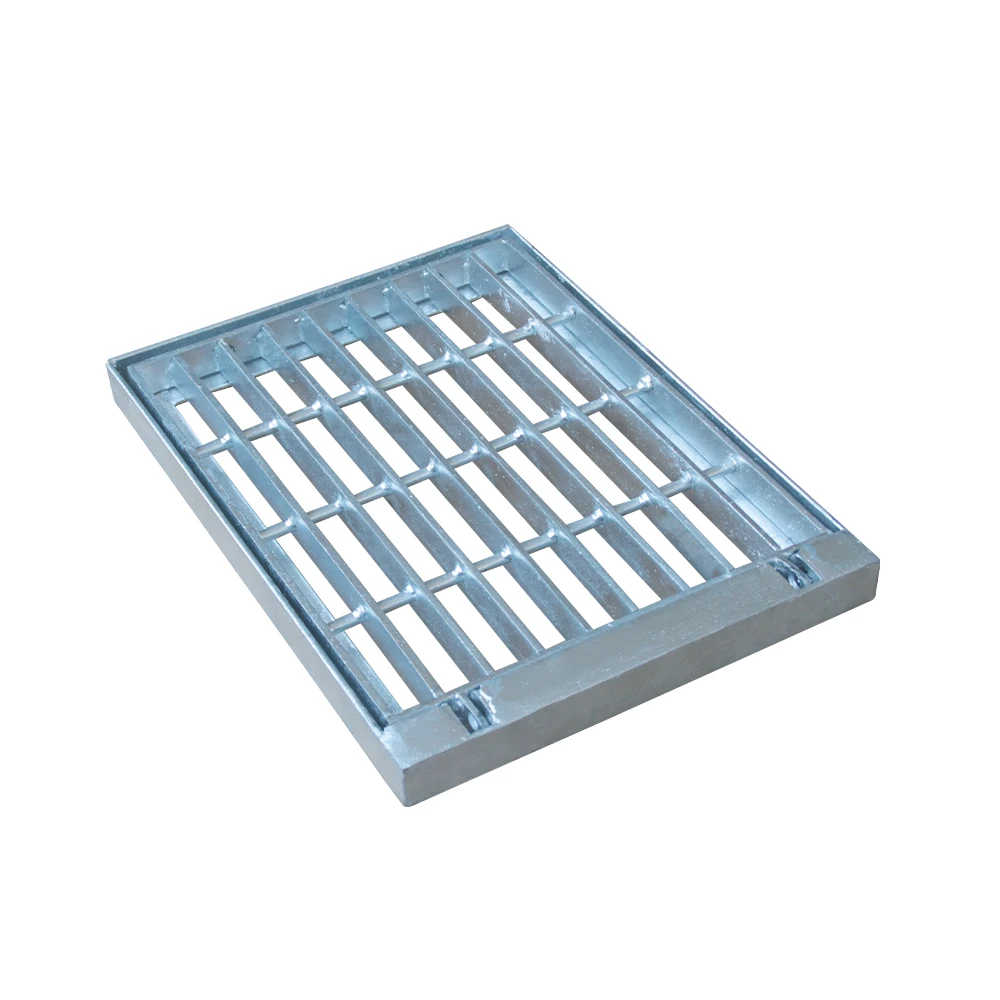

Оцинкованная стальная решетка

Material

Mild Steel (Low Carbon Steel) , S235, S275JR, A36, or Stainless Steel SS304,SS316 etc.

Surface treatment

galvanized, painted, spray coating, P-painting, U-untreated

Grate size

as custom

Bearing bar

width x thickness

25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm

Bearing bar pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm.
US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4",
1 1/4"x 1/4", 1 1/2"x 1/4" etc.

Cross bar pitch

38, 50, 76, 100, 101.6mm or custom

Feature

High strength, sturdy and durable, heavy bearing,anti-slip and excellent anti-corrosion resistance

Customization

Customization according to your own diagram/requirements is acceptable. Please feel free to contact us!

load

L light

H Heavy

XH Super Heavy

Pressure

25 tons/m²

70 tons/m²

140 tons/m²

Be applicable

Cars, pedestrianized campuses, residential areas, parks, underground car parks and kitchens, etc.

Factory areas, general roads, sides of main roads, parking lots and streets where cars under 20 tons pass.

Large-scale parking lots, mines, terminals and airports where heavy trailers, container forklifts and aircraft pass.

Cover model

A

B

C

Clearance

Cover width

Cover width

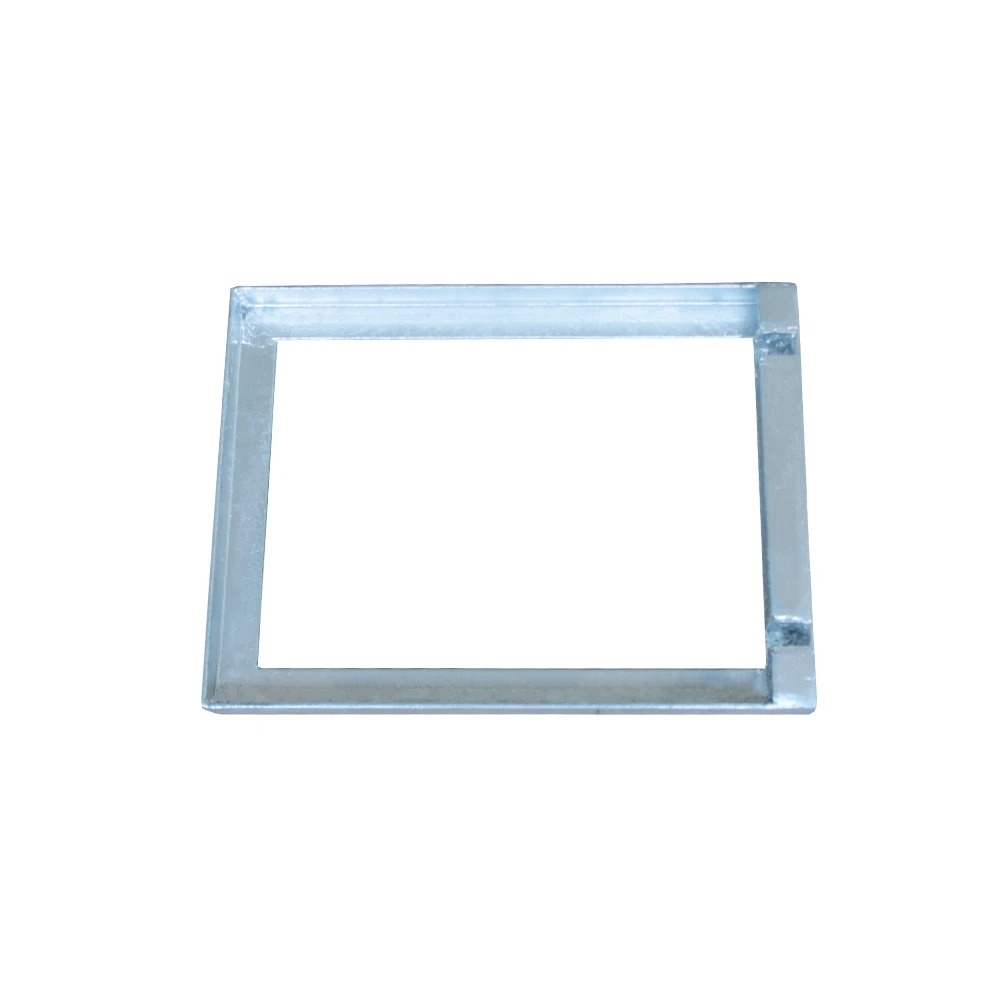

Angle steel

16L

150

145

20

25

20L

200

195

20

25

25L

250

245

25

25

30L

300

295

25

25

15L

150

145

25

30

20L

200

195

25

30

25L

250

245

32

30

30L

300

295

32

30
