Супер сильный стержневой магнит Неодимовый магнитный стержень
US $0.027-$0.99
Оптовая цена Супер неодимовые металлические магнитные материалы магнит прямоугольный Ndfeb
- Категория: Magnetic Materials >>>
- Поставщик: Anhui,Allnatt,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.7 $* | 0.97 $* |
| Aug-16-2025 | 0.83 $* | 0.38 $* |
| Jul-16-2025 | 0.40 $* | 0.36 $* |
| Jun-16-2025 | 0.85 $* | 0.7 $* |
| May-16-2025 | 0.12 $* | 0.54 $* |
| Apr-16-2025 | 0.65 $* | 0.7 $* |
| Mar-16-2025 | 0.26 $* | 0.38 $* |
| Feb-16-2025 | 0.23 $* | 0.56 $* |
| Jan-16-2025 | 0.38 $* | 0.40 $* |
Характеристики
Product Video
Products Description
Material | Neodymium Iron Boron |
Grade BH | Customizable from N28 to N54 (NM-EH ) |
Size | Customizable |
Tolerance | +/- 0.05mm |
Magnetism direction | Thickness, Axial（Customizable） |
Lead Time | 7-15 days |
Sample | Available |
Round Magnet
Sintered Neodymium Iron Boron Magnets or "NdFeB" magnets provides the highest energy product of any material today and are available in a wide range of shapes, sizes and grades.

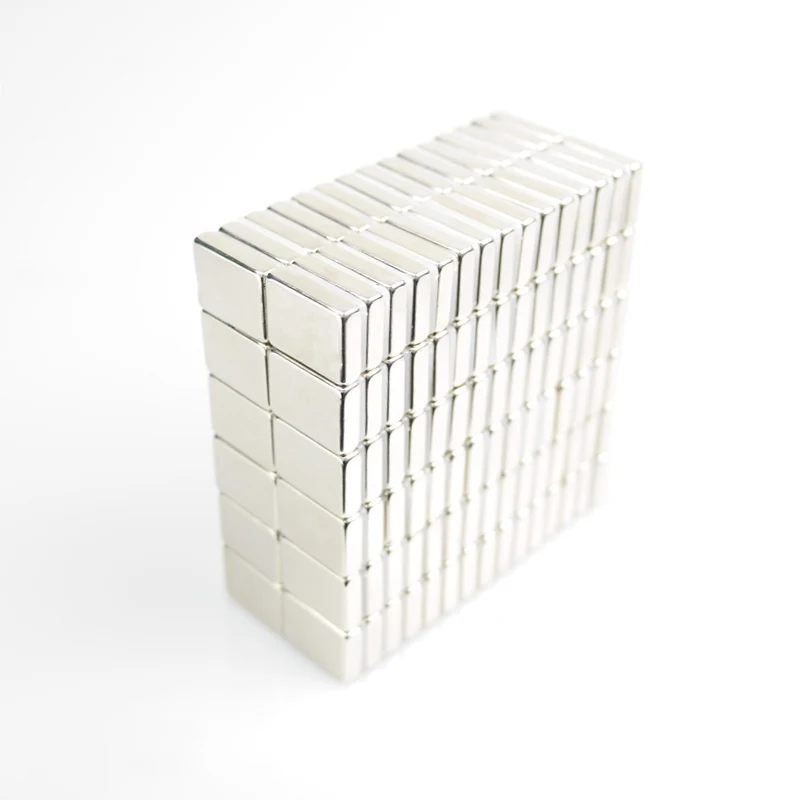

Block Magnet
Neodymium rectangular, block and cube magnets are powerful for their size, with an approximate pull strength of up to 300 lbs.
Block Magnet with Countersunk Hole
Allnatt International is a newly founded trading and manufacturing company offers one-step complete industrial chain from raw material blank, cutting, electroplating and standard packing.
Round Magnet with Countersunk Hole
We provide custom manufacturer neodymium magnets to your exact specifications, just send us your request and we'll help you determine the most cost effective solution for your project.
Sintered Nd-Fe-B Magnet Properties

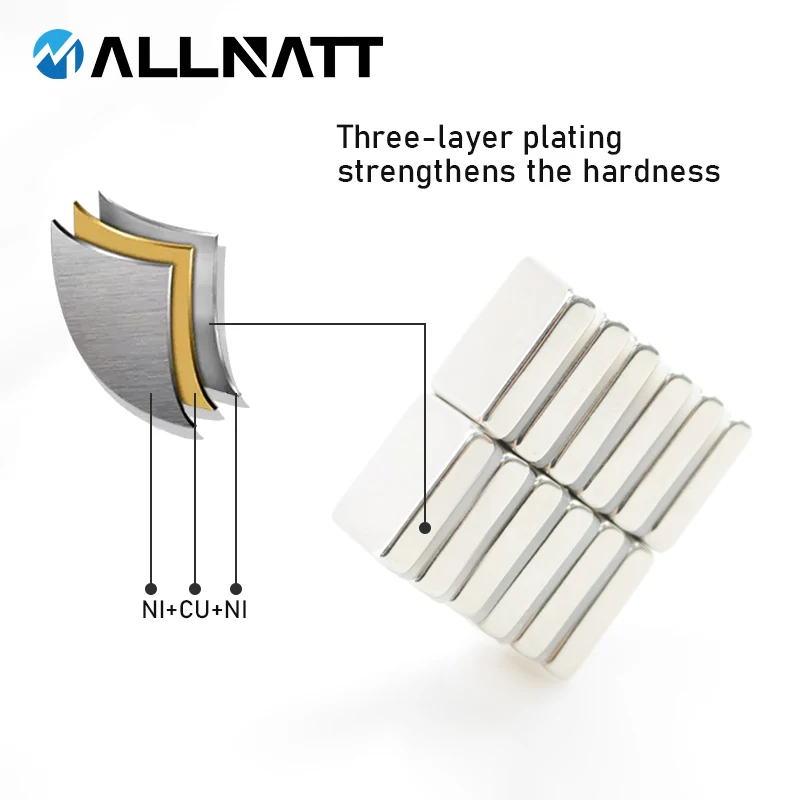

Magnet Plating and Coating Options
The Above Chart is a list and description of common plating options for custom magnets. Why do magnets need to be plated?
❃ Oxidization (Rust)
Nd-Fe-B magnets will oxidize(rust) if left exposed in air. When a plating wears down or cracks, the exposed area will oxidize. An oxidized area will not result in complete degradation of the magnet, only the oxidized area will lose its strength. However the magnet will lose some structural integrity and become more susceptible to breakage.
❃ Durability
Depending on shape, permanent magnet substrate is brittle. A multilayered metal plating like nickel or zinc improves the magnets resistance to chipping and wear, particularly around corners.
❃ Harsh Environments
Plating vary in their tolerance of different harsh chemicals and abrasion. Salt and humidity in regions near the ocean are
commonly overlooked when selecting a plating. Be sure to consider the magnets environment when selecting a plating. The most common type of plating for neodymium magnets Nickel (Ni-Cu-Ni) Intended for indoor use. It has proven to be very resilient when subjected to normal wear and tear. However it will corrode outdoors in prolonged exposure to salt water, salty air, or harsh chemicals.
❃ Oxidization (Rust)
Nd-Fe-B magnets will oxidize(rust) if left exposed in air. When a plating wears down or cracks, the exposed area will oxidize. An oxidized area will not result in complete degradation of the magnet, only the oxidized area will lose its strength. However the magnet will lose some structural integrity and become more susceptible to breakage.
❃ Durability
Depending on shape, permanent magnet substrate is brittle. A multilayered metal plating like nickel or zinc improves the magnets resistance to chipping and wear, particularly around corners.
❃ Harsh Environments
Plating vary in their tolerance of different harsh chemicals and abrasion. Salt and humidity in regions near the ocean are
commonly overlooked when selecting a plating. Be sure to consider the magnets environment when selecting a plating. The most common type of plating for neodymium magnets Nickel (Ni-Cu-Ni) Intended for indoor use. It has proven to be very resilient when subjected to normal wear and tear. However it will corrode outdoors in prolonged exposure to salt water, salty air, or harsh chemicals.
Magnetization Direction
A Magnetic field is an invisible flux moving from one end of the magnet to the other. Shown in Figure1. The flux consists of moving or spinning electrically charged particles invisible to the eye. If the max working temperature meet the requirement, then the permanent magnets can retain the magnetic field for very long time nearly forever. Magnets have potential energy which means that they have the ability to conserve energy. The magnet will display or release some of its conserved energy when pulling towards or attaching to something then conserve or store the energy that the user exerts when pulling it off. Every magnet has a north seeking and a south seeking face on opposite ends. The north face of one magnet will always be attracted towards the south face of another magnet.
Application Fields
Neodymium magnets are strong magnets, normally used for many types of sectors, commercial, industrial & technical applications where strong permanent magnets are required. Due to their high-magnetic strength, components that previously had to be large and heavy can now be miniaturized by using Neodymium magnet material. Common Applications are holding systems requiring very high holding forces, sensors, reed switches, hard disc drives, audio equipment, acoustic pick-ups, headphones & loudspeakers, MRI scanners, magnetically coupled pumps · motors & generators, magnetic tool holders, magnetic bearings, door catches, dental instruments, medical devices, magnetic separators, lifting machinery, crafts & model making, hanging artwork, levitation devices, POP displays, commercial signage, packaging closures, jewelry clasps & more.
About Allnatt International Magnet
Allnatt International is a manufacturer and trading company of Nd-Fe-B permanent magnets.
Our products include Nd-Fe-B finished and unfinished product.
All magnet materials and coatings meet the standards of SGS and RoHS.
Our associated factory makes high quality magnet to meet our customers' different requirements. Our products sell well in over 50 countries and regions all over the world such as America, the EU, the Middle East, Hong Kong, etc. Our factory has adopted the most advanced technology (thin strip alloy and hydrogen decrepitation).
In order to quote you the best price quickly. please provide the following information:
1. Magnet grade, size, coating etc.
2. Order quantity.
3. Attached the drawing if customized.
4. Any special packing or other requirements.
Advantage:
1. All inquiries, questions and emails will be replied within 24 hours.
2. Samples and small quantity are available.
3. Stock material for stable production.
4. Most favorable Price is available.
5. Excellent shipping forwarder to help to delivery magnet.
6. Flexible Payment items include T/T in advance and western union and L/C at sight or others.
7. Quick delivery time & precise size tolerance.
8. Good quality and assured service.
Our products include Nd-Fe-B finished and unfinished product.
All magnet materials and coatings meet the standards of SGS and RoHS.
Our associated factory makes high quality magnet to meet our customers' different requirements. Our products sell well in over 50 countries and regions all over the world such as America, the EU, the Middle East, Hong Kong, etc. Our factory has adopted the most advanced technology (thin strip alloy and hydrogen decrepitation).
In order to quote you the best price quickly. please provide the following information:
1. Magnet grade, size, coating etc.
2. Order quantity.
3. Attached the drawing if customized.
4. Any special packing or other requirements.
Advantage:
1. All inquiries, questions and emails will be replied within 24 hours.
2. Samples and small quantity are available.
3. Stock material for stable production.
4. Most favorable Price is available.
5. Excellent shipping forwarder to help to delivery magnet.
6. Flexible Payment items include T/T in advance and western union and L/C at sight or others.
7. Quick delivery time & precise size tolerance.
8. Good quality and assured service.
FAQ
1.How fast can I get a reply?
You will receive our reply within 15 minutes during our work time 08:00-18:00(UTC-8).
2.Can I get free samples?
Free samples are available at warehouse. However it may take minimum 7 days for production if your size is not on our stock list.
3.Are you able to offer best price?
Magnets are functional products, the cost depend on how strong the materials you need. We believe the most suitable is the best.
4.What are your best lead time?
Immediately shipments are available for stock magnets. For custom order, we need 7-15 days for production.
6.How can you sure that my money is safe with you?
As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group. Payments will not be released to vendor until buyer confirms receipt and good material of delivery.
You will receive our reply within 15 minutes during our work time 08:00-18:00(UTC-8).
2.Can I get free samples?
Free samples are available at warehouse. However it may take minimum 7 days for production if your size is not on our stock list.
3.Are you able to offer best price?
Magnets are functional products, the cost depend on how strong the materials you need. We believe the most suitable is the best.
4.What are your best lead time?
Immediately shipments are available for stock magnets. For custom order, we need 7-15 days for production.
6.How can you sure that my money is safe with you?
As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group. Payments will not be released to vendor until buyer confirms receipt and good material of delivery.
